Electric Motors and STM32 Motor Control: A Clear, Practical Guide for Modern Applications

Electric motors are everywhere. From industrial automation to electric vehicles and smart devices, motors convert energy into motion and, in some cases, convert motion back into energy. Understanding drive types and how to control them with microcontrollers such as STM32 is therefore essential for engineers, product managers, and technology-driven businesses.

This article provides a structured and easy-to-read overview of electric machines, common drive types, key drive unit terminology, and the role of STM32 timers in motion control. At the same time, it is written with Google SEO, LinkedIn marketing, and AI-friendly indexing in mind. Technical depth is balanced with clear language, smooth transitions, and practical examples.

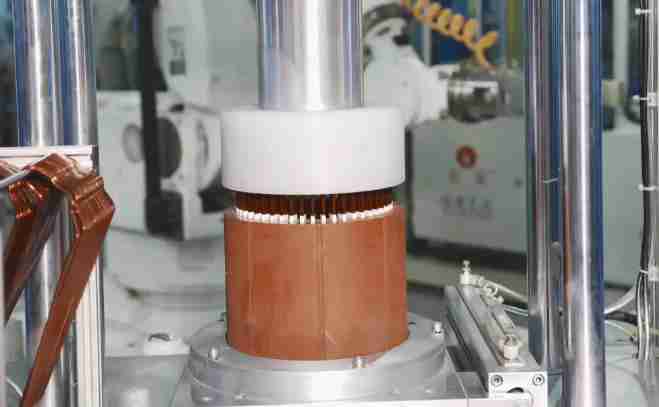

What Is an Electric Motor?

An electric machine is a device that converts electrical energy into mechanical energy. In contrast, a generator converts mechanical energy into electrical energy. Although their working principles are closely related, their purposes are different.

In everyday engineering discussions, especially when working with STM32 microcontrollers, the word “electric drive” usually refers to an electric machine rather than a generator. This distinction helps keep communication clear during system design and software development.

Simply put, motors make things move. Generators make electricity. Together, they form the foundation of modern electromechanical systems.

Motor Classification Overview

Motors come in many forms. As a result, engineers classify them in several ways, depending on design needs and application requirements. Common classification methods include:

• Power source (DC or AC)
• Control method (open-loop or closed-loop)
• Rotor structure
• Speed and torque characteristics
• Application environment

Among these categories, several drive types are especially common in embedded systems and STM32-based control projects. These include brushed DC motors, brushless DC motors, stepper motors, and servo motors.

Brushed DC Motor

A brushed DC electric drive is one of the simplest and most widely used drive types. It converts DC electrical energy directly into mechanical motion using brushes and a commutator.

Key Characteristics of Brushed DC Motors

First of all, brushed DC motors are easy to control. By changing the input voltage, you can directly adjust the electric drive speed. Therefore, they are ideal for basic speed control applications.

In addition, their drive circuits are simple and low in cost. This makes them suitable for learning projects, low-budget products, and applications where high precision is not required.

However, brushed motors also have clear drawbacks. Because brushes make physical contact with the commutator, they create friction, noise, and wear. Over time, this leads to reduced lifespan and higher maintenance needs.

Typical Applications

Because of their simplicity, brushed DC motors are often used in toys, small fans, simple robots, and educational STM32 projects.

Brushless DC Motor (BLDC Motor)

A brushless DC electric drive removes the brushes and commutator found in brushed motors. Instead, electronic control circuits perform commutation. As a result, BLDC motors offer higher efficiency and longer service life.

How Brushless Motors Evolved

Brushless electric drive concepts appeared as early as the 19th century. However, early designs relied on mechanical switching and were difficult to control. Therefore, progress was limited for many years.

In the mid-20th century, the invention of transistors changed everything. Electronic commutation circuits replaced mechanical components, solving many reliability and efficiency problems. Consequently, modern brushless motors became practical and widely adopted.

Advantages of BLDC Motors

• Higher efficiency and lower energy loss
• Reduced noise and vibration
• Longer lifespan due to the absence of brushes
• High-speed operation capability

On the other hand, BLDC motors require more complex control algorithms and dedicated drivers. This is where STM32 microcontrollers play a key role.

Typical Applications

BLDC motors are widely used in electric bicycles, household appliances, drones, and industrial automation systems.

Stepper Motor

A stepper electric drive is an open-loop control electric drive that converts electrical pulse signals into precise angular or linear movement. Each pulse moves the electric drive by a fixed step angle.

Why Stepper Motors Are Popular

Because stepper motors move in discrete steps, position control is straightforward. The final position depends only on the number of pulses sent, while speed depends on pulse frequency.

As a result, stepper motors are easy to control using STM32 timers without complex feedback systems.

Limitations of Stepper Motors

Although stepper motors are simple, they can lose steps under heavy load. Therefore, they are not ideal for applications that require high torque or closed-loop accuracy.

Typical Applications

Stepper motors are commonly used in 3D printers, CNC machines, camera sliders, and positioning platforms.

Servo Motor

A servo electric drive is a closed-loop drive system. It includes a electric drive, a driver, and a feedback device, such as an encoder. Together, these components form a servo system.

Key Features of Servo Motors

First, servo motors offer precise control of position, speed, and torque. Even when the load changes, the system can automatically adjust.

Second, servo motors provide high starting torque and smooth low-speed operation. Therefore, they are ideal for demanding motion control tasks.

However, servo systems are more expensive and complex. As a result, they are usually reserved for high-performance applications.

Typical Applications

Servo motors are widely used in industrial robots, CNC machines, aerospace systems, and advanced automation equipment.

Comparison of Common Motor Types

Motor Type	Main Advantages	Main Limitations
Brushed DC Motor	Simple control, low cost	Noisy, short lifespan
Brushless DC Motor	High efficiency, long life	Complex control
Stepper Motor	Easy position control	Risk of step loss
Servo Motor	High precision, strong torque	Higher cost

This comparison helps engineers choose the right electric drive based on application needs, budget, and performance goals.

Common Motor Terminology

Understanding electric drive specifications is essential for correct selection and control.

Rotational Speed (RPM)
This describes how fast the electric drive shaft rotates.

Output Torque
Torque indicates the electric drive’s ability to drive a load.

Operating Voltage
This is the voltage range where the electric drive works normally.

Rated Current
The current drawn during normal operation.

Stall Current
The current drawn when the electric drive stops under load.

STM32 and Motor Control: A Natural Match

motion control is closely linked to pulse signals. Therefore, STM32 timers play a central role in motion control systems.

In fact, almost all motion control tasks rely on precise timing, frequency generation, and pulse counting. STM32 microcontrollers provide powerful and flexible timer peripherals for this purpose.

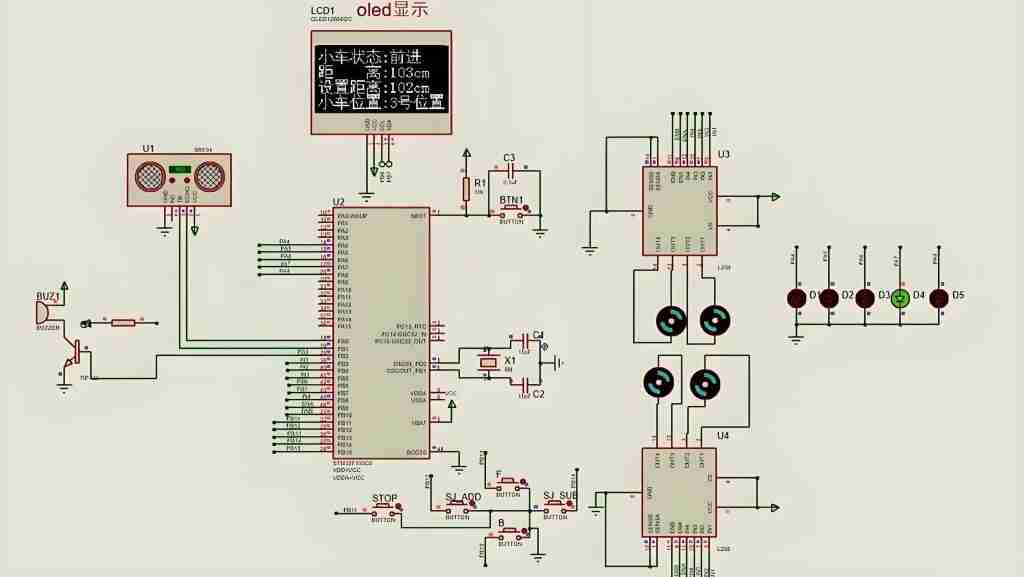

Using PWM to Control DC Motors

For brushed DC motors, speed control is usually achieved using pulse width modulation (PWM). By adjusting the duty cycle, the effective voltage applied to the electric drive changes.

As a result, electric drive speed can be smoothly controlled without changing the power supply voltage.

STM32 general-purpose and advanced timers make PWM generation straightforward and reliable.

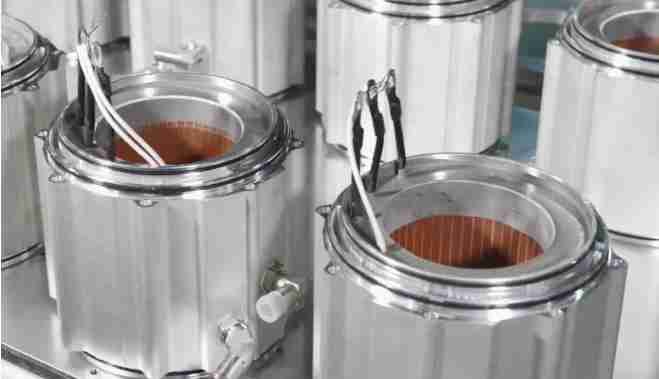

Stepper Motor Control with STM32 Timers

Stepper motors rely on pulse signals. Each pulse causes one step. Therefore:

• Pulse count determines position
• Pulse frequency determines speed

STM32 timers are ideal for generating these pulse trains. Moreover, interrupts and DMA can be used to offload processing from the CPU.

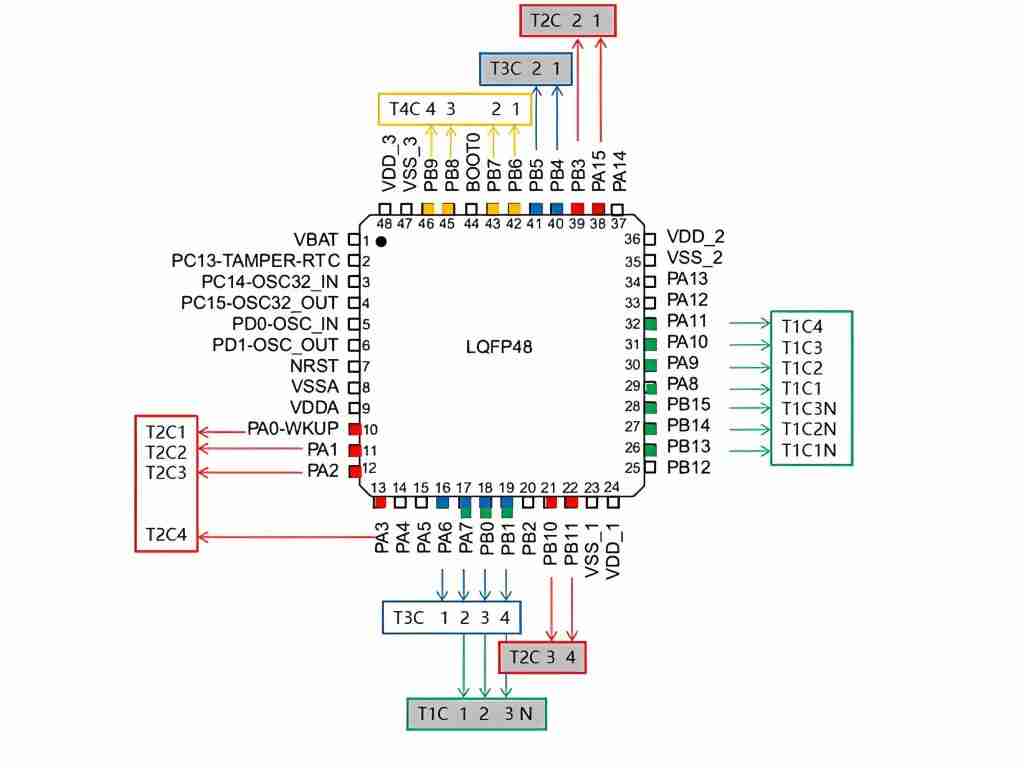

Overview of STM32 Timers

STM32 microcontrollers include several types of timers:

• Basic timers (TIM6, TIM7)
• General-purpose timers (TIM2–TIM5, TIM9–TIM14)
• Advanced timers (TIM1, TIM8)

Each timer operates independently and provides flexible configuration options.

Timer Clock Source and Prescaler

Timers require a clock source. Typically, this comes from the APB bus. When the prescaler is not equal to 1, the timer clock frequency doubles.

By adjusting the prescaler and auto-reload register, engineers can precisely control timer frequency and resolution.

Time Base Unit and Shadow Registers

STM32 timers use shadow registers to ensure stable updates. Values written to prescaler and auto-reload registers take effect only after an update event.

This design prevents glitches and ensures smooth motion control.

Counting Modes of Advanced Timers

Advanced timers support multiple counting modes:

• Up-counting mode
• Down-counting mode
• Center-aligned mode

Center-aligned mode is especially useful for electric drive PWM control because it reduces harmonic distortion.

Input Capture and Output Compare

Input capture allows timers to measure external signals such as speed feedback or encoder pulses.

Output compare and PWM modes are used to generate control signals for electric drive drivers. Advanced timers also support complementary outputs and dead-time insertion.

Break Function and Motor Protection

The break function is critical for electric drive safety. It allows the system to immediately shut down outputs in case of faults, such as overcurrent or clock failure.

As a result, motors and power electronics are protected from damage.

Why This Matters for Modern Products

Today’s markets demand motors that are efficient, reliable, and easy to control. STM32-based motion control solutions offer flexibility, scalability, and strong ecosystem support.

For manufacturers and system integrators, combining the right drive type with robust STM32 control leads to better performance and faster development cycles.

Conclusion

Electric motors are at the heart of modern technology. From brushed DC motors to advanced servo systems, each drive type serves a specific purpose.

At the same time, STM32 microcontrollers provide powerful tools for precise and efficient motion control. By understanding electric
