Axial Flux Motor Performance Comparison

Revealing the Relationship Between Torque, Efficiency, and Size

Introduction

Axial flux motor performance is becoming a key topic in modern electric motor design. As industries demand higher torque, better efficiency, and smaller form factors, traditional radial flux

motors are reaching their limits.

Axial flux motors (AFMs), however, offer a new solution. Thanks to their unique magnetic structure, they deliver higher torque density, improved efficiency, and a more compact size. Therefore, they are increasingly used in electric vehicles, aerospace systems, and high-end industrial equipment.

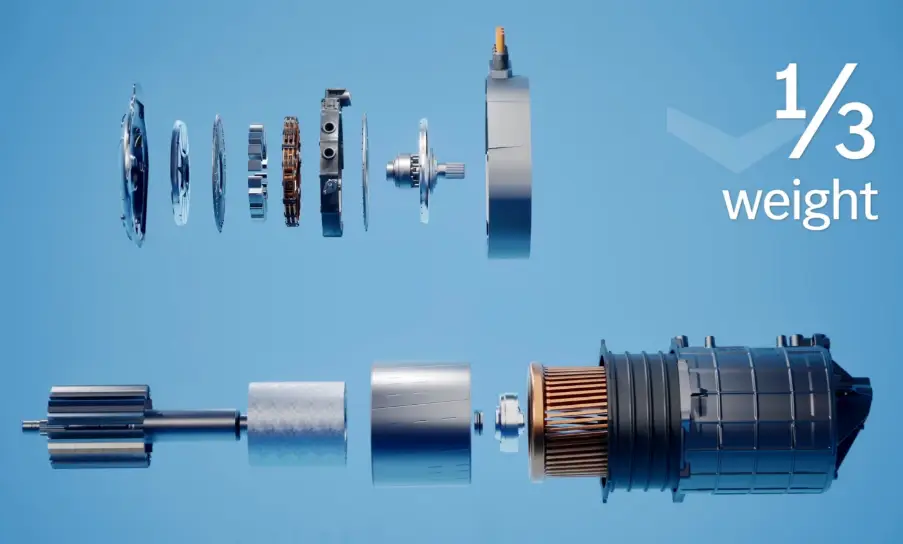

In this article, we compare axial flux motors with conventional radial motors. More importantly, we explain how torque, efficiency, and size are closely connected—and why axial flux technology is changing motor design.

How Axial Flux Motors Work

Unlike radial motors, where magnetic flux flows outward from the shaft, axial flux motors guide magnetic flux along the motor’s axis. As a result, the magnetic path becomes shorter and more direct.

Because of this structure:

• Magnetic losses are reduced

• Power density increases

• Cooling becomes more effective

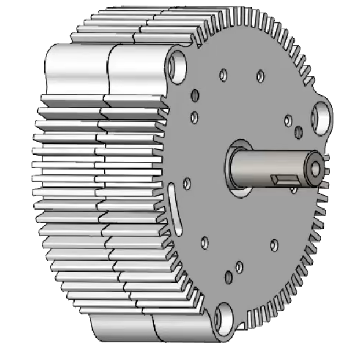

In addition, the disc-shaped layout allows engineers to design motors that are both thin and powerful.

Structural Advantages of Axial Flux Motors

Compact Motor Design

First of all, axial flux motors are much shorter in length. This compact structure makes them ideal for applications where installation space is limited.
For example, electric vehicles and aerospace systems benefit greatly from reduced motor height and weight.

Optimized Magnetic Circuit

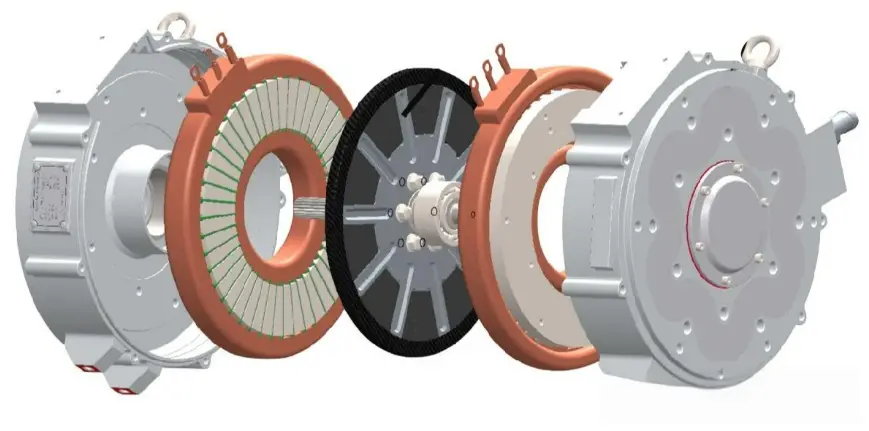

At the same time, axial flux motors use advanced magnetic layouts. Permanent magnets are carefully arranged to maximize torque output while maintaining high efficiency.
As a result, the motor can deliver more power without increasing size.

Axial Flux Motor Torque Performance Comparison

High Torque Density

Torque density is one of the strongest advantages of axial flux motors.
In fact, multiple studies show that axial flux motor torque density can be 30% to 50% higher than that of comparable radial motors with the same volume.

Because the magnetic field acts over a larger effective radius, torque production becomes more efficient.

Fast Dynamic Response

Moreover, axial flux motors respond faster to load changes. This makes them especially suitable for:

• Electric vehicle acceleration

• Robotics

• High-performance drive systems

In these applications, instant torque delivery is critical.

Axial Flux Motor Efficiency Advantages

High Operating Efficiency

Another key aspect of axial flux motor performance is efficiency.
Due to a smaller air gap and reduced magnetic losses, AFMs maintain high efficiency across a wide operating range. In many cases, efficiency can exceed 95%, especially at low speed and high torque.

Superior Thermal Management

Equally important, the flat geometry of axial flux motors provides a larger surface area for heat dissipation.
Therefore, heat is removed more effectively, which helps the motor stay within its optimal efficiency range and extends service life.

Axial Flux Motor Size and Weight Comparison

Space-Saving Integration

Because axial flux motors are thinner, system designers gain more flexibility. This is particularly valuable in electric vehicles, where space must be shared with batteries, power electronics, and cooling systems.

Lightweight Construction

Furthermore, many axial flux motors use lightweight materials such as aluminum alloys or composite structures.

By reducing overall motor weight, vehicles can achieve better energy efficiency and longer driving range.

Axial Flux Motor Application Examples

Electric Vehicles

Many high-end EV manufacturers are actively exploring axial flux motor technology. The reason is clear: higher torque density and compact size allow better performance without increasing vehicle weight.

Aerospace and eVTOL

In aerospace and electric aviation, weight and size are critical.
Because axial flux motors offer both high torque and low mass, they are becoming a preferred choice for drones and electric aircraft.

Industrial Equipment

In industrial automation and high-speed machinery, efficiency directly affects operating costs.
As a result, axial flux motors are increasingly adopted to reduce energy consumption and improve productivity.

Future Development Trends

Looking ahead, axial flux motor performance will continue to improve.
Advances in magnetic materials, insulation systems, and precision manufacturing will further increase efficiency and power density. In addition, modern CAD tools and simulation software allow engineers to optimize motor designs faster than ever.

Consequently, companies that invest early in axial flux motor technology will gain a strong competitive advantage.

Conclusion

In summary, axial flux motors outperform traditional radial motors in torque density, efficiency, and compact design.
Thanks to their unique magnetic structure, they are reshaping the future of electric motor technology. As demand for high-performance and space-efficient systems grows, axial flux motors will play an increasingly important role across transportation, aerospace, and industrial markets.
