Axial Flux Motor Rotor: Design, Structure, Materials, and High-Performance Engineering Guide

Introduction: Why the Axial Flux Motor Rotor Matters

The axial flux motor rotor is the heart of every axial flux machine. It directly affects torque density, efficiency, thermal behavior, vibration level, and long-term reliability. In recent years, axial flux technology has moved from research labs into real products. It is now widely used in electric vehicles, robotics, aerospace systems, marine drives, and high-performance industrial equipment.

Compared with traditional radial flux motors, axial flux motors offer higher torque density, shorter axial length, and better integration potential. As a result, many companies developing advanced electric drive systems are turning to axial flux motor rotor optimization as a core competitive advantage.

For B2B buyers in North America and the European Union, understanding rotor structure and design is critical. It supports better supplier selection, faster product development, and stronger long-term performance outcomes.

This guide explains:

• Axial flux motor rotor structure

• Rotor topology types

• Magnetic circuit design principles

• Rotor materials and manufacturing processes

• Mechanical stress and thermal challenges

• EU and North America application trends

• Optimization strategies for high-efficiency systems

The content is written in simple language, with short sentences and clear transitions. It follows modern Google SEO standards and is optimized for AI search results and Google SGE summaries.

1. What Is an Axial Flux Motor Rotor?

An axial flux motor rotor is the rotating magnetic assembly inside an axial flux electric motor. In this design, the magnetic flux flows parallel to the motor shaft. This is different from radial flux motors, where the magnetic flux flows outward from the center.

In an axial flux motor, the rotor is usually a flat disc. It may carry permanent magnets on one or both sides. The stator is placed between rotor discs or on one side, depending on topology.

Because of this disc structure, axial flux motors can achieve:

• Higher torque per volume

• Compact axial size

• Lower copper usage in some designs

• Better integration with in-wheel or flat systems

The rotor design directly determines torque output and magnetic efficiency. Therefore, axial flux motor rotor engineering is a key factor in system performance.

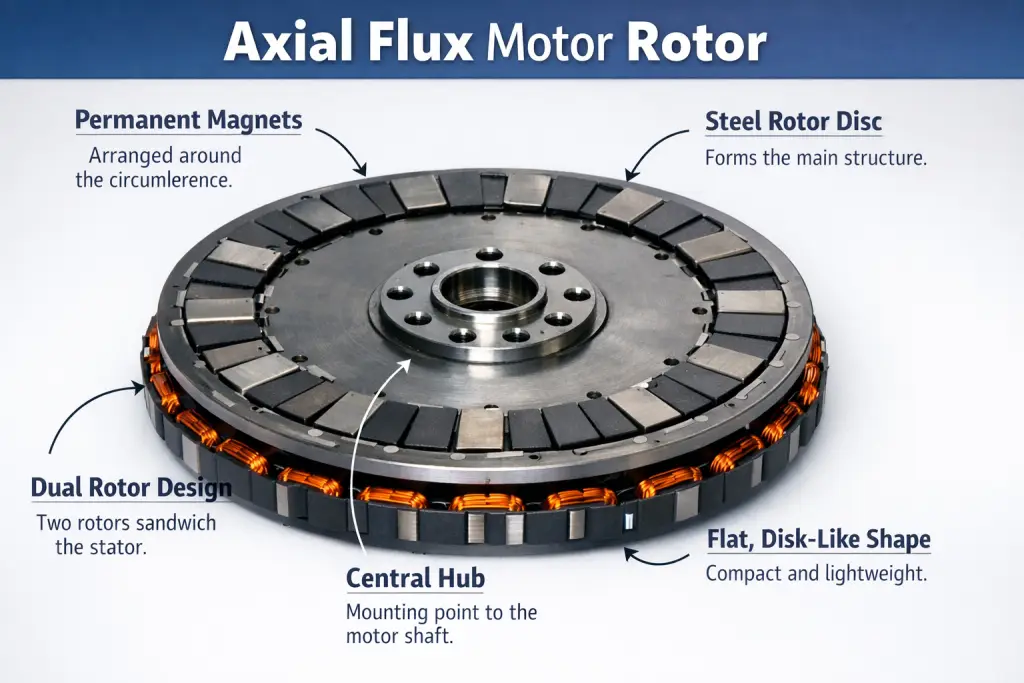

2. Core Structure of an Axial Flux Motor Rotor

An axial flux motor rotor usually contains the following parts:

2.1 Rotor Disc (Back Iron)

The rotor disc is typically made of electrical steel or soft magnetic composite (SMC). It supports the magnets and completes the magnetic path.

Key functions:

• Conduct magnetic flux

• Provide mechanical strength

• Resist centrifugal forces

The thickness and material grade strongly affect efficiency and saturation level.

2.2 Permanent Magnets

Most axial flux motor rotors use high-energy permanent magnets such as:

• NdFeB (Neodymium Iron Boron)

• SmCo (Samarium Cobalt)

These magnets create a strong magnetic field. The layout may be:

• Surface mounted

• Embedded

• Segmented arc magnets

• Halbach array configuration

Each structure affects torque ripple and efficiency.

2.3 Mechanical Retention System

At high speed, magnets must be securely fixed. Common retention methods include:

• Carbon fiber sleeves

• Stainless steel retaining rings

• Adhesive bonding

• Mechanical dovetail slots

In high-speed EV systems, rotor safety is a top priority.

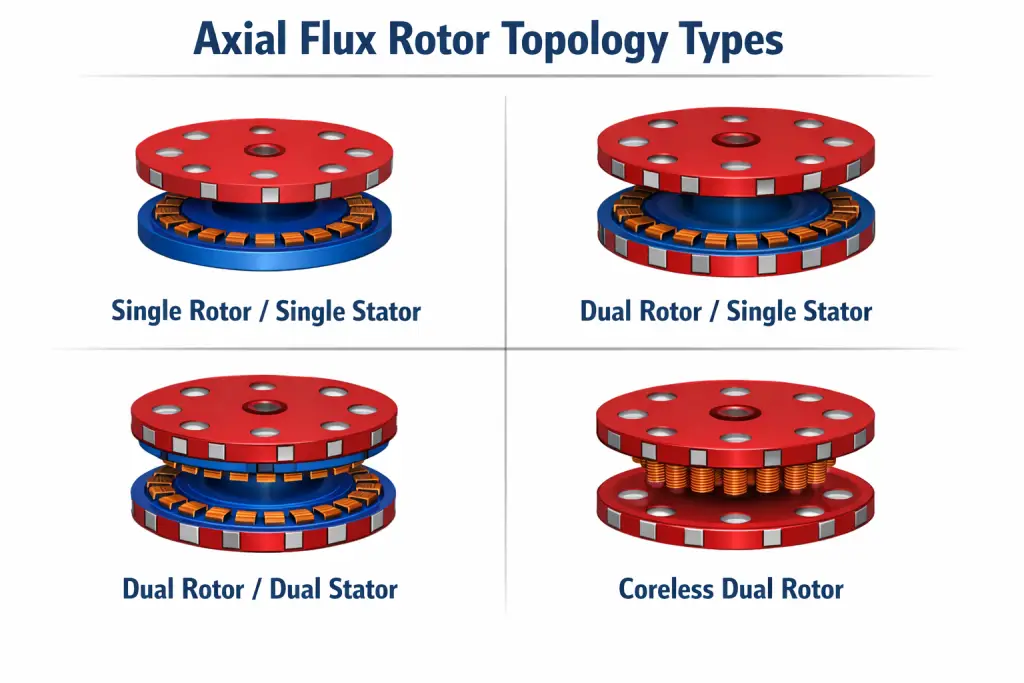

3. Axial Flux Rotor Topology Types

Axial flux motors have several rotor configurations. Each design supports different performance goals.

3.1 Single Rotor Single Stator (SRSS)

This is the simplest structure. It includes:

• One rotor disc

• One stator core

Advantages:

• Low cost

• Easy manufacturing

• Simple cooling

However, torque density is lower than dual rotor systems.

3.2 Dual Rotor Single Stator (DRSS)

This design includes two rotor discs and one stator in the middle.

Advantages:

• Higher torque density

• Balanced magnetic force

• Better power-to-weight ratio

This configuration is common in electric vehicles and aerospace drives.

3.3 Multi-Disc Rotor Systems

In advanced industrial systems, multiple rotor discs may be stacked.

Advantages:

• Very high torque

• Modular scalability

• Compact axial packaging

However, thermal and mechanical complexity increases.

4. Magnetic Design of the Axial Flux Motor Rotor

Magnetic design determines torque output and efficiency. Therefore, careful simulation and modeling are required.

4.1 Magnetic Flux Path

In axial flux machines, magnetic flux flows:

Rotor magnet → Air gap → Stator teeth → Air gap → Opposite magnet

The shorter magnetic path reduces iron losses. However, air gap uniformity is critical.

4.2 Air Gap Optimization

A small air gap increases torque density. However:

• Too small increases mechanical risk

• Thermal expansion must be considered

• Rotor deflection must be calculated

Finite element analysis (FEA) is widely used for air gap optimization.

4.3 Magnet Arrangement

Magnet pole shape affects:

• Back EMF waveform

• Torque ripple

• Cogging torque

• Harmonic distortion

Segmented magnets often reduce eddy current losses.

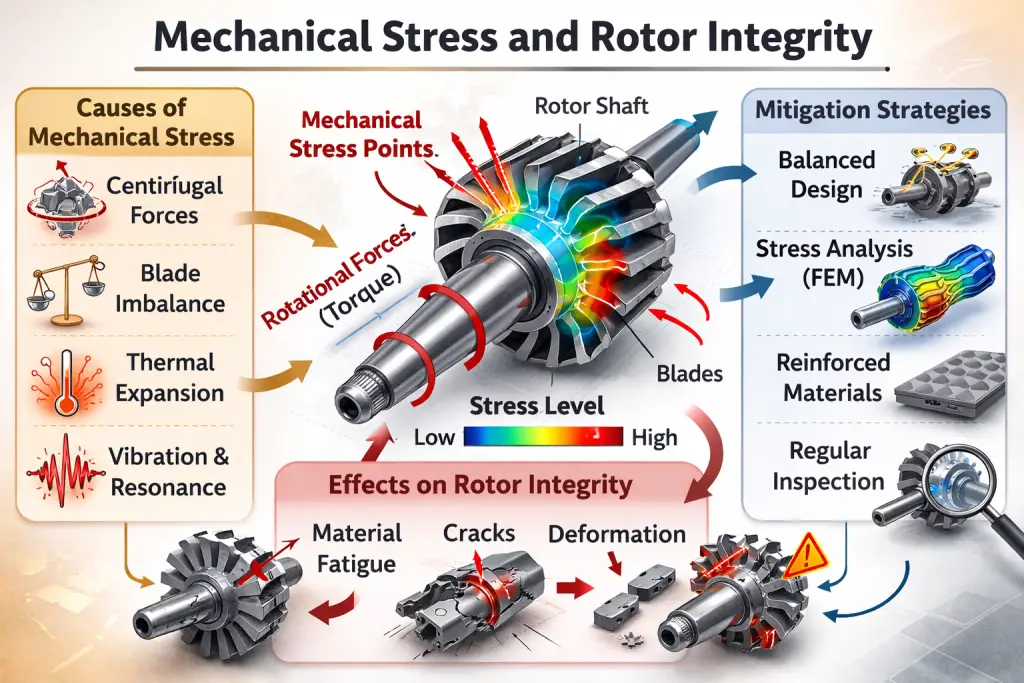

5. Mechanical Stress and Rotor Integrity

High-speed axial flux motor rotors experience strong centrifugal forces.

Therefore, mechanical integrity must be verified using:

• Structural simulation

• Burst speed analysis

• Fatigue life prediction

5.1 Centrifugal Force Calculation

As speed increases, stress rises exponentially. Therefore:

• Rotor disc material must have high tensile strength

• Magnet bonding must resist shear stress

• Retaining sleeve design must meet safety margins

In automotive applications, safety factors must meet EU and North America standards.

5.2 Rotor Balancing

Dynamic balancing improves:

• Noise level

• Bearing life

• System reliability

Precision balancing is required for EV and aerospace applications.

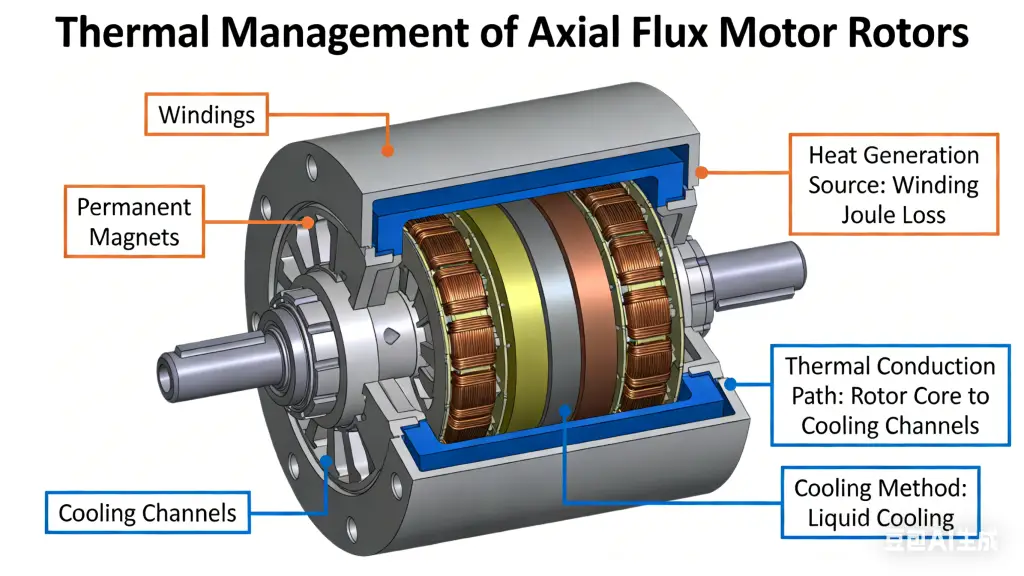

6. Thermal Management of Axial Flux Motor Rotors

Heat affects magnet strength. If temperature exceeds limits:

• Demagnetization may occur

• Efficiency drops

• Lifetime shortens

6.1 Heat Sources

Rotor heating mainly comes from:

• Eddy currents

• Core losses

• Harmonics

Surface-mounted magnets are sensitive to temperature.

6.2 Cooling Methods

Common cooling methods include:

• Air cooling

• Liquid cooling channels

• Direct oil spray cooling

• Stator-side cooling with rotor thermal shielding

In EV systems, liquid cooling is common.

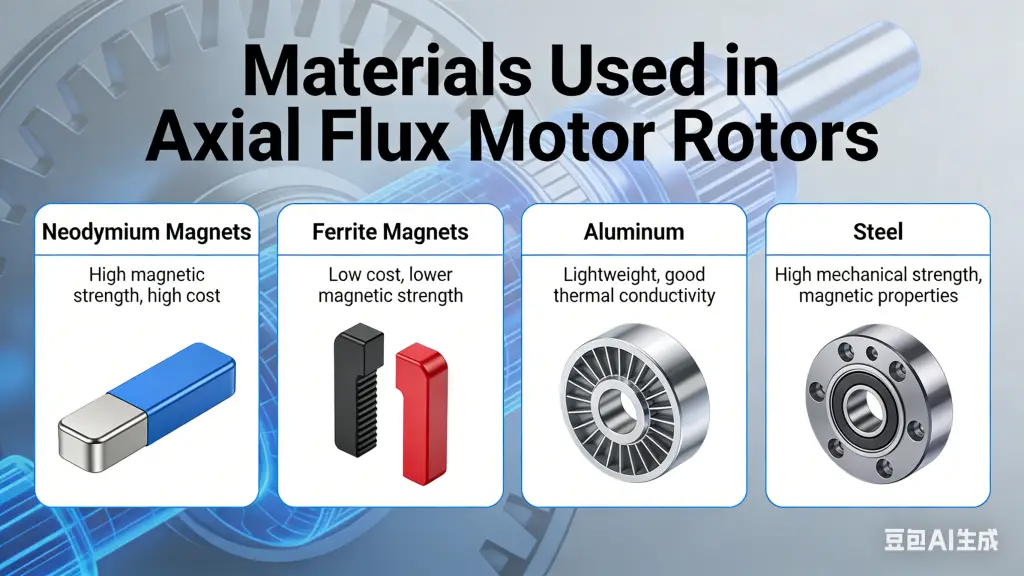

7. Materials Used in Axial Flux Motor Rotors

Material selection directly affects performance.

7.1 Electrical Steel

Used for laminated rotor back iron.

Benefits:

• Low core loss

• High permeability

• Mature supply chain

7.2 Soft Magnetic Composite (SMC)

Used in some advanced designs.

Benefits:

• 3D magnetic flux capability

• Reduced eddy current loss

• Flexible shaping

However, mechanical strength is lower than laminated steel.

7.3 Carbon Fiber Retaining Sleeves

Carbon fiber sleeves provide:

• High strength

• Low weight

• High-speed capability

This is common in high-speed axial flux motors.

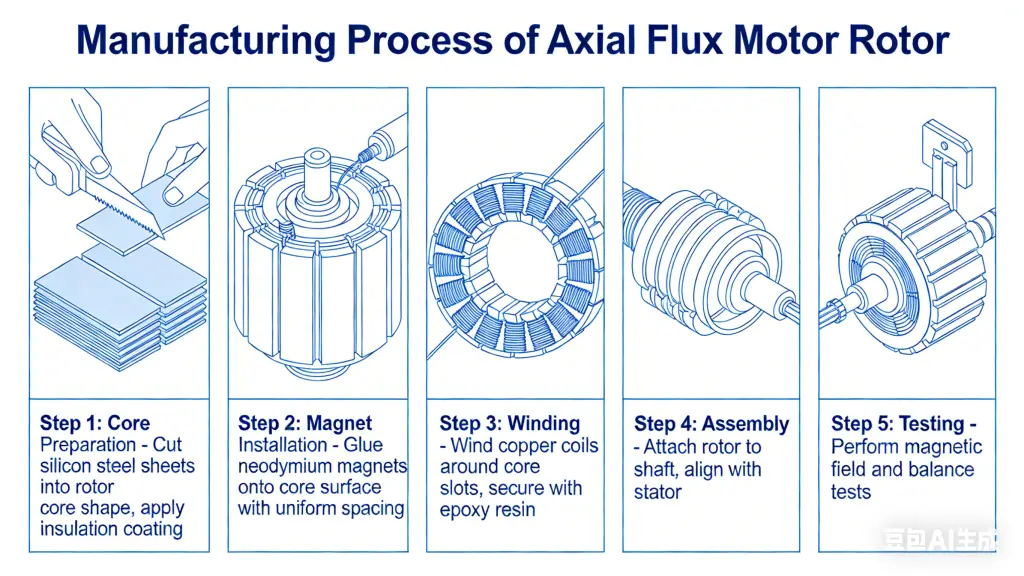

8. Manufacturing Process of Axial Flux Motor Rotor

Precision manufacturing ensures consistency.

8.1 Magnet Bonding

High-temperature epoxy adhesives are used. Surface treatment improves bonding strength.

8.2 CNC Machining

Rotor disc flatness must be controlled tightly. Tolerance affects air gap performance.

8.3 Dynamic Testing

Each rotor must undergo:

• Balance testing

• Speed testing

• Thermal validation

Quality control is critical for EU and North America markets.

9. Applications in EU and North America

Axial flux motor rotors are increasingly used in:

9.1 Electric Vehicles (EV)

Used in:

• In-wheel motors

• High-performance EV drive systems

• Hybrid sports cars

High torque density supports lightweight vehicle design.

9.2 Robotics

Compact rotor structure allows slim motor packaging.

9.3 Aerospace and eVTOL

High power-to-weight ratio is critical for flight systems.

9.4 Marine Electric Propulsion

Flat axial flux motors support compact marine drives.

10. Axial Flux Rotor vs Radial Flux Rotor

Key differences:

Axial flux motor rotors offer strong advantages for compact, high-power systems.

11. Design Optimization for B2B OEM Projects

For OEM projects in the EU and North America:

11.1 Define Application First

Torque, speed, duty cycle, and ambient temperature must be defined early.

11.2 Multi-Physics Simulation

Combine:

• Electromagnetic analysis

• Thermal modeling

• Structural simulation

This reduces prototype cost.

11.3 Custom Rotor Engineering

Standard designs rarely meet advanced EV or aerospace requirements. Custom rotor geometry often provides better performance.

The axial flux motor rotor is a flat disc-shaped rotating magnetic assembly used in high torque density electric motors. It improves efficiency, reduces axial length, and supports compact system integration. Proper magnetic design, material selection, cooling, and structural reinforcement ensure safe operation in EV, aerospace, robotics, and industrial systems.

Applic

Elec

Many EV manufacturers are adopting axial flux motors for higher torque density and compact dri

Aerospace

Aircraft benef

Renewa

Wind turbines and small hydro systems use axial flux generators for efficient power generation.

Robotics an

Compact motors enable hig

Comparison Table:

Conclusion

The axial flux motor rotor plays a critical role in modern electric drive technology. It enables:

• Higher torque density

• Compact packaging

• Improved efficiency

• Lightweight integration

As the EU and North America push for electrification and carbon reduction, axial flux rotor technology will continue to grow.

For OEM manufacturers, engineering companies, and system integrators, investing in optimized axial flux motor rotor design provides long-term competitive advantage.

If you are developing high-performance electric drive systems, understanding rotor structure, material science, magnetic optimization, and mechanical safety is essential.

A well-designed axial flux motor rotor is not just a component. It is the core of next-generation electric mobility and industrial power systems.
