Axial Flux Motor vs Induction Motor: Performance and Efficiency Comparison

Introduction: Why Motor Comparison Matters Today

Electric motor technology is evolving fast. As industries demand higher efficiency, compact size, and lower energy loss, traditional motor choices are being re-evaluated.

Among many motor types, Axial Flux Motors and Induction Motors stand out. Each represents a different design philosophy. Each serves different needs.

Axial flux motors focus on high power density and compact design.
Induction motors focus on robustness, stability, and cost control.

This article provides a detailed comparison of these two motor types. It explains how they work, how they perform, where they are used, and how they may evolve in the future. The goal is simple: help engineers, buyers, and decision-makers choose the right motor for the right application.

1. Axial Flux Motor Overview

1.1 What Is an Axial Flux Motor?

An Axial Flux Motor is an electric motor where the magnetic flux flows parallel to the motor shaft.

This is very different from traditional radial motors, where magnetic flux flows perpendicular to the shaft.

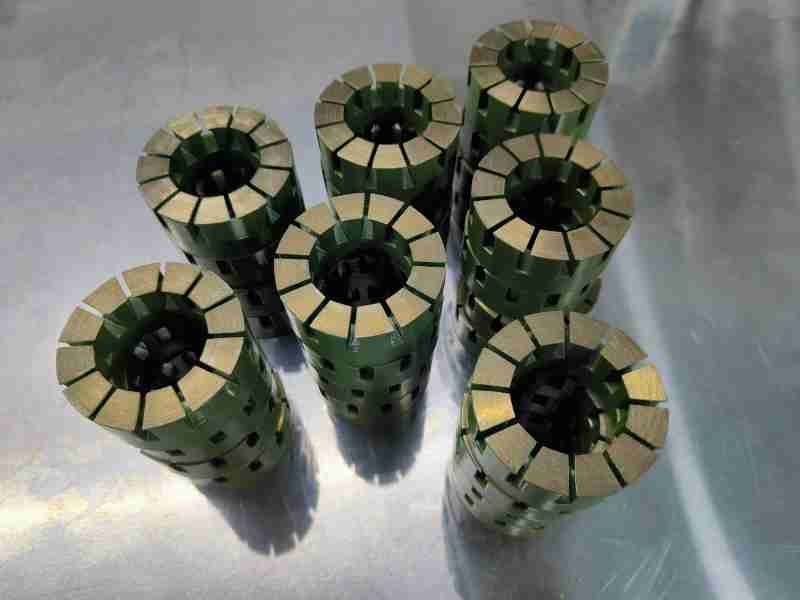

Most axial flux motors use a disc-shaped structure. The stator and rotor are arranged face to face. The air gap is short. The magnetic path is compact.

Because of this structure, axial flux motors can deliver high torque in a small space.

1.2 Working Principle

The working principle is similar to other AC motors.

• Current flows through the stator windings

• A rotating magnetic field is generated

• The magnetic field interacts with the rotor

• Torque is produced

However, due to the axial magnetic field and large effective radius, torque output is higher for the same motor size.

This makes axial flux motors ideal for applications with strict space and weight limits.

1.3 Key Advantages

High Power Density
Axial flux motors deliver more power per kilogram and per liter. This is critical in EVs and aerospace systems.

High Efficiency
Short magnetic paths reduce copper loss and core loss. Energy conversion is more efficient.

Compact Design
The flat structure allows flexible integration into tight spaces.

Good Thermal Potential
Large surface area supports better heat dissipation when designed correctly.

2. Induction Motor Overview

2.1 What Is an Induction Motor?

An Induction Motor works based on electromagnetic induction.

The stator creates a rotating magnetic field. This field induces current in the rotor. The interaction between the induced current and magnetic field produces torque.

No permanent magnets are required.

2.2 Working Principle of Induction Motors

The process is simple and reliable:

• AC current energizes the stator

• A rotating magnetic field is formed

• Rotor bars experience induced current

• Lorentz force generates rotation

This design has been used for decades. It is proven and well understood.

2.3 Advantages of Induction Motors

High Reliability
No magnets mean no demagnetization risk.

Low Maintenance
The structure is simple. There are fewer sensitive components.

Cost Efficiency
Manufacturing processes are mature and scalable.

Wide Industrial Acceptance
Induction motors are standard in pumps, fans, compressors, and conveyors.

3. Performance and Efficiency Comparison

3.1 Key Performance Parameter Comparison Table

3.2 Efficiency Comparison

Efficiency is a key factor in modern motor selection.

Axial flux motors generally achieve higher efficiency, especially under:

• Low-speed operation

• High torque demand

• Partial load conditions

This is because:

• Magnetic paths are shorter

• Copper losses are lower

• Flux utilization is higher

Induction motors perform well near rated load. However, efficiency drops more at low speed and light load.

3.3 Starting Performance and Torque Behavior

Axial Flux Motor

• High starting torque

• Fast dynamic response

• Suitable for frequent start-stop cycles

Induction Motor

• Higher starting current

• Stable torque curve

• Best for constant-speed applications

This makes axial flux motors more suitable for EVs and robotics, while induction motors remain ideal for steady industrial loads.

3.4 Thermal Behavior and Lifetime

Induction motors have a long service history. Their thermal behavior is well understood. With proper cooling, they can run for decades.

Axial flux motors generate high power in a compact space. This increases thermal stress if cooling is not optimized. Therefore, thermal design is critical.

With proper cooling strategies, axial flux motors can achieve excellent durability.

4. Application Area Comparison

4.1  Applications

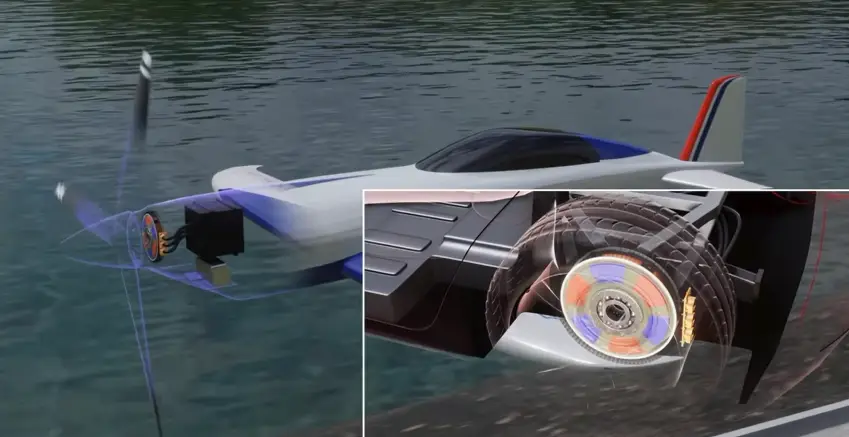

Electric Vehicles (EVs)
High torque density and efficiency improve range and acceleration.

Aerospace and UAVs
Light weight and compact size are major advantages.

Industrial Robots
Fast response and precise torque control support automation.

Advanced Mobility Platforms
eVTOL and high-performance electric systems benefit from axial flux design.

4.2 Induction Motor Applications

Industrial Drives
Pumps, fans, compressors, and conveyors.

Home Appliances
Washing machines, air conditioners, and ventilation systems.

Construction and Transport Equipment
High durability under harsh conditions.

5. Design Trade-Offs and Selection Strategy

Choosing between an axial flux motor and an induction motor depends on priorities.

Choose Axial Flux Motor if you need:

• High power density

• Compact integration

• High efficiency at variable speed

Choose Induction Motor if you need:

• Low cost

• Proven reliability

• Simple maintenance

There is no universal solution. The right motor depends on system-level requirements.

6. Future Development Trends

6.1 Smart Motor Systems

Future motors will include sensors and digital monitoring. Real-time data will improve efficiency and predict maintenance needs.

6.2 Material Innovation

New magnetic materials and advanced electrical steel will improve performance.

High-temperature materials may further expand  applications.

6.3 Sustainability and Energy Efficiency

Energy efficiency standards are becoming stricter worldwide.

Motors with higher efficiency and lower lifecycle emissions will gain priority.

Conclusion

Axial Flux Motors offer high power density, high efficiency, and compact design.
Induction Motors offer stability, cost control, and long-term reliability.

Understanding their differences allows better technical and business decisions.

As electric mobility and automation continue to grow, both motor types will remain essential. The key is knowing when and where to use each one.
