Why Axial Flux Motors Are Better

In today’s industrial and transportation sectors, motor performance and efficiency are more important than ever. Among various motor types, axial flux motors (AFMs) have gained attention due to their unique design and excellent performance. This article explores how AFMs work, their advantages, and why they are becoming a preferred choice over traditional motors.

What is an Axial Flux Motor?

An axial flux motor is an electric motor that converts electrical energy using a magnetic field parallel to the rotor axis. This layout increases efficiency and power density. AFMs are compact, lightweight, and provide excellent thermal management. These features make them ideal for electric vehicles and other high-efficiency devices.

Unlike traditional radial flux motors, AFMs align their magnetic field along the motor’s axis. Magnets are typically placed between the rotor and stator. This layout enhances power density, efficiency, and overall performance.

Axial flux motor core

How Axial Flux Motors Work

AFMs operate on the principle of electromagnetic induction, similar to conventional motors. The stator generates a magnetic field that interacts with the rotor to produce torque. Because the magnetic field runs parallel to the axis, AFMs deliver higher power output and respond faster than traditional motors.

Design Advantages

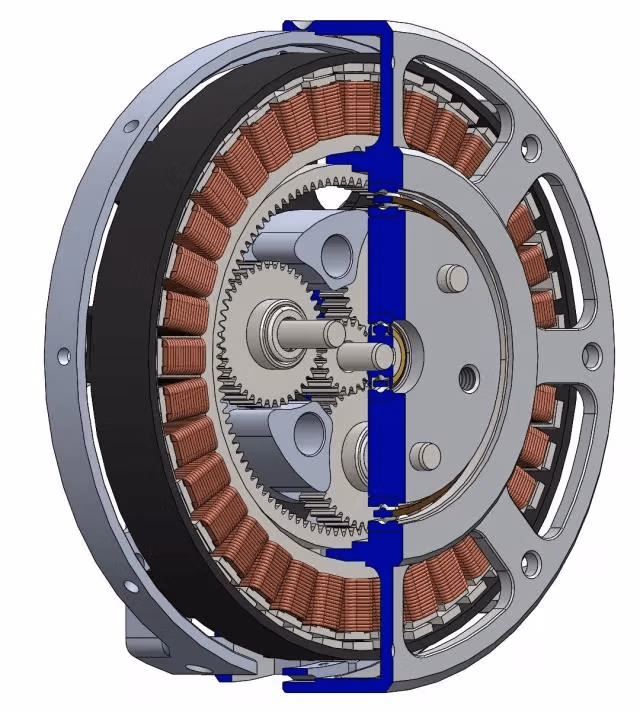

motor structure

1. High Power Density: AFMs can produce more power in the same volume, often several times higher than conventional motors. This is ideal for space-limited applications like EVs.

2. Compact and Lightweight: Their design saves space and reduces weight, improving energy efficiency and extending EV range.

3. Superior Cooling: AFMs dissipate heat efficiently, maintaining stable performance even under high loads.

4. Simpler Mechanical Structure: Fewer parts reduce maintenance costs and failure rates.

5. Ease of Manufacturing & Integration: Modern techniques like 3D printing allow easier production and seamless integration with batteries and controllers.

Applications

• Electric Vehicles: High axial flux motors power density and thermal performance make AFMs ideal for EV powertrains.

• Aerospace: Lightweight design supports electric aircraft and drones.

• Home Appliances: Used in washers, vacuum cleaners, and more to improve efficiency and reduce noise.

• Industrial Equipment: Enables precise motion control for automation, boosting productivity.



  high-efficiency drive systems

Advantages Over Traditional Motors

• Higher Efficiency: 15–20% more efficient, reducing energy consumption and extending lifespan.

• Faster Dynamic Response: Excellent for applications requiring rapid speed changes.

• Lower Noise & Vibration: Fewer mechanical components reduce operational noise.

• Better Environmental Adaptability: Maintains performance in harsh conditions.

Conclusion

Axial flux motors stand out for <strong data-start=”3192″ data-end=”3274″>power density, compactness, heat management, efficiency, and wide applications. As technology advances, AFMs are gradually replacing conventional motors. Their growing adoption promises a future of more efficient, lighter, and versatile electric motors.
