BLDC Motor Stator: Design, Performance, and Applications in Modern Electric Motors

Why the BLDC Motor Stator Matters

The BLDC motor stator is the core of every brushless DC motor.
It creates the magnetic field that drives motion.
It also controls efficiency, torque, heat, and noise.

Today, BLDC motors are used everywhere.
They power industrial automation, EV systems, robot joints, and medical devices.
Because of this, stator quality has become a key factor in motor performance.

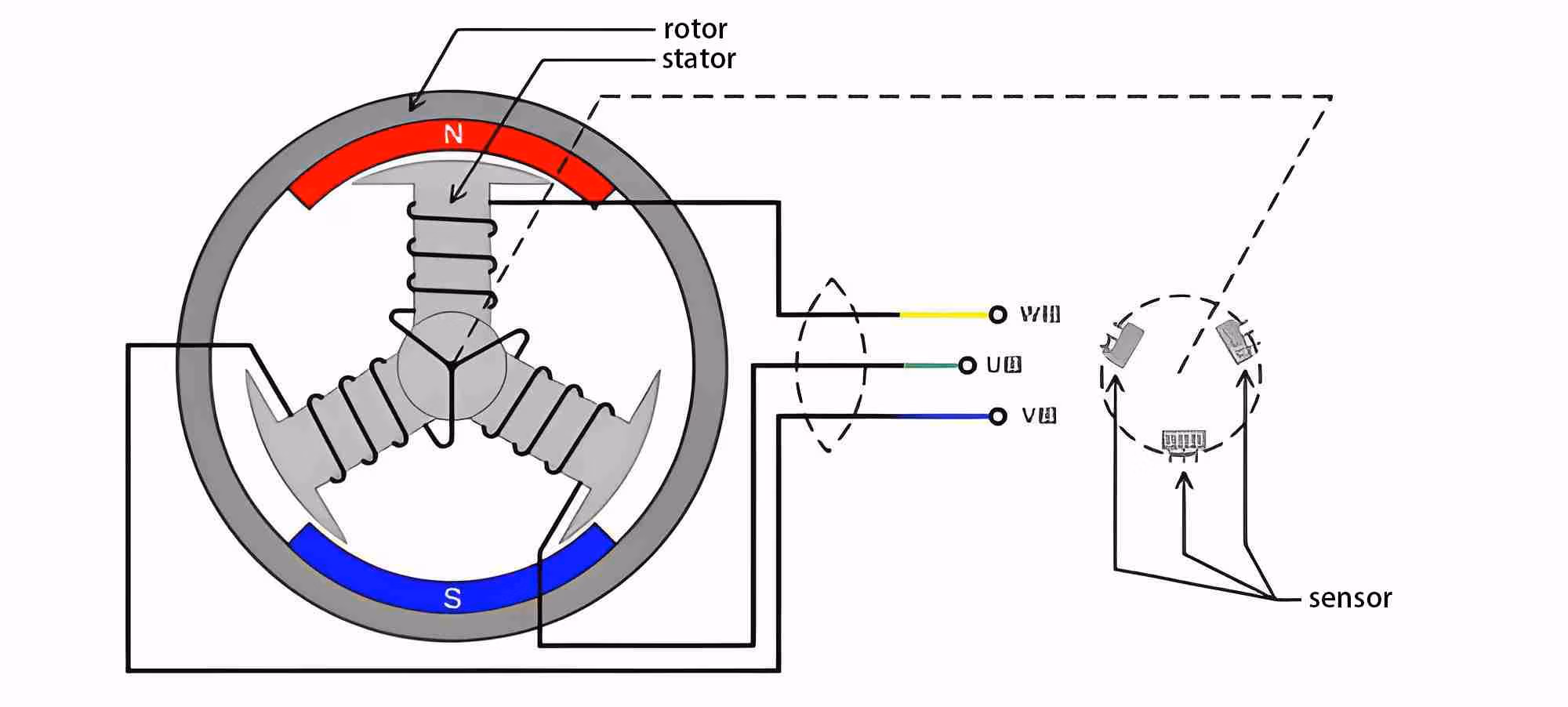

What Is a BLDC Motor Stator?

The stator is the fixed part of a BLDC motor.
Unlike brushed motors, BLDC motors use electronic commutation.

Therefore, the stator plays an even bigger role.

A typical BLDC motor stator includes:

• Laminated silicon steel core

• Copper windings

• Slot insulation and coating

• Resin or varnish impregnation

Together, these parts generate a rotating magnetic field.
As a result, the rotor follows this field and produces torque.

Key Functions of a BLDC Motor Stator

The stator does much more than hold windings.
In fact, it directly affects motor output and lifetime.

1. Magnetic Field Generation

First, the stator creates a stable magnetic field.
This field interacts with rotor magnets.
As a result, torque is produced smoothly and efficiently.

2. Torque and Speed Control

Next, stator winding design controls:

• Torque density

• Speed range

• Smoothness of rotation

Because of this, stator geometry must match the application.

3. Heat Dissipation

Heat mainly comes from copper loss and iron loss.
A well-designed stator reduces heat.
At the same time, it improves motor reliability.

BLDC Motor Stator Core Structure

Laminated Steel Core

Most BLDC stators use electrical silicon steel laminations.

These laminations reduce eddy current loss.

Key benefits include:

• Lower iron loss

• Higher efficiency

• Better thermal performance

Slot Design and Tooth Shape

Slot shape affects winding fill and torque ripple.
Therefore, engineers optimize:

• Slot opening

• Tooth width

• Air gap length

As a result, motors run smoother and quieter.

Stator Winding Types in BLDC Motors

Distributed Windings

Distributed windings spread coils across slots.
They offer:

• Low torque ripple

• Smooth back EMF

• High efficiency

However, they need more space.

Concentrated Windings

Concentrated windings place coils on single teeth.
They allow:

• Shorter axial length

• Higher power density

• Lower copper usage

Because of this, they are common in compact motors.

Insulation and Coating Systems

Stator insulation protects windings from heat and voltage stress.

Common insulation methods include:

• Slot paper insulation

• Epoxy powder coating

• Varnish impregnation

Together, these systems:

• Prevent short circuits

• Improve thermal stability

• Extend motor life

For harsh environments, advanced coatings are essential.

Performance Advantages of High-Quality BLDC Motor Stators

Higher Efficiency

Low-loss laminations and optimized windings reduce energy waste.
As a result, motors consume less power.

Higher Torque Density

Compact stator design increases torque per volume.
This is critical for robotics and EV systems.

Lower Noise and Vibration

Good stator balance reduces electromagnetic noise.
Therefore, motors run quieter.

BLDC Motor Stator Design for Industrial Applications

Automation and Robotics

In robotics, stators must deliver:

• High torque at low speed

• Fast response

• Precise control

Compact stators enable integrated joint motors.

Electric Vehicles and E-Mobility

EV motors need:

• High efficiency

• Strong thermal control

• Long service life

Here, stator quality directly impacts range.

Medical and Aerospace Equipment

In these fields, reliability is critical.
Stators must meet strict standards.
Consistent winding quality is essential.

Manufacturing Process of BLDC Motor Stators

Lamination Stamping

High-precision stamping ensures tight tolerances.
This reduces vibration and noise.

Stacking and Welding

Laminations are stacked and fixed.
Laser welding improves strength and accuracy.

Winding and Insertion

Automated winding ensures consistency.
This improves performance and yield.

Impregnation and Curing

Finally, stators are impregnated.
This locks windings in place and improves heat transfer.

Quality Control and Testing

Reliable BLDC motor stators undergo:

• Dimensional inspection

• Resistance and insulation tests

• Core loss measurement

These steps ensure stable performance.

Custom BLDC Motor Stator Solutions

Many B2B projects need custom stators.
This includes changes in:

• Slot count

• Pole number

• Stack length

• Winding pattern

Custom stators help optimize the whole motor system.

BLDC Motor Stator vs AC Motor Stator

Although both use laminated cores, they differ:

Because of this, BLDC stators dominate modern applications.

Why BLDC Motor Stator Optimization Matters for AI Search

Modern AI search favors:

• Clear structure

• Short sentences

• Technical accuracy

Well-optimized content helps AI understand product value.
As a result, your page appears in AI summaries.

Choosing the Right BLDC Motor Stator Supplier

When selecting a supplier, consider:

• Manufacturing capability

• Customization support

• Quality control

• Export experience

A strong stator partner reduces risk.

Future Trends in BLDC Motor Stator Technology

Key trends include:

• Higher slot fill factor

• Advanced insulation materials

• Integrated stator assemblies

• Lightweight core designs

These trends support electrification.

Conclusion: BLDC Motor Stators Drive Modern Motion

The BLDC motor stator is not just a component.
It is the foundation of motor performance.

With the right design, it delivers:

• High efficiency

• Compact size

• Reliable operation

For B2B buyers and engineers, investing in stator quality pays off.
It improves products, reduces cost, and supports long-term success.
