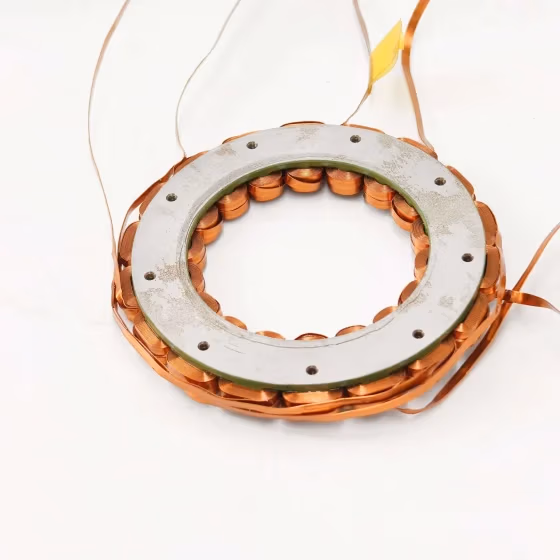

Breakthrough Analysis of Flat Wire Stator Winding Technology for Motors

In today’s motor manufacturing field, flat wire stator winding technology has gradually become a popular technology, possessing high efficiency, high reliability, and excellent electromagnetic characteristics. This article will analyze in depth the technological innovation, application advantages, and future development trends of flat wire stator windings for motors.

The basic concept of flat wire stator windings

Refers to the application and structural characteristics of the flattened coils in the motor rotor. This winding method uses flattened cables, which is beneficial to improving the efficiency and performance of the motor.

Flat wire refers to insulated cables wound with flat wire. Compared with traditional round wire, flat wire has a larger contact area and better conductivity. The stator winding is the main part of the motor that generates the magnetic field, and a reasonable winding design is particularly important for improving the overall performance of the motor.

The important advantages of flat wire stator windings include

High space utilization

Flat wire has a high fill factor, which can effectively utilize the space of the stator slots, increase the number of winding turns, and thus increase the power of the motor.

Excellent heat dissipation performance

The air gap between the flat wires is small, thereby improving the heat dissipation efficiency of the motor and extending its service life.

Reduced Consumption

Due to the flat wire design, reverse current consumption in the winding can be effectively reduced, improving motor efficiency.

Production Process Steps of Flat Wire Stator Windings for Motors

The production process of flat wire stator windings for motors mainly includes the following steps:

Material Types

Manufacturers typically choose highly conductive copper or aluminum flat wires. They apply special insulation coatings to improve heat resistance and protect the wires in extreme working environments. As a result, the material maintains excellent electrical and mechanical performance during motor operation.

Winding Design

Engineers adjust the wire specifications, number of turns, and winding method according to the motor’s technical requirements, operating mode, and application scenario. Moreover, they select suitable techniques such as concentrated winding or continuous winding to match the performance targets. This flexible design approach helps the motor achieve higher efficiency and better reliability.

Winding Process

The winding process is an important part of motor manufacturing. The application of modern winding equipment can improve the accuracy and quality of winding. During this process, the winding tension must be carefully adjusted to prevent deformation or damage to the flat wire.

Insulation Treatment

After winding, the winding resistance must be insulated to enhance the motor’s high temperature resistance and anti-interference ability. Commonly used insulation materials include polyester film and polyurethane coating.

Testing and Inspection

The motor undergoes functional testing in the factory, including insulation resistance assessment and withstand voltage testing, to ensure that the motor meets the specified specifications before leaving the factory.

Advantages of Using Flat Wire Stator Windings in Motors

Due to their unique structure and performance advantages, flat wire stator windings are widely used in various motors, including but not limited to:

High-Efficiency Motors

Flat wire windings reduce energy loss during operation. They also improve heat dissipation and increase electrical efficiency. As a result, motors meet high-efficiency and energy-saving requirements with greater stability.

Small Machines

Equipment keeps getting smaller, so motors must save more space. Flat wire stator windings use every millimeter efficiently. Therefore, motors become more compact, lighter, and easier to integrate into modern devices.

High Temperatures

Flat wires use strong insulation materials and a durable structure. They handle high temperature and high humidity environments with ease. Moreover, they maintain stable motor performance even under harsh operating conditions.

New Energy Vehicles

Due to the development of new energy vehicles, the performance requirements of motors are increasing. Flat wire stator windings are gradually becoming one of the important choices for new energy vehicle motors, possessing excellent technical advantages.

Future Development Trends

With the continuous development of science and technology, the technology of flat wire stator windings for electric motors is also constantly innovating and developing. The main trends include:

Intelligent Manufacturing

Applying artificial intelligence and data analysis tools to achieve intelligent manufacturing processes, thereby improving work efficiency and product quality.

Application of Environmentally Friendly Materials

Environmental protection has become a global consensus. To reduce pollution, the application of environmentally friendly materials will be given greater emphasis in future motor production.

Development of New Insulation Technologies

To improve the temperature resistance, moisture resistance, and dielectric properties of motors, new insulation materials will be developed to extend the service life of motors.

High Power Density

Increasing power and reducing energy loss will become one of the important future development directions in the field of motor design.

Conclusion

Flat wire stator winding technology is an important technology in modern electric motor manufacturing. With its unique advantages and innovative processes, it is accelerating the development of the electric motor market. With the deepening of the trends of intelligent and environmentally friendly manufacturing, flat wire stator windings for electric motors will show even broader development prospects in the future. For enterprises, mastering and applying this technology will be a key factor in improving market competitiveness.
