Brushless DC Motor Design Guide: Structural Optimization and Performance Improvement Methods

Introduction

Brushless DC motors (BLDC motors) are widely used across various industries, household appliances, and electric vehicles, thanks to their high efficiency, low noise, and long lifespan. However, designing and optimizing these motors requires careful consideration of several factors, including motor structure, materials, and control systems. This guide delves into the essentials of brushless DC motor design, focusing on methods for structural optimization and performance enhancement, aimed at helping engineers master the art of designing and improving BLDC motors.

1. Basic Structure of Brushless DC Motors

A brushless DC motor typically consists of three main parts: the stator, rotor, and control system. The stator is usually made of windings and a magnetic core, while the rotor can be made from

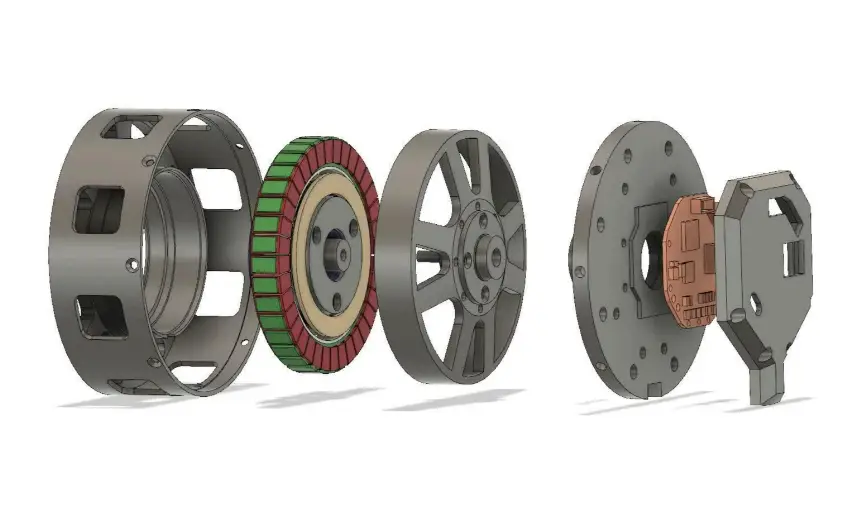

Brushless DC motor design for high efficiency and performance

either permanent magnets or a magnetic core. The term “brushless” refers to the fact that the motor uses electronic commutation instead of brushes and a commutator, significantly reducing friction losses and improving overall efficiency.

Stator Design

The design of the stator plays a pivotal role in the motor’s performance. Factors such as the type of winding, the number of turns, the arrangement of coils, and cooling methods all impact the motor’s output power and efficiency. Common winding configurations include single-phase and three-phase, with the latter being favored for its balance and higher power density, commonly used in modern BLDC motors.

When selecting materials for the stator core, silicon steel is often the preferred choice due to its excellent magnetic properties and low losses. The shape and thickness of the core should also be considered to reduce eddy current losses and enhance the overall efficiency of the motor.

Rotor Design Optimization

The rotor is typically made of permanent magnets, and selecting materials with high residual magnetic flux density can significantly boost the motor’s output performance. Neodymium-iron-boron (NdFeB) magnets are commonly used due to their superior magnetic properties and compact size.

The rotor’s shape and the arrangement of its magnetic poles directly affect the motor’s flux density and output torque. Engineers need to precisely calculate the rotor’s thickness, pole pairs, and pole angle for optimal performance. Different rotor shapes, such as surface-mounted or embedded rotors, can be designed depending on the application, improving power density and efficiency.

2. Control System of Brushless DC Motors

Brushless DC motor design and structure overview

The control system of a BLDC motor governs its startup, speed, direction, and shutdown. Common control methods include open-loop and closed-loop control. Due to its feedback mechanism, closed-loop control is the preferred choice for most applications, offering real-time adjustments to improve response speed and control precision.

Control Algorithms and Software Development

Control algorithms play a crucial role in a BLDC motor’s performance. Common control methods include PID control, fuzzy logic, and adaptive control. PID control is simple and effective, while adaptive and fuzzy control systems excel in applications requiring high dynamic performance.

When designing software for the motor’s control, the selection of microcontrollers is essential. Common choices include STM32 and Arduino, both of which offer powerful processing capabilities for implementing complex control algorithms. Optimized control software not only accelerates the motor’s response time but also significantly reduces power consumption, enhancing the motor’s overall efficiency.

Driver Circuit Design

The motor driver circuit connects the motor and control system, and its design must prioritize power, efficiency, and reliability. Typical driver circuits include H-bridge and three-phase bridge circuits. Choosing high-efficiency components such as MOSFETs or IGBTs helps reduce conduction and switching losses, boosting overall efficiency.

Protection circuits are crucial in driver design, ensuring the motor operates safely under abnormal conditions by preventing overcurrent, overvoltage, and phase loss.

3. Structural Optimization Techniques

Thermal Management Design

As BLDC motors generate heat during operation due to energy losses, effective thermal management is vital for enhancing motor performance. Common cooling methods include natural and forced cooling, with the latter often implemented using air or liquid cooling to ensure optimal performance under heavy loads.

The choice of materials also plays a significant role in heat management. Using materials with superior thermal conductivity helps alleviate temperature increases and reduce internal losses, which leads to better efficiency.

Material Selection

The choice of materials has a direct impact on the motor’s efficiency and lifespan. For the stator and rotor, selecting low-loss, high-magnetic-conductivity materials improves performance. Additionally, the motor housing should be made from durable, heat-dissipating materials, such as aluminum alloys or high-strength plastics, to ensure stable operation in diverse environments.

4. Performance Enhancement Techniques

Optimizing Speed and Load Characteristics

BLDC motor performance is closely tied to its speed and load characteristics. By properly matching mechanical design with electrical parameters, higher output torque can be achieved at specific

Custom brushless DC motor design for automation systems

speed ranges. Additionally, designing efficient control strategies further improves motor performance under varying load conditions.

During motor calibration, it is essential to adjust current and speed parameters according to specific application scenarios to enhance performance and stability.

Application of Smart Control Systems

In today’s world, intelligent technologies are increasingly incorporated into BLDC motor design and control. AI-based control systems can monitor motor performance in real time and optimize control strategies through self-learning algorithms. This ensures efficient operation under dynamic loads.

Intelligent sensors provide feedback on motor status, enabling engineers to adjust parameters for optimal performance. Furthermore, low-power design principles should be integrated into the control system to improve overall energy efficiency.

5. Conclusion

Designing and optimizing a brushless DC motor involves multiple factors, including structural design, material selection, control systems, and advanced technologies. This guide provides valuable insights into the essential elements of BLDC motor design, from optimizing structures to enhancing performance. By following these strategies, engineers and designers can create more efficient, reliable, and longer-lasting brushless DC motors for a wide range of applications, from industrial machinery to household appliances and electric vehicles.
