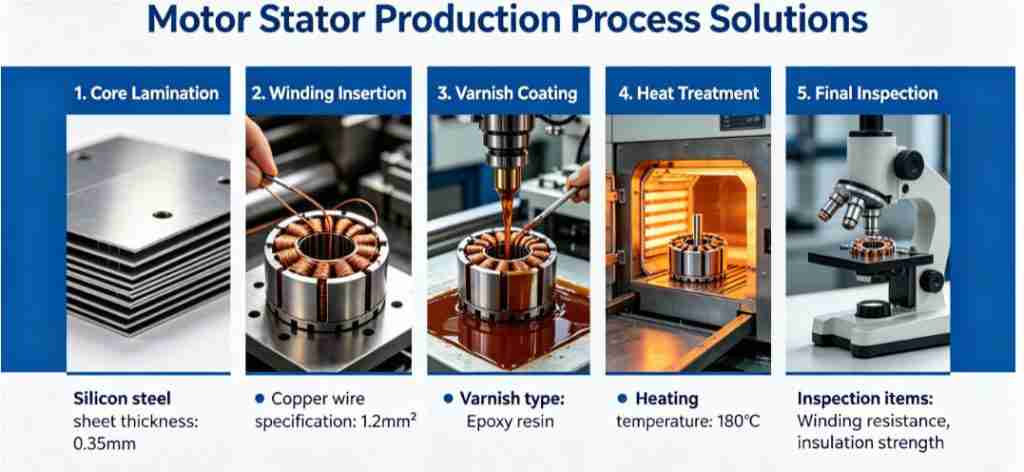

Motor Stator Production Process Solutions

Motor Stator Production is widely used in modern industry and daily life. Therefore, the stator plays a key role in every motor. Meanwhile, the Motor Stator Production process is complex and requires high precision. In this article, we explain the full Motor Stator Production process step by step, from raw materials to final shipment.

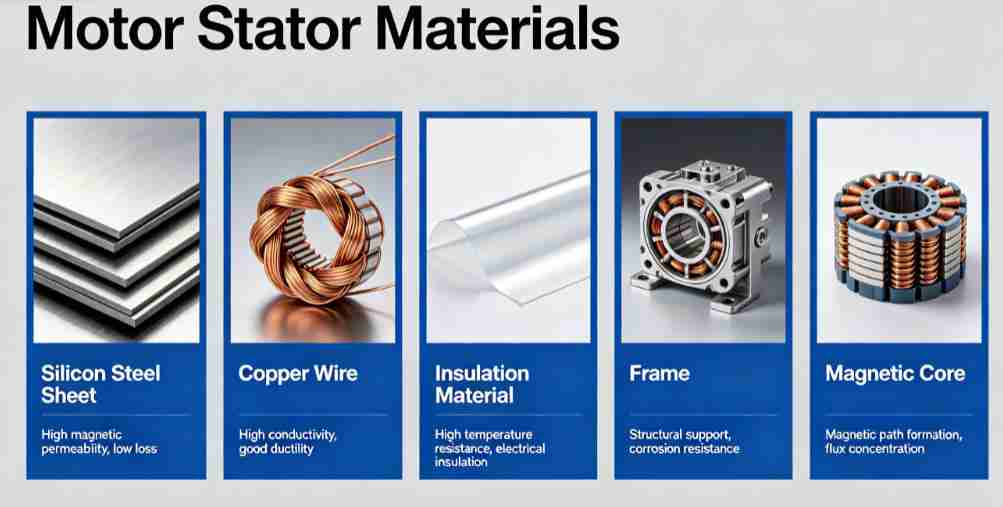

I. Raw Material Selection in Motor Stator Production

In Motor Stator Production, manufacturers first select silicon steel sheets, insulation materials, and winding wires. First of all, this step ensures strong performance and long service life.

1. Silicon Steel Sheets

In Motor Stator Production, silicon steel sheets form the stator core. At the same time, their magnetic performance directly affects motor efficiency.

In most cases, Motor Stator uses cold-rolled silicon steel. As a result, this material provides:

• Low energy loss
• Strong magnetic performance
• Good processing ability

In addition, engineers check thickness, chemical composition, and surface quality.

2. Insulation Materials

In Stator Production, insulation materials prevent short circuits and leakage.

For example, common materials include:

• Polyester film
• Insulation paper
• Epoxy resin
• Fluoroplastics

Meanwhile, good insulation improves heat resistance and stability.

3. Winding Materials

In Motor Stator, manufacturers use copper wire or aluminum wire.

Therefore:

• Copper wire offers high conductivity but higher cost
• Aluminum wire costs less but has lower conductivity

Engineers choose based on performance needs and budget.

II. Stamping and Forming in Motor Stator Production

After raw materials, Motor Stator moves to stamping and forming. At this stage, manufacturers shape the stator core.

1. Stamping Process

In Motor Stator, workers use molds or laser equipment to cut steel sheets.

Meanwhile, precision is very important. As a result, the final shape stays accurate.

2. Lamination (Stacking)

Next in Motor Stator, workers stack steel sheets to form the core.

Therefore, they place insulation paper between layers to reduce eddy current loss.

3. Inspection

In Motor Stator, the factory checks core size and insulation quality.

As a result, all parts meet design standards.

III. Insulation Treatment in Motor Stator Production

After forming, Motor Stator continues with insulation treatment.

1. Insulation Coating

In this stage of Motor Stator, technicians apply insulation coating by dipping or spraying.

As a result, the stator gains:

• Better insulation
• Moisture resistance
• Corrosion resistance

2. Curing

Next in Motor Stator, the factory heats the stator.

Therefore, the coating hardens and becomes stable.

IV. Winding Process in Motor Stator

In Stator Production, winding is a key step that affects performance.

1. Winding Design

Engineers design winding layout in Motor Stator.

They decide:

• Number of turns
• Winding method
• Connection type

Meanwhile, these choices depend on motor requirements.

2. Automated Winding

Next in Motor Stator Production, automatic machines perform winding.

As a result, production becomes faster and more accurate.

3. Winding Inspection

In Motor Stator, technicians test every coil.

For example:

• Short circuit check
• Open circuit check
• Resistance check

V. Welding and Connection in Motor Stator Production

After winding, Motor Stator continues with coil connection.

1. Connection Method

Workers connect coils using welding or mechanical methods.

However, they control heat carefully. Otherwise, defects may occur.

2. Insulation Reinforcement

Next in Motor Stator, workers add insulation layers.

As a result, safety improves.

VI. Assembly and Testing in Motor Stator

After connection, Motor Stator enters assembly and testing.

1. Assembly

Workers assemble all parts in Motor Production carefully.

Meanwhile, they ensure tight and correct fitting.

2. Testing

Next in Motor Stator, the factory performs tests:

• Electrical tests
• Temperature rise tests
• Insulation tests

Therefore, reliability is ensured.

VII. Surface Treatment in Motor Stator Production

In Stator Production, surface treatment improves durability.

1. Spray Coating

Factories apply coating in Motor Stator.

As a result, corrosion resistance improves.

2. Anti-rust Treatment

In addition, anti-rust treatment protects metal parts.

VIII. Inventory and Packaging in Motor Stator Production

After production, Stator Production moves to packaging.

1. Inventory Management

Factories record all data in Motor Stator.

Therefore, traceability improves.

2. Packaging

Next in Motor Stator, workers use protective packaging.

As a result, products stay safe.

3. Shipment Preparation

Finally in Stator Production, orders are shipped with documents.

IX. Conclusion

Motor Stator includes many steps. Therefore, every step is important.

Meanwhile, automation improves efficiency and quality.

As a result, Motor Stator becomes more stable and reliable.

Finally, understanding Motor Stator Production helps improve motor selection and performance understanding.
