What are the differences between axial flux motors and radial flux motor

Axial Flux Motors vs radial flux motor: Key Differences, Benefits, and Real-World Applications

In the fast evolution of electric drive technology, motor structure plays a decisive role in efficiency, size, and overall performance. Today, one comparison appears more frequently in engineering discussions, product pages, and industrial procurement decisions: axial flux motors vs ordinary motors.

Understanding the difference is important. It helps engineers choose the right solution. It also helps buyers evaluate long-term value. At the same time, it allows manufacturers to design better systems for electric vehicles, robotics, automation, and renewable energy equipment.

This article explains the core differences between axial flux motors and ordinary radial flux motors in a clear and practical way. The language is simple. Sentences are shorter. Transitions are smooth. Therefore, the text is easy to read while still being technically reliable. It is suitable for LinkedIn marketing, B2B platforms, and independent websites that require strong Google SEO performance without keyword stuffing.

What Is an Ordinary Motor (Radial Flux Motor)?

An ordinary motor, often called a radial flux motor, is the most common electric motor type used in industry today. In this design, the magnetic field flows radially, which means it moves from the center outward like spokes on a wheel. The stator surrounds the rotor, and torque is generated through this circular magnetic interaction.

Because this structure has been used for decades, it is widely understood, cost-effective, and supported by mature manufacturing processes. As a result, radial flux motors dominate in industrial machines, pumps, fans, compressors, and household appliances. axial flux motor vs ordinary motor

However, while radial motors are reliable, they often require more axial length to achieve higher torque. This leads to longer motor bodies and sometimes increased system weight. In modern compact systems, this limitation becomes more noticeable.

What Is an radial flux motor?

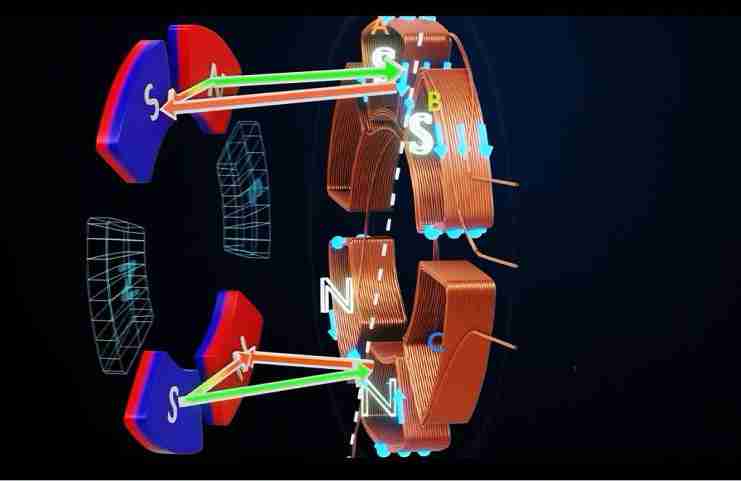

An axial flux motor uses a different magnetic orientation. Instead of moving outward from the center, the magnetic field flows parallel to the motor shaft. The rotor and stator are arranged like flat discs facing each other. Because of this configuration, axial flux motors are also known as disc motors or pancake motors.

This flat structure changes many performance characteristics. The magnetic path is shorter. The torque arm is larger. The overall thickness is smaller. Therefore, axial flux motors often deliver higher torque density in a more compact form factor.

For industries that require lightweight and high power density—such as electric vehicles, aerospace systems, robotics, and advanced mobility platforms—this difference is highly attractive.

Basic Structure Difference

Structure decides performance.
And structure also affects size and cooling.

Axial Flux Motor

• Flat shape

• Disk-like design

• Short length

• Large diameter

Ordinary Motor (Radial)

• Round shape

• Tube-like body

• Long length

• Smaller diameter

So the simple rule is:
Axial = Flat.
Ordinary = Round.

Detailed Technical Parameter Comparison axial flux motor vs ordinary motor

A clear table helps buyers decide faster.
And tables also increase SEO dwell time.
So they are very useful on blog pages.

Torque and Power Density

Torque density is a key selling point.
And space saving is critical in modern design.

Axial flux motors give more torque in less space.
And they work very well at low speed.
So they are ideal for electric vehicles and robotics.

Ordinary motors give stable and predictable torque.
But they need more volume.
So they are common in factories and pumps.

Efficiency and Energy Saving axial flux motor vs ordinary motor

Efficiency affects cost and sustainability.
And energy saving is now a global trend.

Axial motors often reach very high efficiency.

And they lose less energy as heat.
So they support green energy goals.

Ordinary motors are also efficient.
But their magnetic path is longer.
So heat loss can be higher.

Useful long-tail SEO phrases here include:
high efficiency electric motor, energy saving motor, compact power motor.

Size and Weight Advantage

Weight influences shipping and installation.
And smaller size improves integration.

Axial motors are thin and light.
And they fit inside wheels or drones.
So they are perfect for mobile systems.

Ordinary motors are heavier.
But they are strong and durable.
So they fit fixed industrial machines.

Cooling and Thermal Behavior

Heat limits motor life.
So cooling design is critical.

Axial flux motors have a large surface.
And liquid cooling is common.
But center heat must be managed well.

Ordinary motors often use air cooling.
And the airflow path is simple.
So maintenance is easier.

Manufacturing and Cost

Cost matters in every project.
And supply chains also matter.

Axial motors need precision magnets.
And they require advanced simulation.
So the early cost can be higher.

Ordinary motors use mature production lines.
And spare parts are easy to find.
So the initial price is lower.

However, axial motor prices are falling each year.
And market demand is rising fast.

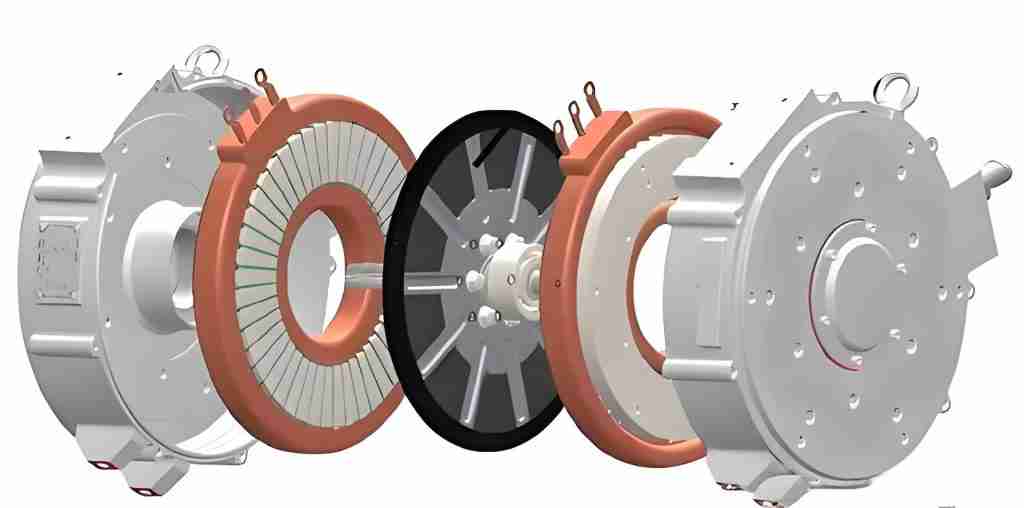

Structural Differences and Mechanical Layout

The most visible difference between axial flux motors and ordinary motors is the shape.

• Ordinary Radial Motor: Cylindrical and longer in axial length.

• Axial Flux Motor: Flat, disc-shaped, and shorter in axial length.

This structural change affects more than appearance. It influences cooling paths, integration options, and mechanical balance. A flat motor can be mounted inside wheels or thin enclosures. Meanwhile, cylindrical motors often require more installation depth.

Because of this, axial flux motors are frequently chosen for space-constrained applications, while radial motors remain popular in general industrial equipment where space is less critical.

Torque Density and Power Output

Torque density refers to how much torque a motor can produce relative to its size or weight. In many modern designs, axial flux motors show a clear advantage.

The disc structure allows a larger effective radius for torque generation. At the same time, the magnetic path is shorter, which reduces losses. As a result, axial flux motors can produce higher torque in a smaller volume.

Ordinary radial motors can still reach high torque levels, but they often need larger diameters or longer stacks. Therefore, for applications where compactness is essential, axial flux motors provide a strong competitive edge.

Efficiency and Energy Loss

Efficiency is another critical comparison point. Both motor types can be efficient when well designed. However, axial flux motors often demonstrate higher peak efficiency due to reduced copper loss and improved magnetic utilization.

Because the magnetic circuit is shorter, resistance and leakage flux can be minimized. This leads to better energy conversion, especially in high-performance systems. Nevertheless, efficiency also depends on winding quality, materials, and control algorithms. A poorly designed axial motor may perform worse than a well-optimized radial motor.

Therefore, engineering quality matters more than motor type alone.

Thermal Management and Cooling

Heat is a major factor in motor reliability. In ordinary radial motors, cooling methods are well established. Air cooling, liquid jackets, and external fans are commonly used, and the cylindrical body allows predictable airflow.

Axial flux motors, in contrast, present both advantages and challenges. Their flat geometry offers large surface area, which can help heat dissipation. Yet heat may also concentrate near the center. Because of this, advanced cooling strategies—such as dual-side cooling plates or liquid channels—are often implemented.

In high-power systems, effective thermal design becomes a decisive engineering task rather than a simple structural choice.

Manufacturing Complexity and Cost

From a production perspective, radial flux motors benefit from decades of standardization. Tooling, supply chains, and automation lines are mature. Consequently, manufacturing cost is often lower, especially for mass-market applications.

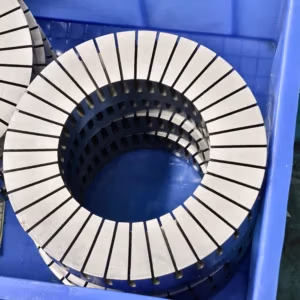

Axial flux motors, on the other hand, may involve more complex assembly processes, precision disc alignment, and specialized lamination techniques. This can increase initial cost. However, when system-level benefits such as reduced weight, smaller enclosures, or improved efficiency are considered, the total lifecycle value can still be favorable.

In other words, the purchase price does not always reflect the final economic advantage.

Integration and System Design Flexibility

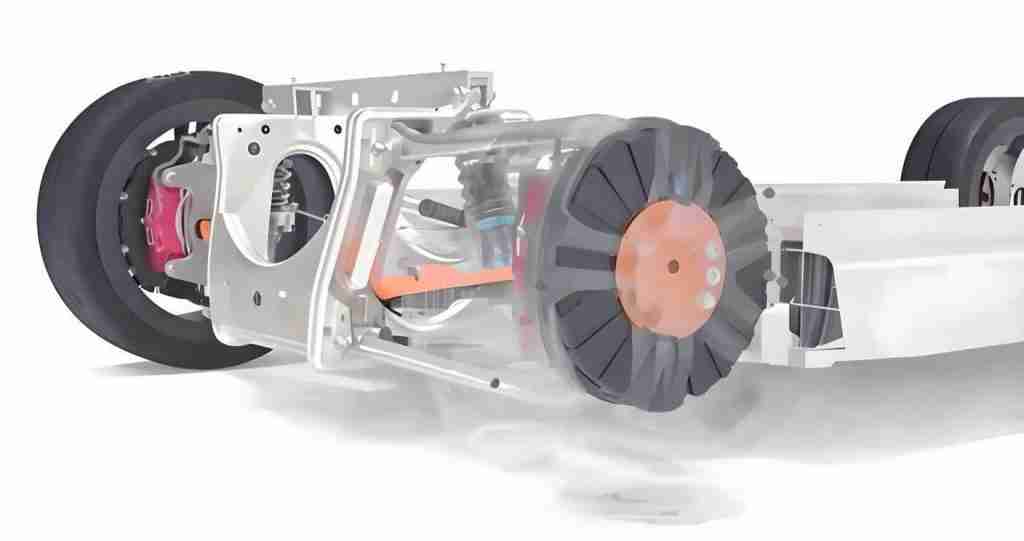

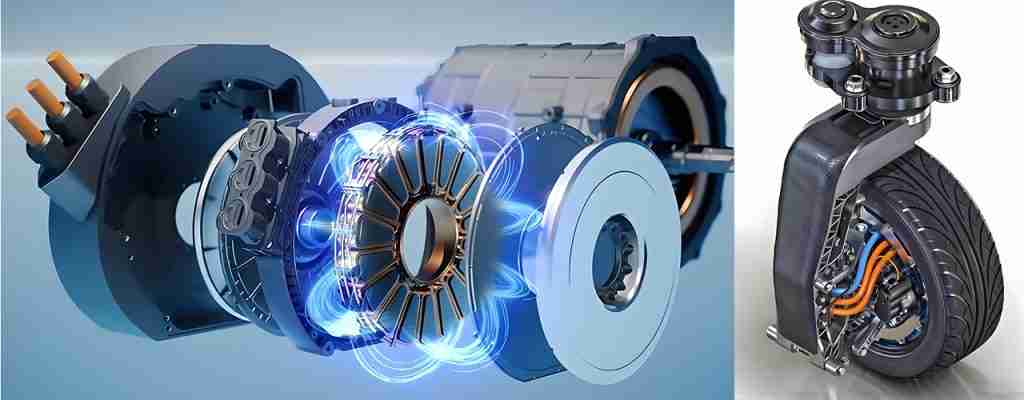

One of the strongest benefits of axial flux motors is integration flexibility. Their flat design enables direct wheel integration, compact drive modules, and thin mechanical assemblies. This is especially important in electric mobility and robotics, where every millimeter counts.

Ordinary motors remain highly adaptable in traditional machinery. Their cylindrical form fits standard gearboxes, belts, and shafts with ease. Therefore, for legacy systems or standard industrial frames, radial motors continue to be the practical choice.

Application Scenarios

Axial Flux Motor Applications

• Electric vehicles and hybrid propulsion

• Aerospace and drones

• Robotics and precision automation

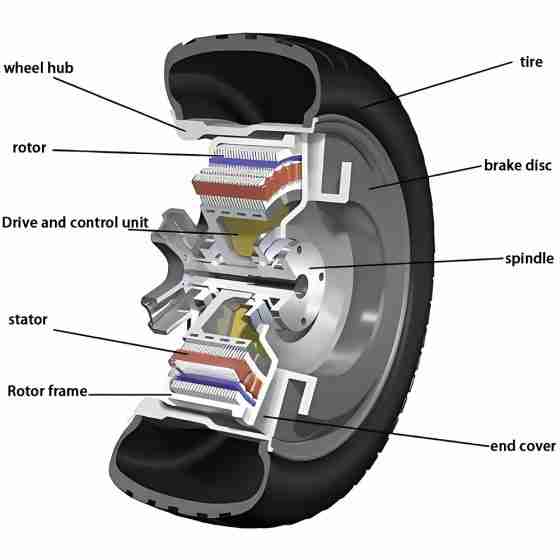

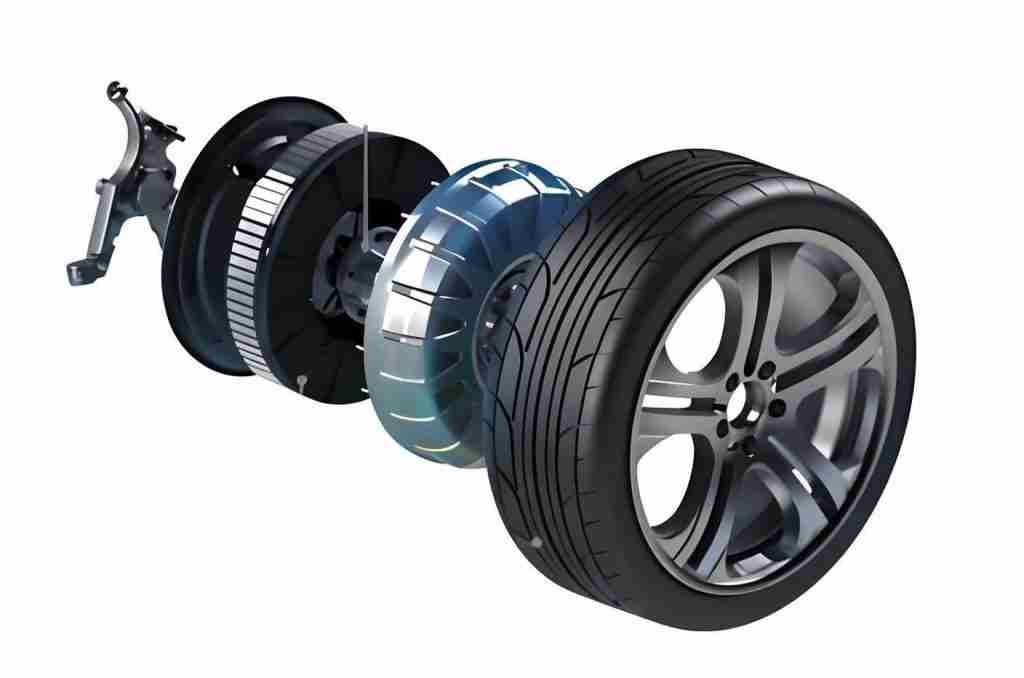

• In-wheel drive systems

• Advanced energy storage equipment

Ordinary radial flux motor Applications

• Industrial pumps and compressors

• HVAC systems and fans

• Household appliances

• Conveyor systems and general machinery

• Standard manufacturing equipment

This distribution shows that axial flux motors are often chosen for innovation-driven sectors, while radial motors dominate cost-sensitive and standardized markets.

Noise, Vibration, and Reliability

Noise and vibration characteristics vary with design quality rather than motor type alone. Axial flux motors can achieve smooth torque output due to symmetrical disc geometry. However, precision alignment is critical. Small mechanical errors can lead to imbalance.

Radial motors benefit from established design practices and predictable vibration behavior. Their long history provides extensive reliability data. Consequently, many industries still rely on radial motors when proven durability is the top priority.

Sustainability and Material Utilization

Modern industries increasingly value sustainability. Axial flux motors often use less raw material for the same torque output, which can reduce environmental impact. Shorter magnetic paths also mean better energy efficiency over the product lifecycle.

Radial motors, while sometimes heavier, still offer strong recyclability and material reuse potential. Ultimately, sustainability depends on design optimization, material choice, and energy source, not solely on motor topology.

Choosing the Right Motor Type

There is no universal winner. The correct choice depends on application goals, space limitations, efficiency targets, and budget considerations.

• Choose an axial flux motor when compact size, high torque density, and advanced integration are essential.

• Choose an ordinary radial motor when cost stability, manufacturing maturity, and proven reliability are the priority.

A balanced evaluation often delivers the best result. Engineers frequently combine simulation tools, prototype testing, and lifecycle cost analysis before making a final decision.

Future Outlook of Motor Technology

As electrification accelerates worldwide, both axial flux and radial flux motors will continue to evolve. New magnetic materials, improved winding methods, and smarter control electronics are narrowing performance gaps while opening new opportunities.

Axial flux motors are gaining attention in next-generation mobility and aerospace systems. Meanwhile, radial motors remain indispensable in industrial infrastructure and mass production environments. Rather than replacing each other, these technologies are likely to coexist and complement different market needs.

Conclusion

The difference between axial flux motors and ordinary motors lies primarily in magnetic direction, structural layout, torque density, and integration flexibility. Axial flux motors offer compact size and high power density, making them ideal for innovative and space-sensitive applications. Ordinary radial motors provide manufacturing maturity, cost efficiency, and proven reliability for traditional industries.

For businesses, engineers, and procurement professionals, understanding these distinctions leads to better design decisions and stronger competitive advantage. In a rapidly electrifying world, selecting the right motor technology is no longer a minor technical step—it is a strategic move that shapes efficiency, sustainability, and long-term performance.
