Slotless Permanent Coreless Permanent Magnet Motor: Principles, Technologies, and Future Trends

1. Introduction next-generation electric motor

In recent years, electric Coreless Permanent Magnet Motor design has changed fast. At the same time, many industries now ask for higher efficiency, higher power density, and better control accuracy. Because of these needs, traditional motors with iron cores face clear limits.

In conventional motors, the stator iron core often causes magnetic saturation. As a result, torque does not increase in a linear way. In addition, cogging torque, iron loss, and heat buildup reduce overall performance. Therefore, engineers are looking for new motor structures that can avoid these problems.

Coreless and slotless permanent magnet motors are one of the most promising solutions. By removing all or part of the magnetic core in the stator, these motors change how the magnetic field is formed. Because of this, they offer high efficiency, smooth torque, and strong overload ability.

For this reason, coreless motors are now widely studied and tested in flywheel energy storage, wind power generation, aerospace servo systems, robotics, medical devices, and all-electric propulsion systems.

In this article, we explain the working principles of coreless permanent magnet motors. Then, we classify them into radial flux, axial flux, and linear motion types. After that, we discuss key technologies such as winding design, cooling, air-gap field shaping, and control methods for low-inductance motors. Finally, we review global research progress and outline future development trends.

2. What Is a Coreless and Slotless Permanent Magnet Motor?

2.1 Basic Definition

A coreless permanent magnet motor is a motor in which the stator does not rely on a traditional iron core to guide magnetic flux. Instead, the magnetic field is mainly created by permanent magnets and current-carrying windings in air.

Because there is no iron core, magnetic saturation does not occur. As a result, the motor can keep stable performance even under high load.

2.2 Difference Between Coreless and Slotless Motors

Although these two terms are often used together, they are not exactly the same.

• A slotless motor still has an iron core, but it has no slots.

• A coreless motor removes the iron core completely or almost completely.

• A coreless and slotless motor combines both ideas.

In practice, many high-end designs use both approaches. Therefore, they can reduce torque ripple while also avoiding magnetic saturation.

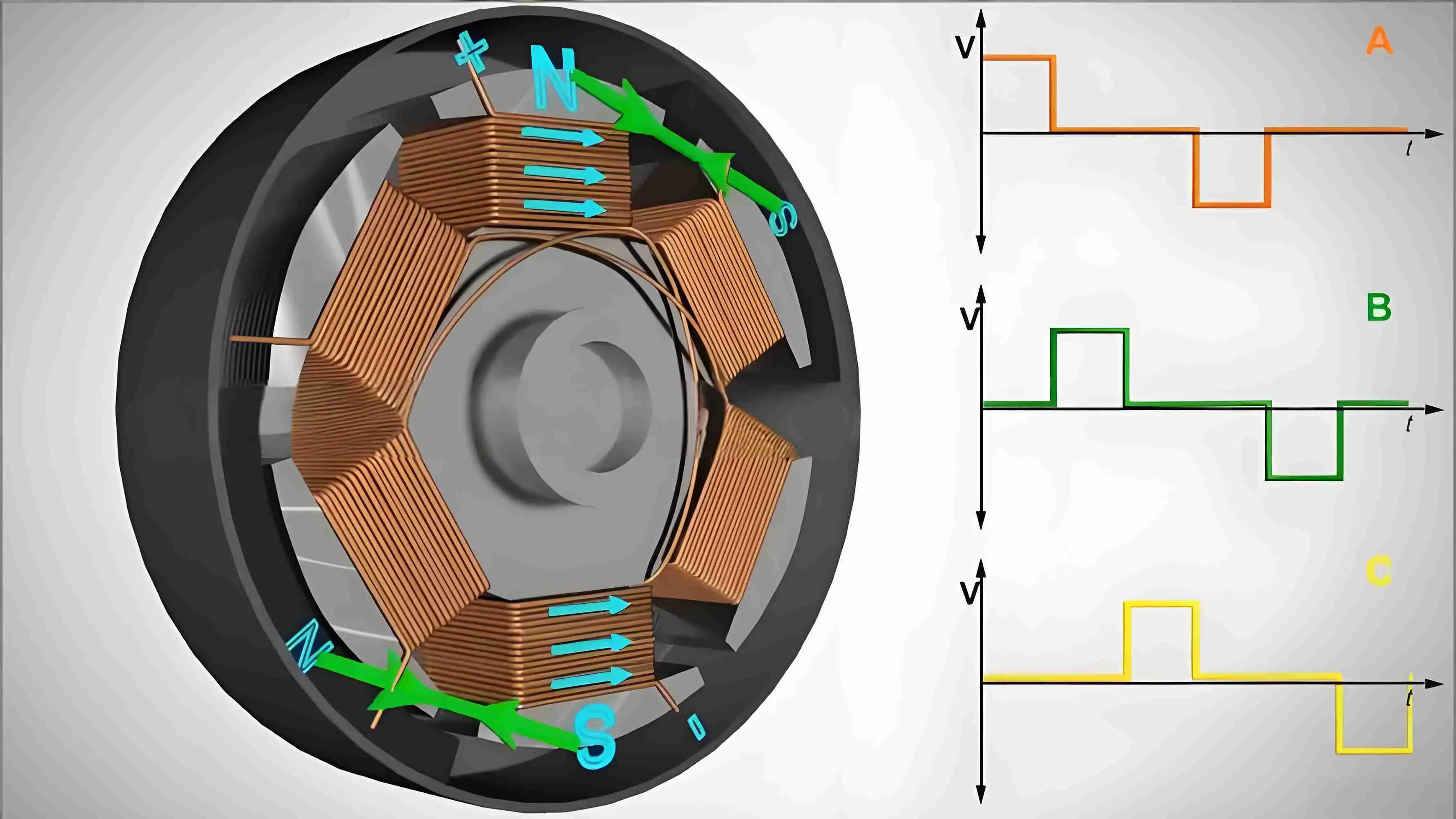

3. Key Advantages of Coreless Permanent Magnet Motors

3.1 No Magnetic Saturation

First of all, coreless motors remove the main source of magnetic saturation. Because of this, torque increases almost linearly with current.

As a result, the motor has:

• Strong overload capability

• Predictable control behavior

• Better safety margins

This is very important in servo and aerospace systems.

3.2 Zero or Near-Zero Cogging Torque

Cogging torque comes from the interaction between rotor magnets and stator slots. However, coreless motors have no slots.

Therefore, cogging torque is almost zero. At the same time, torque output becomes very smooth. For this reason, coreless motors work well in precision motion systems, such as robots and medical devices.

3.3 High Efficiency and Low Loss

Traditional motors suffer from iron loss, including hysteresis loss and eddy current loss. In contrast, coreless motors have little or no iron loss.

As a result:

• Efficiency is higher

• Efficiency stays high at high speed

• Energy waste is reduced

This makes coreless motors a good choice for energy-sensitive systems.

3.4 Low Rotor Loss and Better Thermal Performance

In addition, optimized air-gap fields reduce harmonic content. Because of this, rotor eddy current loss is lower.

At the same time:

• Rotor temperature rises more slowly

• Cooling design becomes easier

• Motor life is longer

3.5 Fast Dynamic Response

Coreless motors usually have very low inductance and low inertia. Therefore, current and torque can change very fast.

Because of this, they are ideal for:

• High-speed control

• Fast acceleration

• High-bandwidth servo systems

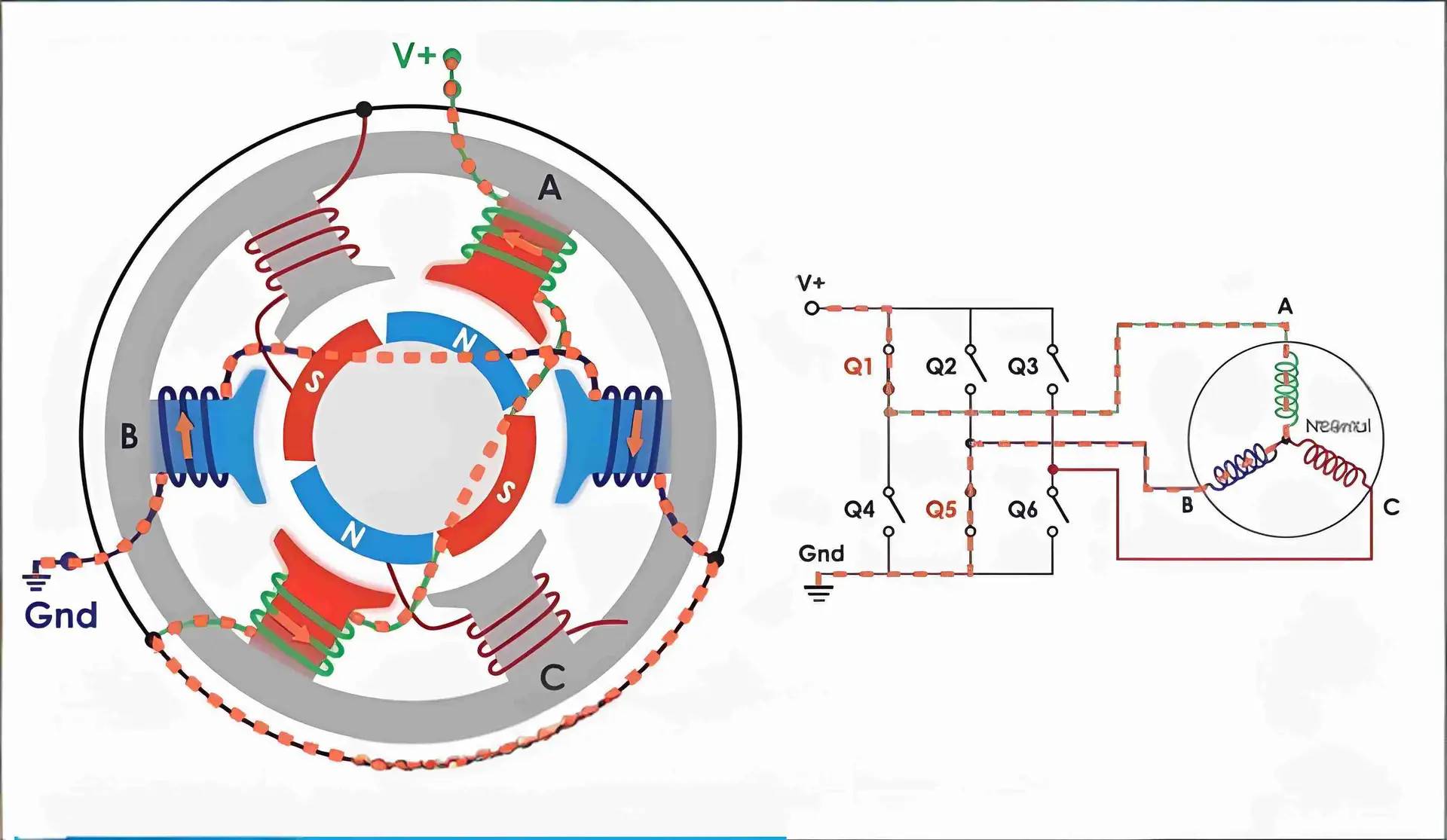

  What-Is-a-Coreless-Permanent-Magnet-Motor

4. Classification Based on Magnetic Field Direction advanced motor topology

Based on how the magnetic field is formed, coreless and slotless permanent magnet motors can be divided into three main types:

1. Radial magnetic field motors

2. Axial magnetic field motors

3. Linear motion motors

Each type has its own structure, benefits, and use cases.

5. Radial Flux Coreless Permanent Magnet Motors

5.1 Structure and Working Principle

In radial flux motors, the magnetic field flows from the rotor to the stator in the radial direction. The stator winding is usually air-core and self-supporting.

Meanwhile, the rotor uses surface-mounted or embedded permanent magnets. Because the stator has no iron teeth, the air gap is smooth and uniform.

5.2 Advantages

Radial flux coreless motors:

• Fit well into traditional motor layouts

• Are easier to integrate into existing systems

• Have mature mechanical designs

Therefore, they are often used in industrial servo drives and compact motion systems.

5.3 Technical Challenges and Solutions

However, radial flux coreless motors also face challenges. For example, air-gap flux density is lower than in iron-core motors.

To solve this, designers often:

• Use high-energy rare-earth magnets

• Improve winding shape and layout

• Add active or liquid cooling

As a result, performance can meet high industrial standards.

6. Axial Flux Coreless Permanent Magnet Motors

6.1 Why Axial Flux Design Works Well

Axial flux motors have a short magnetic path and a large effective area. Because of this, torque density is naturally high.

When combined with a coreless stator, these advantages become even stronger.

6.2 Common Structural Types low loss electric motor

Typical axial flux coreless motors include:

• Single-rotor single-stator designs

• Double-rotor single-stator designs

• Multi-disc structures

In most cases, the stator winding is placed between rotor discs.

6.3 Performance Benefits

Axial flux coreless motors offer:

• High torque at low speed

• Compact axial length

• Excellent efficiency

Therefore, they are widely studied for electric aircraft, marine drives, and wind power systems.

6.4 Manufacturing Considerations

At the same time, axial flux motors need high precision. Air-gap control is critical. In addition, winding forming technology must be accurate.

Because manufacturing methods are improving, these motors are becoming more practical for mass production.

7. Linear Motion Coreless Permanent Magnet Motors

7.1 Basic Principle

Linear coreless motors convert electrical energy directly into linear motion. There is no gearbox or screw mechanism.

As a result, mechanical loss and backlash are removed.

7.2 Key Advantages

Linear coreless motors provide:

• Smooth motion

• High positioning accuracy

• Low maintenance

Therefore, they are widely used in semiconductor tools and precision automation.

7.3 Control and Cooling Needs

However, low inductance means high current change speed. Because of this, advanced current control and good cooling are required.

8. Key Technologies in Coreless Motor Design

8.1 Stator Winding Design

The stator winding is the core of a coreless motor. Designers aim to:

• Increase copper fill factor

• Keep good mechanical strength

• Shape the magnetic field smoothly

Common winding types include concentrated, distributed, and printed windings.

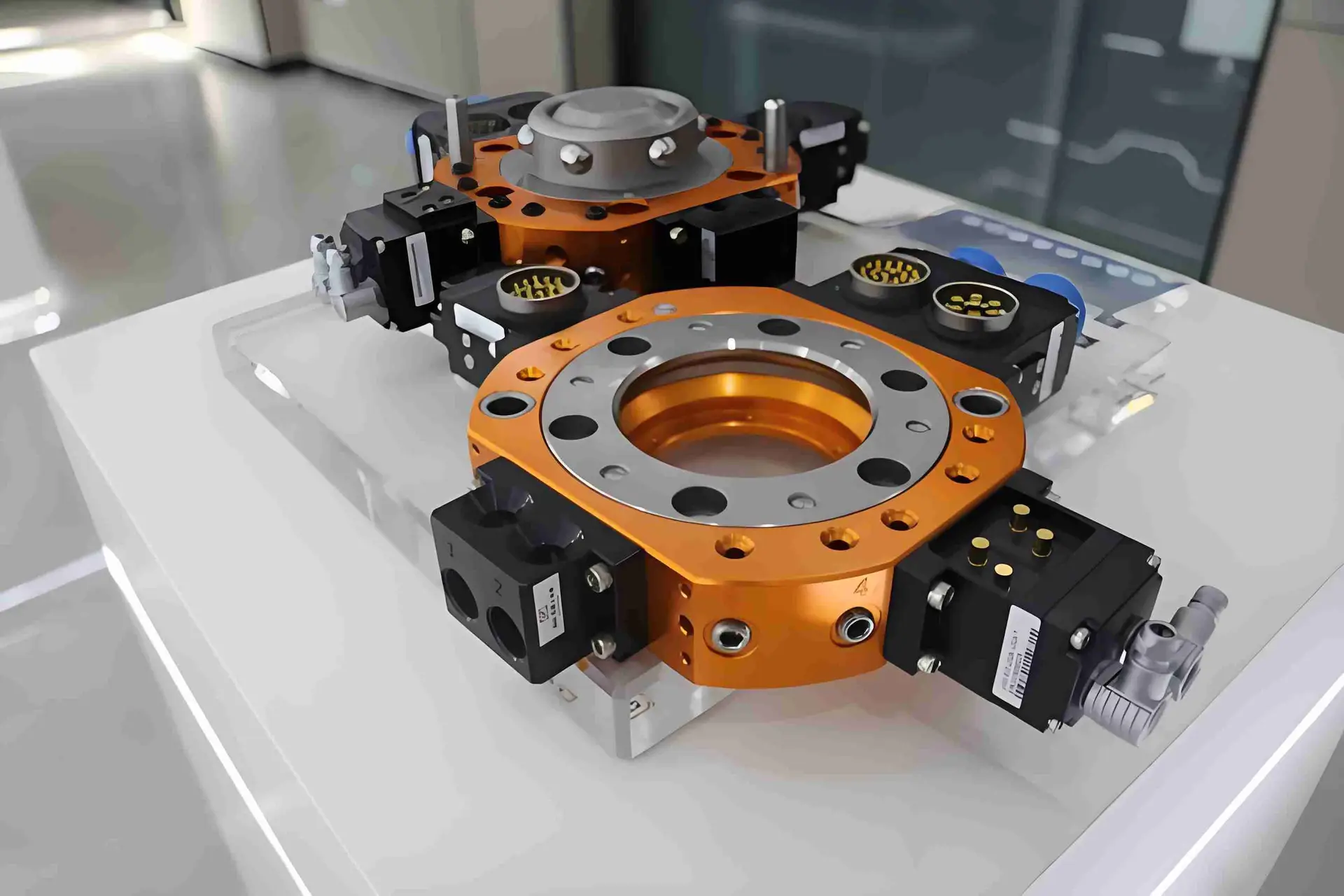

8.2 Cooling Methods

Without an iron core, heat does not spread easily. Therefore, cooling design is very important.

Common methods include:

• Liquid cooling

• Forced air cooling

• Heat-conductive potting materials

Good cooling directly improves reliability.

8.3 Air-Gap Magnetic Field Optimization

A smooth air-gap field reduces torque ripple. To achieve this, engineers:

• Optimize magnet shape

• Adjust magnet layout

• Use advanced simulation tools

As a result, motor noise and vibration are reduced.

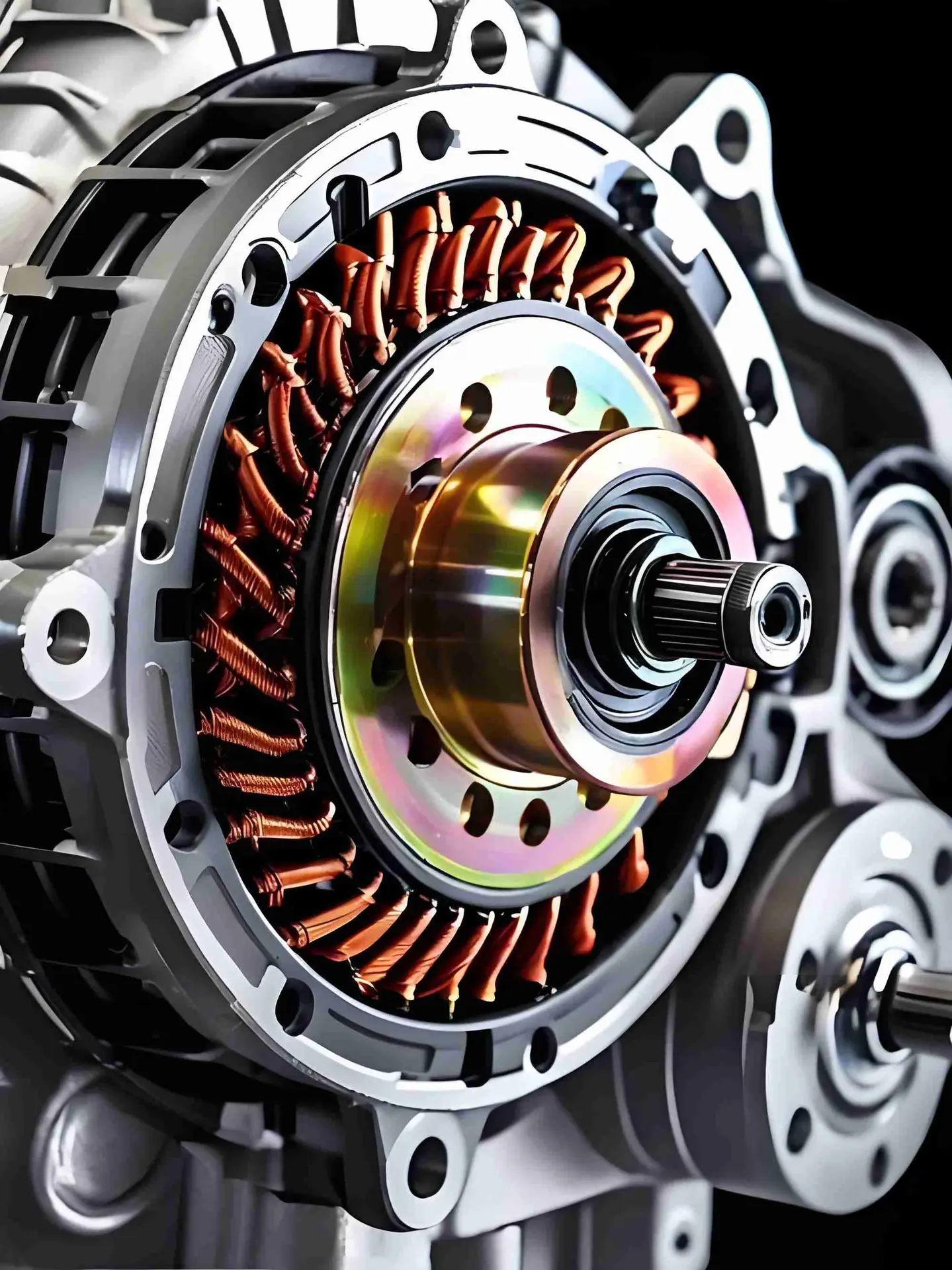

8.4 Control of Low-Inductance Motors

Because inductance is low, current changes very fast. Therefore, control systems must react quickly.

Common solutions include:

• High-frequency PWM

• Current feedforward

• Predictive control methods

These techniques ensure stable operation.

9. Global Research and Application Status high torque density motor

9.1 International Progress

In Europe and North America, research focuses on:

• Aerospace motors

• High-speed generators

• Integrated motor-drive systems

Many projects aim for high efficiency and low weight.

---

9.2 Industrial Adoption

At the same time, more companies are testing coreless motors in real products. As costs drop, commercial use continues to grow.

10. Typical Application Areas smooth torque motor

10.1 Flywheel Energy Storage

Coreless motors work well at high speed. Therefore, they are ideal for flywheel systems.

10.2 Wind Power Generation

In small and medium wind turbines, coreless generators reduce loss and maintenance.

10.3 Aerospace Servo Systems

Low weight and smooth torque make coreless motors suitable for flight control actuators.

10.4 All-Electric Propulsion

Electric aircraft and marine systems benefit from high torque density and efficiency.

11. Future Development Trends

In the future, coreless permanent magnet motors will focus on:

• Higher power density

• Better materials

• Integrated design with power electronics

• Digital design and AI optimization

As a result, these motors will play a key role in next-generation electric systems.

12. Conclusion magnetic saturation free motor

In summary, coreless and slotless permanent magnet motors remove many limits of traditional motor design. By avoiding magnetic saturation and cogging torque, they deliver high efficiency, smooth output, and fast response.

With continued progress in materials, control, and manufacturing, coreless motors will see wider use in energy, transport, and automation systems—especially in EU and North America B2B markets.
