Custom Drone Motor Stator Manufacturing: Solutions and Innovation for Modern UAV Motors

Drone technology continues to advance rapidly. Today, drones are widely used in agriculture, logistics, aerial photography, industrial inspection, and emergency response. As these applications grow, the performance of drone motors, especially when using a Custom Drone Motor Stator, becomes increasingly important.

Among all motor components, the stator plays a critical role. It directly affects torque output, motor efficiency, temperature control, and long-term reliability. Because of this, many manufacturers now require custom drone motor stator solutions to meet the specific needs of different UAV systems.

Custom stator design allows engineers to optimize motor performance for specific flight conditions. As a result, drone manufacturers can achieve better power efficiency, improved flight stability, and longer service life.

This article explains the fundamentals of drone motor stators, the importance of customization, the design and manufacturing process, and the future development of custom drone motor stator manufacturing.

Understanding Drone Motor Stators

Most modern drones use brushless DC motors (BLDC motors). Compared with brushed motors, BLDC motors offer higher efficiency, longer life, and lower maintenance requirements. For this reason, they are widely used in both industrial and commercial UAV platforms.

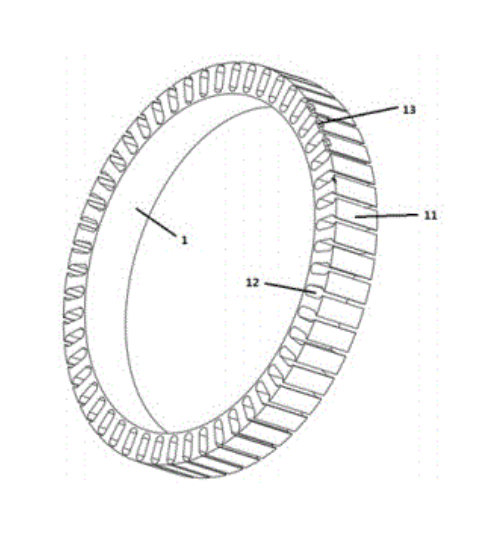

The stator is a key component inside the BLDC motor. It generates the electromagnetic field that drives rotor movement. A typical drone motor stator includes three main parts: the stator core, stator windings, and insulation materials.

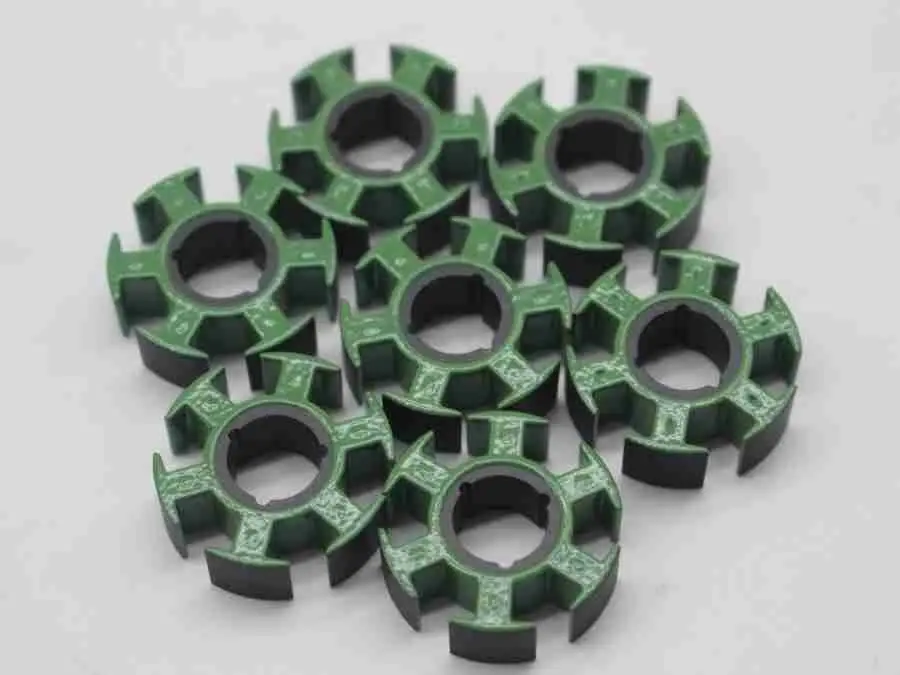

Stator Core

The stator core is usually made from laminated silicon steel sheets. These thin laminations guide magnetic flux while reducing energy loss caused by eddy currents.

The design of the stator core directly influences several motor characteristics:

• Torque output

• Magnetic flux density

• Energy efficiency

• Heat generation

Precise lamination stamping and stacking are essential. High-quality stator core manufacturing ensures stable magnetic performance and improved motor efficiency.

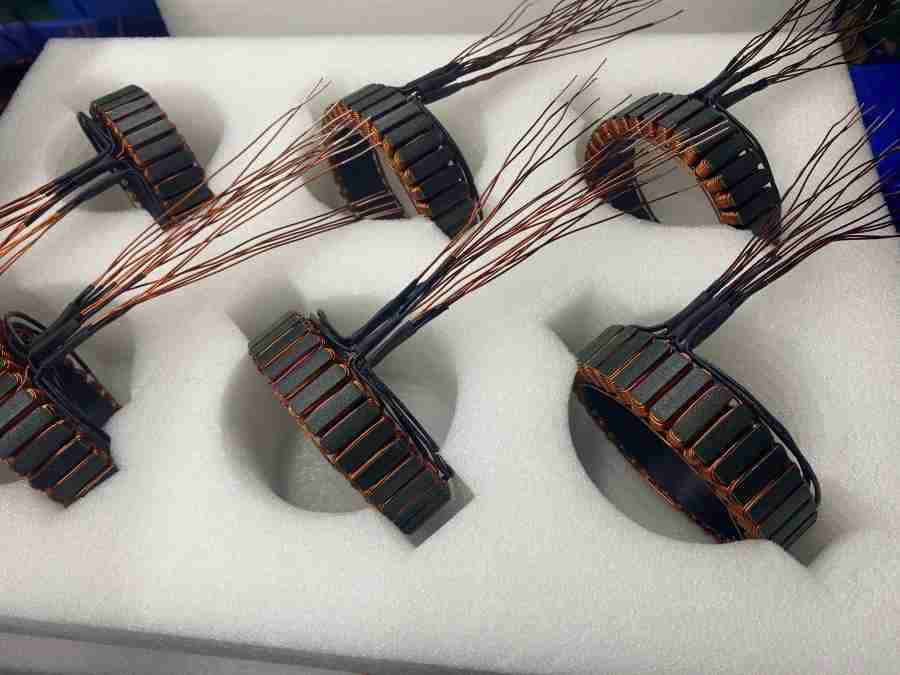

Stator Windings

Stator windings are typically made from high-purity copper wire. These windings carry electrical current and generate the magnetic field required for motor rotation.

Several factors influence winding performance:

• Number of coil turns

• Wire diameter

• Winding layout

• Coil insulation

Through careful optimization of these parameters, engineers can increase torque density and improve overall motor efficiency. This is especially important for high-performance UAV motor stator designs.

Insulation Materials

Insulation materials protect the winding system from electrical faults and thermal damage.

Important insulation properties include:

• High temperature resistance

• Strong dielectric strength

• Mechanical durability

• Resistance to vibration and moisture

High-quality insulation ensures that the custom drone motor stator can operate safely under demanding conditions such as high load, high temperature, and continuous flight operation.

Why Custom Drone Motor Stators Are Important

As the drone industry expands, UAV applications become more specialized. Standard motor designs cannot always meet the performance requirements of different drone systems.

Therefore, custom drone motor stator manufacturing plays a critical role in modern UAV development.

Meeting Application-Specific Requirements

Different drone applications require different motor characteristics.

For example:

Agricultural drones must carry heavy payloads such as pesticide tanks or fertilizer systems. These drones require high torque motors.

Delivery drones must maximize energy efficiency to extend flight distance and battery life.

Inspection and mapping drones require extremely stable motor performance to maintain smooth flight and accurate data collection.

Through custom stator design, engineers can adjust motor parameters to match these specific needs.

Improving Motor Efficiency and Performance

Custom stator design allows engineers to optimize many important features, including:

• Stator slot geometry

• Magnetic circuit design

• Winding configuration

• Lamination thickness

As a result, a custom drone motor stator can achieve higher torque output, lower energy loss, and improved thermal performance.

This directly improves drone flight efficiency and operational reliability.

Reducing Manufacturing Cost

Although customization may seem expensive, optimized design often reduces overall manufacturing cost.

For example:

Efficient lamination layouts reduce silicon steel waste.

Optimized winding patterns lower copper usage.

Improved production processes increase manufacturing efficiency.

These improvements allow manufacturers to produce high-performance custom UAV motor stators while maintaining competitive pricing.

Custom Drone Motor Stator Design and Manufacturing Process

Producing a reliable custom drone motor stator requires a structured engineering and production process. Each stage ensures that the final product meets strict performance and quality requirements.

Requirement Analysis

The first step is a detailed analysis of customer requirements.

Engineers work closely with clients to determine key specifications, such as:

• Motor power output

• Size and weight limitations

• Operating temperature range

• Environmental conditions

• Rotor compatibility

This information helps engineers create an optimized stator design.

Engineering Design

After gathering requirements, engineers develop the stator design using CAD software and electromagnetic simulation tools.

At this stage, engineers evaluate several factors:

• Magnetic circuit efficiency

• Lamination structure

• Winding arrangement

• Heat dissipation performance

Material selection and production feasibility are also considered to ensure cost-effective manufacturing.

Prototype Production and Testing

Once the design is finalized, a prototype stator is produced.

The prototype undergoes several tests to verify its performance, including:

• Thermal performance testing

• Vibration testing

• Electrical insulation testing

• Efficiency testing

These tests confirm that the custom drone motor stator meets the required design standards.

Mass Production Preparation

After successful testing, the project moves into the mass production phase.

Manufacturers establish production lines for:

• Precision stator lamination stamping

• Coil winding

• Stator stacking and assembly

• Insulation treatment

Automation equipment often improves consistency and production efficiency.

Quality Control

Strict quality control is essential for stator manufacturing.

Typical inspection procedures include:

• Dimensional measurement

• Magnetic performance testing

• Insulation resistance testing

• Visual quality inspection

These procedures ensure that every stator delivered to customers meets engineering specifications and reliability requirements.

Applications of Custom Drone Motor Stators

Custom stator solutions are used in many drone industries.

Agricultural Drones

Agricultural drones must operate in harsh environments while carrying heavy loads.

Custom stator designs provide:

• Strong torque output

• Improved heat resistance

• Stable motor performance

These features ensure reliable operation during long agricultural missions.

Logistics and Delivery Drones

Delivery drones require long flight times and efficient energy use.

Optimized custom drone motor stators improve power efficiency and extend battery life. This allows drones to transport goods over longer distances.

Mapping and Survey Drones

Survey drones require precise motor control for stable flight.

Custom stator designs help reduce vibration and maintain smooth motor operation. As a result, drones can capture more accurate mapping and imaging data.

Emergency Response Drones

Emergency and rescue drones must operate quickly and reliably in critical situations.

Optimized stator design improves motor response speed and flight stability. This allows drones to reach target locations quickly and safely.

Future Trends in Drone Motor Stator Manufacturing

The drone industry continues to evolve. As a result, custom drone motor stator technology will also continue to advance.

Several important trends are shaping the future of the industry.

Advanced Magnetic Materials

Researchers are developing new magnetic materials that improve motor performance.

These materials can:

• Reduce magnetic core loss

• Improve energy efficiency

• Lower operating temperature

Such innovations will make future UAV motor stators even more efficient.

Smart Manufacturing Technology

Automation and digital manufacturing systems are transforming the stator production process.

Industry 4.0 technologies help manufacturers improve:

• Production efficiency

• Product quality consistency

• Data traceability

These technologies also support faster development of custom motor components.

Sustainable and Green Manufacturing

Environmental sustainability is becoming an important focus for manufacturing companies.

Modern stator production increasingly uses:

• Energy-efficient equipment

• Waste reduction processes

• Environmentally friendly materials

These practices help manufacturers meet global sustainability standards.

Flexible Manufacturing Systems

The drone market evolves quickly. Manufacturers must adapt to changing designs and production volumes.

Flexible production systems allow companies to:

• Produce small batch orders efficiently

• Support rapid prototyping

• Deliver custom stator solutions faster

This flexibility is essential for supporting innovation in the UAV industry.

Conclusion

Custom drone motor stator manufacturing plays a vital role in modern UAV development. By optimizing stator design, materials, and production processes, manufacturers can deliver motors with higher efficiency, stronger torque, and longer service life.

As drone applications continue to expand across agriculture, logistics, mapping, and emergency services, demand for high-performance custom drone motor stators will continue to grow.

With ongoing innovation in materials, manufacturing technology, and design optimization, custom stator solutions will remain a key driver of performance in next-generation UAV motors.
