Do the Stator and Rotor Need Power in Electric Motor Design?

In the design and application of modern electric motors, the stator and rotor are the two most critical components. Although they perform different roles during operation, the method of power delivery often becomes a key point of discussion. When asking “Do both the stator and rotor require electrical power?”, many overlook the deeper principles behind electric motor design.Next, we will analyze the motor’s internal operating mechanism, explain the power supply requirements of each component, and explore the core principles that govern motor performance.The basic definitions of the stator and rotor are as follows: In electric motor design, the stator serves as the stationary part of the system, typically made of coils or magnetic structures. The rotor, on the other hand, is the rotating component responsible for producing mechanical output.

The definitions of stator and rotor

The stator is the stationary part of the motor, usually composed of electromagnetic coils or permanent magnets. In AC motors, the stator generates a rotating magnetic field that provides the driving force for the motor’s operation.

The rotor is the movable component inside the motor, located within the stator. It rotates in response to changes in the electromotive force. Rotor designs can take various forms, such as slip rings or squirrel-cage structures.

Motor Operating Principle

The motor’s operation primarily relies on electromagnetic induction laws, particularly Faraday’s law of electromagnetic induction. It converts electrical energy into mechanical energy through the interaction between electric current and magnetic fields. The specific process is as follows:

When alternating current flows through the stator windings, it generates a rotating magnetic field within the stator. The frequency of this rotating magnetic field matches the frequency of the input current.

Under the influence of this rotating magnetic field, induced currents are generated within the rotor. The rotor begins to rotate due to the rotating magnetic field, thereby achieving the conversion of electrical energy.

There exists a specific relationship between the speed of the rotating magnetic field generated by the stator and the rotational speed of the rotor. To enable sustained rotation of the rotor, the stator’s rotating magnetic field must maintain a certain degree of phase advance.

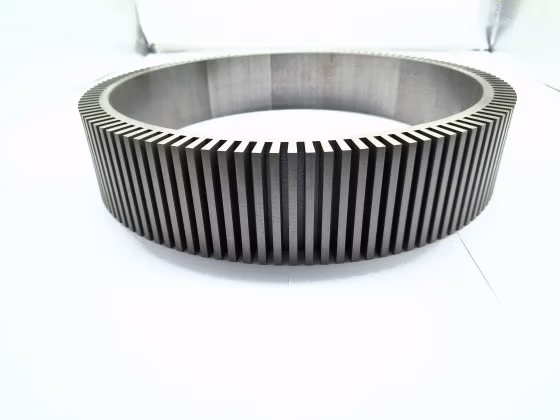

high-efficiency stator lamination design for power delivery

Power Requirements for Stator and Rotor

For many motor types, the power supply methods for the stator and rotor differ. Below, we focus on analyzing the power requirements for both.

Stator Power Supply Method

Almost all motors require a power source for the stator. For example, in a three-phase AC motor, the stator is powered by three AC power lines to generate the rotating magnetic field. This power supply is critical; without it, the rotating magnetic field cannot form, and the rotor cannot rotate.

Rotor Power Requirements Vary by Motor Type

Induction Motors: In most induction motors, the rotor does not require direct power supply. Instead, it relies on the rotating magnetic field generated by the stator to induce current. The rotor’s operation is based on electromagnetic induction, eliminating the need for separate power to the rotor.

– DC Motors: In DC motors, the rotor (armature) receives direct power supply. Here, the stator generates a static magnetic field, while the rotor produces rotational force by connecting to a DC power source. Both stator and rotor power supply are essential.

The operating principles of the stator and rotor in brushless DC motors differ from traditional DC motors. Typically, the stator employs a wound design, while the rotor utilizes permanent magnets. An electronic controller adjusts the power direction in real time to ensure smooth rotor rotation.

energized winding in modern electric motors

Impact of Stator and Rotor Power Supply on Performance

Having clarified the power supply requirements for the stator and rotor, we now examine how their power supply affects motor performance, primarily in the following aspects:

• Efficiency: Optimizing the power supply method can significantly enhance overall motor efficiency. For instance, in three-phase systems, adjusting the phase and amplitude of stator current helps boost motor efficiency while reducing reactive power losses.
• Control Methods: Modern motor control technologies, such as variable frequency drives (VFDs) and servo systems, enable stator power regulation beyond mere speed control to include output torque adjustment. This highly efficient control capability far surpasses traditional motors, greatly expanding the motor’s application range and flexibility.
• Thermal Management: During motor operation, stator and rotor power supply constitutes a primary source of internal heat generation. Through optimized power delivery methods and heat dissipation design, temperature rise can be effectively mitigated, thereby extending the motor’s service life.
• Fault Detection: The power supply status of the stator and rotor serves as a critical indicator for assessing motor health. By monitoring variations in supply current and temperature, potential faults can be identified proactively, facilitating timely maintenance.

Conclusion

Within motors, the stator and rotor each fulfill distinct functions, yet their power supply methods and requirements differ. Taking induction motors as an example, the stator requires direct power to generate the necessary rotating magnetic field, while the rotor operates via induced currents without direct power supply. In contrast, DC motors and brushless DC motors require the rotor to be powered to deliver torque.

Through in-depth analysis of stator and rotor power supply mechanisms, engineers and technicians can more effectively design, utilize, and maintain motors, thereby enhancing operational efficiency and extending service life. This article aims to assist readers exploring motor technology in gaining clearer insights into internal construction and power supply requirements.
