Does more windings in a motor mean higher power?

In motor design and application, the number of windings is often regarded as a key factor influencing motor power. So, what precisely is the relationship between a motor’s winding count and its power output? This article will thoroughly examine the correlation between motor winding quantity and power, aiding readers in better understanding the principles and associated factors of this technical issue.

Overview of Motor Fundamentals

A motor is a device capable of converting electrical energy into mechanical energy, widely utilised across industries such as manufacturing, transportation, and household appliances. Motor performance is influenced by multiple factors, including design, materials, manufacturing processes, power supply characteristics, and load conditions. Among these, power stands as one of the most critical parameters, typically expressed in kilowatts (kW) or horsepower (HP).

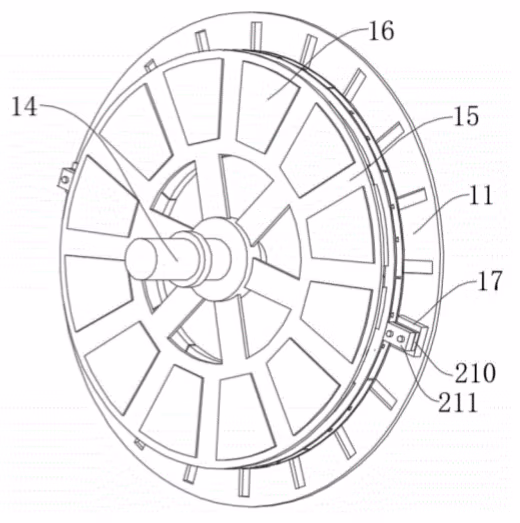

The fundamental components of an electric motor include the stator, rotor, windings, pole shoes, and power supply. Among these, the windings constitute a critical element, typically fabricated from conductive copper or aluminium wire. They are primarily categorised into three-phase and single-phase windings. The design and arrangement of these windings directly influence the motor’s magnetic field distribution, thereby affecting its operational efficiency and output power.

The Relationship Between Winding Quantity and Motor Power

Motor power is intrinsically linked to its output torque and rotational speed. The power formula is: P (power) = T (torque) × ω (angular velocity). Consequently, when evaluating a motor’s operating environment and load conditions, the magnitude of its output power is also influenced by the motor’s design and the number of windings.

Definition of Winding Count and Analysis of Its Impact

The number of windings refers to the quantity of wire coils in a motor, impacting its performance and efficiency. More windings can increase output power and torque. However, too many coils may cause excessive heat and energy loss. Proper winding count planning is crucial for optimal motor performance.

In motors, winding count refers to the number of turns in each coil. A higher number of windings strengthens the magnetic field, increasing torque and power output, within certain limits.

1.The relationship between winding quantity and current.

Motor power is not solely influenced by the number of windings but is also closely related to current. According to Ohm’s Law, current (I) is directly proportional to voltage (V) and inversely proportional to resistance (R). An increase in the number of windings may alter resistance, thereby affecting current magnitude. Should current increase, the surrounding magnetic field strengthens, consequently boosting the motor’s power output.

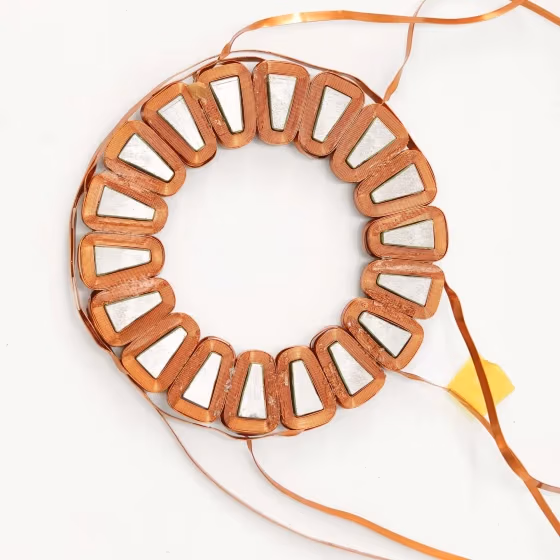

Stator windings in a motor

2.The relationship between magnetic field strength and coil turns.

Within an electric motor, magnetic field strength H is directly proportional to the number of coil turns N, calculated as H = N × I. As both current and coil turns increase, magnetic field strength intensifies accordingly. This implies that, with current held constant, increasing coil turns can elevate the motor’s magnetic field strength. However, it should be noted that magnetic saturation may occur; once the magnetic field reaches a specific threshold, further increases in coil turns will not enhance the motor’s output power.

3.A reciprocal equilibrium exists between heat generation and power output.

Furthermore, while increasing the number of windings can boost power, it also elevates the motor’s thermal load. Excessive motor temperatures may reduce efficiency or even cause damage. Therefore, when designing for increased winding counts, particular attention must be paid to heat dissipation and insulation to ensure stable and safe operation during high-power output.

What aspects should be considered in practical applications?

In practical applications, motor design relies not solely on the number of windings. Different operational environments impose specific requirements. For instance, in motors demanding high rotational speeds, simply increasing the number of windings may not be the most effective approach. Optimising the rotor structure and air gap design may also be necessary to achieve more efficient power output.

1.Winding specifications for different motor types.

Asynchronous motors, synchronous motors, and DC motors each possess distinct design and operational characteristics. Taking asynchronous motors as an example, their design typically emphasises phase coordination of windings and optimised coil layout to enhance energy efficiency, rather than solely increasing power through additional windings. Furthermore, factors such as variations in current frequency and load characteristics significantly influence the motor’s output power.

2.Comprehensive Evaluation of Efficiency and Performance

When selecting and utilising motors, power is not the sole criterion. Factors such as power factor, operational efficiency, input current, and heat dissipation performance are equally crucial. During the motor design phase, the primary task for designers is to ensure output power while rationally controlling energy consumption to enhance overall operational efficiency.

Summary

In summary, the relationship between the number of motor windings and power output is highly complex. It is incorrect to assume that increasing the number of windings will automatically enhance power. Whilst in certain scenarios, increasing windings may contribute to higher power output, this must be balanced against multiple factors including current, temperature, and efficiency. Rational design and optimisation are pivotal to improving motor performance. Only through scientific analysis of operational parameters and judicious design can optimal performance be achieved under varying conditions.

Motors find extensive application across numerous sectors, including domestic appliances and industrial automation, where stringent performance requirements are imposed. For designers and engineers, a thorough understanding of motor operating principles and the interrelationships between its components enables more effective responses to diverse industrial and everyday demands.

This article aims to provide readers with a deeper comprehension of the relationship between motor winding count and power output. It is hoped that this information will serve as a valuable reference and aid in future motor design and selection endeavours.
