FPV Drone Motor Manufacturing Line Solution for UAV Production

Introduction: Why FPV Drone Motor Manufacturing Matters More Than Ever

In recent years, FPV drones and UAV systems have moved far beyond hobby use. Today, they play a vital role in racing, aerial imaging, industrial inspection, mapping, logistics, and defense-related applications. As a result, demand for high-performance FPV drone motors has increased rapidly.

However, higher demand also brings higher expectations. Manufacturers now face strict requirements for precision, consistency, efficiency, and scalability. Therefore, relying on manual or semi-automated production is no longer enough.

This is exactly why a complete FPV drone motor manufacturing line solution for UAV production has become essential.

In this article, we will explore:

• What an FPV drone motor manufacturing line is

• Why automation matters for UAV motor production

• How stator cores, winding, assembly, and testing work together

• Which industries benefit most from integrated manufacturing lines

• How to choose the right solution for your factory

More importantly, we will explain how a well-designed production line improves motor performance, cost control, and time-to-market, especially for EU and North American B2B customers.

What Is an FPV Drone Motor Manufacturing Line Solution?

Definition and Scope

An FPV drone motor manufacturing line solution is a fully integrated production system designed to manufacture brushless motors used in FPV drones and UAVs. Instead of isolated machines, this solution combines equipment, process design, quality control, and automation logic into one continuous workflow.

In simple terms, it covers everything from raw materials to finished motors.

Typically, a complete manufacturing line includes:

• Motor stator core production

• Precision winding systems

• Rotor assembly

• Magnet installation

• Balancing and alignment

• Electrical and mechanical testing

By connecting each step, manufacturers can achieve higher output with lower error rates.

Why FPV Drone Motors Require Dedicated Manufacturing Lines

Increasing Performance Demands

FPV drones demand motors that are:

• Lightweight

• High-speed

• High torque

• Thermally stable

Because FPV drones often operate at extreme RPMs, even small inconsistencies can lead to vibration, heat buildup, or failure. Therefore, production accuracy is critical.

Shorter Product Cycles

Moreover, the FPV and UAV market evolves quickly. New motor models appear every year. As a result, manufacturers need flexible manufacturing lines that support fast switching between models.

Rising B2B Expectations

In the EU and North America, OEM and ODM customers expect:

• Stable quality

• Traceable processes

• Compliance with international standards

• Scalable output

For these reasons, integrated FPV drone motor manufacturing lines are no longer optional—they are a competitive advantage.

Core Components of an FPV Drone Motor Manufacturing Line

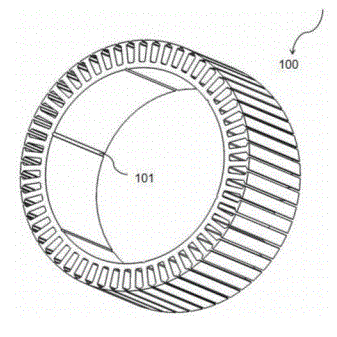

1. Motor Stator Core Manufacturing

The stator core is the heart of the FPV drone motor. Its design directly affects torque, efficiency, and heat dissipation.

Key Processes

• Silicon steel lamination stamping

• Laser or EDM cutting for prototypes

• Automatic stacking and riveting

• Insulation coating

By using thin laminations and precise stacking, the manufacturing line reduces iron loss and improves magnetic performance.

Furthermore, automated stacking ensures uniformity, which is crucial for high-speed UAV motors.

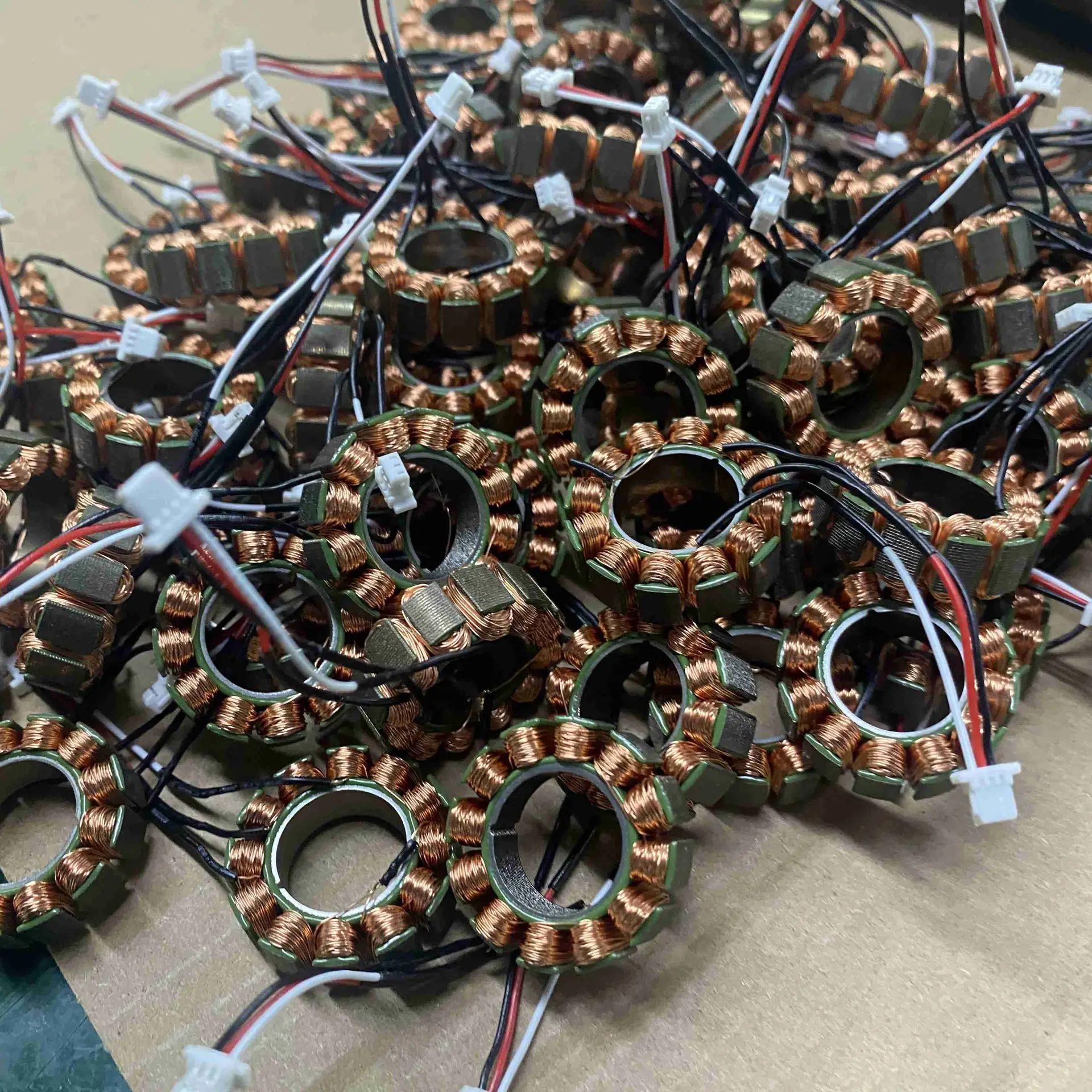

2. Precision Stator Winding System

After the stator core is ready, winding becomes the next critical step.

Why Winding Accuracy Matters

Even slight differences in winding tension or wire placement can cause:

• Uneven magnetic fields

• Higher copper loss

• Increased vibration

Therefore, modern FPV drone motor production lines rely on automated winding machines.

Key Features

• High slot fill rate

• Stable wire tension control

• Support for multi-strand and special wire types

• Compatibility with manual or automatic insertion

As a result, manufacturers achieve consistent motor performance across large batches.

3. Rotor Assembly and Magnet Installation

The rotor determines motor speed and responsiveness. In FPV drone motors, rotors must be both strong and light.

Manufacturing Highlights

• Precision shaft pressing

• Automatic magnet placement

• Adhesive curing or fixation

• Dynamic balancing

Through automation, rotor imbalance is reduced significantly. Consequently, motors run smoother at high RPMs.

4. Motor Assembly and Housing Integration

Once stator and rotor are complete, final assembly begins.

This stage includes:

• Bearing installation

• Rotor-stator alignment

• Housing assembly

• Fastening and torque control

Because alignment accuracy affects efficiency and noise, automated assembly stations ensure repeatable results.

5. Testing and Quality Control

Testing is not optional—it is essential.

A professional FPV drone motor manufacturing line includes:

• Resistance testing

• Insulation testing

• Back EMF testing

• No-load and load testing

• Vibration and noise analysis

By testing every motor, manufacturers protect their brand and reduce after-sales issues.

Benefits of an Integrated FPV Drone Motor Manufacturing Line

Improved Product Consistency

Automation reduces human error. Therefore, each motor meets the same quality standard.

Higher Production Efficiency

By connecting processes, cycle time drops significantly. As a result, output increases without sacrificing quality.

Lower Long-Term Cost

Although initial investment may be higher, automation reduces:

• Labor cost

• Scrap rate

• Rework time

Over time, ROI becomes clear.

Faster Time-to-Market

With flexible tooling and modular design, manufacturers can launch new motor models faster.

Application Scenarios for FPV Drone Motor Manufacturing Lines

FPV Racing Drones

Racing drones require:

• Extreme speed

• High power-to-weight ratio

Manufacturing lines designed for precision winding and balancing are ideal for this segment.

Cinematic and Aerial Imaging UAVs

These applications demand:

• Smooth operation

• Low vibration

• Stable torque

Integrated testing ensures consistent motor behavior.

Industrial and Commercial UAVs

Industrial UAVs require durability and long service life. Therefore, strict quality control is essential.

Customization Capabilities for UAV Motor Production

Flexible Stator Designs

Manufacturers can support:

• Different slot numbers

• Various outer diameters

• Special lamination shapes

Winding Customization

Options include:

• Different wire diameters

• High-temperature insulation

• Special winding patterns

Production Scale Adaptation

Whether small-batch prototyping or mass production, modular manufacturing lines adapt easily.

Choosing the Right FPV Drone Motor Manufacturing Line Solution

Key Factors to Consider

• Production volume

• Motor size range

• Customization needs

• Quality requirements

• Future scalability

Why One-Stop Solutions Matter

Suppliers offering design + equipment + process support reduce integration risks. Therefore, project success rates increase.

Future Trends in FPV Drone Motor Manufacturing

Higher Automation Levels

AI-assisted quality control and smart factories will become more common.

Lightweight and High-Efficiency Designs

New materials and thinner laminations will improve performance further.

Sustainable Manufacturing

Energy-efficient machines and recyclable materials will gain importance.

Conclusion: Building a Competitive Edge with the Right Manufacturing Line

In summary, an FPV drone motor manufacturing line solution for UAV production is more than equipment—it is a strategic investment.

By integrating stator production, winding, assembly, and testing into one system, manufacturers achieve:

• Better motor performance

• Lower production risk

• Faster growth potential

As FPV and UAV markets continue to expand in Europe and North America, companies with advanced manufacturing lines will lead the competition.
