Introduction: Why Motor Laminations Matter More Than Ever

High-Efficiency Motor Laminations power modern industry. They drive electric vehicles, robots, pumps, compressors, and automation systems. However, motor efficiency does not depend only on winding design or control software. Instead, motor laminations play a critical role in determining overall performance.

Today, manufacturers face strong pressure. Energy rules in Europe and North America are becoming stricter. At the same time, customers expect higher power density, lower loss, and longer service life. Therefore, improving motor core efficiency has become essential.

Motor laminations directly affect:

  • Core loss

  • Heat generation

  • Magnetic flux flow

  • Energy efficiency

  • Motor reliability

Because of this, high-efficiency laminations are now a key technology in advanced motor systems.

In this guide, we explain how modern motor laminations improve electric motor performance. We also explore materials, manufacturing methods, engineering advantages, and real industrial applications.

What Are Motor Laminations?

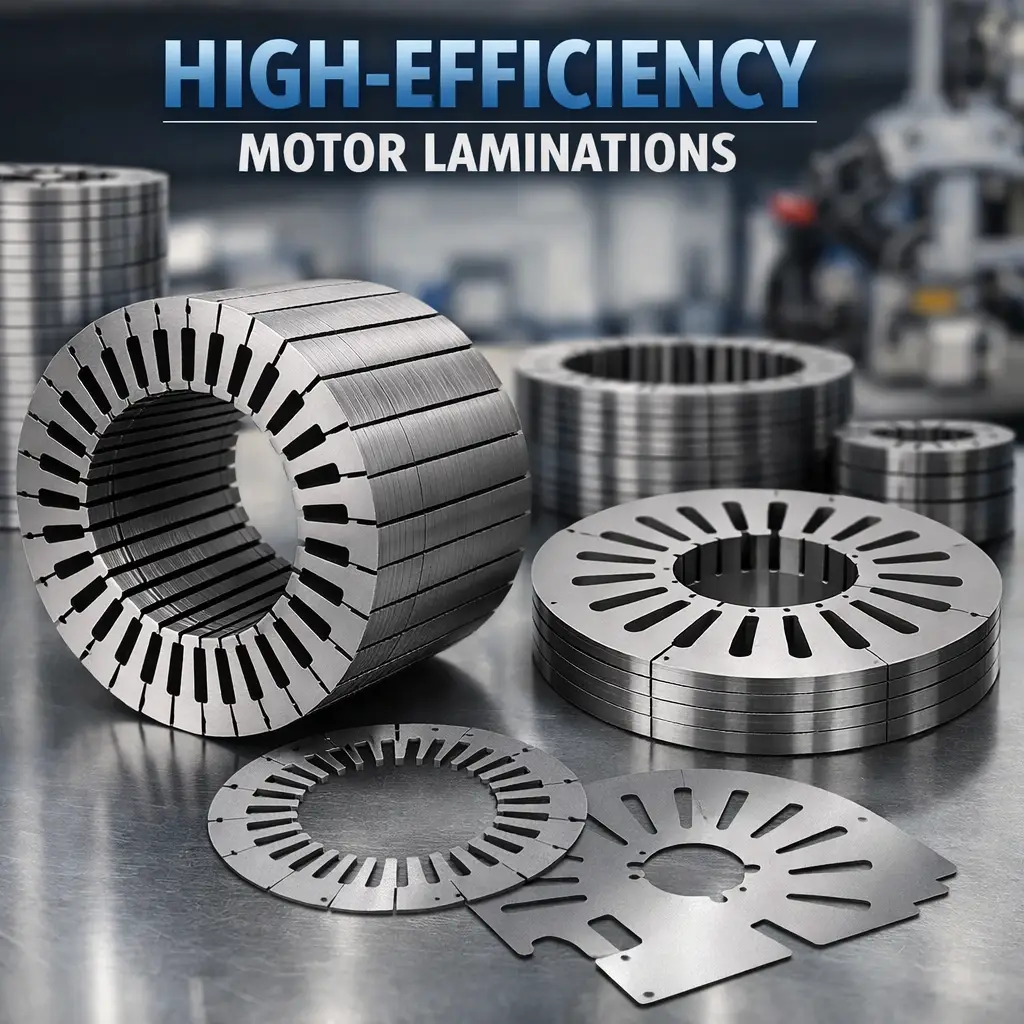

Motor laminations are thin electrical steel sheets stacked together to form the stator or rotor core.

Each sheet includes an insulation coating. This coating prevents electrical current from flowing between layers. As a result, energy loss drops significantly.

Instead of using one solid steel block, engineers stack hundreds of thin laminations. This structure reduces unwanted circulating currents called eddy currents.

Basic Structure

A typical lamination includes:

  • Silicon electrical steel

  • Precision punching geometry

  • Insulation coating

  • Stack bonding or welding

Together, these elements guide magnetic flux efficiently inside the motor.

Why Laminated Cores Improve Motor Efficiency

Laminated Cores Improve Motor

Laminated Cores Improve Motor

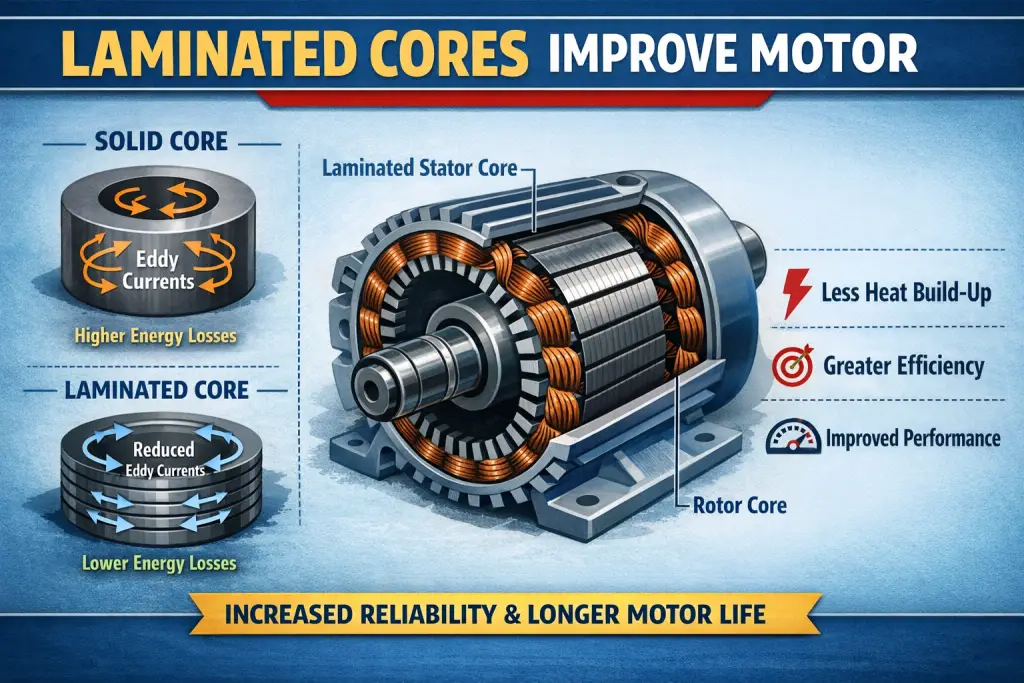

Electric motors operate using changing magnetic fields. Unfortunately, changing magnetic fields also create losses.

There are two main types of core loss:

1. Eddy Current Loss

When magnetic fields change, electric currents form inside metal cores. These currents generate heat.

However, thin laminations interrupt current paths. Therefore, eddy current loss becomes much smaller.

2. Hysteresis Loss

Magnetic domains continuously realign during operation. This process consumes energy.

High-grade electrical steel reduces hysteresis loss. As a result, motors operate more efficiently.

Key Benefits of High-Efficiency Motor Laminations

High-performance laminations deliver several advantages.

Improved Energy Efficiency

Lower core loss means less wasted energy. Consequently, motors meet IE3, IE4, and IE5 efficiency standards more easily.

Reduced Heat Generation

Less heat improves insulation life. Therefore, motors run longer without failure.

Higher Power Density

Efficient magnetic paths allow compact motor design. Manufacturers can reduce motor size while keeping output power.

Lower Operating Cost

Energy savings accumulate over time. Industrial users benefit from reduced electricity consumption.

Extended Motor Lifetime

Stable magnetic performance minimizes thermal stress and vibration damage.

Electrical Steel Materials Used in High-Efficiency Motor Laminations

Material selection strongly influences motor performance.

Non-Oriented Electrical Steel (NOES)

This material provides uniform magnetic properties in all directions.

Common applications include:

  • EV traction motors

  • Industrial motors

  • Servo motors

  • Pump systems

NOES supports high-speed operation and complex magnetic paths.

Grain-Oriented Electrical Steel (GOES)

GOES offers excellent magnetic performance in one direction.

Typical uses include:

  • Transformers

  • Specialized rotating machines

However, it is less common in rotating motors.

High Silicon Steel

Higher silicon content reduces core loss further.

Benefits include:

  • Lower hysteresis loss

  • Better resistivity

  • Improved efficiency at high frequency

Therefore, high-speed motors often use advanced silicon alloys.

Lamination Thickness and Performance Optimization

Thickness directly affects efficiency.

Thickness Typical Application
0.50 mm Standard motors
0.35 mm High efficiency motors
0.27 mm EV traction motors
0.20 mm High-speed motors

Thinner laminations reduce eddy currents. However, manufacturing complexity increases.

Thus, engineers must balance cost and performance.

Advanced Manufacturing Technologies

Modern lamination production requires extreme precision.

High-Speed Stamping

Precision stamping ensures accurate slot geometry.

Benefits include:

  • Consistent magnetic flow

  • Reduced burr height

  • Better stacking quality

Laser Cutting

Laser cutting supports prototype development.

It allows flexible design validation before mass production.

Progressive Die Technology

Large-volume production relies on progressive dies.

This method delivers:

  • High dimensional accuracy

  • Stable repeatability

  • Lower production cost

Bonding and Stacking Methods High-Efficiency Motor Laminations

Stacking quality influences magnetic performance.

Common methods include:

  • Interlocking

  • Welding

  • Adhesive bonding

  • Self-bonding coatings

Bonded stacks often reduce vibration noise.

Core Loss Reduction Technologies

Manufacturers apply several optimization strategies.

First, insulation coatings prevent interlayer current flow.

Second, stress relief annealing restores magnetic properties after stamping.

Third, optimized slot geometry improves flux distribution.

As a result, total motor efficiency increases significantly.

Role of Motor Laminations in EV High-Efficiency Motor Laminations

Electric vehicle motors demand extreme performance.

They require:

  • High torque density

  • Wide speed range

  • Low loss operation

High-efficiency laminations enable these goals.

For example, thinner laminations reduce loss during high-frequency inverter operation. Consequently, EV driving range improves.

Industrial Automation Applications

Automation systems operate continuously.

Therefore, efficiency and reliability are critical.

Motor laminations support:

  • Servo motors

  • Robotics drives

  • CNC machinery

  • Automated logistics systems

Lower temperature rise ensures stable long-term operation.

Renewable Energy Systems

Wind turbines and generators also rely on laminated cores.

Efficient laminations help achieve:

  • Stable power output

  • Reduced maintenance

  • Higher energy conversion efficiency

This directly supports global sustainability targets.

Thermal Management Advantages

Heat is the main enemy of electric motors.

Efficient laminations reduce internal heat sources.

Consequently:

  • Cooling systems become simpler

  • Bearing life improves

  • Insulation aging slows

Thermal stability leads to predictable performance.

Noise and Vibration Reduction

Poor lamination quality causes vibration.

Precision stacking minimizes air gaps and magnetic imbalance.

Therefore, motors operate quietly.

This advantage is important for:

  • Electric vehicles

  • Medical equipment

  • Consumer appliances

Design Optimization for Modern Motor Engineers

Engineers optimize laminations using simulation tools.

Finite Element Analysis (FEA) allows:

  • Magnetic flux prediction

  • Loss estimation

  • Structural analysis

Digital optimization shortens development cycles.

EU and North America Efficiency Regulations

Energy regulations continue to evolve.

Examples include:

High-efficiency laminations help manufacturers comply with global standards.

Custom High-Efficiency Motor Laminations Solutions for OEMs

OEM customers often require customized designs.

Typical customization includes:

  • Slot geometry optimization

  • Material grade selection

  • Stack height adjustment

  • Rotor topology adaptation

Custom laminations improve system integration.

Quality Control in High-Efficiency Motor Laminations Manufacturing

Strict quality inspection ensures performance.

Key inspection items:

  • Burr height measurement

  • Coating insulation testing

  • Flatness inspection

  • Magnetic property testing

Consistent quality guarantees motor reliability.

Sustainability and Green Manufacturing

Energy-efficient laminations reduce carbon emissions.

Additionally, modern factories adopt:

  • Material recycling

  • Low-waste stamping

  • Energy-efficient production lines

Sustainable manufacturing supports ESG goals.

Future Trends in Motor Lamination Technology

Motor technology continues evolving.

Key trends include:

Future motors will rely even more on advanced lamination engineering.

Choosing the High-Efficiency Motor Laminations Supplier

Selecting a supplier is critical.

Important factors include:

  • Engineering capability

  • Tooling expertise

  • Material sourcing

  • Mass production stability

  • Global delivery capability

A strong supplier becomes a long-term technology partner.

Why High-Efficiency Motor Laminations Drive Competitive Advantage

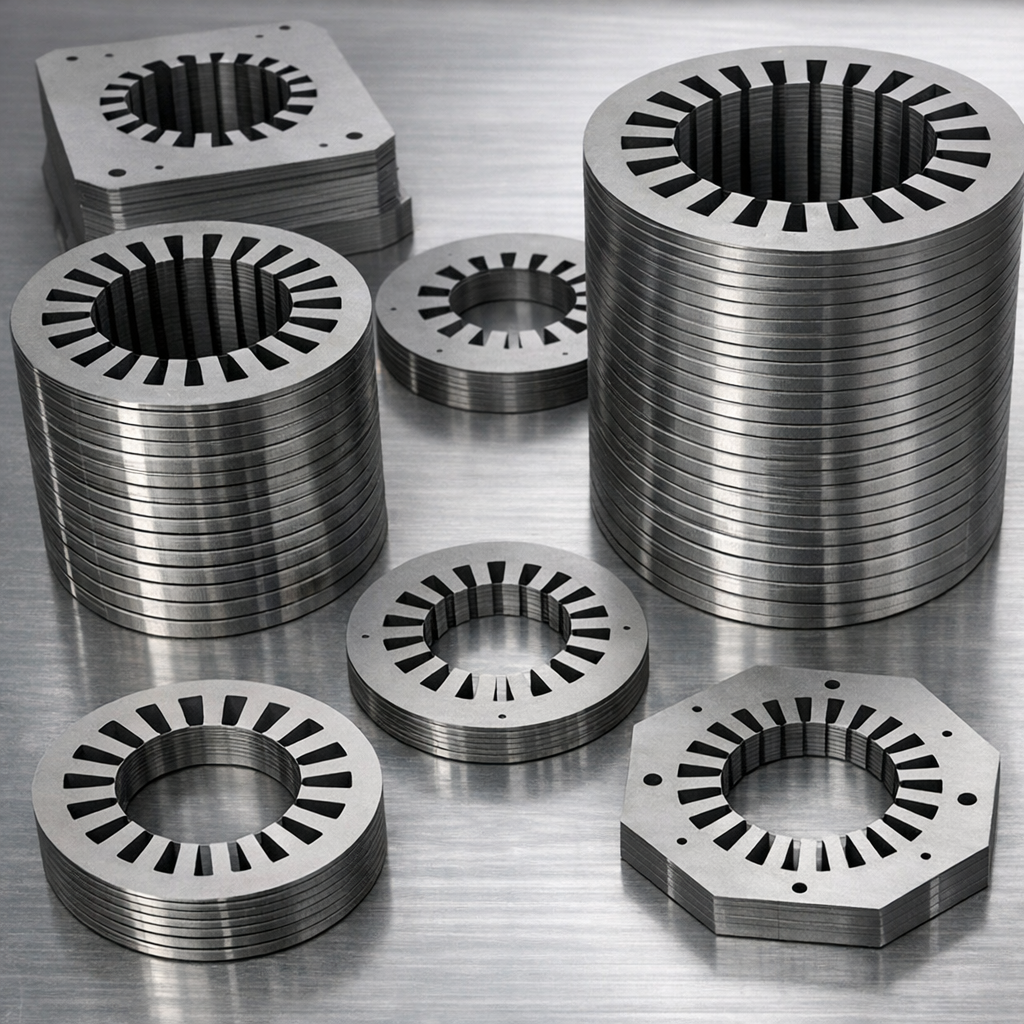

electric motor laminations

electric motor laminations

Companies using optimized laminations gain:

  • Higher motor efficiency ratings

  • Lower lifecycle cost

  • Improved product reliability

  • Faster certification approval

Therefore, lamination technology directly affects market competitiveness.

Conclusion: The Foundation of High-Performance Electric Motors

Motor laminations may appear simple. However, they define motor efficiency, durability, and performance.

As electrification accelerates worldwide, demand for high-efficiency electric motors continues to grow.

Consequently, advanced motor laminations have become the foundation of modern motor engineering.

Manufacturers investing in precision lamination technology will lead the next generation of electric mobility and industrial automation.
