How Does a Laminated Structure Improve stator Performance?

In the design and manufacturing of motors, the core is a crucial component with vital functions. Recently, the laminated design of silicon steel sheets has become a major trend in motor core design. So, why is a laminated structure of silicon steel sheets used in motor cores? What is the principle behind this structure? This article will explore this in detail from the following aspects.

What is a Laminated Structure of Silicon Steel Sheets?

Silicon steel sheets refer to special steel materials in which a certain proportion of silicon and other alloying elements are added to enhance their electromagnetic properties. In motor design, silicon steel sheets are typically laminated according to specific thicknesses and shapes to form the core. This laminated structure generally consists of multiple silicon steel sheets tightly stacked, separated by insulating material to prevent the generation of eddy currents.

Basic Characteristics of Silicon Steel Sheets

The application of silicon steel sheets mainly stems from their excellent electromagnetic properties. The addition of silicon significantly reduces the stator of the steel, especially in alternating magnetic fields, which has a significant impact on the efficiency and reliability of the motor. Specifically, silicon steel sheets can effectively reduce eddy current losses under high-frequency alternating current, thereby improving the operating efficiency of motors.

Design Features of Stacked Structures

By stacking silicon steel sheets to form an iron core, eddy current losses generated by alternating magnetic fields in motors can be significantly reduced. The stacked structure not only increases the overall magnetic flux density but also reduces heat accumulation during motor operation. This design is widely used in high-power motors, frequency converters, and other fields.

Laminated silicon steel sheet structure for high-efficiency motor cores

The principle of silicon steel sheet stacking

The principle of silicon steel sheet stacking is to improve electromagnetic performance and reduce energy loss by stacking multiple layers of silicon steel sheets together. This stacked structure can effectively reduce hysteresis losses and eddy current losses, thereby improving the efficiency of equipment such as transformers and motors. In this way, silicon steel sheets can better conduct magnetic fields, improving electrical performance.

To understand the working principle of silicon steel sheet stacking, it is essential to understand the electromagnetic principle of motors. When a motor is running, current generates a magnetic field in the conductor, which interacts with the external magnetic field, thereby converting mechanical energy. In this process, the role of the iron core is to guide and enhance the magnetic field.

electromagnetic induction

The principle of electromagnetic induction refers to the phenomenon that when a conductor moves in a magnetic field or the magnetic field itself changes, an electromotive force (EMF) is generated inside the conductor. This principle is one of the fundamental laws of electromagnetism and the basis of many electrical devices and technologies.

According to Faraday’s law of electromagnetic induction, a change in magnetic flux leads to the generation of an induced EMF. When a motor is working, the current flowing through the windings generates a time-varying magnetic field. This magnetic field causes a change in the magnetic flux within the iron core, thereby achieving the conversion of mechanical energy. The design of the laminated structure effectively reduces unnecessary energy loss in this process.

Generation and Control of Eddy Currents

When the iron core does not use a laminated structure, eddy currents are easily formed due to its overall conductivity. Eddy currents are currents generated inside the conductor due to changes in the external magnetic field. These currents instantly generate heat, leading to energy waste. Using a laminated structure, and through the addition of an insulating layer, the flow path of eddy currents can be effectively blocked, thereby significantly reducing eddy current losses.

Advantages of Laminated Structures

Motors using a silicon steel laminated structure have several advantages compared to traditional iron core designs.

Improved Energy Efficiency

In many modern motors, thanks to the rational design of the laminated structure, the energy loss (iron loss) of the iron core is significantly reduced. This is directly reflected in the motor’s energy efficiency ratio, resulting in less electrical energy consumption for the same output power, thus improving overall energy efficiency.

Reduced Operating Temperature

The heat generated by a motor during operation affects its lifespan and performance. The laminated structure effectively reduces eddy current losses, saving energy and providing a significant cooling effect. This temperature control ensures that the motor maintains good performance even during long-term operation.

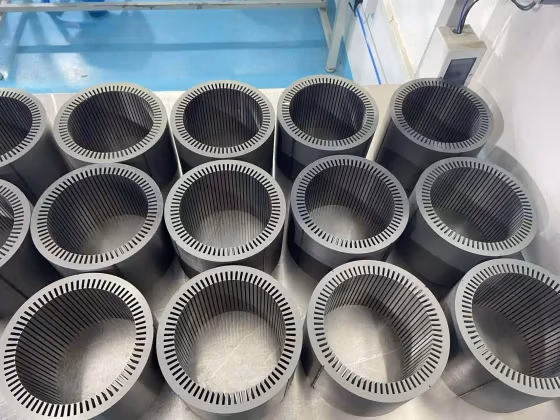

Motor core laminated structure for efficient electromagnetic performance

Increased Magnetic Flux Density

The laminated silicon steel sheets use their layered structure to make full use of the input current. This design increases magnetic flux density and strengthens the magnetic circuit. As a result, the motor delivers stable output under different loads. It also improves response speed and overall operating stability.

Reduced Noise

Motors often create noise because internal air gaps cause vibrations or eddy currents. The laminated structure separates each silicon steel layer and reduces these effects. Therefore, the motor operates more quietly and offers better comfort during long-term use.

Case Studies and Applications

Laminated silicon steel motors now appear in many industries, such as electric vehicles, home appliances, and industrial equipment. For example, in electric vehicles, motor efficiency directly affects driving range. Laminated motors run at lower temperatures and reduce losses. Thus, they improve vehicle energy efficiency and extend driving distance compared to traditional iron-core motors.

Home Appliances

Laminated motors are also suitable for home appliances such as fans and washing machines. Since home appliances typically operate for extended periods, improved energy efficiency directly reduces electricity costs. Furthermore, laminated silicon steel sheet motors operate more quietly, meeting modern consumers’ demands for quieter appliances.

Industrial Production

In industrial production, equipment using laminated motors, such as conveyor belts on automated production lines, significantly improves reliability and durability. This stator structure ensures stable operation even under high loads, while reducing maintenance frequency and downtime costs.

Future Development Trends and Prospects

With continuous technological advancements, the material properties and manufacturing processes of silicon steel sheets are constantly improving. In the future, laminated motors will see even wider applications. For example, an increasing number of high-efficiency electric motors will gradually replace traditional motors to meet increasingly stringent energy efficiency standards. Simultaneously, with the popularization of smart manufacturing, laminated motors will be combined with artificial intelligence and IoT technologies to achieve more intelligent application scenarios.

In summary, the use of silicon steel sheet laminated structures in motor cores has significant advantages in improving energy efficiency, reducing losses, and enhancing operational stability. Further advancements in this technology will bring profound changes to the motor industry and provide more efficient power solutions for various fields. With the increasing awareness of sustainable development, the use of high-efficiency, low-loss motor technology will inevitably become a necessary choice.
