Stator vs Rotor: Key Differences and How They Work Together

In electric motors and generators, the stator and rotor are two essential components. Together, they enable the conversion between electrical energy and mechanical motion. As a result, their structure and interaction strongly affect efficiency, power output, noise level, and service life.

In general, understanding how these two parts work helps engineers and buyers make better design decisions. Therefore, this article explains what stators and rotors are, how they operate, and how they differ. In addition, it explores real-world applications and future development trends.

What Is a Stator?

The stator is the stationary part of an electric motor or generator. By design, it remains fixed inside the motor housing and does not move during operation. Its primary role, however, is to create a stable magnetic field.

In most cases, the stator consists of two main elements:

• an iron core

• electrical windings

When electric current flows through the windings, the stator generates a magnetic field. Because of this, the rotor is able to move and produce mechanical output.

Structure of the Stator

The stator iron core is made from thin laminated silicon steel sheets. This layered structure helps reduce eddy current losses. As a result, energy efficiency improves and heat generation decreases.

Meanwhile, the windings are made from insulated copper wire. Engineers place them carefully inside stator slots. In AC motors, for example, the winding layout directly affects efficiency, torque, and power factor. Therefore, stator structure is a key factor in motor performance.

How Does the Stator Work?

When the stator windings connect to an AC power source, they produce a rotating magnetic field. At the same time, this field constantly changes in direction and strength.

According to Faraday’s law of electromagnetic induction, the changing magnetic field induces voltage in the rotor. As a result, the rotor begins to rotate. In simple terms, the stator converts electrical energy into magnetic force, which then enables motion.

What Is a Rotor?

The rotor, in contrast, is the rotating part of the motor. It is positioned inside the stator and turns during operation. Its main purpose, therefore, is to generate mechanical motion.

Depending on the motor type, rotor designs include:

• squirrel-cage rotors

• wound rotors

• permanent magnet rotors

Each design, however, serves a different performance requirement.

Rotor Structure

A typical rotor includes:

• an iron core

• conductive bars or windings

• end rings

For example, squirrel-cage rotors use aluminum or copper bars. Because of their simple structure, they are reliable and cost-effective. In contrast, wound rotors use copper windings and allow better speed control. Therefore, they are often used in high-power systems.

How Does the Rotor Work?

The rotor operates based on the magnetic field created by the stator. When this field rotates, it induces current inside the rotor conductors. As a result, an electromagnetic force develops.

Under this force, the rotor experiences torque and begins to spin. At this point, mechanical energy is produced. Thus, the rotor converts magnetic energy into usable motion.

Key Differences Between Stator and Rotor

Although stators and rotors work together, there are several clear differences.

Motion

• The stator remains stationary

• Meanwhile, the rotor rotates

Position

• The stator is fixed on the outside

• By comparison, the rotor rotates inside

Function

• The stator generates the magnetic field

• In contrast, the rotor uses this field to create motion

Electrical Behavior

• Current flows directly in the stator windings

• However, current is induced in the rotor

Design Focus

• Stator design improves magnetic efficiency

• Meanwhile, rotor design improves mechanical output

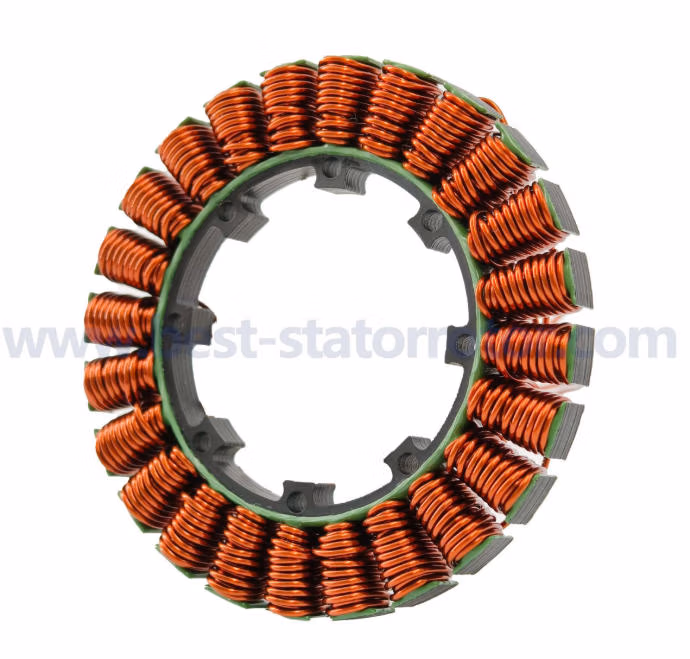

  BLDC Motor Stator Core Winding Wire

Applications of Stators and Rotors

Stators and rotors are widely used across industries.

Electric Motors

For instance, industrial machines and home appliances rely on precise stator–rotor coordination.

Generators

In power generation, the rotor spins while the stator delivers electricity to the grid. As a result, efficiency depends on both parts.

Brushless DC Motors

In addition, BLDC motors combine optimized stators with advanced rotors to improve efficiency and reduce noise.

Aerospace Systems

Similarly, aircraft systems depend on compact and reliable motor designs.

Electric Vehicles

Most importantly, EV motor performance strongly depends on stator and rotor design, affecting range and power output.

Future Trends in Stator and Rotor Development

With new materials and technologies, stator and rotor designs continue to evolve.

• First, high-efficiency magnetic materials reduce energy loss

• Second, smart control systems improve coordination

• Third, compact motor designs support miniaturization

• Finally, EV demand drives quieter and longer-lasting motors

As a result, motor technology continues to advance rapidly.

Conclusion

Overall, the stator and rotor form the foundation of electric motors and generators. While the stator creates the magnetic field, the rotor converts that field into motion. Together, they enable efficient energy conversion.

By understanding these differences, engineers and decision-makers can optimize motor design. Looking ahead, continued innovation in stator and rotor technology will drive progress across robotics, automation, and electric mobility.
