How R&D Optimization Reduces Energy Loss in Axial Flux Motor Systems

In modern electric drive technology, efficiency is one of the most important performance indicators. As industries demand lighter, smaller, and more efficient electric motors, Axial Flux Motor Systems have gained increasing attention. Their unique magnetic structure allows higher power density and compact design compared with traditional radial flux motors.

However, like all electric machines, axial flux motors still experience energy loss during operation. These losses reduce efficiency and generate unwanted heat. Therefore, reducing system loss has become a key focus for engineers and researchers.

Through advanced research and development (R&D), manufacturers can optimize materials, structure, cooling, and control strategies. These improvements significantly reduce losses and increase overall motor efficiency.

This article explains the main sources of energy loss in axial flux motors and explores how R&D optimization improves the performance of Axial Flux Motor Systems.

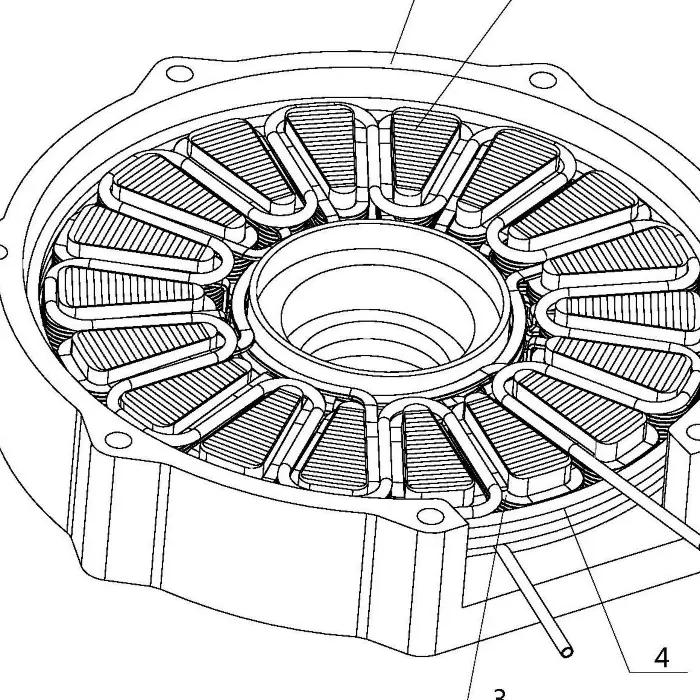

Understanding Axial Flux Motor Systems

An axial flux motor operates with magnetic flux flowing along the axis of the motor shaft. This design is very different from the traditional radial flux motor, where magnetic flux flows radially from the rotor to the stator.

Because of this structural difference, axial flux motors provide several advantages.

First, they offer high power density. The disc-shaped rotor and stator allow more torque in a smaller space. Second, axial flux motors often have short axial length, which helps reduce the overall size of the drive system. Third, the magnetic path in axial flux motors is usually shorter, which improves efficiency.

For these reasons, Axial Flux Motor Systems are widely used in applications such as:

• Electric vehicles

• Industrial automation equipment

• Robotics systems

• Aerospace applications

• High-performance drones

• Renewable energy systems

Despite these advantages, reducing energy loss remains a critical challenge for engineers.

Major Sources of Energy Loss in Axial Flux Motor Systems

Energy loss in electric motors mainly occurs in three areas: copper loss, iron loss, and mechanical loss. Understanding these loss mechanisms is the first step toward effective optimization.

Copper Loss

Copper loss occurs when electrical current flows through the stator windings. Electrical resistance in the conductor converts part of the electrical energy into heat.

The basic equation for copper loss is:

Pcu = I²R

Where:

• I represents the current flowing through the winding

• R represents the electrical resistance of the conductor

Higher current or higher resistance results in greater copper loss. Excessive copper loss also increases the motor temperature, which can further reduce efficiency.

Reducing copper loss is therefore essential for improving Axial Flux Motor Systems.

Iron Loss

Iron loss occurs in the magnetic core materials of the motor. It mainly includes two components:

Hysteresis Loss

Hysteresis loss happens when the magnetic material repeatedly changes magnetization direction during motor operation. The amount of loss depends on:

• Magnetic material properties

• Operating frequency

• Maximum magnetic flux density

Eddy Current Loss

Eddy current loss occurs when changing magnetic fields induce circulating currents inside the metal core. These currents create additional heat.

Eddy current loss depends on:

• Electrical conductivity of the material

• Thickness of the lamination

• Magnetic frequency

Using thin laminations and advanced electrical steel materials can significantly reduce iron loss.

Mechanical Loss

Mechanical losses result from friction and vibration inside the motor system.

Common sources include:

• Bearing friction

• Rotor imbalance

• Air resistance

• Mechanical misalignment

Although mechanical losses are often smaller than copper and iron losses, they still affect the efficiency of Axial Flux Motor Systems, especially in high-speed applications.

R&D Optimization Strategies for Axial Flux Motor Systems

To improve efficiency, engineers use multiple R&D strategies. These approaches focus on materials, electromagnetic design, winding structure, thermal management, and control systems.

Advanced Material Selection

Material selection has a strong impact on motor efficiency.

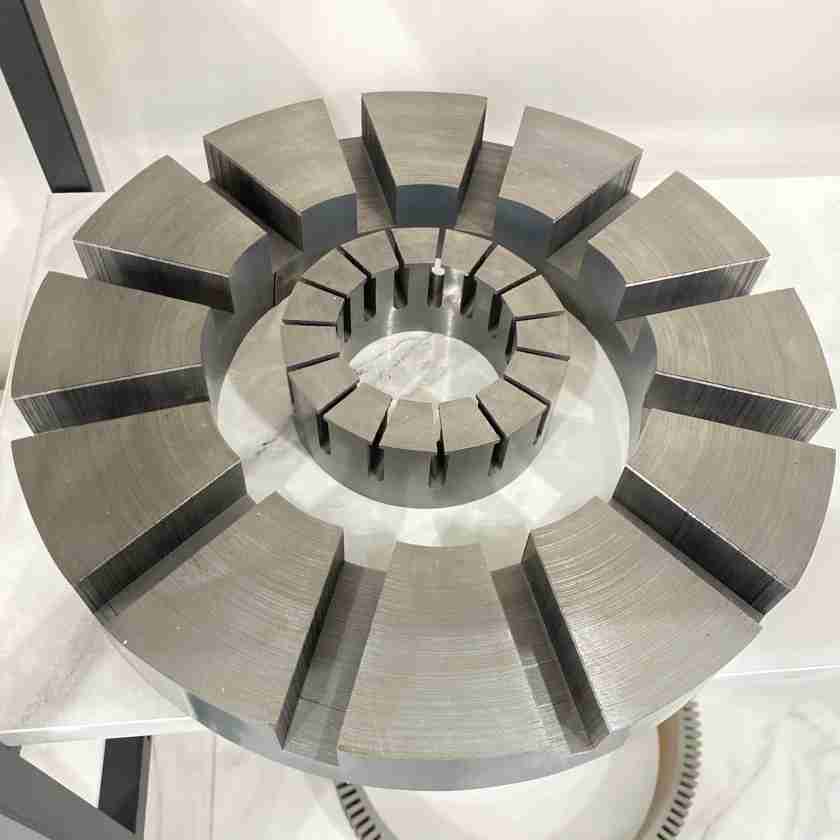

For example, using high-performance electrical steel laminations can reduce core losses. Thin laminations help limit eddy current formation, which reduces heat generation.

In addition, high-conductivity copper conductors can reduce winding resistance. This directly lowers copper loss.

New composite materials are also being studied. These materials offer improved thermal stability and lower weight. As a result, they help increase the performance of Axial Flux Motor Systems.

Magnetic Circuit Optimization

Magnetic circuit design is one of the most important steps in motor development.

Engineers often use advanced simulation tools such as finite element analysis (FEA) to analyze magnetic field distribution. Through simulation, designers can evaluate different rotor and stator structures.

Optimization may include:

• Improving magnet arrangement

• Adjusting pole geometry

• Reducing magnetic leakage

• Increasing effective flux utilization

For example, ring-shaped magnetic circuits can help reduce flux leakage and improve overall efficiency.

Through these improvements, the motor can convert electrical energy into mechanical power more efficiently.

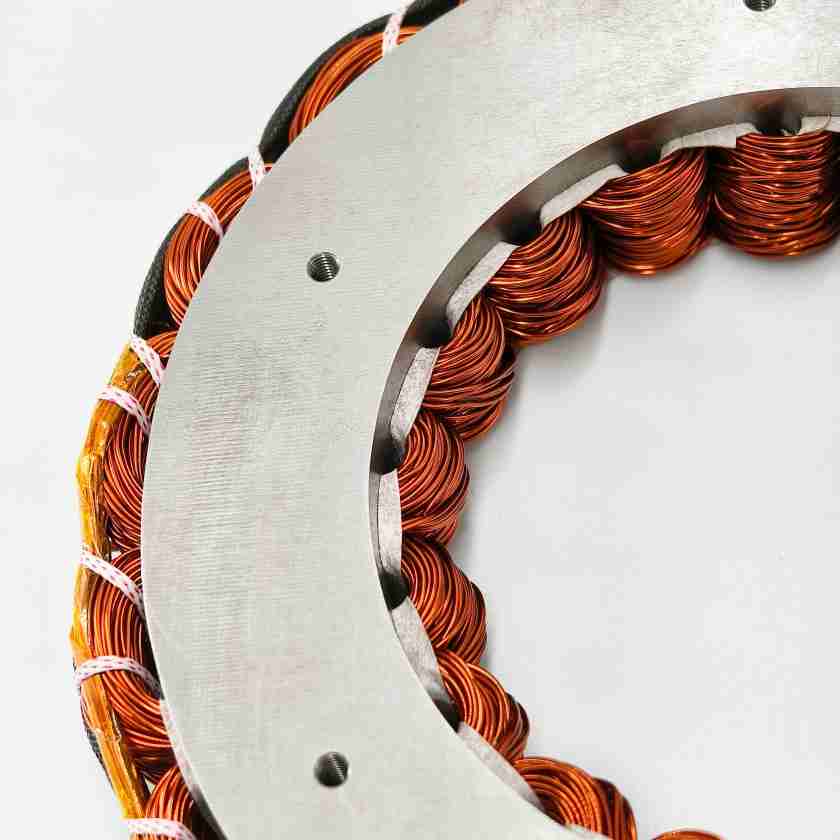

Stator Winding Optimization

The winding structure strongly affects the electrical performance of the motor.

In Axial Flux Motor Systems, designers often optimize the winding configuration to reduce resistance and improve heat dissipation.

Common strategies include:

• Shorter winding paths

• Optimized slot fill factor

• Distributed winding design

• High-quality insulation materials

Advanced digital design tools can also optimize winding layout automatically. This ensures uniform current distribution and reduces hot spots inside the stator.

As a result, copper loss decreases and motor reliability improves.

Efficient Thermal Management

Heat management is essential for high-performance motors. Excessive heat increases resistance and accelerates material aging.

In axial flux motors, thermal design is particularly important because of the compact structure.

Several cooling methods can improve heat dissipation:

• Optimized cooling channels

• Integrated liquid cooling systems

• Heat sink structures on the motor housing

• High thermal conductivity materials

Effective thermal management ensures that the Axial Flux Motor System operates within a stable temperature range. This improves both efficiency and service life.

Advanced Motor Control Strategies

Modern motor control technology also plays a key role in reducing energy loss.

Traditional control methods often operate motors under fixed conditions. However, advanced control algorithms can dynamically adjust motor operation.

Examples include:

• Adaptive control systems

• Model predictive control

• Artificial intelligence-based control

• Neural network control algorithms

These intelligent control strategies adjust current, speed, and torque according to load conditions. As a result, the motor always operates at the most efficient point.

This significantly reduces energy consumption in Axial Flux Motor Systems.

Case Study: Efficiency Improvement Through Design Optimization

Several real-world examples demonstrate the effectiveness of R&D optimization.

In one case, a motor manufacturer analyzed energy loss in its axial flux motor design. Engineers discovered that the winding structure caused excessive copper loss.

After redesigning the winding layout and using improved conductor materials, the company reduced copper loss by 30 percent. At the same time, advanced motor control algorithms improved the system efficiency by 15 percent.

In another research project, engineers tested several magnetic materials to reduce iron loss. By selecting advanced alloy materials and optimizing the magnetic circuit, the design team reduced iron loss by 40 percent. This improvement significantly increased torque density and overall motor performance.

These examples show that continuous R&D optimization is essential for developing high-efficiency Axial Flux Motor Systems.

Future Development of Axial Flux Motor Systems

As industries move toward electrification and energy efficiency, axial flux motors will play a growing role in many sectors.

Future development will likely focus on several areas:

Advanced magnetic materials

New magnetic materials can further reduce core losses and increase efficiency.

Smart manufacturing technology

Digital manufacturing and automation improve product quality and production efficiency.

Lightweight motor design

New structural materials reduce weight while maintaining strong performance.

Integrated motor systems

Future motor systems will combine mechanical, electrical, and control technologies into a single optimized platform.

These innovations will make Axial Flux Motor Systems even more efficient and reliable.

Conclusion

Reducing energy loss in Axial Flux Motor Systems requires a comprehensive engineering approach. Engineers must analyze loss mechanisms and optimize multiple aspects of the motor system.

Through improvements in material selection, magnetic circuit design, winding structure, thermal management, and intelligent control strategies, researchers can significantly increase motor efficiency.

As technology continues to evolve, axial flux motors will achieve even higher performance levels. Their compact structure, high power density, and excellent efficiency make them ideal for modern electric drive systems.

With continued research and innovation, Axial Flux Motor Systems will support the global transition toward more energy-efficient and sustainable technologies.
