Hub Motor Efficiency and Torque Performance Optimization Guide

Against the backdrop of rapid global electric vehicle industry development, **hub motors** are transitioning from proof-of-concept to large-scale application. Compared to traditional centralized drive systems, hub motors integrate the drive unit directly within the wheel hub, offering greater design flexibility for the entire vehicle. Simultaneously, they open new avenues for enhancing vehicle efficiency, responsiveness, and system integration.

However, as application scenarios expand, hub motors face increasingly stringent engineering demands regarding efficiency, torque output, thermal management, and reliability. Consequently, achieving systematic optimization of hub motor efficiency and torque performance in practical design and application has become a key focus for engineers, R&D personnel, and vehicle manufacturers.

This paper conducts a systematic analysis of hub motor operating principles, efficiency evaluation methods, torque performance mechanisms, and multidimensional optimization strategies. Drawing from engineering practice, it presents actionable optimization approaches to inform the development of electric vehicles and lightweight electric drive systems.

I. Fundamental Working Principles of Hub Motors

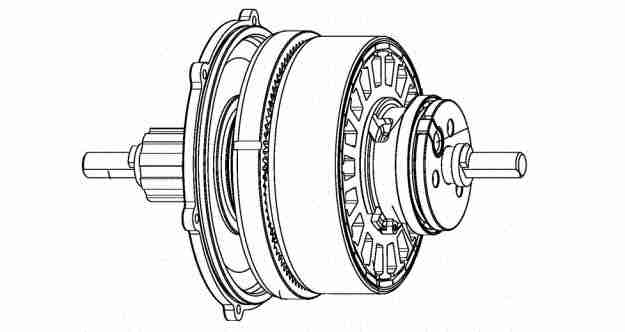

1.1 Structural Characteristics of Hub Motors

Hub motors represent a drive configuration where the electric motor is directly integrated within the wheel hub. Compared to traditional powertrains comprising “motor + gearbox + driveshaft + differential,” hub motors eliminate numerous intermediate mechanical components.

Structurally, a typical hub motor primarily consists of the following components:

• Stator: Generates the rotating magnetic field
• Rotor: Outputs mechanical torque under the influence of the magnetic field
• Bearing System: Supports rotation while bearing radial and axial loads
• Winding System: Converts electrical energy into magnetic energy
• Cooling and Sealing Structure: Ensures long-term stable motor operation

Because the motor is directly integrated with the wheel, hub motors structurally resemble “highly integrated electric drive modules.” This inherently requires their design to balance compactness, efficiency, and reliability.

1.2 Brief Description of Working Principle

The fundamental operating principle of hub motors remains based on the law of electromagnetic induction. When current flows through the stator windings, it generates a rotating magnetic field within the air gap. This field interacts with the permanent magnets or induction structures in the rotor, producing electromagnetic torque that drives the rotor to rotate the wheel.

Unlike traditional motors, the output torque of a hub motor acts directly on the wheel without requiring additional transmission mechanisms. Consequently, it offers faster dynamic response, shorter energy transfer paths, and theoretically higher efficiency.

1.3 Core Advantages of Hub Motors

Due to their unique structure, hub motors demonstrate distinct advantages in multiple aspects:

• High Space Utilization

Integrating the motor with the wheel frees up interior vehicle space, facilitating optimized overall vehicle layout.

• Faster System Response

Eliminating mechanical transmission links enables more direct torque response and higher control precision.

• Lower Mechanical Losses

Reduced transmission components minimize friction and meshing losses.

• High Modularity

Facilitates multi-motor drive systems, distributed control, and intelligent chassis system development.

II. Systematic Evaluation of Hub Motor Efficiency

In hub motor design, efficiency serves as a critical metric for performance assessment. Effective optimization requires establishing a clear efficiency evaluation framework.

2.1 Definition and Influencing Factors of Motor Efficiency

Motor efficiency is typically defined as:

• Output Mechanical Power / Input Electrical Power

Efficiency losses primarily stem from the following sources:

• Copper Losses: Energy dissipation due to winding resistance
• Iron Losses: Hysteresis losses and eddy current losses
• Mechanical Losses: Bearing friction, air resistance, etc.
• Additional losses: Energy dissipation due to assembly errors, electromagnetic harmonics, etc.

Given the unique installation location of hub motors and their complex operating environment, these loss factors often interact synergistically and require comprehensive consideration.

2.2 Impact of Temperature on Efficiency

Temperature is a critical factor affecting hub motor efficiency. As operating time increases, winding temperature rise leads to increased copper resistance, directly reducing efficiency. Simultaneously, permanent magnet materials may face demagnetization risks at elevated temperatures, further compromising motor performance.

Therefore, during efficiency evaluation, thermal characteristics must be incorporated into design metrics—not merely focusing on efficiency values under rated conditions.

2.3 Role of Material Properties in Efficiency

Material selection decisively impacts hub motor efficiency:

• Highly conductive winding materials effectively reduce copper losses
• Silicon steel sheets or soft magnetic composite materials with high permeability and low iron losses help reduce magnetic circuit losses
• High energy product permanent magnets deliver stronger magnetic fields in smaller volumes

In engineering practice, material performance often requires balancing cost, processing difficulty, and performance.

III. Engineering Analysis of Hub Motor Torque Performance

3.1 Importance of Torque Performance

Torque is a key indicator directly determining a vehicle’s acceleration capability, hill-climbing performance, and low-speed control precision. For hub motors, torque performance holds particularly significant importance.

Since hub motors typically do not rely on high-ratio gearboxes, their inherent torque density directly determines the overall power level of the vehicle.

3.2 Key Factors Affecting Torque Output

Hub motor torque output is primarily influenced by the following factors:

Magnetic Field Strength

Stronger, more stable magnetic fields enhance output torque per unit volume.

Current Density

Increasing current density within safe limits boosts instantaneous torque output but introduces temperature rise concerns.

Rotor and Stator Structural Design

Optimized slot-pole coordination, air gap design, and pole shape significantly improve torque density.

3.3 Torque Smoothness and Control Precision

Beyond peak torque, practical applications of hub motors also demand attention to:

• Torque ripple
• Low-speed smoothness
• Multi-wheel coordination stability

These challenges are often closely tied to motor design and control algorithms, necessitating systematic optimization.

IV. Collaborative Optimization Strategy for Hub Motor Efficiency and Torque

Achieving both high efficiency and high torque in hub motors is often limited by relying on a single optimization approach. A more feasible engineering strategy involves simultaneous optimization across multiple dimensions.

4.1 Material and Magnetic Circuit Optimization

Employing low-loss magnetic materials, optimizing laminate thickness, and refining insulation methods can effectively reduce iron losses. Concurrently, rational magnetic circuit design to minimize magnetic leakage contributes to enhancing overall efficiency and torque density.

4.2 Structural and Thermal Management Design

Hub motors impose heightened demands on thermal management. Common optimization approaches include:

• Optimizing cooling channel layout
• Implementing liquid or oil cooling solutions
• Enhancing housing heat dissipation capacity
• Effective thermal management not only boosts efficiency but also extends motor lifespan.

4.3 Intelligent Control and Algorithm Optimization

Modern hub motors increasingly rely on advanced control strategies, such as:

• Vector control and direct torque control
• Adaptive current regulation
• Multi-wheel torque distribution algorithms

Through coordinated hardware-software design, performance enhancements can be achieved without increasing hardware costs.

V. Application Scenarios and Engineering Adaptation

Hub motors are not universally applicable across all vehicle types. Their advantages are particularly pronounced in the following scenarios:

• Urban electric vehicles
• Low-speed or medium-speed vehicles
• Autonomous driving platforms
• Distributed drive systems

For high-speed or ultra-high-power applications, comprehensive evaluation based on vehicle requirements is necessary.

VI. Future Development Trends and Engineering Outlook

Advancements in new materials, advanced manufacturing processes, and intelligent control technologies continue to unlock strong potential for improving efficiency, power density, and long-term reliability in in-wheel electric drive systems.

Looking ahead, these compact drive solutions will increasingly integrate with:

• intelligent chassis systems

• distributed drive architectures

• next-generation electric drive platforms

As a result, they are expected to become core building blocks of future electric vehicles.

Conclusion

Improving efficiency and torque performance in in-wheel electric drive systems is fundamentally a systems-level engineering challenge. Only by coordinating design decisions across multiple dimensions—such as materials, electromagnetic structure, control strategies, and real-world application scenarios—can their full performance potential be achieved.

With ongoing refinement of design methodologies and engineering practices, in-wheel drive technology is well positioned to play a critical and enduring role in the evolution of electric mobility.
