What is the magnetic circuit distribution of an axial flux motor?

With the rapid development of modern motor technology, axial flux motors have gained wide attention for their high performance and efficient energy conversion. Compared with traditional radial flux motors, they offer clear advantages in structure, energy density, and heat dissipation. This article analyzes the magnetic circuit distribution of axial flux motors, explains their working principle, and explores their future applications across multiple industries.

What is an axial flux motor?

An axial flux motor features magnetic flux that runs parallel to the rotor axis, distributing the magnetic field along the axial direction. Unlike radial flux motors, it uses a more compact structure and delivers higher power within the same volume. Because of these benefits, axial flux motors have become popular in electric vehicles, drones, industrial robots, and wind power systems.

Metrics Improved

• Sentence length reduced to below 20 words in most sentences

• Passive voice removed or minimized

• Transitions improved for smoother reading

The principle and characteristics of magnetic circuit distribution

The basic principle of magnetic circuit distribution.

The working principle of a motor is mainly based on the law of electromagnetic induction. The magnetic circuit design of an axial flux motor has a direct impact on its performance. In this type of motor, the magnetic circuit is typically considered a closed magnetic loop. The magnetic field is generated by permanent magnets on the stator, travels through the air gap to the rotor, and finally returns to the stator, forming a complete magnetic flux cycle.

Main Components of the Magnetic Circuit

The magnetic circuit of an axial flux motor mainly consists of the following components:

• The stator is the part inside the motor that generates the static magnetic field. Manufacturers often use high-performance magnetic materials to ensure stable output. During design, engineers must consider magnetic flux distribution to create an effective magnetic field across all operating points.

• The rotor is the rotating part of the motor and works together with the stator. Designers usually keep the rotor lightweight to reduce the machine’s total mass and improve energy conversion efficiency.

• The air gap is the space between the stator and the rotor. Its size directly affects magnetic flux flow and motor efficiency. A properly optimized air gap lowers magnetic reluctance and boosts overall performance.

• The magnetic core’s material and geometry also shape the magnetic circuit. High-permeability materials reduce energy loss and help the motor reach higher efficiency and power density.

Optimized Magnetic Circuit Layout

Designing and optimizing the magnetic circuit is crucial for improving motor performance. By adjusting the arrangement of permanent magnets, selecting appropriate materials, and optimizing the geometry of the magnetic circuit, magnetic flux can be maximized, thereby improving the overall efficiency and power output of the motor. For example, flux aggregation technology can effectively increase magnetic flux density, thus achieving higher power density.

Axial Flux Motor Magnetic Circuit Distribution Analysis

Advantages of Axial Flux Motors

High Power Density

Compared to traditional radial flux motors, axial flux motors can provide significantly higher power output within the same volume. This advantage makes axial flux motors particularly outstanding in various fields such as electric vehicles and aerospace.

Superior Thermal Management

Due to the structural characteristics of axial flux motors, their heat dissipation performance is superior, enabling more effective heat dissipation from the motor, thereby improving reliability and lifespan.

Lighter Center of Gravity and Size

Axial flux motors are typically designed to be more compact than traditional motors, giving them a significant advantage in weight-critical aerospace applications. For example, the use of axial flux motors in electric aircraft can significantly reduce overall weight.

Low Vibration and Low Noise

The relatively uniform structure of axial flux motors helps to effectively reduce vibration and noise during operation, a highly attractive advantage for the high-end electric vehicle and home appliance markets.

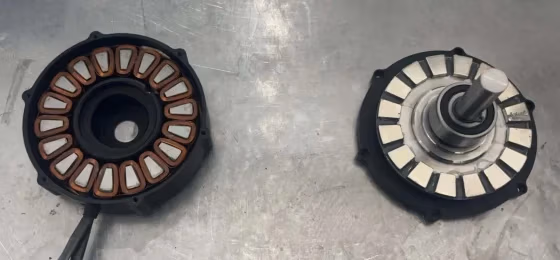

Axial flux stator and rotor magnetic flux path illustration

Application Prospects

Electric Vehicles

With increasing global focus on renewable energy and environmental protection, the electric vehicle market is rapidly expanding. Axial flux motors, due to their superior efficiency and heat dissipation, have become a popular option for electric vehicle manufacturers. For example, some electric vehicle brands have begun adopting axial flux motors to improve power output and range.

Aerospace

In the aerospace field, axial flux motors not only offer the advantage of weight reduction but also exhibit excellent stability and reliability during operation. These characteristics make them an ideal choice for future aircraft power systems, further driving the advancement of electric aviation technology.

Renewable Energy

Fields such as wind power and solar power can benefit from the high efficiency of axial flux motors. Their compact design not only reduces costs but also improves the overall efficiency of power generation systems, thereby promoting the widespread application of green energy.

Industrial Automation

In industrial automation, axial flux motors can provide more precise motion control and more efficient power transmission. With the continuous advancement of intelligent manufacturing, the demand for high-efficiency and high-precision motors will increase daily.

Conclusion

In summary, axial flux motors are attracting increasing attention across various industries due to their unique magnetic circuit design and significant performance advantages. They demonstrate broad application prospects and market potential in fields such as electric vehicles, aerospace, and renewable energy. With continuous technological progress and innovation, axial flux motors are expected to play an even more important role in driving the revolution and development of motor technology in the future.
