Motor Stator Core Design for High-Efficiency Electric Motors

Electric motors are the driving force behind modern industry. From electric vehicles and industrial automation to robotics, renewable energy, and home appliances, motors are everywhere. At the center of every motor lies a critical component: the stator core.

Although it is often hidden inside the motor housing, the stator core plays a decisive role in motor efficiency, torque output, thermal stability, and long-term reliability. In fact, many performance limits of a motor can be traced directly to stator core material selection, structure design, and manufacturing quality.

What Is a Motor Stator Core?

The stator core is the stationary magnetic backbone of an electric motor. It supports the stator windings and forms a major part of the motor’s magnetic circuit.

When electric current flows through the stator windings, the stator core guides and concentrates the magnetic field. This magnetic field then interacts with the rotor, producing torque and enabling rotation.

In simple terms, without a properly designed stator core, a motor cannot work efficiently.

Why the Stator Core Is So Important in Motor Design

Many people focus on magnets, windings, or controllers. However, the stator core directly influences:

• Motor efficiency

• Torque density

• Power output

• Heat generation

• Noise and vibration

• Service life

As a result, stator core optimization is one of the most effective ways to improve overall motor performance without increasing motor size or cost.

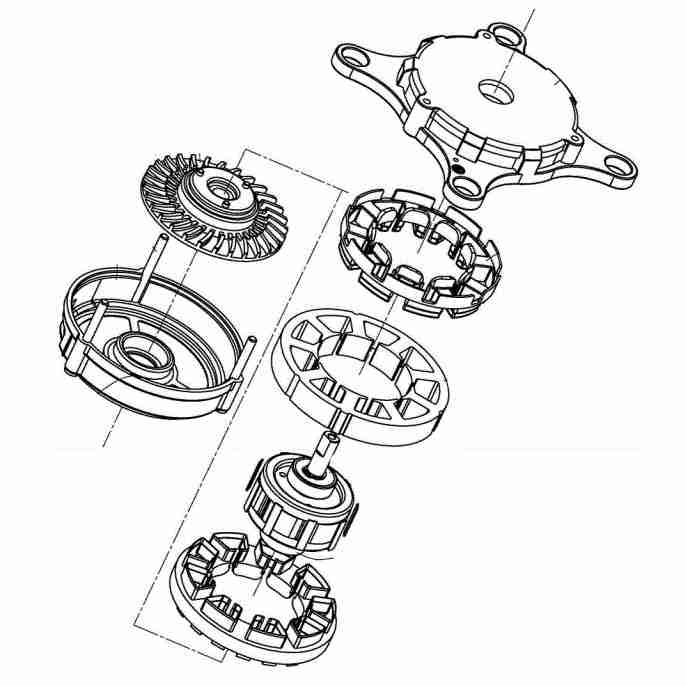

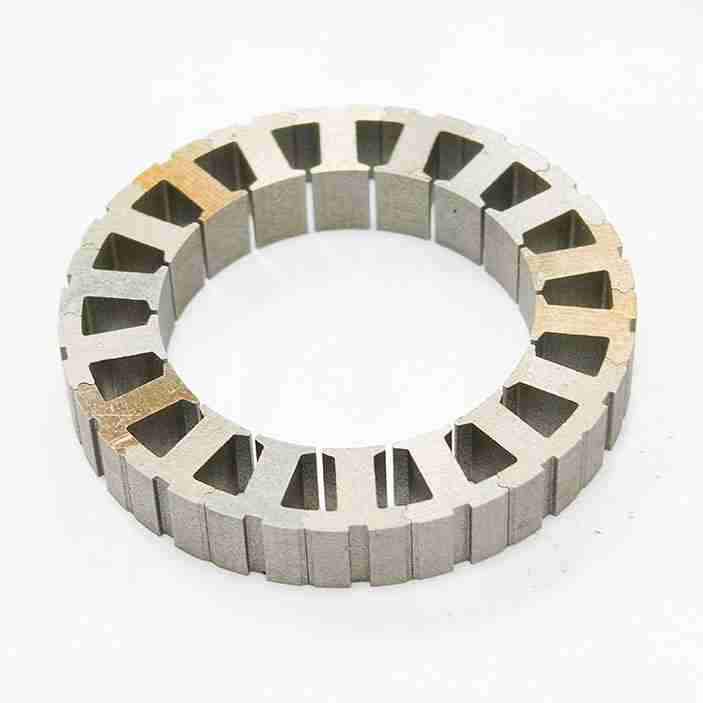

Material and Structure of a Modern Stator Core

Laminated Silicon Steel Sheets

Most stator cores are made from laminated silicon steel sheets, also known as electrical steel. This material is specifically engineered for magnetic applications.

Silicon steel offers several key advantages:

• High magnetic permeability

• Low hysteresis loss

• Higher electrical resistivity

• Stable magnetic performance

Typically, each lamination has a thickness of 0.5 mm, although thinner laminations (0.35 mm or 0.2 mm) may be used in high-speed or high-efficiency motors.

Insulating Varnish Between Laminations

Each silicon steel sheet is coated with a thin insulating varnish layer. This insulation is essential.

Why? Because it prevents eddy currents from flowing freely between laminations.

Eddy currents create unwanted heat and energy loss. By electrically isolating each sheet, the laminated structure dramatically reduces these losses.

As a result:

• Motor efficiency increases

• Operating temperature decreases

• Component lifespan improves

Laminated Stack Assembly and Fixation

After punching, the laminations are stacked to the required height. The stack is then secured using:

• Pressure rings

• Retaining clips

• Interlocking features

• Welding or bonding (in some designs)

A tightly compressed lamination stack ensures:

• Mechanical stability

• Reduced vibration

• Lower acoustic noise

• Consistent magnetic properties

In high-performance motors, even small gaps between laminations can reduce efficiency. Therefore, precision assembly is critical.

Stator Slots and Teeth Design

Slot Punching and Geometry

Stator slots are punched along the inner circumference of the laminated core. These slots hold the copper windings.

Between the slots are stator teeth, which guide magnetic flux across the air gap toward the rotor.

Slot geometry directly affects:

• Magnetic flux distribution

• Copper fill factor

• Winding temperature

• Torque ripple

For this reason, stator slot design is a key optimization area in motor engineering.

Relationship Between Teeth, Yoke, and Magnetic Flux

The stator teeth carry magnetic flux into the air gap. The stator yoke (outer ring) provides the return path.

A balanced design ensures:

• Even magnetic field distribution

• Reduced saturation risk

• Stable torque output

Poor tooth or yoke design can lead to magnetic bottlenecks, increased losses, and local overheating.

Primary Function of the Stator Core

Forming the Magnetic Circuit

The stator core is an essential part of the motor’s magnetic circuit.

When current flows through the stator windings, magnetic flux is generated. This flux:

1. Travels through the stator teeth

2. Crosses the air gap

3. Enters the rotor

4. Returns through the stator yoke

A low-reluctance magnetic path allows the motor to produce torque efficiently.

Concentrating Magnetic Flux

High-quality silicon steel concentrates magnetic flux where it is needed most.

As a result:

• Less current is required to generate the same torque

• Copper losses are reduced

• Power factor improves

This is especially important in energy-efficient motor designs.

Reducing Iron Loss

Iron loss includes:

• Hysteresis loss

• Eddy current loss

The laminated, insulated stator core minimizes both.

Therefore, motors can operate:

• At higher speeds

• With lower heat rise

• For longer periods

Performance Advantages of Laminated Stator Cores

High Magnetic Permeability

High permeability allows magnetic flux to flow easily through the core.

This leads to:

• Higher torque output

• Lower magnetizing current

• Improved efficiency

Low Eddy Current Loss

Because laminations are insulated, eddy currents are restricted.

As a result:

• Less energy is wasted as heat

• Thermal management becomes easier

• Motor reliability increases

Reduced Noise and Vibration

Stable lamination stacks reduce vibration caused by electromagnetic forces.

Therefore:

• Noise levels decrease

• Mechanical wear is minimized

• End-user comfort improves

This is especially important in EVs, drones, and home appliances.

Applications of Stator Cores in Modern Motors

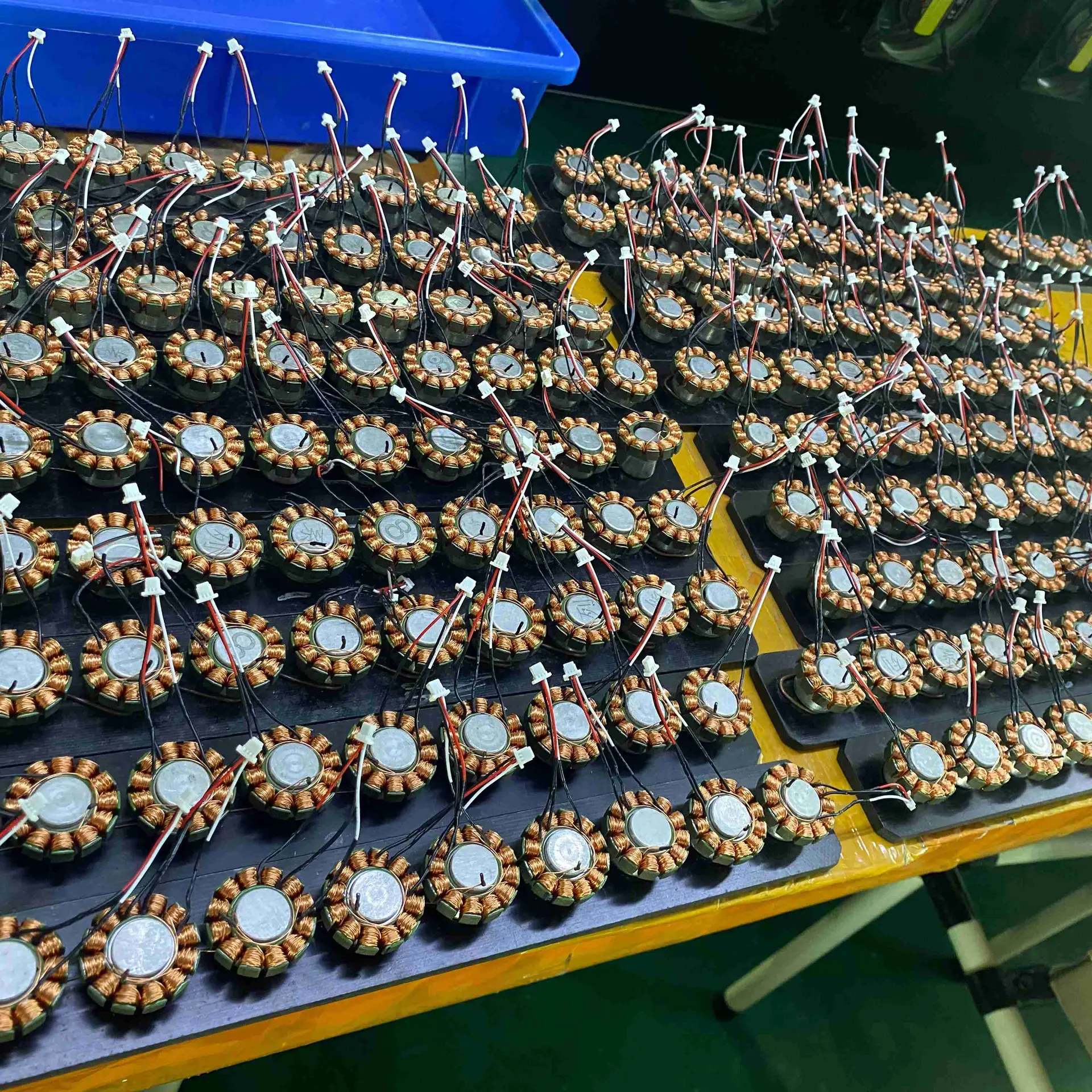

Brushless DC Motors (BLDC Motors)

In BLDC motors, stator cores must handle fast-changing magnetic fields.

Optimized stator cores offer:

• High efficiency

• Precise control

• Low cogging torque

Common BLDC motor applications include:

• Cooling fans

• Power tools

• UAV motors

• Pumps and compressors

Electric Vehicle Motors

EV motors demand:

• High torque density

• Wide speed range

• Excellent efficiency

Advanced stator core designs help:

• Extend driving range

• Reduce energy consumption

• Improve acceleration

Industrial Motors and Electric Hoists

Industrial motors often run continuously under heavy load.

Here, stator cores provide:

• Stable magnetic performance

• Low thermal loss

• Long service life

They are widely used in:

• Cranes

• Conveyors

• Lifting systems

• Manufacturing equipment

Renewable Energy and Generators

In wind and hydro generators, stator cores must handle large magnetic flux levels.

Low iron loss is essential for:

• Higher power output

• Better grid efficiency

• Reduced maintenance

Manufacturing Quality and Process Control

Precision Punching Technology

Accurate punching ensures:

• Clean slot edges

• Consistent tooth geometry

• Minimal burrs

This improves both electromagnetic and mechanical performance.

Lamination Material Selection

Different applications require different grades of silicon steel.

Key selection factors include:

• Core loss characteristics

• Saturation flux density

• Operating frequency

Assembly Accuracy and Inspection

High-quality stator cores undergo:

• Dimensional inspection

• Stack height control

• Insulation resistance testing

These steps ensure stable performance in mass production.

How Stator Core Design Supports High Torque Density Motors

Torque density is a key metric in modern motor design.

Optimized stator cores allow:

• More magnetic flux in a smaller volume

• Higher power output without size increase

This is critical for:

• EV motors

• UAV propulsion systems

• Robotics and automation

Stator Cores and Thermal Performance

Lower iron loss directly reduces heat generation.

As a result:

• Cooling systems can be smaller

• Motor lifespan increases

• Insulation aging slows

Thermal performance is closely tied to stator core quality.

Stator Core Customization for OEM and ODM Projects

Many OEM customers require customized stator cores.

Customization options include:

• Slot number and shape

• Lamination thickness

• Inner and outer diameter

• Stack height

Customized designs help match specific torque, speed, and efficiency targets.

Why Stator Core Quality Matters for Long-Term Cost

A low-cost stator core may seem attractive. However, poor quality often leads to:

• Higher energy consumption

• Shorter motor life

• Increased maintenance

In contrast, high-quality stator cores reduce total cost of ownership.

Conclusion: The Foundation of High-Performance Motors

The stator core is not just a passive structure. It is the foundation of motor performance.

Through proper material selection, laminated structure, precision manufacturing, and optimized magnetic design, stator cores enable:

• Higher efficiency

• Greater torque density

• Better thermal stability

• Longer service life

For B2B buyers in EU and North America, investing in high-quality stator core solutions means better products, lower operating costs, and stronger market competitiveness.

As motor technology continues to evolve, the stator core will remain a key driver of innovation in electric motors across industries.
