In-Depth Analysis of Motor Stator Winding Technology

Introduction

In modern industrial applications, motors drive nearly all machinery and electromechanical systems. Because of this, every component inside a motor contributes to its performance. Among these components, motor stator windings play one of the most decisive roles. They strongly influence efficiency, torque output, thermal stability, and long-term reliability. Therefore, engineers working in motor design, manufacturing, and maintenance must understand stator winding technology in depth.
This article explores stator winding fundamentals, types, design principles, and manufacturing processes, while also explaining how these factors affect overall motor performance.

I. Basic Concepts of Motor Stator Windings

Motor stator windings generate the rotating magnetic field that drives the motor. Typically made from copper or aluminum, these windings are arranged in specific patterns inside the stator core. When current flows through the coils, a magnetic field forms and interacts with the rotor, allowing the motor to operate.
Moreover, the structure, material quality, and electrical characteristics of the windings directly influence efficiency and power output.

1.1 Composition of Stator Windings

Stator windings generally include the following components:

• Coils: They conduct current and must use high-conductivity materials to reduce energy loss.

• Insulating Materials: These materials prevent electrical leakage, thereby ensuring motor safety.

• Fixing Devices: They secure the coils and prevent displacement caused by vibration or thermal expansion.

1.2 Electrical Characteristics of Stator Windings

The main electrical characteristics include:

• Resistance: Lower resistance improves electrical efficiency.

• Inductance: Higher inductance increases magnetic energy storage.

• Capacitance: It affects stability and reduces electromagnetic interference.

II. Types of Stator Windings

Stator windings vary based on motor structure, required torque, and application scenarios. Additionally, each type offers unique advantages in terms of efficiency, noise level, and manufacturing complexity.

2.1 Random Windings

Random windings place coils irregularly within the stator slots. As a result, they provide an evenly distributed magnetic field, which improves stability and reduces manufacturing cost. Widely used in small AC motors, this type is common in home appliances and consumer electronics.

2.2 Holographic Windings

Holographic windings follow a fixed geometric arrangement, allowing designers to distribute coils precisely. This structure enhances torque output, reduces losses, and increases reliability. Consequently, it is often used in high-power motors, generators, and industrial equipment.

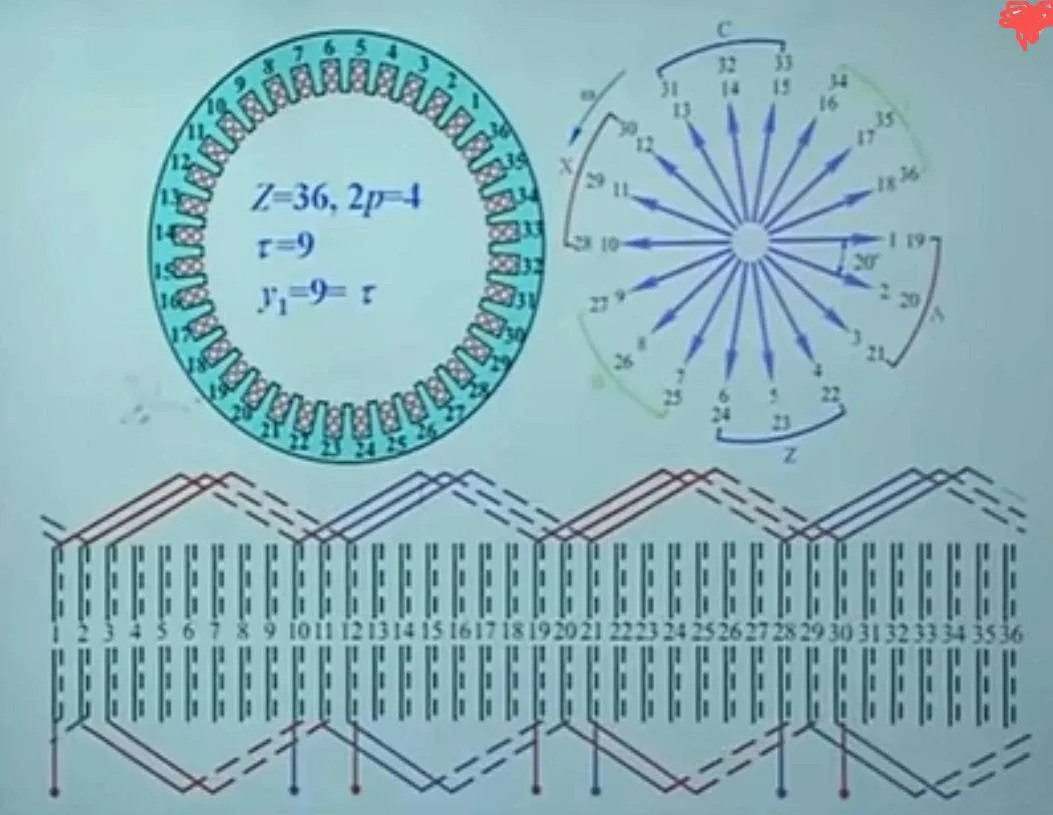

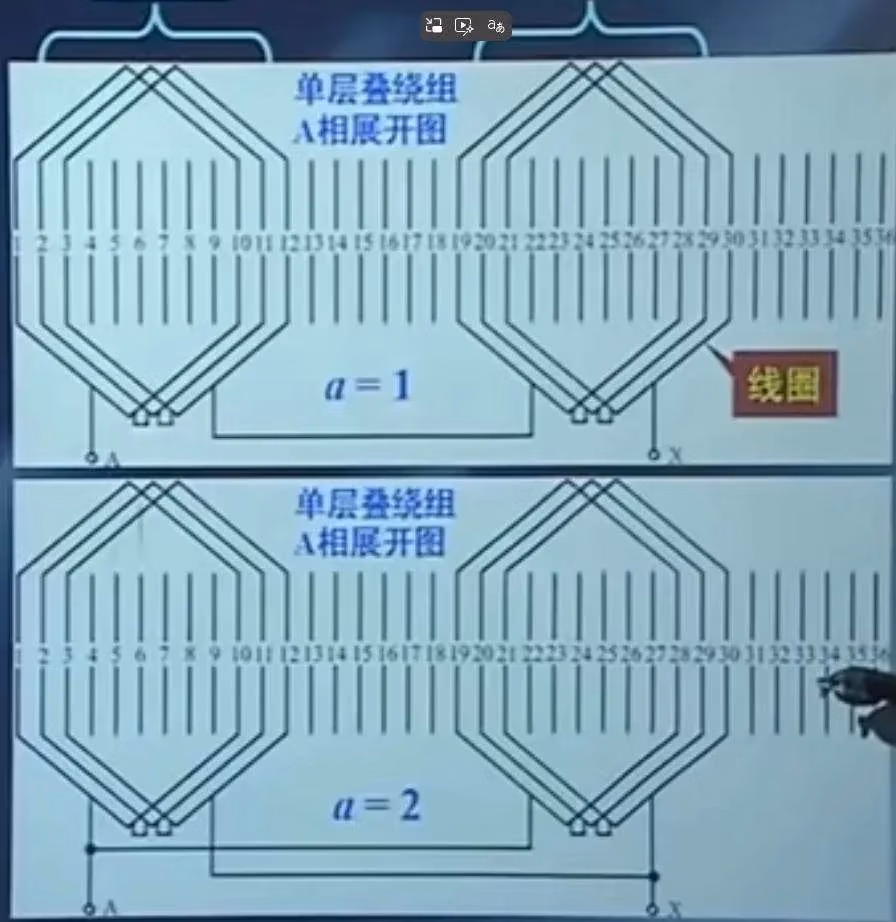

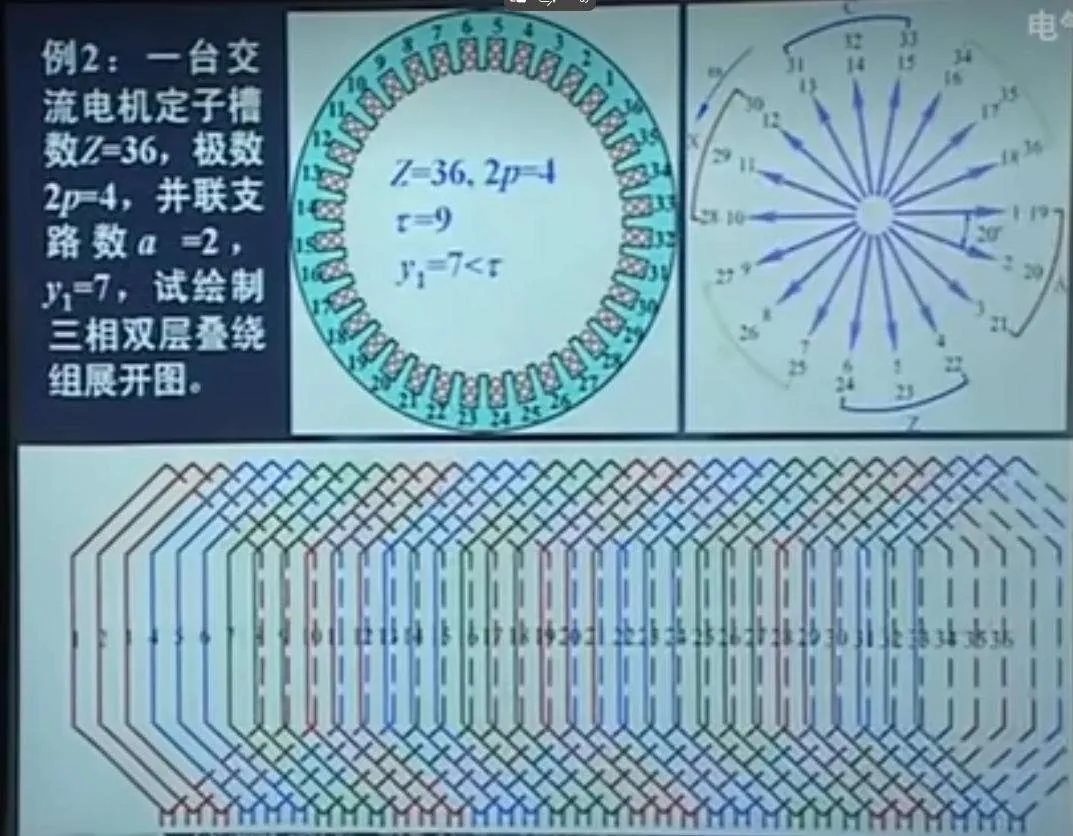

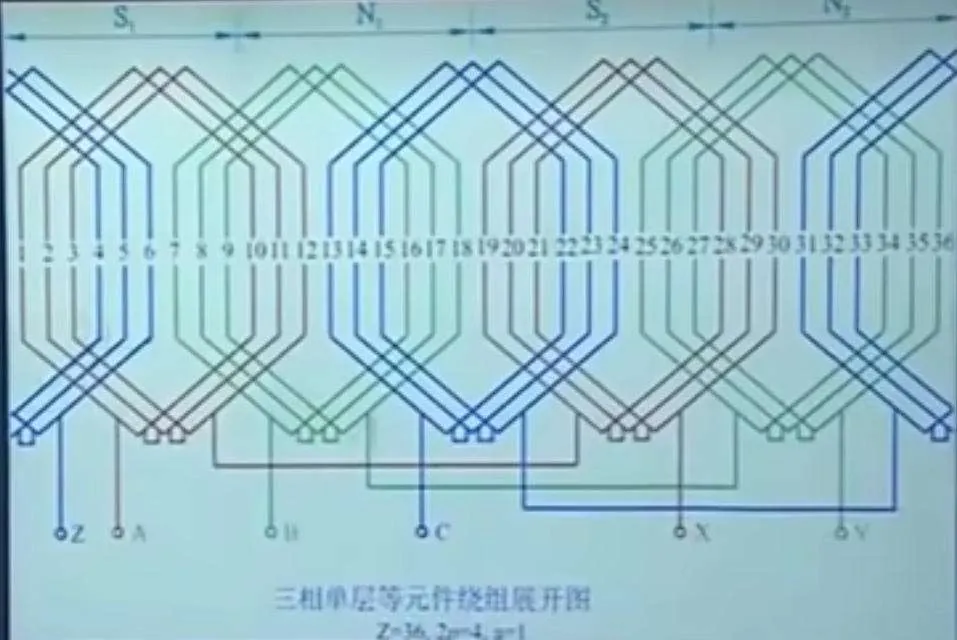

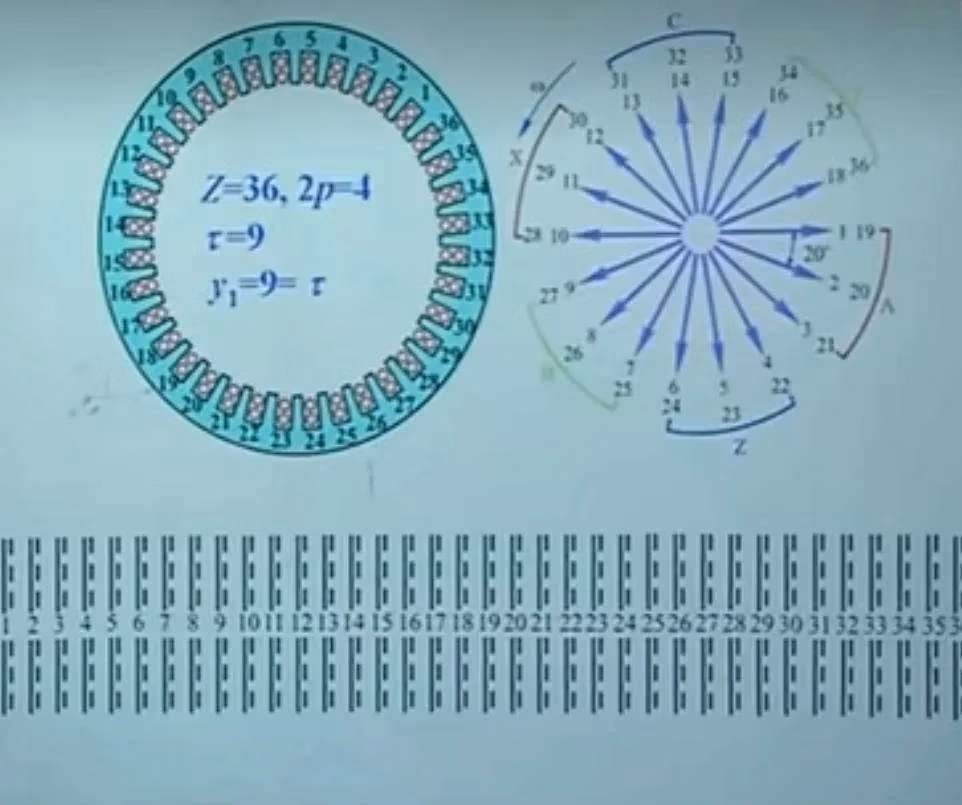

2.3 Concentrated vs. Distributed Windings

• Concentrated Windings: Coils sit in fewer slots, allowing simpler manufacturing. However, they may increase iron losses at high frequencies.

• Distributed Windings: Coils are spread across many slots, which reduces heat, improves torque smoothness, and increases motor efficiency.

III. Design Principles of Stator Windings

Well-designed stator windings significantly enhance motor performance. To achieve this, designers must carefully evaluate electromagnetic, mechanical, and thermal parameters.

3.1 Determining Winding Parameters

Important variables include rated power, voltage, and speed. These parameters determine wire diameter, number of turns, slot fill rate, and winding layout, all of which shape magnetic performance.

3.2 Selecting Suitable Materials

Copper offers excellent conductivity, while aluminum serves as a cost-effective alternative. Likewise, insulation materials must withstand the motor’s operating environment—including temperature, humidity, and vibration—to ensure long service life.

3.3 Electromagnetic Performance Calculation

Designers must calculate inductance, magnetic flux density, harmonic content, and torque ripple. Furthermore, advanced simulation tools help optimize slot geometry and winding distribution, resulting in better efficiency and improved operational stability.

IV. Manufacturing Process of Stator Windings

The manufacturing process strongly affects winding quality and overall motor durability. Each production step must remain precise, because even minor defects can lead to efficiency loss or electrical failure.

4.1 Winding Process

During this step, wires are placed into stator slots using automatic winding machines. These machines improve precision, repeatability, and coil consistency.

4.2 Insulation Treatment

After winding, insulation treatment prevents short circuits. Several methods—such as varnish coating, heat-resistant sleeves, and insulating paper—ensure electrical reliability.

4.3 Welding and Connection

Welding joins coil terminals to power leads. Strong and clean welds ensure stable current flow and contribute to long-term motor reliability.

4.4 Impregnation Treatment

Finally, impregnation with insulating varnish protects the windings from moisture and dust. In addition, this process strengthens mechanical bonding and improves heat dissipation.

V. Impact of Stator Windings on Motor Performance

Because stator windings form the electromagnetic heart of the motor, they directly influence key performance parameters.

5.1 Efficiency and Power Factor

Optimized winding design reduces losses and improves energy conversion. As a result, motors achieve higher power factors and require less input power for the same torque output.

5.2 Torque Characteristics

Winding configuration affects both starting torque and running torque. With a well-designed coil pattern, motors operate more smoothly and handle variable loads more effectively.

5.3 Thermal Management

Electrical currents generate heat inside the windings. Therefore, designers must minimize resistance and ensure proper cooling. Effective thermal management prevents insulation degradation and extends motor service life.

Conclusion

Motor stator winding technology combines electrical engineering, mechanical structure design, and advanced materials science. By understanding winding types, electromagnetic principles, and manufacturing processes, engineers can significantly enhance motor efficiency, torque output, and long-term reliability. As industries continue adopting high-performance motors—especially in EVs, robotics, and renewable energy—innovations in stator winding technology will play an increasingly important role in shaping the future of motor engineering.
