What Is an Axial Flux Electric Motor?

An axial flux electric motor is a high-power-density motor that uses magnetic flux flowing parallel to the shaft. In contrast, a traditional radial flux motor guides magnetic flux outward from the center of the rotor. Because of this structural change, axial flux machines can deliver higher torque density, lower weight, and a more compact design.

Today, many industries use axial flux motor technology to improve energy efficiency and reduce system size. For example, electric vehicles, aerospace systems, robotics, industrial automation, marine propulsion, and renewable energy equipment increasingly adopt this motor type.

Moreover, the market demand continues to grow. Companies want motors that provide strong performance while saving space and lowering energy use. Therefore, axial flux electric motors are becoming a key solution for next-generation electric drive systems.

Axial Flux Electric Motor Technology Overview

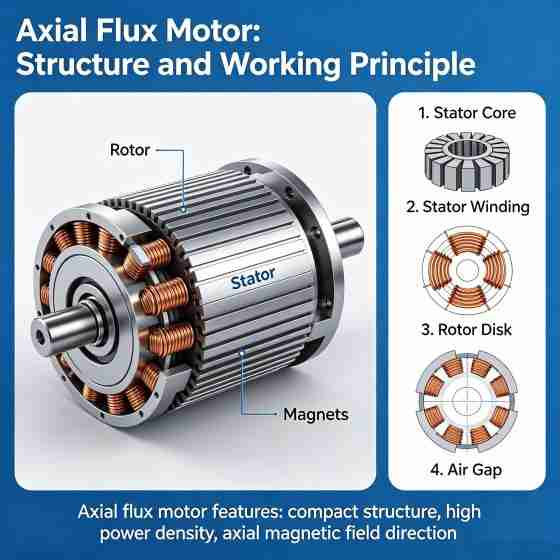

How an Axial Flux Motor Works

An axial flux electric motor works through electromagnetic interaction between the stator and rotor. However, unlike conventional motors, the magnetic field travels along the motor axis.

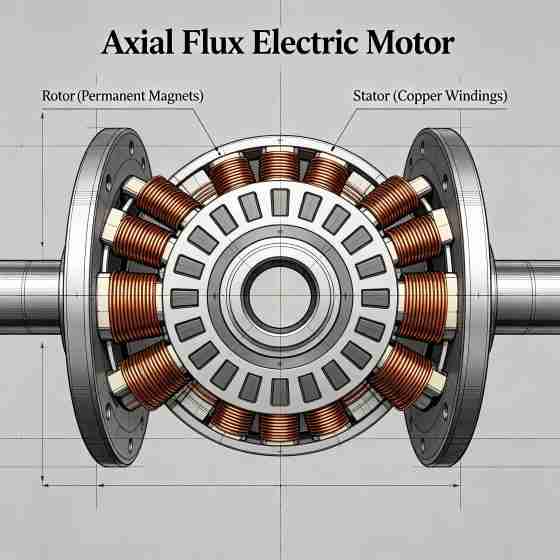

The main parts include:

• Stator core
• Copper windings
• Permanent magnets
• Rotor discs
• Cooling system
• Motor controller

When current flows through the stator windings, it creates a magnetic field. Then, the permanent magnets on the rotor interact with this field and generate torque. As a result, the rotor spins and delivers mechanical power.

Because the magnetic path is shorter, the motor reduces magnetic losses. In addition, the flat disc structure helps improve torque production.

Therefore, many engineers choose axial flux motors for high-efficiency systems.

Axial Flux Electric Motor vs Radial Flux Motor

Key Differences Between Axial Flux and Radial Flux Motors

Although both motor types use electromagnetic principles, their structures differ greatly.

Magnetic Flux Direction

In radial flux motors, magnetic flux moves outward from the shaft. By comparison, an axial flux motor directs magnetic flux parallel to the shaft.

As a result, the motor geometry changes completely.

Torque Density

Axial flux motors usually produce higher torque density. Since the effective radius is larger, the motor generates more torque with less material.

Therefore, many EV manufacturers prefer axial flux designs for compact drive systems.

Motor Size and Weight

Axial flux motors are flatter and lighter. Consequently, they fit applications where space is limited.

For example:

• Electric motorcycles
• Aircraft propulsion
• Robotics
• Wheel hub drives

Cooling Performance

The disc structure allows direct cooling access. Because of this, thermal management becomes more effective.

Moreover, better cooling supports higher continuous power output.

Manufacturing Complexity

Despite the advantages, axial flux motor manufacturing can be more complex. Precision alignment, magnet placement, and stator bonding require advanced production methods.

However, modern automation now improves manufacturing consistency.

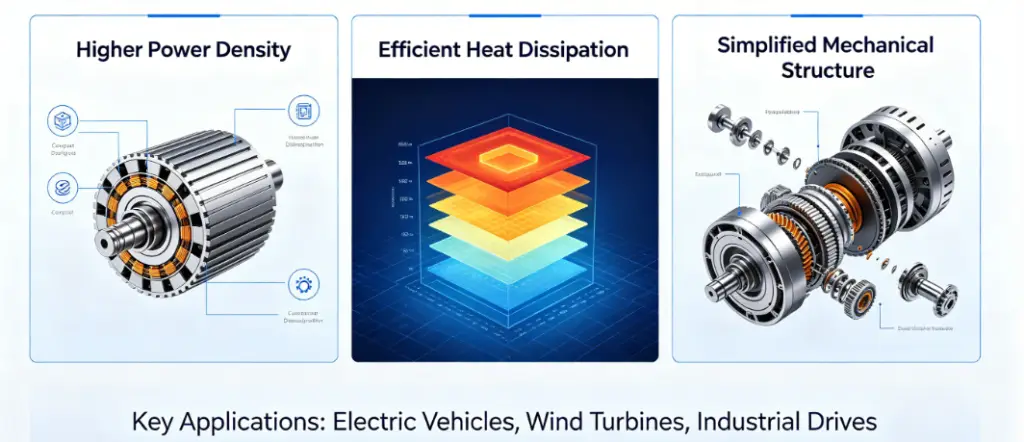

Why Axial Flux Electric Motors Are Important

Higher Power Density for Modern Systems

Power density is one of the biggest advantages of an axial flux electric motor.

A compact motor that produces high torque can reduce total system size. Consequently, manufacturers save weight and improve overall efficiency.

This benefit matters greatly in:

• Electric vehicles
• Aerospace systems
• Industrial robotics
• Drones
• Marine propulsion

Furthermore, lighter systems often improve energy efficiency and operating range.

Better Efficiency and Lower Energy Loss

Energy efficiency is critical in modern industries. Therefore, engineers constantly search for motors with lower losses.

Axial flux motors improve efficiency because they offer:

• Shorter magnetic paths
• Reduced copper losses
• Lower iron losses
• Better thermal performance

As a result, many systems achieve higher efficiency under both low-speed and high-load conditions.

Additionally, reduced losses help extend battery life in electric vehicles.

Compact Design for Limited Spaces

Traditional motors often require large installation areas. However, axial flux motors provide a flat and compact structure.

Because of this, designers gain more flexibility.

For example:

• EV platforms gain extra battery space
• Aircraft reduce total system weight
• Industrial robots become smaller
• Marine systems improve layout efficiency

Consequently, compact motor architecture supports modern engineering trends.

Main Types of Axial Flux Electric Motors

Single-Sided Axial Flux Motor

A single-sided motor uses one stator and one rotor.

This design is simpler and easier to manufacture. Therefore, it suits lower-power applications.

Typical applications include:

• Small electric vehicles
• Industrial automation
• Light robotics

However, torque output may be lower compared with dual-rotor designs.

Double-Sided Axial Flux Motor

A double-sided design places the stator between two rotors.

This arrangement increases magnetic utilization. As a result, the motor delivers higher torque density.

Moreover, dual-rotor systems improve balance and reduce vibration.

Common applications include:

• Electric sports cars
• Aerospace systems
• High-performance industrial drives

Multi-Disc Axial Flux Motor

Multi-disc motors use several stator and rotor layers.

Because the active area increases, the motor achieves very high power density.

Therefore, these motors support demanding applications such as:

• Aircraft propulsion
• Heavy industrial equipment
• High-power marine drives

However, the manufacturing process becomes more complex.

Axial Flux Motor Topologies

AFIR Topology

AFIR stands for Axial Flux Internal Rotor.

This design places the rotor inside the stator structure. Consequently, the motor achieves compact dimensions and high torque performance.

Many high-speed systems use AFIR topology because it supports stable operation.

TORUS Topology

TORUS motors use an external rotor arrangement.

This structure improves cooling access and supports high torque density.

Furthermore, the design works well for direct-drive systems.

YASA Axial Flux Motor Design

The YASA structure uses one stator and two rotor discs.

Today, this topology is highly popular in electric vehicles because it provides:

• Excellent torque density
• Compact size
• Lower weight
• High efficiency

As a result, several premium EV manufacturers adopt YASA-based motors.

Axial Flux Electric Motor Components

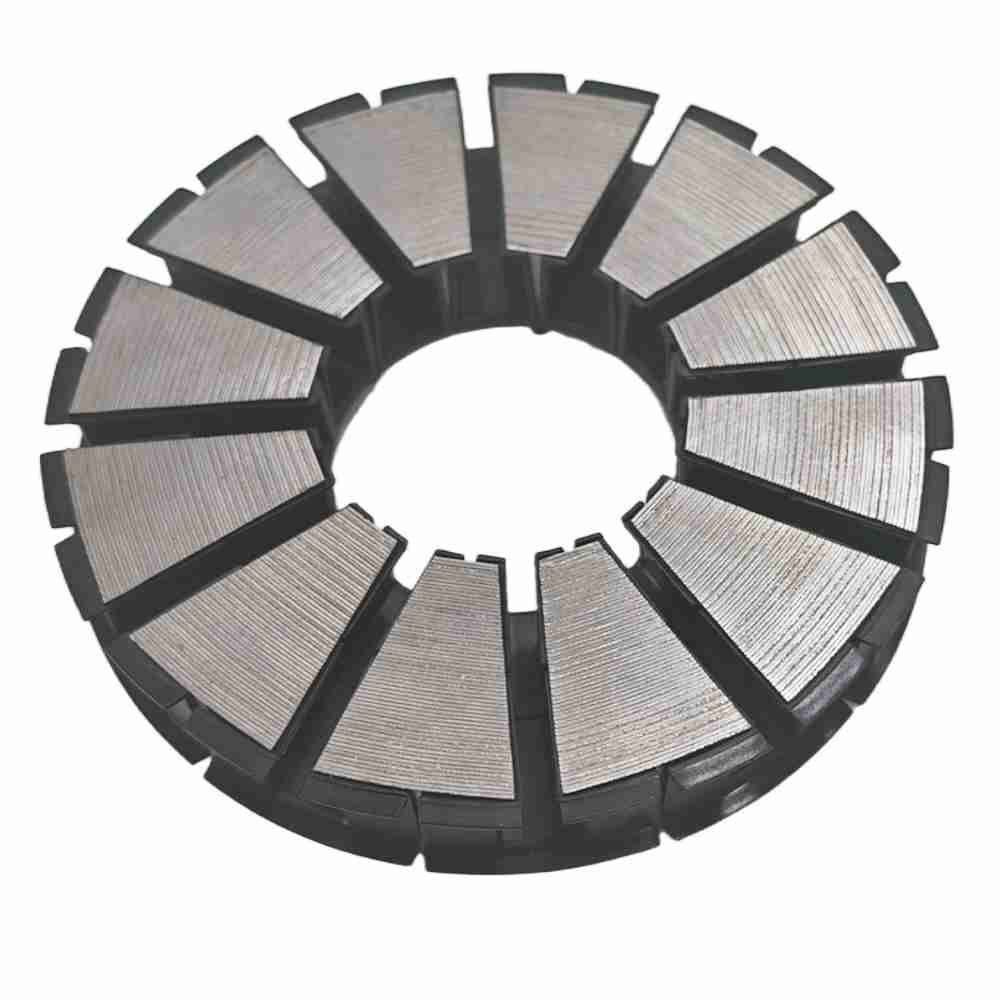

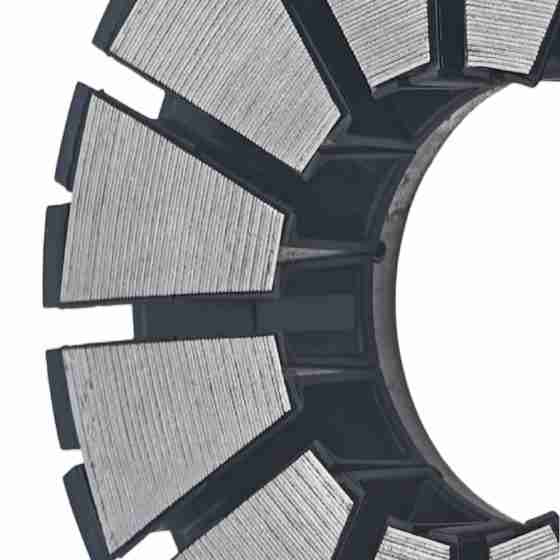

Stator Core

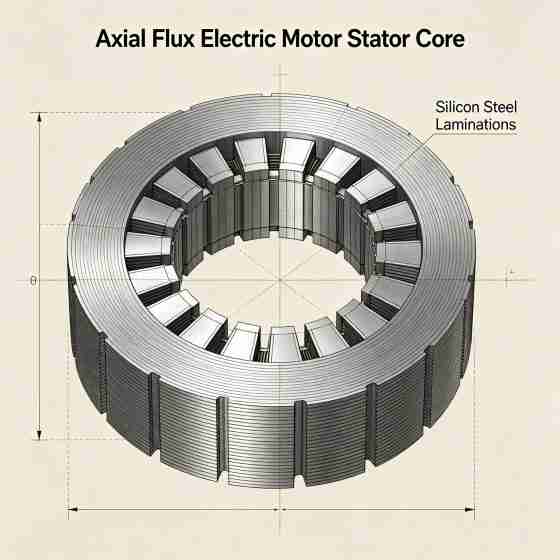

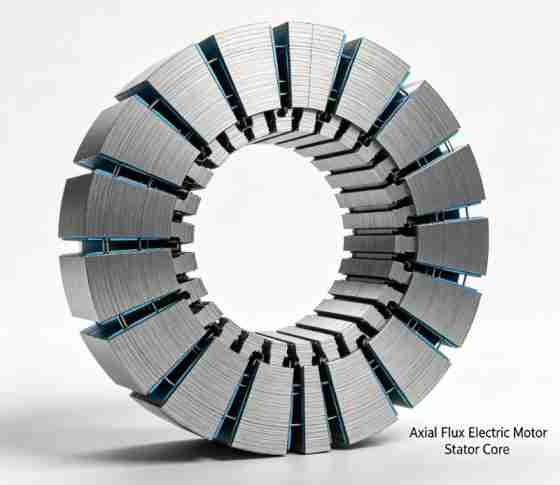

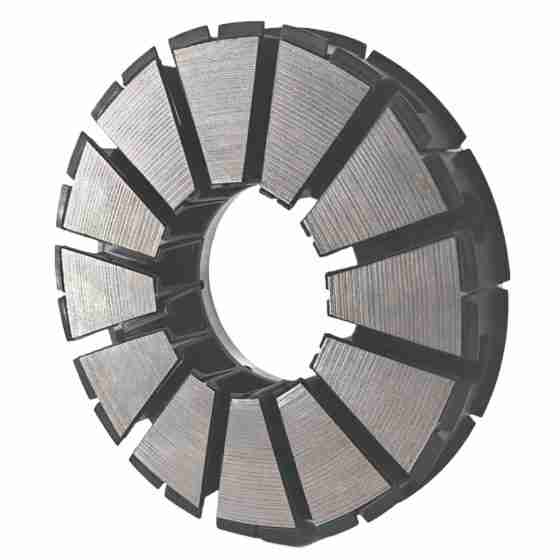

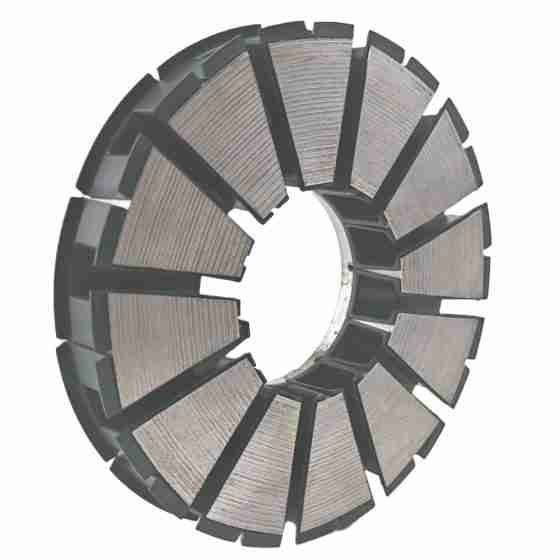

The stator core guides magnetic flux and supports the winding structure.

Manufacturers often use:

• Silicon steel laminations
• Soft magnetic composite materials
• High-frequency magnetic alloys

The stator design directly affects:

• Efficiency
• Torque output
• Thermal performance
• Noise level

Therefore, precision manufacturing is extremely important.

Copper Windings

Copper windings generate the electromagnetic field.

Hairpin winding technology is becoming more common because it improves:

• Slot fill factor
• Thermal conductivity
• Efficiency

Moreover, optimized winding layouts reduce resistance losses.

Permanent Magnets

Most axial flux electric motors use rare-earth permanent magnets.

Common materials include:

• NdFeB magnets
• High-temperature magnetic alloys

Strong magnets improve torque density. However, material costs remain an important challenge.

Therefore, many companies research alternative magnet technologies.

Rotor Disc

The rotor holds the permanent magnets.

Since the rotor rotates at high speed, mechanical balance is essential.

Manufacturers often use:

• Aluminum alloys
• Carbon fiber structures
• High-strength steel

These materials help reduce rotational inertia.

Cooling System

Thermal management strongly affects continuous performance.

Common cooling methods include:

• Air cooling
• Liquid cooling
• Oil cooling
• Direct stator cooling

Because axial flux motors generate high power density, advanced cooling systems are often necessary.

Axial Flux Electric Motor Manufacturing Process

Stator Lamination Production

The process begins with precision lamination stamping.

Thin steel sheets reduce eddy current losses. In addition, precise lamination geometry improves efficiency.

Manufacturers use automated stamping equipment for high consistency.

Stator Bonding Technology

Bonding technology replaces traditional welding in many advanced motors.

This method provides several advantages:

• Lower core losses
• Better dimensional accuracy
• Reduced deformation
• Improved NVH performance

As a result, bonded stator technology is increasingly important for premium EV motors.

Coil Winding Process

Next, automated winding machines insert copper windings into the stator.

Hairpin winding systems are popular because they support:

• High automation
• Strong thermal performance
• Better production repeatability

Consequently, large-scale EV production often uses this technology.

Magnet Installation

Permanent magnets require precise positioning.

Even small alignment errors can reduce efficiency and increase vibration.

Therefore, manufacturers use robotic assembly systems for high precision.

Final Motor Assembly

Finally, the motor undergoes:

• Rotor balancing
• Thermal testing
• Electrical testing
• Vibration testing
• Efficiency validation

These tests ensure reliable long-term operation.

Advantages of Axial Flux Electric Motors

High Torque Density

An axial flux electric motor can generate more torque in a smaller package.

Therefore, the motor supports compact and lightweight systems.

This advantage is especially important in electric mobility applications.

Lightweight Structure

Reducing weight improves system efficiency.

For example:

• EVs gain longer driving range
• Aircraft improve payload capacity
• Robots achieve faster motion

Consequently, lightweight motor architecture becomes highly valuable.

High Efficiency

Many axial flux motors achieve excellent efficiency across wide operating ranges.

Because of this, the technology supports energy-saving goals in both Europe and North America.

Faster Dynamic Response

The rotor often has lower inertia.

As a result, acceleration and deceleration become faster.

This feature benefits:

• Robotics
• CNC equipment
• Aerospace systems
• Performance EVs

Flexible Installation

The flat motor structure allows easier integration into limited spaces.

Therefore, designers gain more layout freedom.

Challenges of Axial Flux Electric Motors

Complex Manufacturing

Axial flux motor production requires high precision.

For example:

• Magnet alignment must be accurate
• Air gap control is critical
• Rotor balancing is essential

Therefore, advanced manufacturing equipment is necessary.

Thermal Management Difficulty

Although cooling access is better, heat concentration can still become a challenge.

High power density creates strong thermal loads.

Consequently, engineers must optimize cooling channels carefully.

Permanent Magnet Cost

Rare-earth magnets increase material costs.

Moreover, global supply chain fluctuations can affect pricing.

Therefore, many manufacturers explore magnet reduction strategies.

Limited Industry Standardization

Compared with radial flux motors, axial flux standards are still developing.

As a result, some supply chains remain less mature.

However, market adoption continues to grow rapidly.

Axial Flux Electric Motor Applications

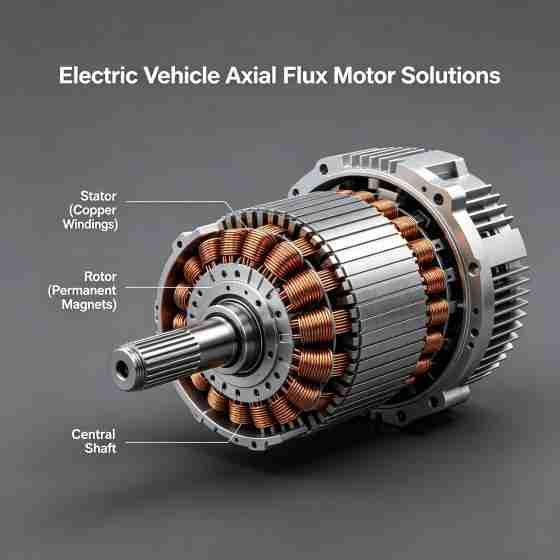

Electric Vehicle Axial Flux Motor Solutions

Electric cars require:

• High efficiency
• Compact packaging
• Strong acceleration
• Lightweight components

Axial flux motors meet these requirements effectively.

Therefore, many EV developers adopt this technology for premium vehicle platforms.

Electric Motorcycles

Motorcycles need compact motors with strong torque.

Because axial flux motors are thin and lightweight, they fit motorcycle platforms well.

In addition, direct-drive systems become easier to design.

Commercial Electric Vehicles

Commercial EVs benefit from improved energy efficiency.

As a result, fleet operators can reduce operating costs.

Furthermore, lightweight motors increase payload capacity.

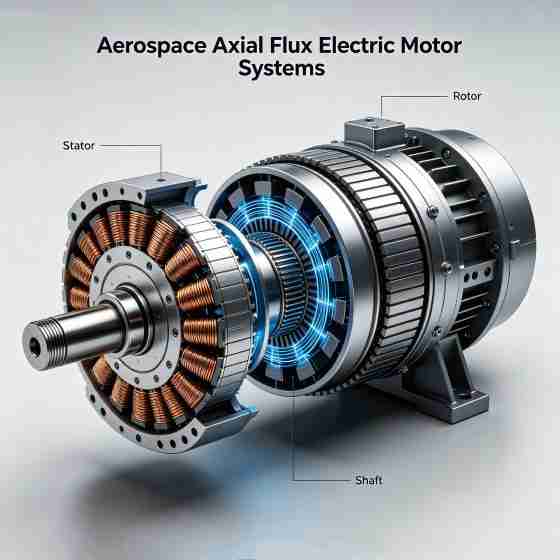

Aerospace Axial Flux Electric Motor Systems

Electric Aircraft

Electric aircraft require extremely high power density.

Weight reduction directly affects flight performance.

Therefore, axial flux electric motors are attractive for:

• eVTOL aircraft
• Electric propulsion systems
• Hybrid aviation platforms


  Aerospace Axial Flux Electric Motor Systems

Drone Propulsion

Drones require lightweight motors with fast response.

Axial flux motors provide excellent torque-to-weight ratios.

Consequently, advanced drone systems increasingly use this technology.

Industrial Automation Applications

Robotics

Robotic systems demand compact and efficient motors.

Axial flux technology supports:

• Fast acceleration
• Precise motion control
• Compact robotic joints

As a result, industrial robotics manufacturers show growing interest.

CNC Equipment

CNC systems require smooth torque output and precise speed control.

Because axial flux motors respond quickly, they improve machining accuracy.

Automated Manufacturing

Factories aim to reduce energy consumption while improving productivity.

Therefore, high-efficiency motor systems become increasingly important.

Marine Axial Flux Motor Applications

Electric Boats

Electric marine systems require compact propulsion units.

Axial flux motors help save space and improve efficiency.

Moreover, lower vibration improves passenger comfort.

Underwater Equipment

Subsea systems need reliable and compact electric drives.

Because axial flux motors provide strong torque density, they suit underwater propulsion systems well.

Renewable Energy Applications

Wind Power Systems

Some wind energy systems use axial flux generators.

The compact structure supports distributed energy solutions.

Moreover, high efficiency improves energy conversion.

Energy Storage Systems

Battery systems often require efficient auxiliary drives.

Therefore, axial flux motors help reduce energy loss.

Axial Flux Electric Motor Cooling Technologies

Air Cooling

Air cooling is simple and cost-effective.

However, it suits mainly low-power applications.

Liquid Cooling

Liquid cooling provides much better heat removal.

As a result, high-performance EV motors commonly use this method.

Oil Cooling

Oil cooling directly transfers heat away from critical components.

Therefore, some high-speed motors use oil-based thermal systems.

Direct Winding Cooling

Direct cooling channels near the windings improve thermal efficiency.

Consequently, continuous power output increases significantly.

Axial Flux Motor Materials

Soft Magnetic Materials

Advanced magnetic materials help reduce losses.

Examples include:

• Silicon steel
• Soft magnetic composites
• Nanocrystalline materials

These materials improve high-frequency performance.

Lightweight Structural Materials

Manufacturers increasingly use lightweight materials such as:

• Aluminum
• Titanium
• Carbon fiber composites

This approach reduces total system weight.

High-Temperature Insulation

Modern motors operate at higher temperatures.

Therefore, insulation systems must withstand thermal stress.

Advanced insulation improves durability and reliability.

Axial Flux Electric Motor Efficiency Optimization

Reducing Copper Losses

Engineers reduce resistance losses through:

• Better winding design
• Larger conductor area
• Optimized slot geometry

As a result, efficiency improves.

Lowering Core Losses

Thin laminations reduce eddy currents.

Moreover, better magnetic materials improve efficiency further.

Improving Thermal Management

Lower temperatures reduce resistance increases.

Therefore, efficient cooling directly supports better performance.

Advanced Motor Control Algorithms

Modern motor controllers optimize current flow continuously.

As a result, the motor operates efficiently across wide speed ranges.

Axial Flux Motor Integration With EV Systems

Battery Integration

Compact motors free more space for battery packs.

Therefore, vehicle range can improve.

Inverter Compatibility

Motor and inverter matching strongly affects efficiency.

Consequently, integrated drive system design becomes critical.

Direct Drive Solutions

Many axial flux motors support direct-drive systems.

Because fewer mechanical parts are needed, maintenance decreases.

Axial Flux Electric Motor Market Trends

Growing EV Demand

Global EV adoption continues to rise.

Therefore, demand for high-efficiency motors also increases.

Aerospace Electrification

Electric aviation development is accelerating rapidly.

As a result, high power density motors become essential.

Industrial Energy Efficiency Regulations

Europe and North America continue tightening energy regulations.

Consequently, manufacturers seek more efficient motor technologies.

Smart Manufacturing Growth

Automation systems require compact and responsive motors.

Therefore, axial flux motor adoption expands steadily.

Axial Flux Electric Motor Design Considerations

Torque Requirements

Motor selection should begin with torque analysis.

Engineers must evaluate:

• Peak torque
• Continuous torque
• Duty cycle

Thermal Limits

Cooling capacity determines continuous output capability.

Therefore, thermal simulation is essential.

Speed Range

Different applications require different speed profiles.

For example:

• EV traction motors need wide speed ranges
• Robotics often need precise low-speed control

Efficiency Targets

Energy efficiency affects operating cost directly.

Therefore, efficiency optimization remains a top priority.

Choosing the Right Axial Flux Electric Motor

Evaluate Application Requirements

First, define:

• Power demand
• Torque demand
• Speed range
• Environmental conditions

This step helps narrow the motor selection.

Analyze Thermal Performance

Thermal capability strongly affects reliability.

Therefore, engineers should review cooling performance carefully.

Review Manufacturing Quality

Motor quality affects long-term durability.

High-quality suppliers usually provide:

• Precision stator manufacturing
• Advanced bonding technology
• Automated assembly
• Strict testing systems

Consider Integration Flexibility

Compact installation may reduce total system complexity.

Therefore, motor geometry matters greatly.

Future of Axial Flux Electric Motors

Higher Power Density Development

Future motors will likely achieve even greater torque density.

This improvement will support:

• Advanced EVs
• Electric aircraft
• Industrial automation

Better Magnetic Materials

Researchers continue developing improved magnet materials.

As a result, efficiency and thermal stability may improve further.

AI-Based Motor Optimization

Artificial intelligence increasingly supports:

• Thermal simulation
• Electromagnetic optimization
• Predictive maintenance

Consequently, motor development cycles become faster.

Advanced Manufacturing Automation

Automation improves consistency and lowers production cost.

Therefore, large-scale axial flux motor manufacturing will become more economical.

Why B2B Manufacturers Prefer Axial Flux Electric Motors

Strong Performance for OEM Projects

OEM customers require reliable high-performance systems.

Axial flux motors support demanding applications while reducing weight and size.

Flexible Customization

Manufacturers can customize:

• Voltage range
• Cooling systems
• Stator structure
• Rotor configuration
• Shaft design

Therefore, the technology suits many industries.

Competitive Energy Efficiency

Energy-saving regulations continue becoming stricter.

Consequently, efficient motor technology helps companies remain competitive.

Axial Flux Electric Motor Supplier Selection Guide

Engineering Capability

Choose suppliers with strong R&D experience.

Important capabilities include:

• Electromagnetic simulation
• Thermal analysis
• Mechanical design
• Prototyping

Manufacturing Technology

Advanced production systems improve consistency.

Look for suppliers with:

• Automated winding
• Precision bonding
• High-speed balancing
• Automated testing

Quality Control

Reliable suppliers perform:

• Efficiency testing
• Thermal testing
• NVH analysis
• Durability validation

Therefore, quality systems matter greatly.

Global Supply Chain Support

EU and North American customers often require stable international support.

Therefore, supply chain reliability is extremely important.

SEO FAQ: Axial Flux Electric Motor

What is an axial flux electric motor?

An axial flux electric motor is a motor where magnetic flux travels parallel to the shaft. This design improves torque density, efficiency, and compactness.

Why are axial flux motors more efficient?

They reduce magnetic path length and improve cooling performance. As a result, energy losses decrease.

Where are axial flux motors used?

Common applications include:

• Electric vehicles
• Aerospace systems
• Robotics
• Marine propulsion
• Industrial automation

What are the advantages of axial flux motors?

Main advantages include:

• High torque density
• Compact structure
• Lightweight design
• High efficiency
• Fast response

What is the difference between axial flux and radial flux motors?

Axial flux motors use magnetic flux parallel to the shaft, while radial flux motors use outward magnetic flow.

Consequently, axial flux motors often achieve higher torque density and smaller size.

Are axial flux electric motors suitable for EVs?

Yes. They provide high efficiency, compact dimensions, and strong torque output. Therefore, they are highly suitable for electric vehicle platforms.

Conclusion

The axial flux electric motor is becoming one of the most important technologies in modern electrification. Because it combines high torque density, compact size, lightweight structure, and excellent efficiency, it supports the growing demands of EVs, aerospace systems, robotics, marine propulsion, and industrial automation.

Moreover, advancements in stator manufacturing, bonding technology, thermal management, and automated production continue improving performance and scalability. As global industries focus more on energy efficiency and electrification, axial flux motor adoption will likely accelerate further.

For B2B manufacturers, OEM suppliers, and engineering companies, investing in axial flux electric motor technology can provide strong competitive advantages in both European and North American markets. Consequently, businesses that adopt advanced axial flux solutions early may achieve better efficiency, lower system weight, improved integration flexibility, and stronger long-term market positioning.
