Axial Flux Motor Stator Core: Powering the Future of Electric Motion
The demand for axial flux motor stator cores keeps rising across industries like electric vehicles, robotics, and renewable energy. These motors stand out for their compact size, high torque, and excellent energy efficiency. As technology evolves, the stator core becomes key to achieving reliable and powerful performance.
An axial flux motor stator core forms the stationary magnetic part of the motor. It builds the magnetic field that drives the rotor. Unlike radial flux motors, which push magnetic flux outward, axial flux motors move flux along the shaft’s axis. This unique layout creates a thinner, lighter, and more efficient motor for modern applications.
Manufacturers use laminated silicon steel sheets to build the stator core. These laminations reduce eddy current losses and improve magnetic performance. High-speed stamping or wire EDM cutting ensures precise dimensions. A thin insulation coating then prevents short circuits and enhances reliability.

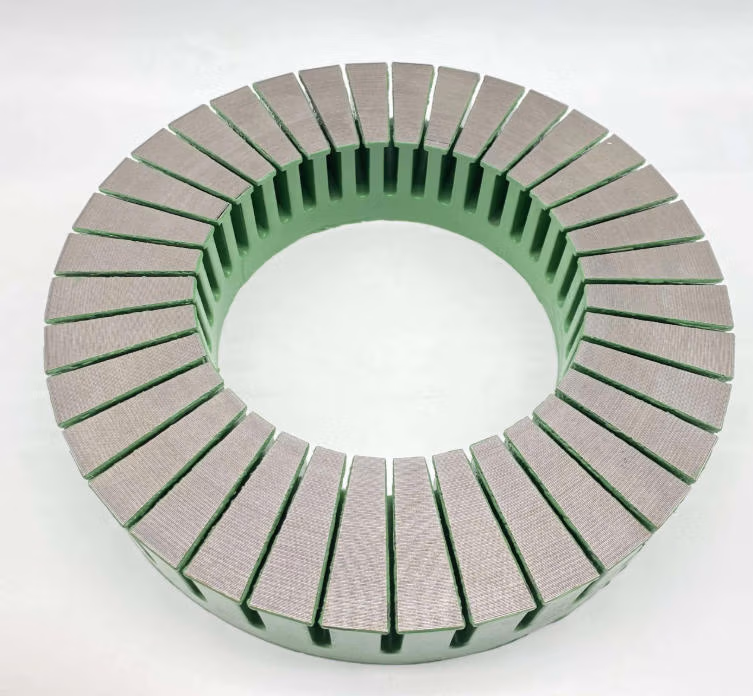

axial flux motor lamination
Main Advantages
Axial flux stator cores deliver high power density and strong torque within a small footprint. Their short magnetic path and large surface area enable more power per unit weight—perfect for EVs, drones, and automation.
Their flat shape also improves cooling and extends service life. The modular design allows easier assembly and maintenance, saving both time and cost.
Manufacturing and Materials
Creating a high-quality stator core demands strict control at every stage. Teams handle steel selection, punching, bonding, insulation, and testing with precision. Many manufacturers chooselow-loss electrical steelsuch as 35WW300 to reduce core loss.
For accuracy, laser cutting or wire EDM keeps laminations perfectly aligned. Bonded cores, made with high-temperature adhesive, lower vibration and noise while increasing strength.

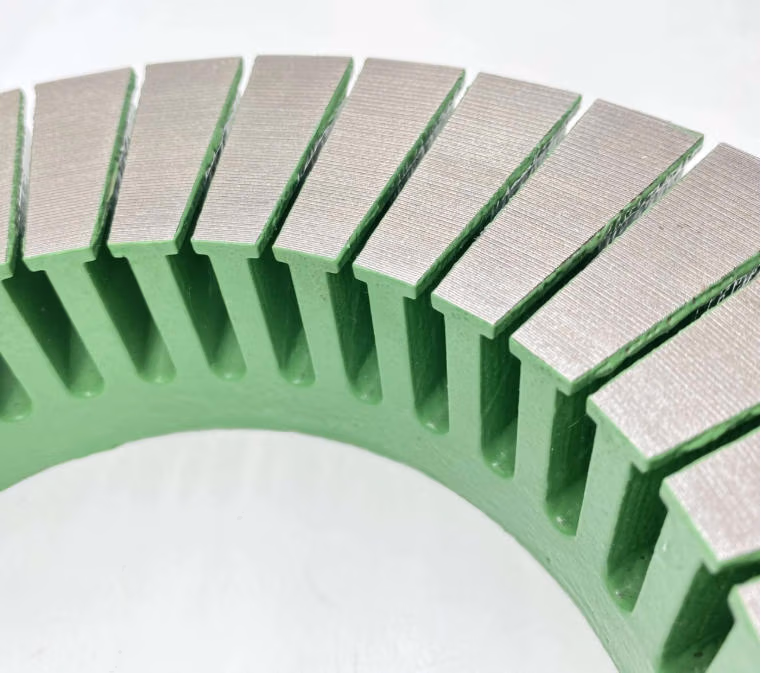

electric vehicle stator
Applications Across Industries
The axial flux stator core fits many modern uses. In electric vehicles, this stator delivers high torque while reducing overall motor weight. For aerospace and drones, the compact design ensures reliable and efficient power delivery. When used in industrial robotics, it enhances control accuracy and increases reaction speed. Renewable energy systems also benefit from its efficiency at variable speeds.
Quality and Customization
At BEST New Energy Technology, we produce custom axial flux motor stator cores to match client needs. Our factory uses 350-ton and 200-ton press machines to create laminations up to 300 mm in diameter. We also offer winding, insulation, and EDM cutting services for complete stator solutions.
Every product goes through iron loss, dimension, and insulation tests to ensure top quality. We combine advanced tools with strict inspection to guarantee long-term stability and performance.
Future Outlook
The future of motion technology depends on axial flux stator innovation. Research on nanocrystalline materials, magnetic optimization, and 3D core design continues to cut energy loss and boost torque. As materials and manufacturing improve, axial flux motors will lead the way in efficient, sustainable power solutions.
Choosing the right motor partner determines the performance, reliability, and competitiveness of your final product. We combine advanced manufacturing, strict quality control, and deep industry experience to deliver motor solutions that truly make a difference.
Professional Expertise in Motor Technology：With years of experience in stator cores, winding solutions, and precision lamination processing, we understand the technical demands of modern motors—BLDC, axial flux, EV motors, robotics, and more.
High-Precision Manufacturing Capability：We use advanced equipment including Wire-EDM, laser cutting, stamping, and automated winding systems. This ensures accurate dimensions, smooth edges, consistent stacking, and stable magnetic performance.
Premium Materials for Better Performance：We select high-grade silicon steel, oxygen-free copper wire, and reliable insulation materials to help your motors achieve higher torque, lower loss, and longer service life.
Customization for Your Application：Every project is different. We offer custom stator cores, special shapes, unique slot designs, winding services, and prototyping support to match your engineering requirements.
Strict Quality Control & Testing：From raw materials to final assembly, we follow multi-step inspections to guarantee reliability, consistency, and durability for each part we produce.
Fast Delivery & Stable Supply：With efficient production lines and flexible scheduling, we ensure fast lead times, stable output, and reliable support for your continuous projects.
One-Stop Motor Component Solutions：We provide stator cores, winding wire, winding services, lamination processing, and custom components—covering everything from prototyping to mass production.

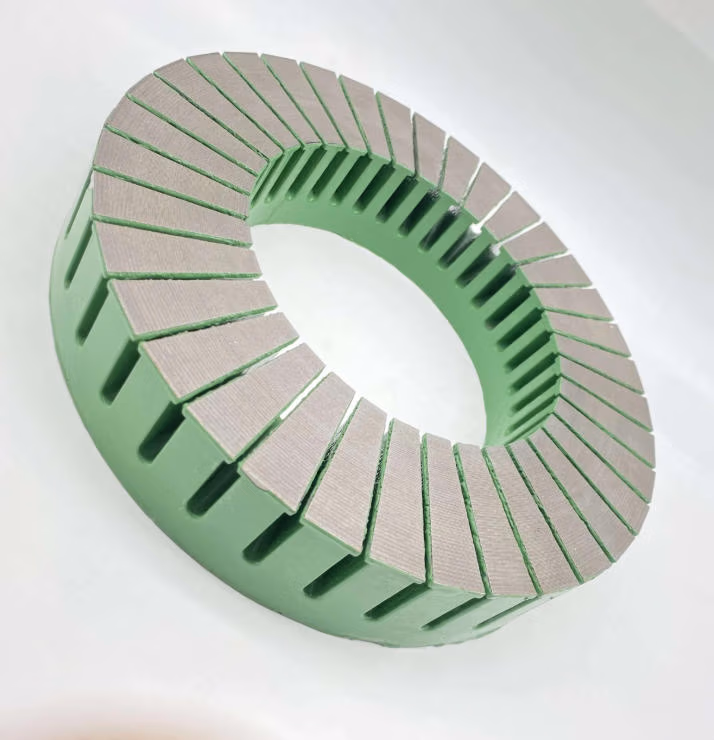

high efficiency motor core
Q1: What types of stator cores do you manufacture? A: We produce BLDC, axial flux, EV motor, robot motor, coreless, linear motor, and customized irregular stator cores.
Q2: Do you offer customization services? A: Yes. We customize dimensions, lamination thickness, materials, slot shapes, stack height, insulation, and winding based on drawings or samples.
Q3: What materials do you use for stator cores? A: We use high-grade silicon steel, including non-oriented and grain-oriented grades, as well as ultra-low-loss materials.
Q4: What manufacturing processes do you support? A: Stamping, progressive die production, Wire-EDM, laser cutting, and precision lamination stacking.
Q5: Can you provide stator winding services? A: Yes. We offer manual, semi-automatic, and fully automatic winding for various wire sizes and patterns.
Q6: Do you support prototype or small-batch orders? A: Yes, we handle prototypes, small batches, and mass production.
Q7: How do you ensure product quality? A: Through material inspection, dimensional checks, stacking accuracy tests, insulation tests, and magnetic performance testing.
Q8: What is your typical lead time?
Standard parts: 7–15 days
Custom stator cores: 15–30 days
New tooling/molds: 25–45 days
Transportation: DHL, FEDEX, UPS and other three major courier companies are used for international express delivery.
Inner packaging: All products are packaged with rust proof paper and treated with rust proof oil to ensure that they will not be corroded. The outer packaging is wrapped with 20mm thick anti-collision pearl cotton to ensure the safety of product transportation.
Outer packaging:K-grade thick cardboard boxes or plywood wooden boxes to ensure product transportation safety.
brushless motor
