High-Precision Axial Flux Motor Stator Core Winding Wire for Efficient Power Systems

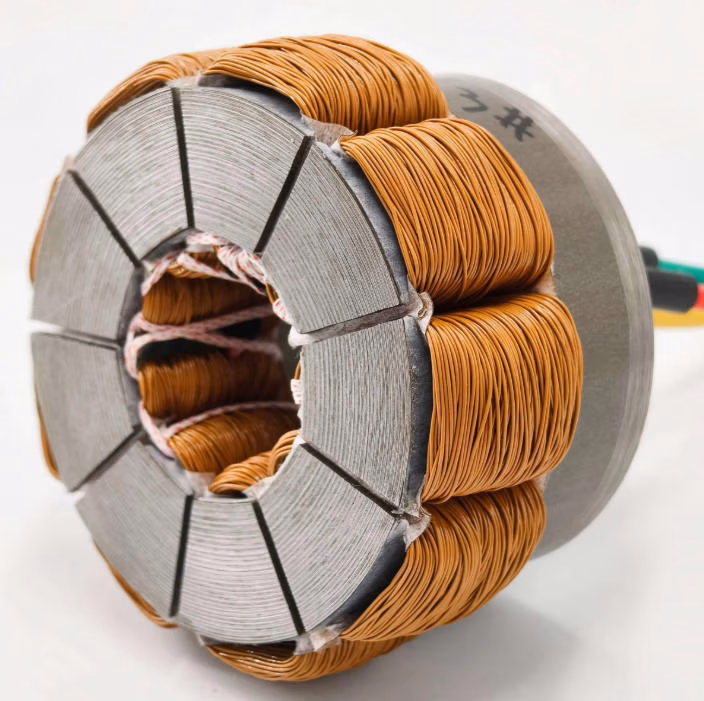

Axial Flux Motor Winding Process
As electric mobility and clean energy technologies continue to evolve, the axial flux motor stator core winding wire plays a vital role in improving motor performance. It forms the essential link between the stator core and the electromagnetic field that drives power conversion. With its compact structure, high torque density, and excellent energy efficiency, the axial flux motor has become a preferred solution for next-generation EVs, robotics, drones, and renewable energy systems.
To ensure long-lasting performance, both the stator core and the winding wire must be precisely designed, well-insulated, and perfectly matched. That’s why our engineering team focuses on developing custom axial flux motor stator cores with premium winding wire technology, providing a powerful, efficient, and reliable solution for high-performance electric drives.
1. What Is an Axial Flux Motor Stator Core Winding Wire?
The axial flux motor stator core is the stationary magnetic part of the motor, while the winding wire carries the electrical current that generates the rotating magnetic field. Unlike radial motors, the magnetic flux in axial designs flows parallel to the rotation axis. This geometry shortens the magnetic path and enhances power output.
The winding wire, often made from high-purity copper or aluminum, is carefully wound onto the stator slots. Its insulation coating prevents short circuits, reduces heat buildup, and improves durability. As a result, this combination of precision lamination and optimized winding ensures minimal energy loss and stable torque output.
Moreover, because of its flat geometry, the axial flux motor provides excellent cooling and higher torque density — ideal for lightweight and high-speed applications.
2. Key Features and Benefits
Our axial flux motor stator core winding wire assemblies are engineered for maximum performance and reliability. Here are the main advantages:
-
High Efficiency: Shorter magnetic paths and high-quality windings reduce energy loss and improve power conversion.
-
Superior Thermal Management: Flat stator design and premium insulation allow better heat dissipation, extending motor lifespan.
-
Compact Design: The axial structure delivers high torque density while saving space and weight.
-
Low Core Loss: Each lamination is made from high-grade silicon steel, minimizing hysteresis and eddy currents.
-
Custom Winding Options: We offer round, rectangular, or litz wire configurations to fit your design needs.
Furthermore, advanced epoxy or C6 insulation coatings enhance resistance to high voltage and temperature, making our stator cores suitable for demanding environments.
3. Precision Manufacturing and Quality Assurance
We start with top-quality non-oriented electrical steel laminations and cut them precisely using laser or wire EDM technology. This approach creates smooth edges and tight tolerances. Then, we coat each lamination with insulation to prevent short circuits.
Next, our technicians apply automated coil winding techniques and maintain uniform tension and accurate coil placement. We test every winding wire for resistance, insulation strength, and temperature tolerance. After assembly, we perform magnetic flux density analysis and vibration balance testing on the stator cores.
As a result of these strict quality controls, each product delivers stable performance, lower noise levels, and exceptional energy efficiency.
4. Applications in Modern Industries
The axial flux motor stator core with winding wire has found broad adoption across multiple industries. It is used in:
-
Electric Vehicles (EVs): offering high torque in compact motor housings.
-
Drones and Aerospace: where light weight and precision are essential.
-
Industrial Automation: enabling efficient servo motors and compact actuators.
-
Renewable Energy Systems: improving conversion efficiency in wind and solar generators.
-
Robotics and Medical Devices: ensuring quiet, stable, and precise motion control.
Because of its energy efficiency and versatility, this motor type continues to gain attention in the global electric mobility and automation sectors.

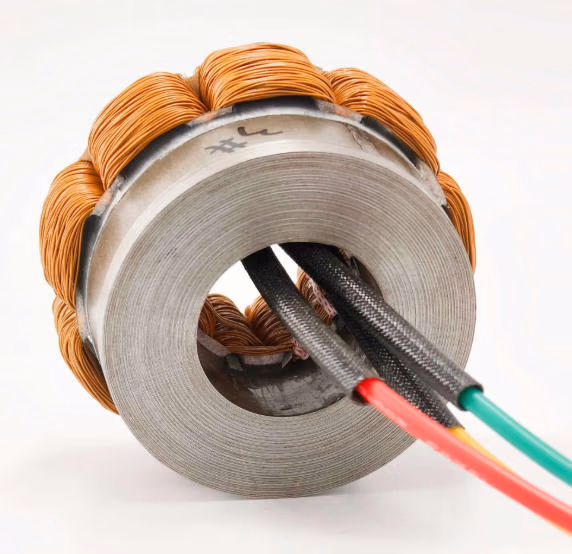

Custom Winding for Axial Flux Stator Core
5. Customization and OEM Solutions
We understand that every motor design is unique. Therefore, we provide OEM and ODM customization for both stator cores and winding wire configurations. Our engineers can help you optimize slot geometry, coil size, insulation type, and material selection based on your application.
We also provide prototyping, sample evaluation, and rapid production for R&D and mass production needs. With our ISO-certified facilities, advanced equipment, and technical expertise, we ensure consistent quality and on-time delivery to clients worldwide.
6. Why Choose Us as Your Supplier Axial flux motor stator core winding wire
We are more than a manufacturer — we are your trusted engineering partner. Our commitment to quality, precision, and innovation ensures that every axial flux stator core with winding wire meets the highest international standards.
Because we continuously upgrade our equipment and technology, we help our customers reduce energy loss, improve motor efficiency, and extend the lifespan of their systems.
By choosing our products, you choose a solution built for the future — efficient, compact, and reliable.
