Motor Stator Core Lamination: Precision Engineering for Efficient Electric Motors

In modern electric motor manufacturing, motor stator core lamination plays a crucial role in improving energy efficiency and reducing core losses. Whether for BLDC motors, induction motors, or axial flux designs, a high-quality laminated stator core ensures stable magnetic performance and long service life.

At best, we specialize in producing precision motor stator core laminations that meet international standards for performance, durability, and energy efficiency. With advanced stamping, bonding, and wire EDM technologies, we deliver consistent quality across every production batch.

What Is a Motor Stator Core Lamination?

We create a motor stator core lamination by stacking thin sheets of silicon steel to form the stator—the stationary part of an electric motor. We insulate each lamination from the others to reduce eddy current losses, which improves efficiency and lowers operating temperature.

The quality of these laminated sheets directly affects the motor’s performance. Our stator cores are carefully designed to optimize magnetic flux, minimize energy loss, and improve torque density.

We manufacture various types of laminated stator cores, including:

• Common die stator cores for standard motor models

• Customized stator laminations for BLDC and servo motors

• Bonding lamination stator cores for silent operation

• Wire-cut samples for prototype development and testing

Why Lamination Matters in Motor Performance

The lamination process is the heart of motor efficiency. Each stator lamination is made from high-grade electrical steel, typically between 0.2–0.5mm thick. When stacked precisely, they form a compact structure that:

• Minimizes magnetic losses

• Improves motor speed control

• Reduces vibration and noise

• Increases insulation and thermal stability

This is why motor stator core lamination is widely used in electric vehicles (EVs), home appliances, industrial pumps, and automation systems. High-performance motors depend on precise lamination stacking to ensure reliable operation and extended service life.

Manufacturing Process

Our production process combines traditional precision stamping with modern bonding and laser cutting technologies.

1. Material Selection:
To begin with, we use premium silicon steel sourced from trusted suppliers, thereby ensuring uniform magnetic conductivity and excellent mechanical strength.

2. Stamping or Laser Cutting:
Next, each stator lamination is either precisely punched or laser-cut to achieve consistent shape accuracy and uniform slot dimensions. As a result, every piece meets strict dimensional tolerances and performance requirements.

3. Bonding Lamination:
In addition, for noise-sensitive applications, we bond each lamination layer carefully to minimize vibration and reduce mechanical noise during operation.

4. Stacking & Assembly:
Finally, the laminations are stacked using interlocking, welding, or bonding techniques to form the complete stator core assembly. This step ensures structural integrity, magnetic efficiency, and ultimately long-term motor performance.

5. Quality Inspection:
Every core undergoes dimensional testing, insulation coating check, and magnetic flux analysis before delivery.

Our Production Capabilities

We support custom stator core design and manufacturing according to customer drawings or samples.
Our workshop is equipped with:

• Precision stamping dies for high-volume production

• Wire-EDM and laser cutting machines for prototype or irregular shapes

• Automatic stacking and bonding systems

• Full winding and assembly services for complete stator units

With over 10 years of experience in motor core manufacturing, we supply reliable products to clients in the EV, automation, and home appliance industries across Asia, Europe, and North America.

Applications of Motor Stator Core Lamination

Our laminated stator cores are widely used in:

• BLDC motors for fans, compressors, and electric vehicles

• Induction motors in pumps, air conditioners, and industrial machines

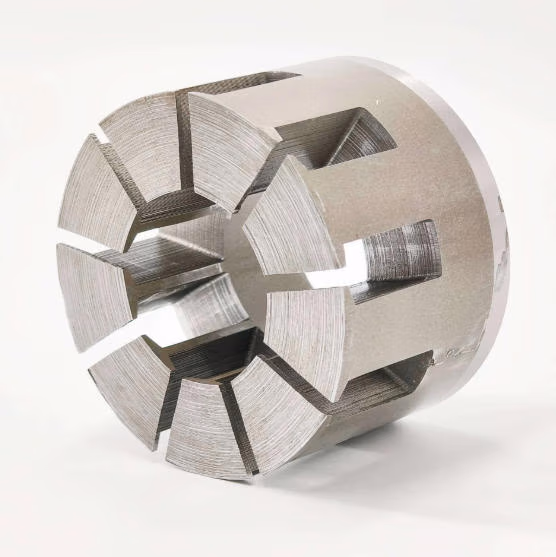

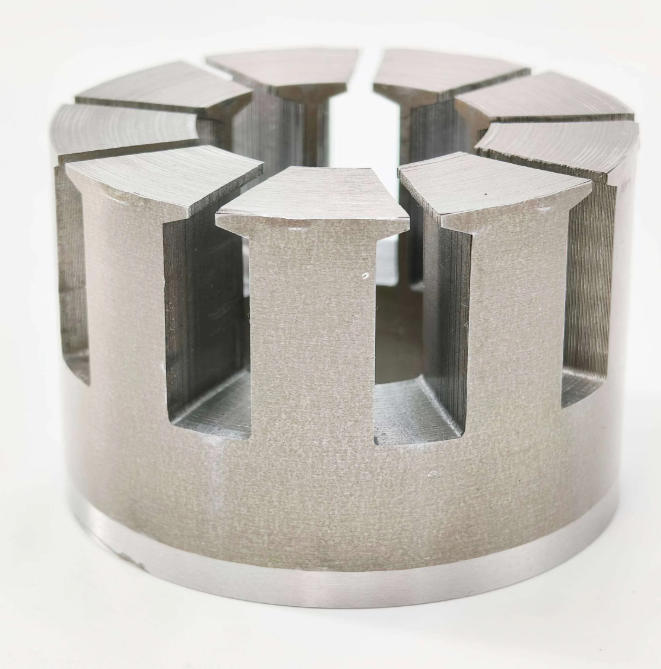

• Axial flux motors for compact, high-torque systems

• Servo motors in robotics and CNC machines

• Generator stators for renewable energy systems

Each application requires precise balance between performance, cost, and durability. That’s why our engineering team customizes lamination design, thickness, and insulation methods to match your motor’s specifications.

Advantages of Our Laminated Stator Cores

✔ Low Core Loss: High-grade silicon steel and precise lamination reduce eddy current and hysteresis losses.
✔ High Dimensional Accuracy: Consistent stamping ensures tight tolerances and uniform stacking.
✔ Custom Design Options: We support OEM/ODM manufacturing for unique motor models.

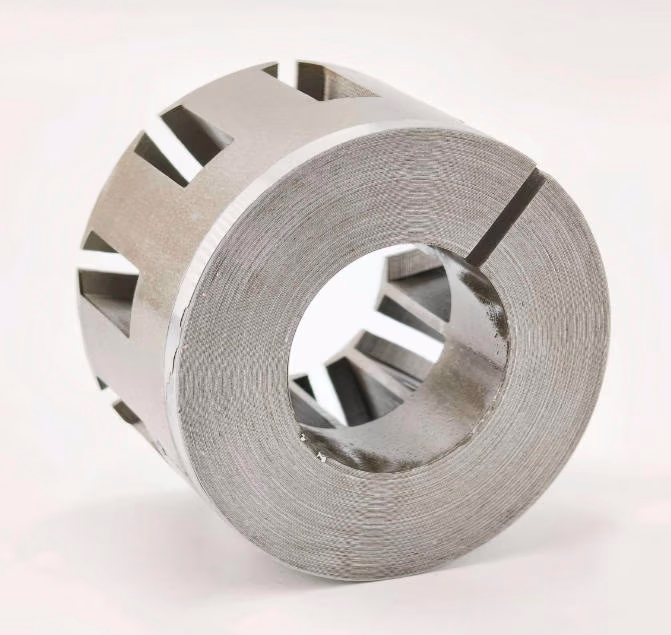

✔ Superior Insulation: Epoxy or coating treatment enhances electrical resistance.
✔ Quiet Operation: Bonded laminations minimize mechanical vibration and noise.

Our commitment to precision, performance, and reliability makes us a trusted supplier for global electric motor manufacturers.

Why Choose Us

Choosing the right motor stator core lamination supplier can significantly impact your product’s efficiency and market competitiveness.

We are not only a factory but also your long-term partner in motor core engineering and innovation.
With strict quality control, fast delivery, and flexible customization, we help your business stay ahead in a rapidly evolving motor industry.
