High-Performance Axial Flux Motor Stator Core for Next-Generation Electric Drives

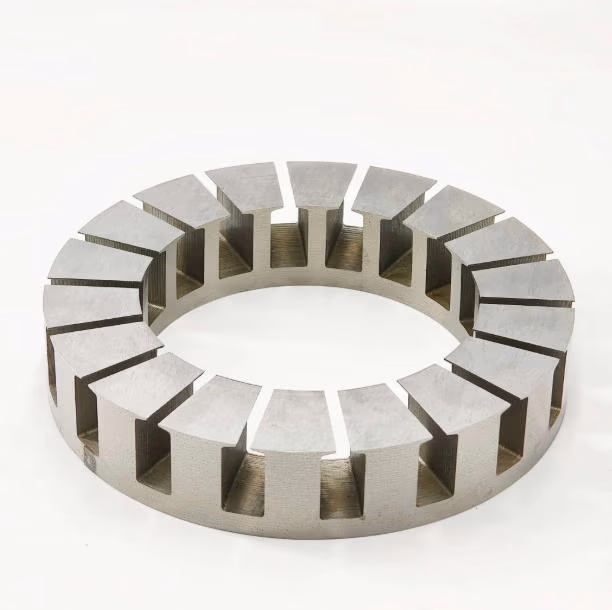

Lightweight Axial Flux Stator Design
The demand for efficient electric power systems is rising quickly. Among all motor types, the axial flux motor stator core stands out for its compact design, high torque output, and excellent energy efficiency. Because of its flat and lightweight structure, it has become a preferred choice for electric vehicles (EVs), robotics, and renewable energy applications.
To achieve reliable performance, the stator core must combine precision engineering with advanced materials. That’s exactly what we focus on—creating high-quality axial flux motor stator cores that deliver power, stability, and long service life.
1. What Is an Axial Flux Motor Stator Core?

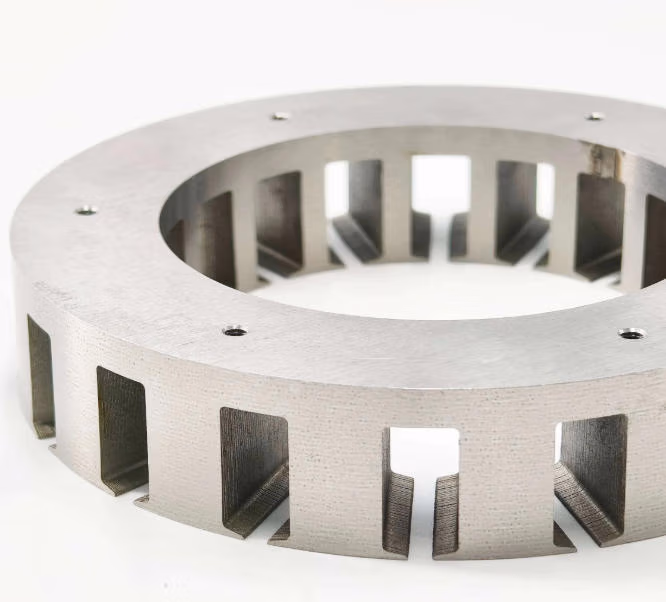

An axial flux motor stator core is the stationary magnetic part of the motor. It forms the heart of the electromagnetic system that generates torque. Unlike radial designs, the magnetic flux in an axial motor flows parallel to the shaft. This unique direction shortens the magnetic path and significantly improves energy use.
Our stator cores use high-grade silicon steel laminations. Each lamination is thin and precisely cut to reduce eddy current loss. As a result, the motor runs cooler, consumes less energy, and performs more consistently over time.
Moreover, because of its compact and flat design, the axial flux stator allows for lighter motors with higher torque density, ideal for space-constrained or mobile systems.
2. Key Advantages of Our Stator Cores
Choosing the right axial flux motor stator core directly impacts your motor’s performance. Here are the main benefits our designs offer:
-
High Torque Density: The axial magnetic flow increases torque output while keeping the motor size small.
-
Better Cooling: The open stator layout allows heat to escape quickly, preventing temperature rise.
-
Low Core Loss: Precision cutting, insulation coating, and optimized stacking reduce energy loss.
-
Lightweight & Compact: The design minimizes weight without reducing magnetic efficiency.
-
Custom Options: We tailor lamination thickness, slot shape, and diameter to meet specific project needs.
Additionally, we apply C6 or epoxy insulation coatings and use laser welding or wire EDM cutting to ensure every part meets tight tolerances.
3. Reliable Manufacturing and Strict Quality Control
We start with premium non-oriented electrical steel, selected for its low-loss magnetic properties. Then, our engineers perform laser or stamping cutting to achieve perfect edge accuracy. After coating each lamination with insulation, we assemble the stack with bonding or welding to form a stable and efficient magnetic core.
To ensure performance, we test every stator core for magnetic flux density, dimensional accuracy, and eddy current loss. This process ensures consistent results across every batch. Therefore, our clients receive reliable components that meet or exceed international motor efficiency standards.
4. Applications in Multiple Industries

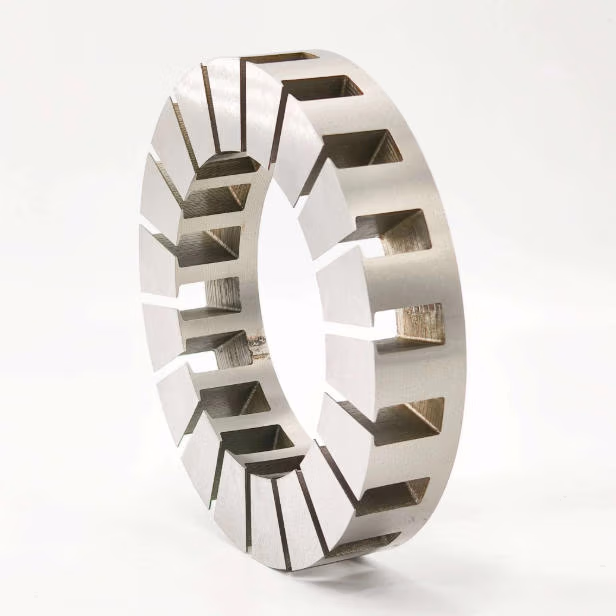

The axial flux stator core is becoming a key part of many new technologies. For instance, it provides high torque for EV motors, precise control for robots, and space-saving designs for drones. It also improves efficiency in wind turbines, marine systems, and industrial automation equipment.
Because it combines compact size with powerful output, this motor technology continues to replace traditional radial models in modern engineering.
5. Customization and OEM Solutions Axial flux motor stator core
Every project is different. Therefore, we provide OEM and ODM customization for axial flux stator cores. Our team can assist from concept design to production, offering technical drawings, simulations, and sample testing.
We also support material selection, performance optimization, and quick prototyping. This flexibility helps our clients develop motors that achieve their exact power, speed, and efficiency targets. In addition, our factory is ISO-certified, ensuring that every core meets global quality and reliability standards.
6. Why Choose Us
We are not just a manufacturer; we are a long-term engineering partner. Our production line includes precision stamping, CNC machining, and automated lamination stacking. Combined with experienced engineers and strict QC inspection, we deliver stator cores that consistently perform at a high level.
Moreover, we continuously upgrade our technology to reduce loss, improve balance, and increase efficiency. As a result, our customers can expect better performance, longer motor life, and lower total cost of ownership.
When you choose our axial flux motor stator core, you choose a product built with precision, performance, and partnership in mind.
