Axial Flux Motor: Redefining Power Density and Efficiency
High Efficiency Axial Flux Motor
In today’s fast-paced world , industries are constantly searching for more compact, lightweight, and efficient motion solutions. Among all motor technologies, the axial flux motor stands out as one of the most innovative designs. With its unique magnetic structure and space-saving layout, it delivers exceptional torque density, high efficiency, and flexible integration—making it a top choice for electric vehicles, robotics, and renewable energy systems.
What Is an Axial Flux Motor?
Unlike traditional radial motors where the magnetic flux flows outward, the axial flux motor features a disc-shaped design where the flux moves parallel to the motor’s axis of rotation. This layout allows engineers to create thinner and lighter motors while maintaining powerful torque output. As a result, it provides higher power density per unit weight compared to conventional motor architectures.
Additionally, the flat geometry of the axial flux motor enables improved thermal management. Because heat is distributed over a larger surface area, the motor runs cooler, ensuring longer lifespan and stable performance. Therefore, this design has become increasingly popular in applications where space, weight, and efficiency are critical factors.
Key Design Advantages
One of the main benefits of the axial flux motor lies in its magnetic circuit design. The shorter magnetic path minimizes core losses, while the wider diameter increases torque capability. Moreover, its compact structure reduces copper usage and mechanical stress. As a result, the overall efficiency can exceed 95%, even under dynamic load conditions.
Furthermore, the stator and rotor in an axial flux design can be customized for specific torque and speed requirements. Manufacturers often use low-loss silicon steel laminations and high-performance permanent magnets to enhance magnetic strength. In addition, by combining wire EDM or laser cutting technology, they achieve ultra-precise dimensions, improving overall motor balance and reducing vibration.
Applications Across Multiple Industries
Because of its outstanding efficiency and size-to-power ratio, the axial flux motor is widely used in numerous advanced fields. For instance, in electric vehicles (EVs), it helps reduce weight while increasing driving range. In robotics, its compact size allows flexible installation in robotic joints. Additionally, wind turbines and aircraft propulsion systems also benefit from its light structure and high torque density.
Moreover, the motor’s modularity allows easy integration into both small and large-scale systems. Whether used in mobility devices, drones, or marine applications, the axial flux motor offers consistent performance and reliability, even under demanding environments.
Material Selection and Manufacturing Precision

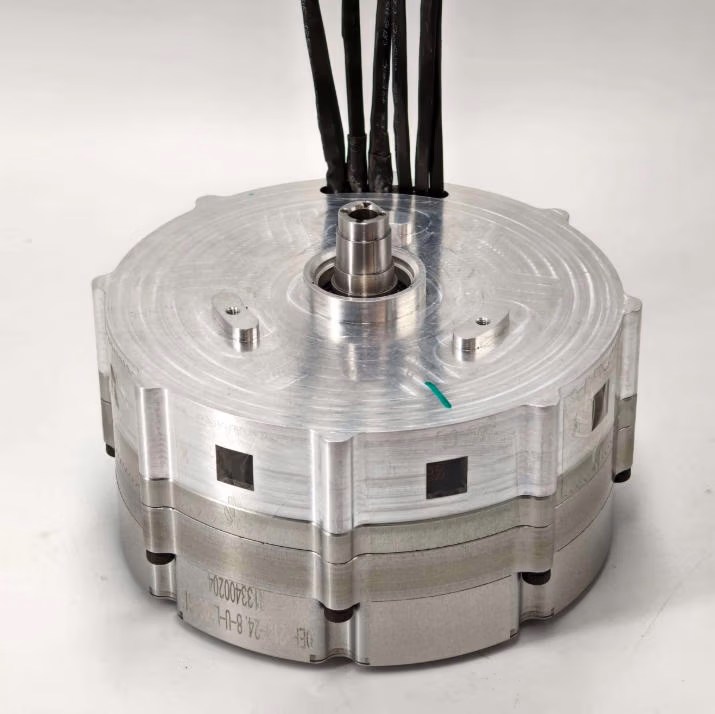

Custom Axial Flux Motor
Material quality plays a key role in determining motor performance. The stator core of an axial flux motor typically uses low-loss electrical steel to minimize eddy currents and improve magnetic flow. High-grade epoxy insulation coatings further protect the laminations against corrosion and short circuits.
Besides, manufacturers employ CNC machining, wire EDM cutting, and laser welding to ensure high dimensional accuracy. These processes also enhance repeatability and improve energy conversion efficiency. Consequently, the resulting stator and rotor cores deliver both durability and high electromagnetic performance.
Efficiency and Sustainability
Energy efficiency is a defining feature of the axial flux motor. Because of its short magnetic path and optimized geometry, it achieves higher power output with less material. This not only reduces energy consumption but also supports global sustainability goals. Furthermore, its lightweight design contributes to lower carbon emissions in transportation and industrial applications.
In addition, the reduced noise and smooth rotation make it ideal for environments where precision and quiet operation are essential—such as medical equipment, drones, and home automation systems.
Customization and OEM Services
As a professional axial flux motor manufacturer, we provide OEM and ODM customization services to meet various customer needs. Our design team can tailor the stator core dimensions, lamination thickness, and winding configuration to fit your specific torque, speed, and voltage requirements.
Furthermore, we ensure every motor undergoes strict testing for balance, insulation, and magnetic performance before shipment. By maintaining high quality and fast delivery, we support clients in industries such as e-mobility, automation, renewable energy, and smart manufacturing.
Global Supply and Technical Expertise
With years of experience in motor lamination production, our company supplies axial flux motor stator cores, rotor assemblies, and motor lamination stacks to global clients. Our advanced production lines, combined with ISO and RoHS certifications, guarantee consistent quality and stable global supply.
Moreover, our technical team offers full engineering support—from prototype design to mass production—helping customers optimize their motor’s performance and reduce development costs. As technology evolves, we continue to innovate and provide solutions that drive the future of energy-efficient motion systems.
Conclusion
In summary, the axial flux motor represents the next generation of motor design—delivering high torque, compact structure, and superior energy efficiency. Its advantages in performance, sustainability, and flexibility make it an ideal choice for industries aiming to innovate and grow.
Whether you are developing electric vehicles, automation systems, or renewable power equipment, partnering with a trusted axial flux motor manufacturer will give you the edge to lead in a competitive market.
