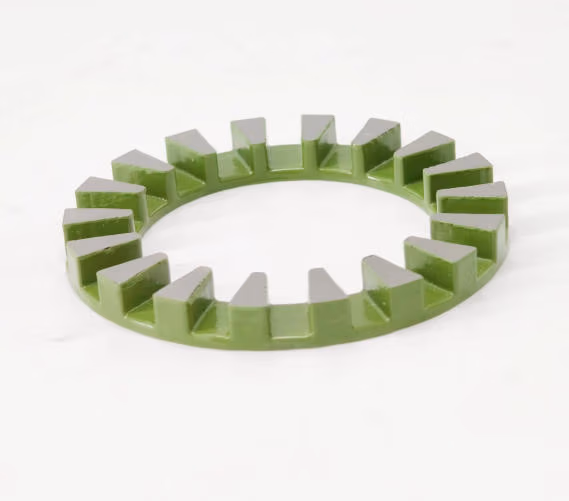

Axial Flux Motor Stator Core – The Power Behind High-Efficiency Electric Motors

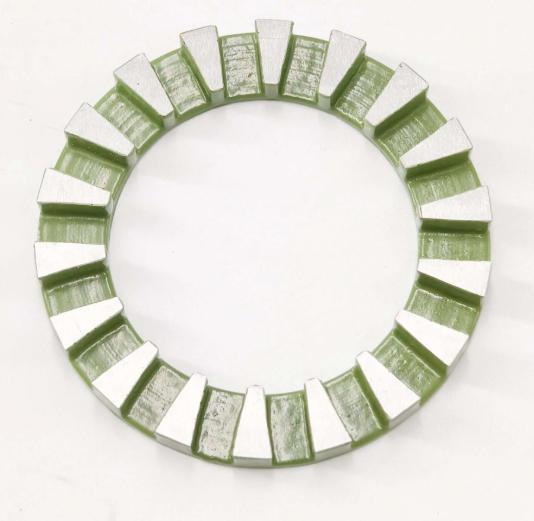

Axial Flux Stator Lamination
In every electric motor, performance begins at the heart—the axial flux motor stator core. This component determines how efficiently a motor converts electrical energy into mechanical power. When you design with a high-quality stator core, you unlock stronger torque, better cooling, and longer service life. Because of this, more companies in the electric vehicle, renewable energy, and automation industries are turning to axial flux motor technology.
What Is an Axial Flux Motor Stator Core?
An axial flux motor stator core is the stationary magnetic structure of an axial flux motor. Unlike traditional radial flux motors, the magnetic flux in this design flows parallel to the shaft rather than around it. As a result, the motor delivers higher torque density, compact dimensions, and improved efficiency.
To build the stator, engineers use thin laminations of silicon steel, each carefully aligned to minimize energy loss. When every layer fits perfectly, the core runs cooler and converts more power per unit of weight.
Why Axial Flux Motor Cores Outperform Conventional Designs
1. Greater Power Density
Axial flux technology produces up to 50% more torque per volume than a standard radial flux motor. Because the stator core manages magnetic flux more directly, it supports a smaller and lighter overall design.
2. Improved Cooling Efficiency
The flat geometry of the stator allows better air or liquid flow across its surface. As a result, the motor dissipates heat faster, improving reliability in EVs, drones, and aerospace systems.
3. Reduced Magnetic Loss
By using ultra-thin lamination sheets, we reduce eddy current losses and magnetic hysteresis. Consequently, every motor gains 5–10% more energy efficiency compared with conventional cores.
4. Lightweight and Durable
With fewer materials and smarter geometry, the core weighs less but performs better. Therefore, designers can build compact, lightweight motors without sacrificing output power.
5. Fully Customizable Design
You can tailor every element—diameter, tooth profile, slot number, or lamination thickness—to your application. Our engineering team works closely with you to optimize each core for specific voltage, speed, and torque requirements.
Applications Across Modern Industries
Because of its superior design, the axial flux motor stator core is transforming multiple sectors:
-
Electric vehicles and hybrid systems: Lightweight structure boosts range and efficiency.
-
Electric bikes, scooters, and motorcycles: Compact size fits limited space while maintaining torque.
-
Wind turbines and alternators: High efficiency improves energy conversion rates.
-
Robotics and automation: Smooth operation enhances motion control accuracy.
-
Aerospace and marine propulsion: Reduced mass improves fuel economy and payload capacity.
In short, any industry aiming for cleaner, smarter, and smaller power solutions benefits from axial flux motor technology.
Advanced Manufacturing for Superior Performance
We control every production step to guarantee consistent quality. Our factory uses precision laser cutting, high-speed punching, and automated stacking. These processes align each lamination within microns of accuracy.
We source premium-grade silicon steel (35W300 to 50W470) to minimize magnetic loss. After stacking, our technicians bond or weld the laminations to achieve stable mechanical performance.
To maintain reliability, we inspect flatness, alignment, insulation coating, and concentricity under ISO 9001 and IATF 16949 standards. Because of this strict process, our stator cores deliver long-lasting performance in any environment.
Why Global Clients Choose Our Stator Cores
Businesses across Europe, the United States, and Asia trust us as their axial flux motor stator core manufacturer. Here’s why:
-
OEM & ODM Solutions: Our engineers support your prototype, pilot, and mass production stages.
-
Quick Delivery: Automated production shortens lead time and keeps your projects on schedule.
-
Flexible MOQ: Ideal for both startups and large-scale manufacturers.
-
Competitive Pricing: Direct factory supply reduces your per-unit cost.
-
Global Service: We handle export logistics and provide ongoing technical support.
By choosing our stator cores, you partner with a team committed to precision, reliability, and innovation.
Technical Data Overview
| Parameter | Specification |
|---|---|
| Material | High-grade Silicon Steel (35W300 – 50W470) |
| Lamination Thickness | 0.2 – 0.5 mm |
| Diameter Range | 50 – 800 mm |
| Assembly Options | Bonded, Riveted, or Welded |
| Insulation Coating | C5, C6, or Epoxy Coated |
| Typical Applications | EV Motors, Generators, Axial Flux Alternators |
Because of these flexible parameters, our cores easily adapt to your motor design and target performance goals.
Committed to Sustainability and Energy Efficiency
Today, energy efficiency defines competitiveness. Our axial flux motor stator cores directly support the global move toward sustainable mobility and renewable power. By lowering core losses, every motor saves electricity and reduces carbon emissions.
Additionally, our factory follows eco-friendly production practices, such as material recycling, low-emission coatings, and optimized energy use. Therefore, when you choose our products, you also invest in a cleaner future.
Partner with an Experienced Stator Core Manufacturer
The stator core determines how your motor performs, and your supplier determines how reliable your core will be. With over ten years of experience in laminated core technology, we help our clients create motors that lead in performance, efficiency, and durability.
Our team doesn’t just deliver parts—we deliver solutions. Whether you need prototypes for testing or mass production for global supply, we provide engineering support at every stage.
Let’s build the next generation of axial flux motors together—stronger, lighter, and more efficient.
