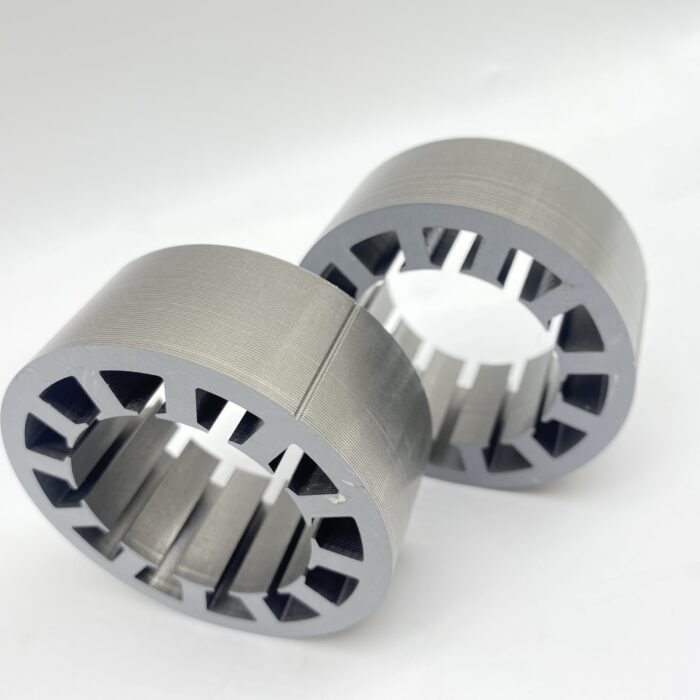

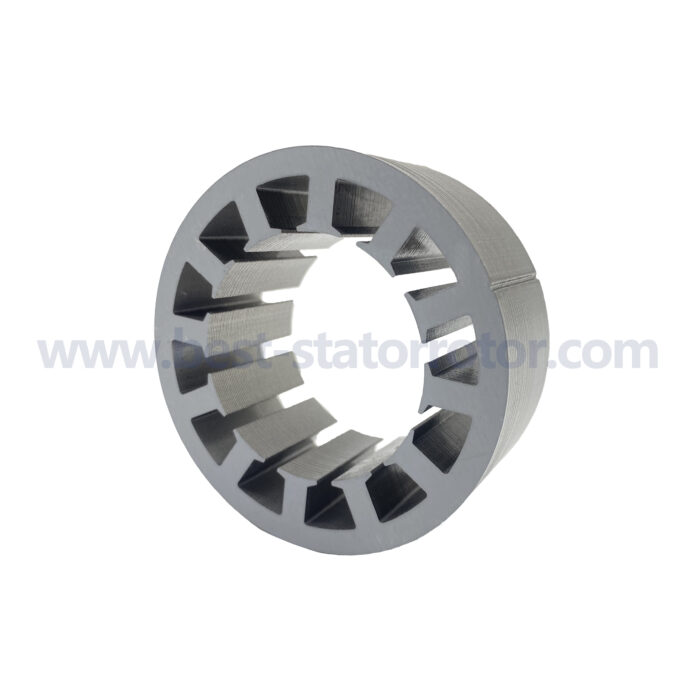

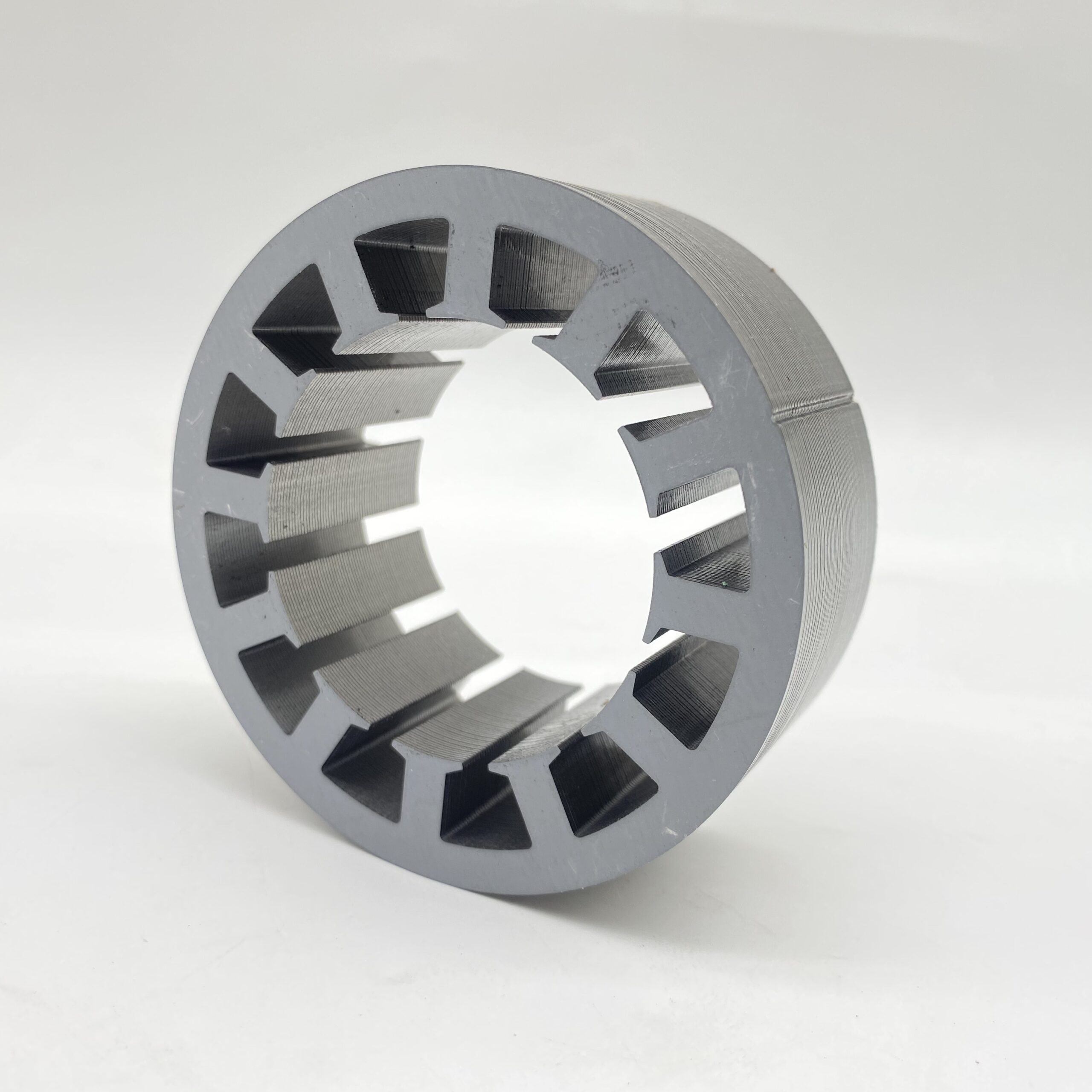

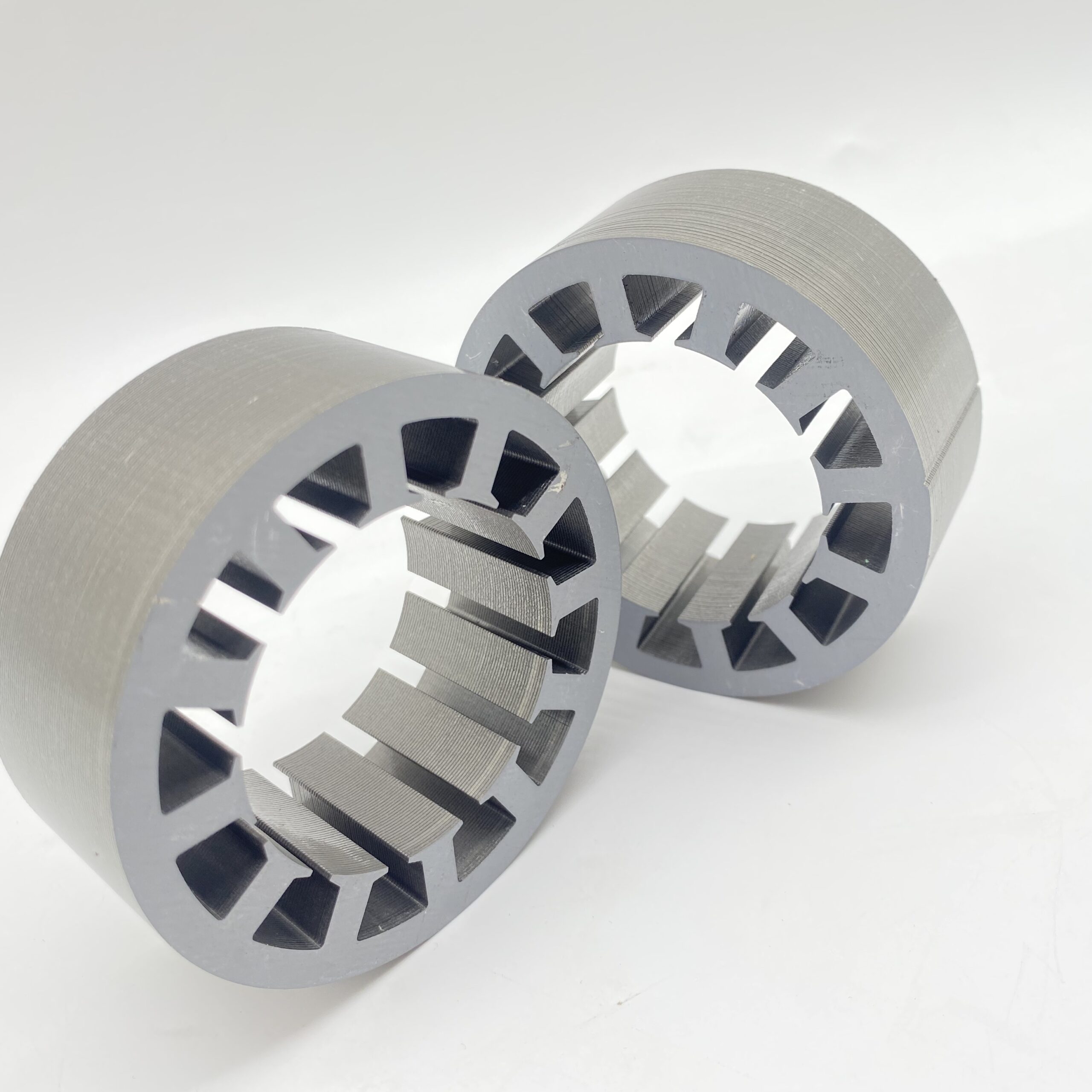

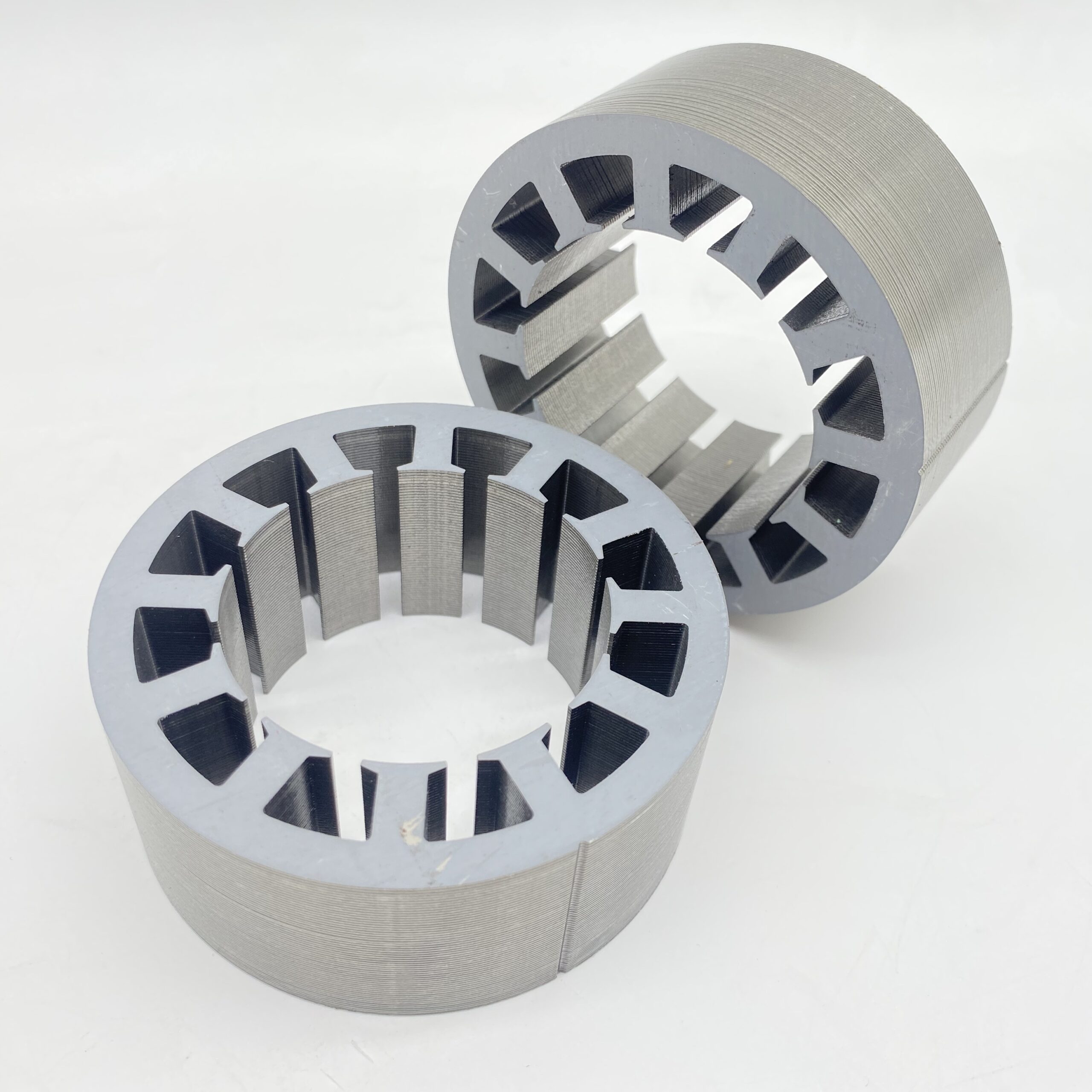

High-Precision BLDC Motor Inner Stator Core for Brushless DC Motors

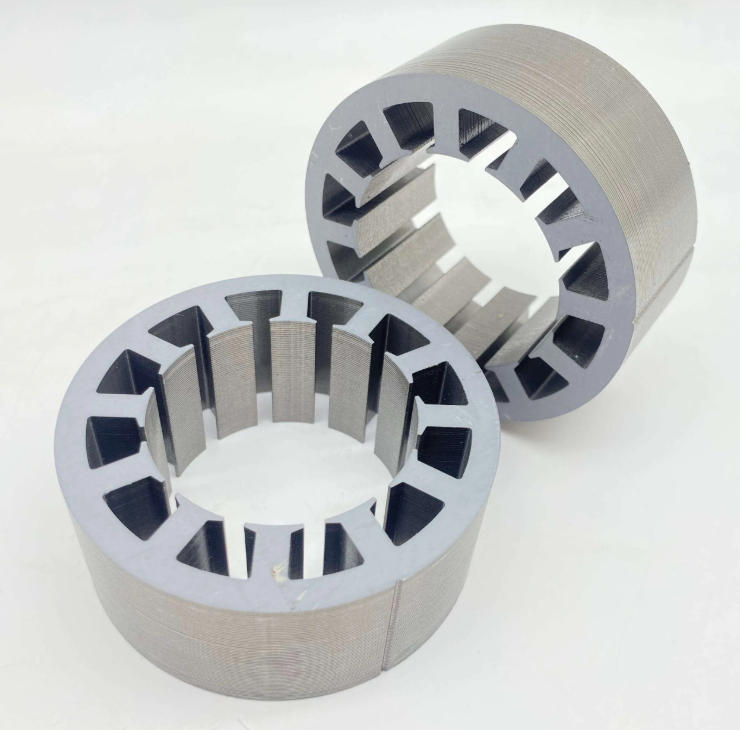

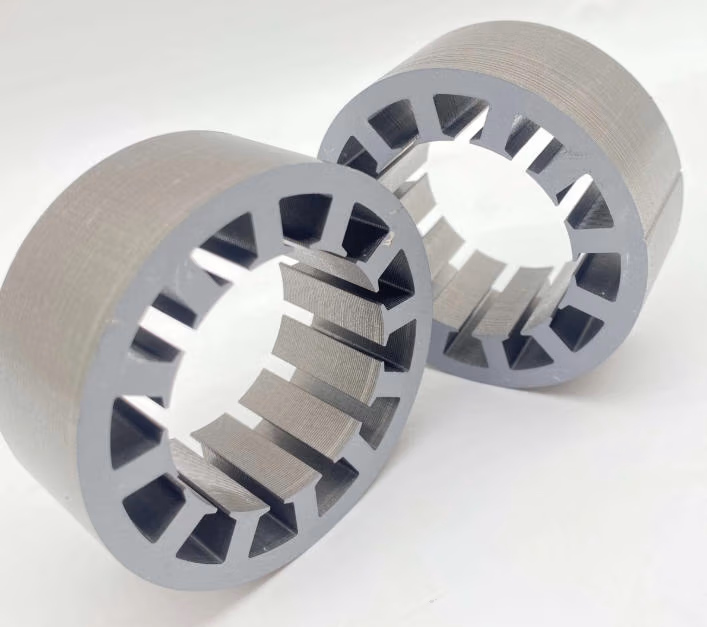

Inner Stator Core for Servo Motor
As electric motors continue to evolve, the BLDC motor inner stator core has become an essential component that defines performance, energy efficiency, and durability. With industries demanding smaller, lighter, and more powerful motor systems, a precisely engineered inner stator core is the foundation for achieving these goals. Whether it’s for electric vehicles, drones, or industrial automation, our inner stator cores provide exceptional strength, high magnetic efficiency, and long-term reliability.
1. What Is a BLDC Motor Inner Stator Core?
The inner stator core is the stationary magnetic part located inside the motor housing. It holds the winding wires and interacts with the rotor’s permanent magnets to generate electromagnetic torque. In BLDC (Brushless DC) motors, this design eliminates brushes and mechanical commutation, resulting in reduced friction, lower maintenance, and longer life.
Moreover, the inner stator configuration allows for a compact structure and better protection against external elements. Consequently, it’s ideal for applications that require high power density within a small form factor, such as electric bikes, robotics, drones, and servo motors.
In addition, combining the inner stator core with insulation coating and precise winding technology ensures smooth torque output and minimal core loss, even under demanding conditions.
2. Advanced Materials and Engineering
Each BLDC motor inner stator core is manufactured from high-grade silicon steel lamination, which provides excellent magnetic permeability and minimal hysteresis loss. Through laser cutting and wire-EDM technology, we achieve tight dimensional tolerances and clean edges that reduce energy loss and vibration.
Furthermore, all laminations are bonded or stacked using advanced interlocking and welding methods, ensuring mechanical stability and consistent magnetic alignment. This meticulous process helps reduce eddy currents and improve the overall performance of the motor.
Additionally, our insulation coatings—including epoxy, C5, and C6—protect the lamination stack against corrosion and enhance dielectric strength. As a result, the core maintains high performance even in harsh industrial or outdoor environments.
3. Precision Manufacturing for High Performance
Our production process integrates CNC stamping, automatic stacking, and vacuum annealing, which work together to optimize the stator’s magnetic properties. By maintaining uniform lamination thickness and alignment, we ensure minimal air gaps and consistent torque output.
In addition, automatic coil winding systems provide precise winding tension and pattern distribution. Therefore, motors built with our inner stator cores exhibit better magnetic balance, reduced cogging torque, and smoother rotation.
We also offer custom lamination thickness options (from 0.2 mm to 0.5 mm) depending on your application needs—balancing cost efficiency with optimal electromagnetic performance.
4. Wide Application Across Industries
The BLDC motor inner stator core is widely used in various applications that require high energy efficiency and compact design. Some of the most common examples include:
-
Electric Vehicles (EVs) – for high-torque drive motors and auxiliary systems
-
Robotics and Automation – for precise motion control and compact actuators
-
Drones and UAVs – for lightweight propulsion systems
-
HVAC Systems – for energy-saving fans and compressors
-
Medical Devices – for quiet and vibration-free operation
Moreover, with the rapid development of axial flux and hub motor technologies, the demand for innovative inner stator designs continues to increase globally.
5. Customization and OEM/ODM Services

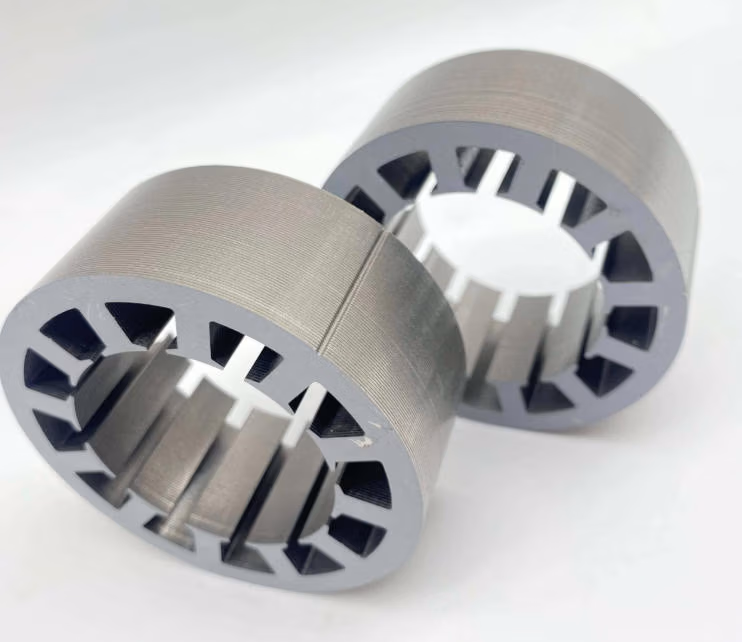

Inner Stator Core for Industrial Motor
Every project requires specific performance targets, and customization is often the key to success. Our engineering team provides OEM and ODM services for BLDC inner stator cores, ensuring that your product’s requirements are met precisely.
You can customize:
-
Stator inner/outer diameter and stack height
-
Slot and pole configurations
-
Insulation coating type and color
-
Coil winding pattern and assembly method
Furthermore, we offer design optimization support, using 3D modeling and finite element analysis (FEA) to achieve the ideal magnetic circuit and minimize losses.
6. Quality Assurance and Global Support
We adhere strictly to ISO 9001 and IATF 16949 standards, ensuring consistent quality from raw materials to finished products. Every BLDC inner stator core undergoes detailed inspections, including material composition testing, stack height verification, and magnetic property analysis.
In addition, our international logistics and after-sales network make global supply fast and reliable. Therefore, whether your factory is in Europe, Asia, or North America, we can deliver just-in-time production support and continuous technical service.
7. Why Choose Our BLDC Motor Inner Stator Core?
-
High magnetic performance and reduced core loss
-
Advanced lamination and insulation technology
-
Precise customization for OEM/ODM projects
-
Compact, durable, and efficient design
-
Reliable global supply chain and after-sales service
Ultimately, the BLDC motor inner stator core defines how efficiently a motor can convert electrical energy into motion. By choosing our products, you gain superior performance, longer lifespan, and enhanced energy savings—helping your business stay ahead in the competitive electric motor market.
