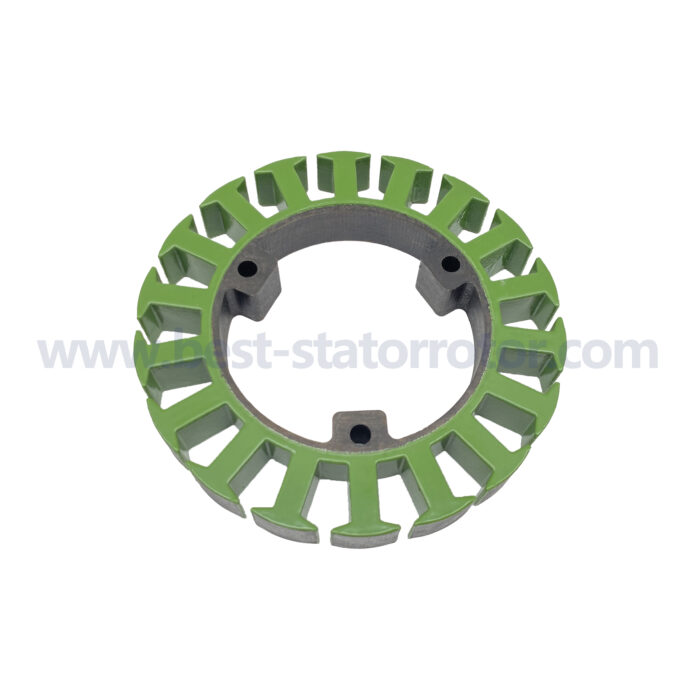

High-Precision BLDC Motor Outer Stator Core for High-Efficiency Motors

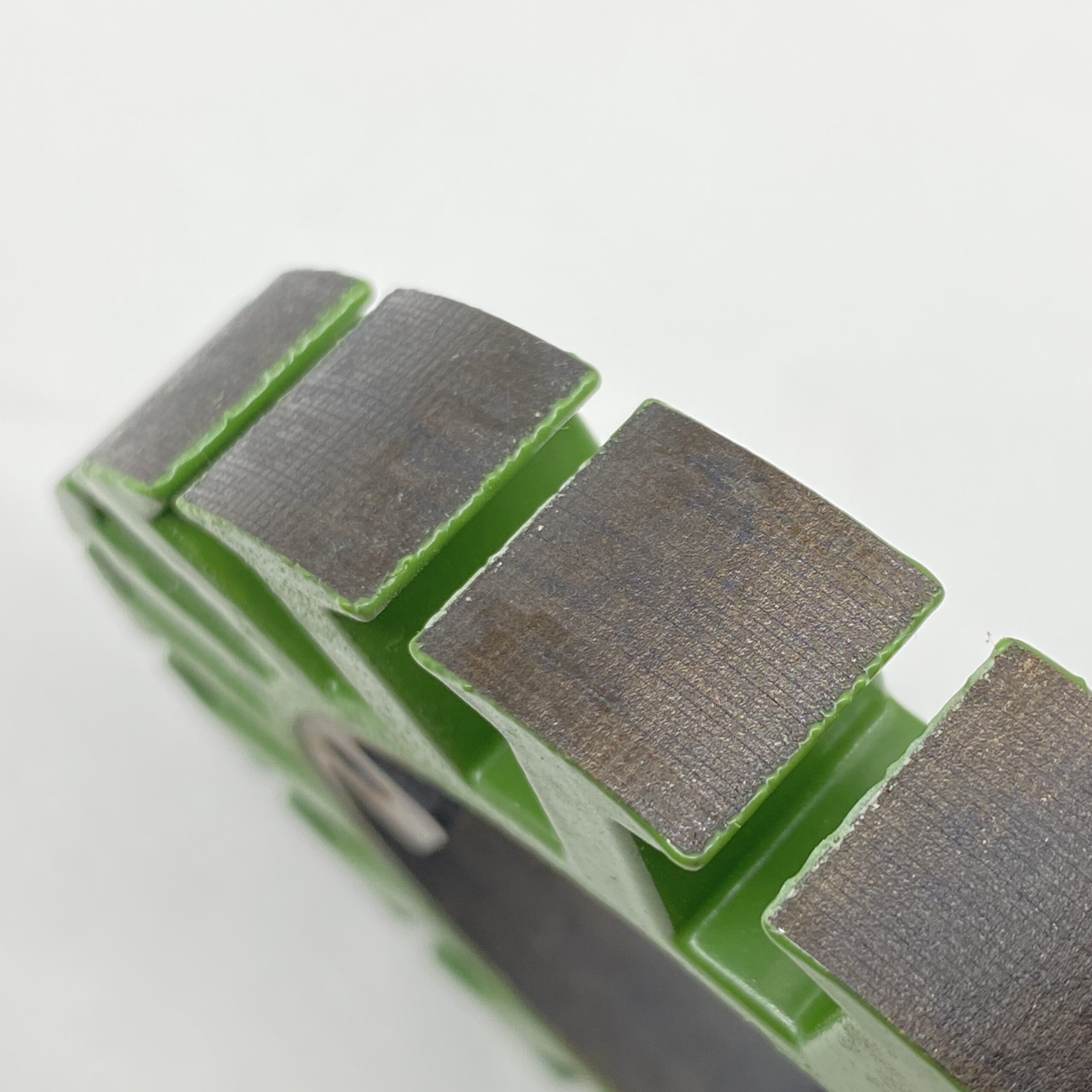

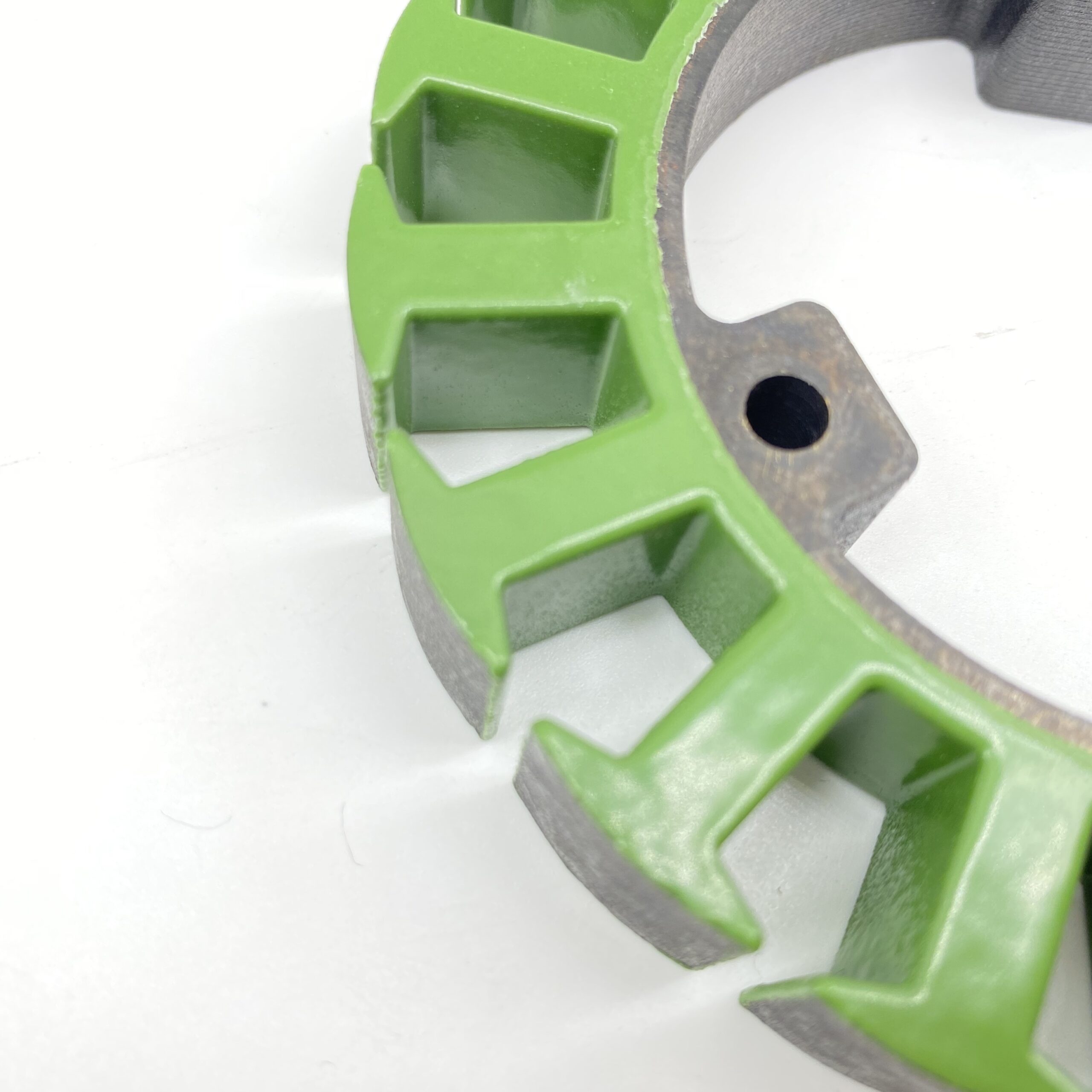

Laminated Outer Stator Core
In the era of smart manufacturing and electric mobility, the BLDC motor outer stator core has become one of the most critical components for high-performance brushless DC motors. It determines not only the efficiency and torque density but also the durability and stability of the entire system. As industries move toward more compact and efficient motor solutions, an optimized outer stator core design plays an essential role in achieving these goals.
1. What Is a BLDC Motor Outer Stator Core?
The outer stator core is the stationary magnetic structure that surrounds the rotor in a BLDC (Brushless DC) motor. It consists of multiple laminated sheets of silicon steel, stacked and bonded to minimize eddy current loss. The design ensures strong magnetic flux flow and helps achieve smooth torque output.
Unlike inner rotor motors, where the stator sits inside the rotor, the outer stator configuration provides better thermal dissipation and higher torque for the same power level. This makes it ideal for electric bicycles, drones, industrial fans, and electric vehicles that demand compact, high-efficiency motors.
Moreover, when paired with advanced winding techniques and insulation coatings, the outer stator core delivers exceptional electromagnetic performance with minimal energy loss.
2. Key Features and Benefits
A well-engineered BLDC motor outer stator core provides multiple advantages:
-
High Magnetic Efficiency: Built with high-grade silicon steel laminations, it reduces core loss and improves overall efficiency.
-
Precision Manufacturing: Wire-EDM and laser cutting guarantee smooth edges and tight dimensional tolerances.
-
Excellent Heat Dissipation: The outer structure allows for faster heat transfer, enhancing motor lifespan.
-
Customizable Design: Slot size, tooth geometry, and lamination thickness can be fully customized to meet OEM/ODM requirements.
-
Low Noise & Vibration: Uniform magnetic field distribution ensures smoother and quieter operation.
Additionally, our advanced bonding and stacking technologies eliminate the need for mechanical fastening, thereby reducing imbalance and improving mechanical strength.
3. Materials and Manufacturing Process
Each BLDC outer stator core is produced using premium-grade electrical steel with excellent magnetic permeability. Depending on your application, we offer lamination thickness options from 0.2mm to 0.5mm, optimizing both cost and performance.
The manufacturing process combines progressive stamping, CNC machining, and laser welding to ensure consistent accuracy. Furthermore, our automatic stacking system aligns each lamination precisely, minimizing air gaps and ensuring consistent magnetic performance.
In addition, all stator cores can be treated with insulation coatings such as C5, C6, or epoxy coatings, which enhance dielectric strength and reduce interlaminar eddy current losses. These coatings also protect the core from corrosion and moisture, thereby increasing durability.
4. Wide Range of Applications

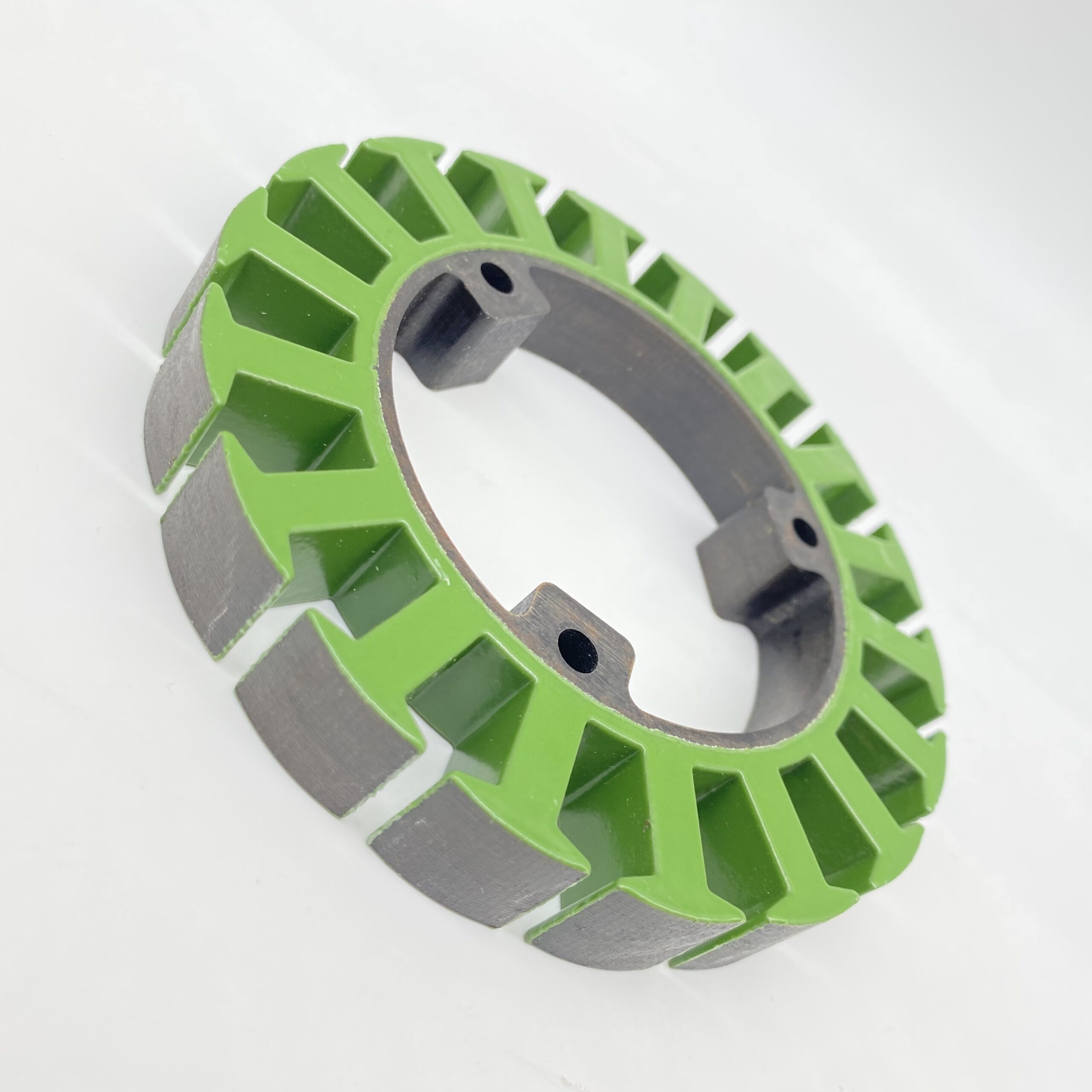

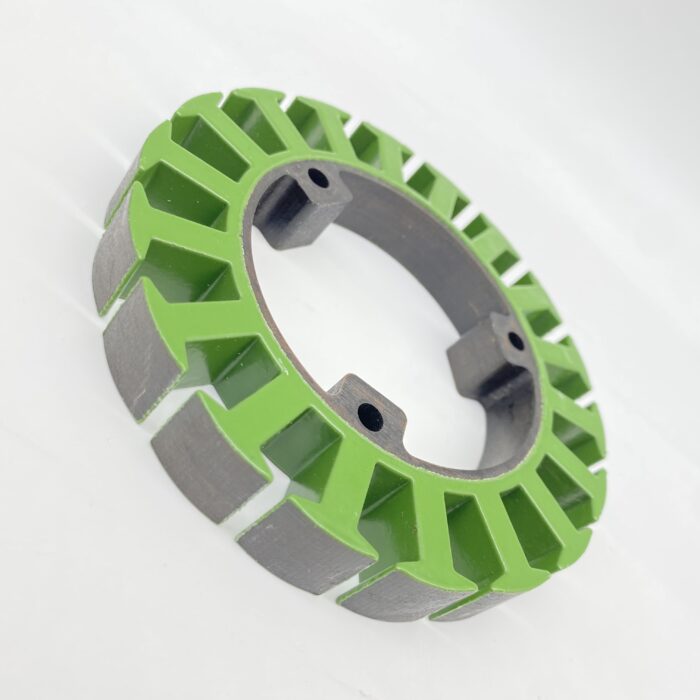

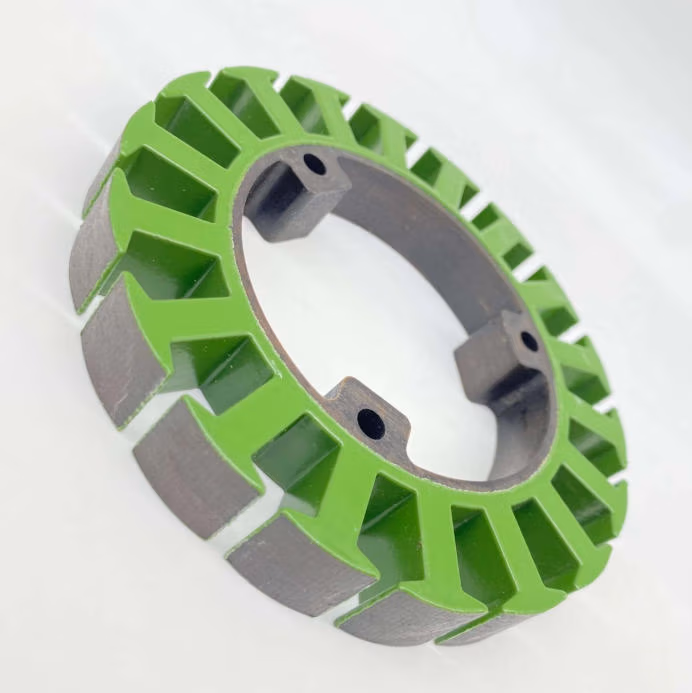

Laminated Outer Stator Core
The BLDC motor outer stator core is used across multiple industries that require high power density and energy efficiency. Common applications include:
-
Electric Vehicles (EVs) – compact design with superior torque output
-
E-Bikes and Scooters – lightweight and efficient operation
-
Robotics and Automation – precise motion control and smooth rotation
-
HVAC Systems and Industrial Fans – low noise and long service life
-
Drones and Aerospace Devices – high power-to-weight ratio
Therefore, whether you need a small outer stator for compact devices or a large one for industrial motors, our engineering team provides tailored solutions that match your project requirements.
5. Customization and OEM/ODM Services
Every motor design is unique, and we understand the importance of customization. Our OEM/ODM BLDC outer stator core solutions allow you to specify:
-
Stator outer/inner diameter
-
Slot and pole configuration
-
Stack height and lamination grade
-
Insulation coating type and color
-
Winding compatibility and assembly method
Moreover, our in-house R&D and prototyping facilities ensure rapid turnaround times while maintaining the highest quality standards. By integrating your design parameters with our advanced tooling capabilities, we deliver high-efficiency BLDC stator cores that perfectly fit your product line.
6. Quality Assurance and Global Supply
Quality is at the heart of everything we do. Each outer stator core undergoes strict inspections—from material analysis to lamination bonding and dynamic balance testing. We comply with ISO 9001 and IATF 16949 standards to guarantee consistency, reliability, and performance in every shipment.
Additionally, our global logistics network enables fast delivery to customers worldwide. Whether your production base is in Europe, Asia, or North America, we ensure timely supply for your BLDC motor assembly lines.
7. Why Choose Our BLDC Outer Stator Core?
-
Decades of experience in motor lamination manufacturing
-
In-house design, tooling, and precision machining
-
High magnetic performance and long lifespan
-
Scalable solutions for mass production
-
Dedicated engineering support for OEM customization
In conclusion, a BLDC motor outer stator core is the foundation of an efficient and reliable brushless motor system. By choosing our precision-engineered cores, you gain a competitive edge in performance, durability, and cost efficiency—helping your motors run cooler, quieter, and longer.
