BLDC Motor Stator Core Lamination: Precision, Efficiency, and Reliability in Motion

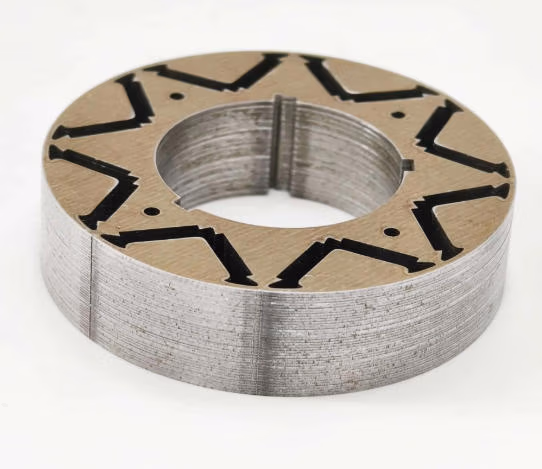

Inner Stator Lamination for BLDC Motor
In the world of electric motors, every small detail matters — especially the stator core lamination. This component defines how efficiently a motor converts electrical energy into mechanical power. For Brushless DC (BLDC) motors, the stator lamination plays a vital role. Specifically, it achieves high torque density, reduces energy loss, and extends operational life.
At Best New Energy , we specialize in manufacturing high-precision BLDC motor stator core laminations that meet global performance and durability standards. We have over ten years of industry experience. Therefore, our advanced production capabilities ensure each core delivers the stability and reliability needed for modern electric systems.
What Is a BLDC Motor Stator Core Lamination?
A motor stator core lamination is formed by stacking thin layers of silicon steel sheets. Each layer is insulated to reduce eddy current losses. These laminations improve magnetic performance while maintaining structural strength. In BLDC motors, the stator remains stationary. This configuration generates the magnetic field that interacts with the rotor’s permanent magnets to produce motion.
By using high-quality silicon steel and advanced lamination techniques, the stator core minimizes heat generation and energy waste. This process ensures better power density, efficiency, and quiet operation.
Why Lamination Quality Matters
Every lamination layer directly affects motor performance.
High-quality laminations ensure smoother magnetic flux, lower core losses, and reduced vibration. Conversely, poor-quality laminations can cause higher losses, uneven torque, and excessive heat.
That’s why we focus on:
-
Accurate punching and cutting using CNC and laser technologies
-
Consistent insulation coating to prevent short circuits
-
Tight stacking tolerance for precise alignment and balance
-
Customized lamination thickness and geometry based on motor design
Each production step is optimized to ensure that every BLDC motor stator core lamination performs with consistent accuracy and reliability.
Our Manufacturing Process
We integrate several cutting-edge processes to deliver precision and repeatability in every batch:
-
Material Selection – We source premium-grade silicon steel with uniform magnetic conductivity and high mechanical strength.
-
Punching & Cutting – Using servo-controlled stamping dies and wire EDM, we ensure accurate dimensions with minimal burrs.
-
Bonding Lamination – For noise-sensitive applications, we use bonding technology to glue each layer, preventing vibration and mechanical noise.
-
Stacking & Assembly – Laminations are stacked using interlocking, welding, or bonding methods to create the final stator core assembly.
-
Inspection & Quality Control – Each stator lamination undergoes dimensional checks, hardness testing, and surface insulation verification before shipment.
Through these controlled steps, we ensure our stator laminations meet the strict standards required for BLDC motors used in EVs, robotics, automation, and home appliances.
Advanced Equipment and Technology

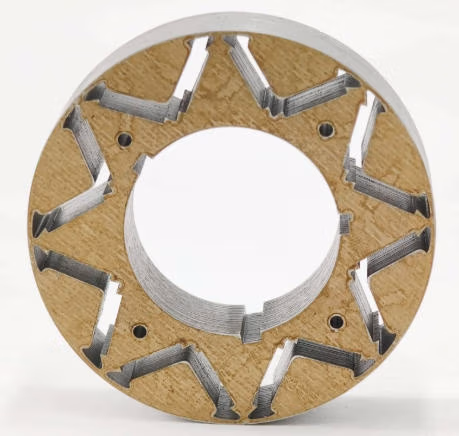

Brushless DC Inner Stator Lamination
Our factory features:
-
Precision progressive stamping machines for high-volume production
-
Laser cutting and Wire-EDM systems for prototyping and irregular shapes
-
Automatic stacking and bonding lines for consistency
-
In-house insulation coating and annealing processes to improve magnetic performance
These technologies allow us to provide customized BLDC motor stator core laminations that support your exact engineering and production needs.
Applications Across Industries
BLDC stator core laminations are widely used across multiple industries, each with its own specific requirements and performance standards. In fact, from electric vehicles to renewable energy systems, our products deliver precision, reliability, and long-lasting performance.
-
Electric Vehicles (EVs) – Specifically designed for lightweight yet high-torque drive motors, ensuring maximum energy efficiency while maintaining a compact and durable structure.
-
Automation Equipment – Built to ensure stable and consistent performance even during continuous, high-speed operations.
-
Robotics and Drones – Offering both compact size and low energy loss to meet the growing demand for lightweight, high-efficiency systems.
-
Household Appliances – Delivering quieter operation, higher efficiency, and longer service life for improved user experience.
-
Renewable Energy Systems – Supporting generators as well as wind turbines that require durable, high-precision stator cores for reliable energy conversion.
Because every industry has unique demands, we carefully customize our lamination design, thickness, and insulation methods to perfectly suit each specific application. As a result, our customers achieve better efficiency, longer lifespan, and reduced operating costs in their motor systems.
Your Trusted Partner in Motor Core Innovation
Choosing the right BLDC motor stator core lamination supplier can significantly impact your product’s efficiency, cost, and overall competitiveness. Therefore, selecting a partner with advanced technology and engineering expertise is essential for long-term success.
At Best New Energy , we go far beyond simple manufacturing. Instead, we work side by side with our customers — from the earliest design phase to final production and delivery. We ensure that every detail meets their expectations. Along the way, we provide expert guidance, material selection advice, and technical support to help optimize both performance and cost.
Moreover, with over a decade of experience in motor core engineering, we continue to innovate in lamination bonding, insulation coating, and precision stacking. Consequently, clients across the globe trust our stator cores to deliver higher performance, lower noise, and greater energy efficiency in a wide range of electric motor systems.
Ultimately, our mission is not only to manufacture reliable products but also to become your long-term engineering partner — one that drives your innovation, supports your growth, and ensures your success in an increasingly competitive global market.
