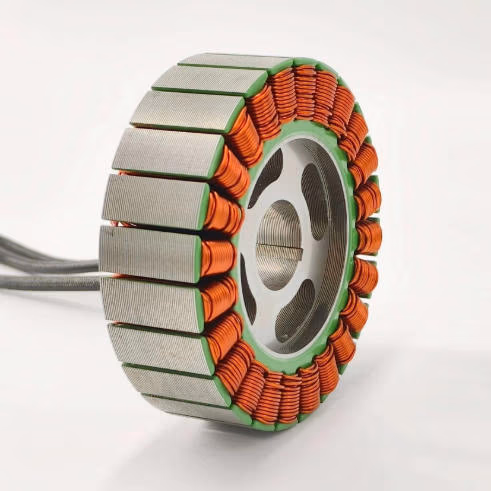

BLDC motor stator winding

Processing technology:Hand winding、Stacking、Bonding、Winding

Outer diameter: 30-800mm

Inside diameter:Minimum 25mm

Height:5-110mm

Weight:100g-150kg

Number of slots:3-112

Material thickness: 0.1-0.5mm

Send Inquiry Live Chat

BLDC Motor Stator Winding — Precision, Efficiency, and Reliability in Every Turn

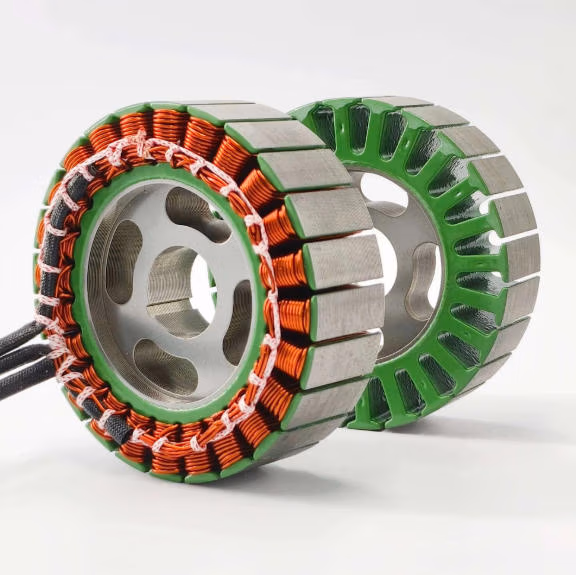

Pre-Designed Mold Stator Lamination

When it comes to the performance of a BLDC (Brushless DC) motor, one of the most crucial elements is the stator winding. The quality, technique, and precision of the winding process directly affect the motor’s torque, speed, noise, and energy efficiency. Therefore, choosing the right winding solution is not just about assembly — it’s about building the heart of your motor system.

What Is BLDC Motor Stator Winding?

The stator winding consists of insulated copper wires wound around the stator core slots to create electromagnetic fields. When current passes through these coils, magnetic interaction occurs with the rotor magnets, generating motion.

Compared to traditional brushed motors, BLDC stator windings offer higher energy conversion efficiency, longer life span, and quieter operation. In addition, because there are no brushes, maintenance requirements are much lower, making them ideal for continuous-use applications.

Types of BLDC Stator Windings

Depending on the motor design and performance goals, there are several winding methods available:

Concentrated Winding – Each coil is wound around a single tooth, allowing for compact design and higher power density. This type is widely used in small motors, drones, and automotive systems.
Distributed Winding – The wire is spread across multiple slots, reducing torque ripple and improving efficiency. It is ideal for larger or high-precision motors.
Automatic Needle Winding – Suitable for high-volume production, ensuring consistent tension, turn count, and coil placement.
Hairpin or Wave Winding – Used in high-power EV motors, offering excellent cooling performance and mechanical strength.

Through these methods, manufacturers can balance efficiency, torque density, and production cost, achieving optimal motor performance for various applications.

Our Stator Winding Capabilities

At Best New Energy , we specialize in customized BLDC motor stator winding services that meet global standards for quality and reliability.

Our production capabilities include:

Fully automatic winding machines for consistent precision
Skilled winding technicians ensuring high slot fill and smooth coil insertion
Wire soldering, tin immersion, and insulation coating processes
Integrated testing to verify coil resistance, inductance, and insulation strength

In addition, our team can assist you from prototype design to mass production, ensuring that each winding meets your technical requirements — whether for compact robotics or high-power electric vehicles.

Applications Across Industries

Because of their superior performance and durability, our BLDC stator windings are widely used in:

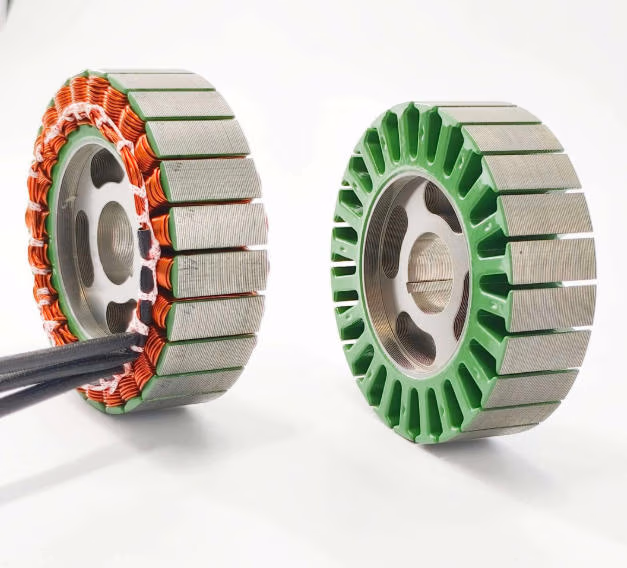

Reconfigurable Die Motor Core

Electric Vehicles (EVs): Delivering high torque and thermal stability for traction motors.
Automation and Robotics: Providing precise motion control and quiet operation.
HVAC and Compressors: Reducing energy consumption while maintaining steady airflow.
Home Appliances: Ensuring smoother, quieter, and more efficient operation in fans, washing machines, and pumps.
Renewable Energy Systems: Supporting generators and wind power units for sustainable power generation.

Each application requires different winding specifications — wire gauge, insulation type, and slot filling ratio — and our engineers work closely with you to optimize every parameter.

Why Choose Our BLDC Stator Winding Service

Moreover, our value goes beyond manufacturing. We act as your engineering partner, focusing on long-term cooperation and continuous innovation.

Here’s why clients around the world trust us:

High precision and consistency ensured by advanced winding machines.
Flexible customization for wire diameter, winding pattern, and insulation materials.
Comprehensive quality control, from raw material inspection to final electrical testing.
Fast turnaround and competitive cost, helping you accelerate your time-to-market.

Whether you need small-batch prototypes or large-scale production, we deliver reliable solutions that enhance your motor’s efficiency, power, and durability.

Partner with Experts in Motor Core and Winding Engineering

Ultimately, the performance of a BLDC motor depends on the precision of every winding turn.
At Best New Energy , we combine technical expertise, automated production, and strict quality management to create stator winding solutions that drive innovation forward.

Let us help you design and produce BLDC motor stator windings that meet your goals for energy efficiency, performance, and reliability — powering the future of motion technology together.

Choosing the right motor partner determines the performance, reliability, and competitiveness of your final product. We combine advanced manufacturing, strict quality control, and deep industry experience to deliver motor solutions that truly make a difference.

Professional Expertise in Motor Technology：With years of experience in stator cores, winding solutions, and precision lamination processing, we understand the technical demands of modern motors—BLDC, axial flux, EV motors, robotics, and more.

High-Precision Manufacturing Capability：We use advanced equipment including Wire-EDM, laser cutting, stamping, and automated winding systems. This ensures accurate dimensions, smooth edges, consistent stacking, and stable magnetic performance.

Premium Materials for Better Performance：We select high-grade silicon steel, oxygen-free copper wire, and reliable insulation materials to help your motors achieve higher torque, lower loss, and longer service life.

Customization for Your Application：Every project is different. We offer custom stator cores, special shapes, unique slot designs, winding services, and prototyping support to match your engineering requirements.

Strict Quality Control & Testing：From raw materials to final assembly, we follow multi-step inspections to guarantee reliability, consistency, and durability for each part we produce.

Fast Delivery & Stable Supply：With efficient production lines and flexible scheduling, we ensure fast lead times, stable output, and reliable support for your continuous projects.

One-Stop Motor Component Solutions：We provide stator cores, winding wire, winding services, lamination processing, and custom components—covering everything from prototyping to mass production.

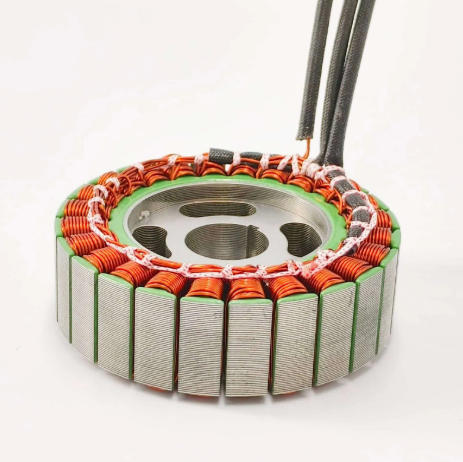

Common Die Laminated Core for Servo Motor

Q1: What types of stator cores do you manufacture?
A: We produce BLDC, axial flux, EV motor, robot motor, coreless, linear motor, and customized irregular stator cores.

Q2: Do you offer customization services?
A: Yes. We customize dimensions, lamination thickness, materials, slot shapes, stack height, insulation, and winding based on drawings or samples.

Q3: What materials do you use for stator cores?
A: We use high-grade silicon steel, including non-oriented and grain-oriented grades, as well as ultra-low-loss materials.

Q4: What manufacturing processes do you support?
A: Stamping, progressive die production, Wire-EDM, laser cutting, and precision lamination stacking.

Q5: Can you provide stator winding services?
A: Yes. We offer manual, semi-automatic, and fully automatic winding for various wire sizes and patterns.

Q6: Do you support prototype or small-batch orders?
A: Yes, we handle prototypes, small batches, and mass production.

Q7: How do you ensure product quality?
A: Through material inspection, dimensional checks, stacking accuracy tests, insulation tests, and magnetic performance testing.

Q8: What is your typical lead time?

Standard parts: 7–15 days

Custom stator cores: 15–30 days

New tooling/molds: 25–45 days
