Common Mold Lamination Core, Flower Block Stator Core, and Induction Motor Stator Core – Precision Drives Efficiency

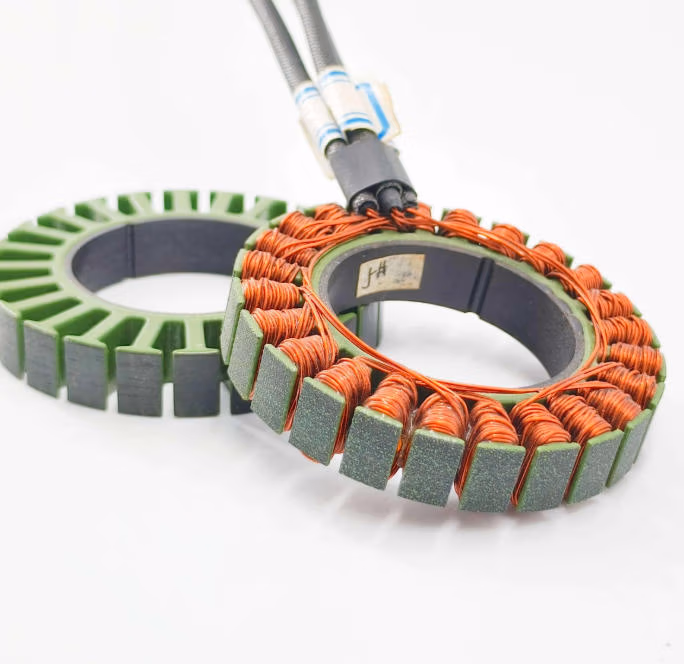

Interchangeable Die Stator Core
In every high-performance electric motor, the quality of the lamination core defines efficiency, durability, and energy savings. Whether you choose a Common Mold Lamination Core, a Flower Block Stator Core, or a custom Induction Motor Stator Core, each design serves a unique purpose in achieving stable and efficient motor operation.
As industries shift toward smarter, greener technologies, investing in a well-engineered stator core means improving both performance and sustainability.
What Is a Common mold lamination core Why It Matters
A lamination core forms the magnetic circuit of an electric motor. It guides the magnetic flux and minimizes energy loss caused by eddy currents and hysteresis. Instead of using solid steel, the core is made from thin silicon steel sheets, each insulated and stacked precisely.
Because of this layered design, the core reduces heat generation and improves the magnetic conversion efficiency of the motor. In short, the lamination core determines how effectively your motor converts electricity into motion.

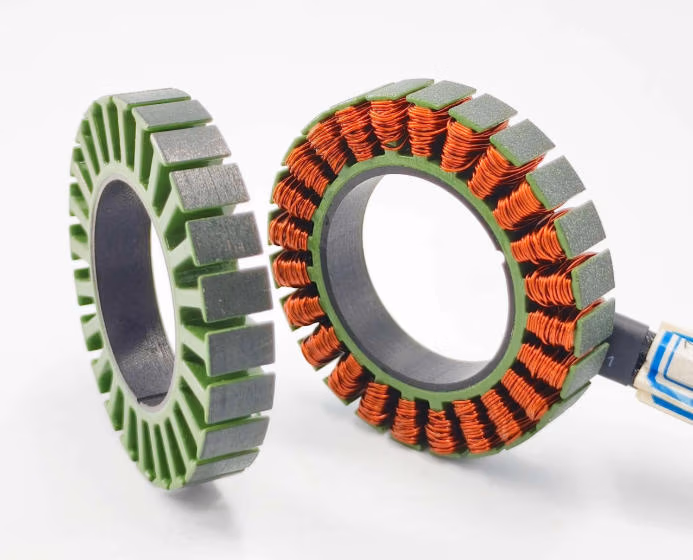

Common Mold Lamination Core – Consistent Quality, Reliable Output
The Common Mold Lamination Core is a versatile and cost-effective solution for various AC and DC motors. It offers consistent dimensions and excellent repeatability thanks to precision molds used in production.
Each lamination is punched or laser-cut using high-accuracy tooling, ensuring tight tolerances and smooth edges. This process not only improves magnetic performance but also makes assembly faster and easier.
Because the design supports uniform stacking and alignment, it guarantees balanced magnetic fields and stable motor operation. Consequently, common mold lamination cores are widely used in compressors, pumps, fans, and household appliances.
Advantages:
-
Consistent dimension accuracy
-
High productivity and repeatability
-
Low energy loss and vibration
-
Cost-efficient for large-volume production
Flower Block Stator Core – Modular Design for High Efficiency
The Flower Block Stator Core, known for its petal-like modular structure, delivers higher magnetic utilization and easier maintenance. Its segmented design allows each block to interlock like flower petals, forming a complete stator ring.
This modular assembly improves cooling efficiency, reduces waste, and simplifies replacement in large motors. Moreover, the Common mold lamination core minimizes distortion and ensures stable performance even under high torque.
Key Benefits:
-
Modular, easy-to-assemble structure

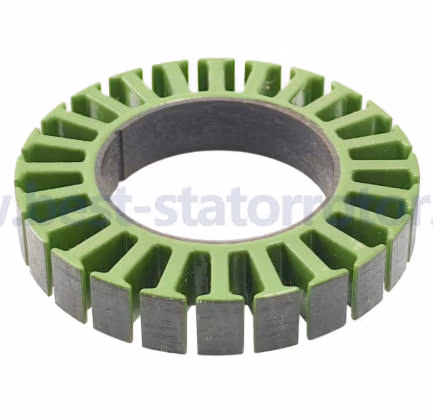

Common Die Electrical Steel Core -
Excellent heat dissipation
-
Lightweight and compact design
-
Ideal for EVs, robotics, and automation systems
Because of its flexibility, many engineers now prefer the flower block core for custom induction motors that require both high efficiency and low noise.
Induction Motor Stator Core – Power Meets Precision
The Induction Motor Stator Core is the stationary magnetic component that drives power generation inside AC motors. When alternating current flows through the stator winding, it creates a rotating magnetic field that induces current in the rotor—producing motion without physical contact.
Built with low-loss silicon steel laminations, the stator core maintains excellent magnetic permeability and reduces energy consumption. Its robust design ensures smooth torque, minimal noise, and long-term durability, even in demanding industrial environments.
Applications include:
-
Electric vehicles (EVs) and hybrid drives
-
Industrial compressors and pumps
-
HVAC systems
-
Renewable energy generators
-
Machine tools and automation lines
By optimizing lamination thickness, tooth shape, and insulation coating, you can achieve the perfect balance between performance and efficiency.
Precision Manufacturing and Quality Assurance
We combine advanced manufacturing technology with strict quality control to produce stator cores that meet global standards.
Our factory uses high-speed punching machines, precision laser cutting, and automated stacking equipment to ensure each lamination aligns within micrometer accuracy. We use premium electrical steel grades (35W300, 50W470, or equivalent) to achieve the lowest core losses possible.
Furthermore, each lamination receives a C5, C6, or epoxy insulation coating, improving electrical resistance and corrosion protection. After assembly, every stator core undergoes tests for dimensional accuracy, concentricity, and insulation integrity, following ISO 9001 and IATF 16949 standards.
As a result, our customers receive reliable, high-performance stator cores that perform consistently under any condition.
Why Choose Us as Your Motor Core Manufacturer

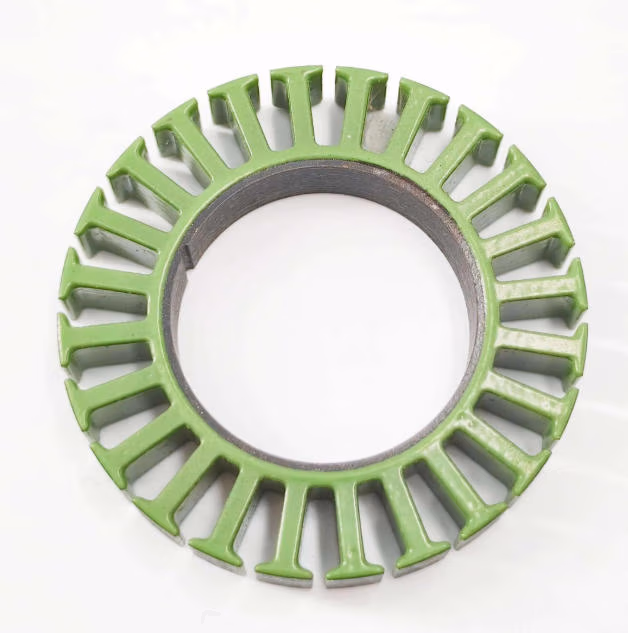

General Die Lamination Core
Partnering with us means gaining access to customized engineering support, fast production, and proven manufacturing expertise.
-
OEM/ODM Service: We support you from prototype to mass production.
-
Flexible MOQ: Suitable for both R&D projects and bulk orders.
-
Quick Delivery: Automated production shortens lead times.
-
Competitive Pricing: Direct factory supply ensures better value.
-
Global Experience: Exported worldwide with trusted logistics and after-sales support.
Because of our focus on precision and efficiency, we’ve become a long-term supplier for clients in Europe, the USA, Japan, and Southeast Asia.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Low-loss Silicon Steel (35W300 / 50W470) |
| Lamination Thickness | 0.2 – 0.5 mm |
| Outer Diameter | 50 – 800 mm |
| Structure Type | Common Mold / Flower Block / Segmented |
| Assembly Method | Bonded / Riveted / Welded |
| Insulation Coating | C5, C6, or Epoxy |
| Applications | EV Motors, Compressors, Fans, Pumps, Generators |
This wide range of options allows us to meet every client’s motor design requirement efficiently.
Commitment to Sustainability
We believe that innovation must go hand in hand with responsibility. Our lamination cores help motors consume less energy, reduce emissions, and extend operating life. In addition, our production lines follow eco-friendly processes, such as material recycling and energy-saving coating systems.
Therefore, every product you purchase from us contributes to a more sustainable and energy-efficient future.
Let’s Build the Future of Motion Together
Whether you need a Common Mold Lamination Core, a Flower Block Stator Core, or a custom Induction Motor Stator Core, our team delivers the right balance of performance, precision, and cost efficiency.
Let’s power your innovation with reliable magnetic solutions—crafted to make your motors run smarter, quieter, and longer.
