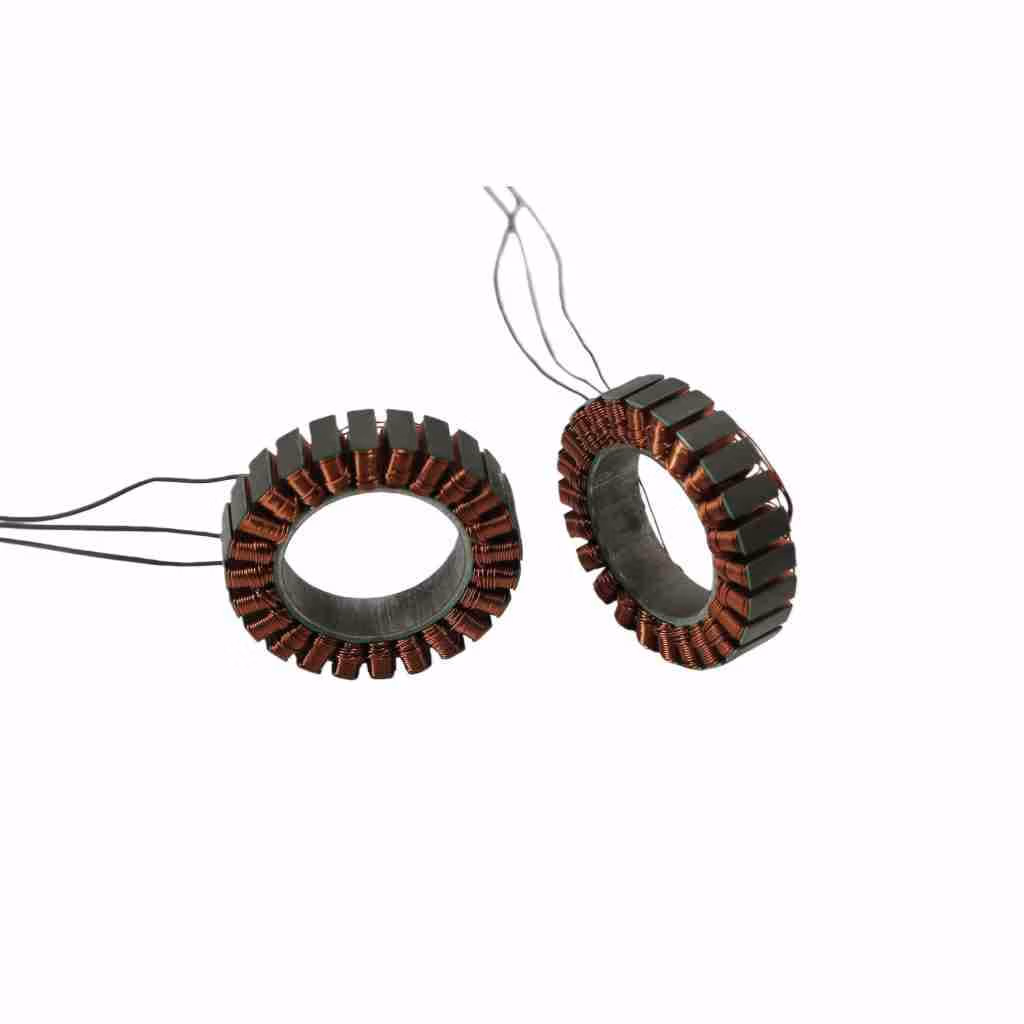

FPV Drone Motor Winding

High-Efficiency Copper Windings for FPV Brushless Motors

Product Overview

FPV drones demand instant response, high power output, and stable efficiency. Therefore, motor winding quality plays a decisive role in overall flight performance.
For this reason, our FPV drone motor windings are engineered specifically for high-speed brushless DC motors (BLDC) used in FPV racing, freestyle, and long-range applications.

By optimizing copper fill factor and winding geometry, this solution not only increases motor efficiency, but also improves torque output and reduces thermal loss.
As a result, FPV motors deliver faster throttle response, higher peak power, and more consistent performance during aggressive flight.

Moreover, FPV motor manufacturers and drone brands across Europe and North America choose these windings for their reliability, repeatability, and scalability.
Consequently, they support both prototype development and mass production.

Why Motor Winding Matters in FPV Drones

FPV drones operate at extremely high RPM. At the same time, pilots expect precise control and instant acceleration.
However, poor winding quality increases resistance and heat, which directly reduces performance.

In contrast, optimized FPV motor windings improve current flow and magnetic balance.
Therefore, motors spin more efficiently and respond faster to ESC signals.

Meanwhile, lower resistance reduces copper loss.
As a result, motors maintain stable output even during sustained high-throttle flight.
Ultimately, this improves reliability and protects other electronic components.

Key Features & Benefits

High Slot Fill Factor for Maximum Power

FPV motors require high output in compact sizes. For this reason, our winding process focuses on precise wire layout and controlled tension.

As a result, the copper fill factor increases while electrical resistance decreases.
Moreover, motors achieve higher torque and stronger acceleration without increasing size or weight.

Low Resistance for High Efficiency

Efficiency directly affects flight time and temperature. Therefore, we use high-purity copper wire combined with optimized turn distribution.

In practice, this approach minimizes copper loss.
Consequently, FPV motors run cooler and deliver more usable power throughout the flight.

Stable RPM and Smooth Throttle Response

Flight control systems rely on predictable motor behavior. For this reason, our winding process ensures consistent phase balance.

As a result, motors deliver smooth RPM transitions and precise throttle response.
Furthermore, vibration levels decrease, which improves both flight stability and video quality.

Compatible with Modern FPV ESCs

Modern FPV systems rely on high-speed electronic speed controllers. Therefore, these windings support rapid current switching and high electrical frequencies.

In addition, they integrate smoothly with popular ESC firmware and control protocols.
Consequently, pilots experience sharper control and better synchronization.

Manufacturing Process & Technical Capability

High-quality winding requires more than materials alone. Therefore, we apply controlled and repeatable manufacturing processes.

First, engineers define the optimal turn count and wire layout based on KV and torque targets.
Then, precision winding equipment maintains consistent tension and placement.

Meanwhile, in-process checks verify resistance and phase balance.
As a result, each batch meets defined electrical performance limits.

Finally, insulation integrity and dimensional consistency are verified.
Consequently, winding quality remains stable from prototype to mass production.

Quality Consistency for B2B Production

B2B customers demand repeatability. For this reason, we focus on batch consistency and process control.

Each production run follows the same winding parameters.
At the same time, key electrical values are monitored and recorded.

As a result, customers receive windings with predictable performance.
Ultimately, this simplifies motor assembly and reduces rejection rates.

Typical Applications

Because of their efficiency and stability, these FPV motor windings suit a wide range of platforms.
Therefore, typical applications include:

• FPV racing drones

• FPV freestyle drones

• Long-range FPV UAVs

• Professional aerial photography drones

• Custom FPV motor manufacturing

Consequently, they support both hobby-grade and professional FPV ecosystems.

Technical Specifications (Customizable)

Different FPV motors require different designs. Therefore, we offer flexible customization.

Typical options include:

• Wire material: High-purity copper

• Wire type: Enamel-coated round wire

• Winding type: Distributed or concentrated

• Turn count: Customized for KV requirements

• Temperature class: Optional high-temperature enamel

• Motor type: FPV BLDC motors

As a result, the winding matches specific efficiency, torque, and thermal goals.

Performance Comparison (Typical)

Compared with standard windings, optimized FPV motor windings typically offer:

• Lower phase resistance

• Higher torque output at the same voltage

• Reduced operating temperature

• More stable RPM under load

Therefore, motor performance improves without increasing ESC or battery stress.

Designed for EU & North American FPV Markets

FPV motor brands in EU and North America prioritize quality and consistency. Therefore, our winding solutions support:

• Scalable production for growing brands

• Stable quality for OEM and private-label motors

• Engineering communication in international projects

In addition, our approach aligns with common B2B sourcing expectations.

Engineering Support & Customization

High-performance FPV motors require technical collaboration. For this reason, we support customers throughout development.

Support includes:

• Winding optimization for KV and torque

• Efficiency and thermal analysis

• Prototype winding and validation

• Mass production support

As a result, customers shorten development cycles and improve product competitiveness.

Frequently Asked Questions

What wire type is best for FPV motor windings?
High-purity enamel-coated copper wire offers the best balance of efficiency and durability.

Can winding design affect motor KV?
Yes. Turn count and layout directly determine KV and torque characteristics.

Are custom windings available for new motor designs?
Yes. We support custom winding development from prototype to production.

Do better windings reduce motor temperature?
Yes. Lower resistance and improved efficiency reduce heat generation.

Why Choose Our FPV Motor Windings

Motor winding quality directly defines FPV performance. Therefore, we focus on engineering-driven solutions.

Customers benefit from:

• High efficiency and low resistance

• Consistent winding quality

• Custom designs for different FPV use cases

• Scalable manufacturing support

Ultimately, this helps FPV motor brands deliver faster, stronger, and more reliable products.

Request Samples or Technical Details

If you are developing or manufacturing FPV motors and need custom FPV motor winding solutions, we are ready to support you.
Therefore, contact us to discuss motor size, KV targets, or production volume.
