High Slot Fill Stator Core – Boost Motor Efficiency & Power Density ⚡
Overview
The High Slot Fill Stator Core is a key technology in modern motor design. It helps increase motor efficiency, torque output, and power density, while keeping a compact structure.

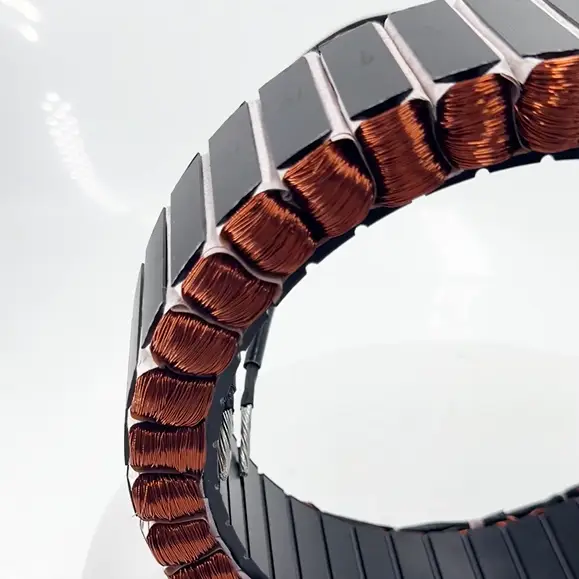

High slot fill stator core designed for higher efficiency
By improving the slot filling rate, more copper is packed into the stator slots. As a result, resistance is lower, heat is reduced, and overall motor performance is improved.
This solution is widely used in EV motors, industrial automation, robotics, and energy systems, where high efficiency and reliability are required.
What is a High Slot Fill Stator Core?
A High Slot Fill Stator Core is designed to maximize the amount of copper winding inside each slot. In other words, it increases the copper fill factor.
Because of this, the motor can:
- Carry more current
- Generate a stronger magnetic field
- Deliver higher torque
At the same time, it reduces energy loss and improves thermal performance.
Key Benefits
1. Higher Efficiency
First, a higher slot fill reduces copper resistance. Therefore, energy loss is lower. This helps motors run more efficiently under all load conditions.
2. Increased Power Density
In addition, more copper in the same space means more output power. This is especially important for compact designs like electric vehicles and drones.
3. Better Thermal Performance
Moreover, optimized winding improves heat distribution. As a result, the motor runs cooler and lasts longer.

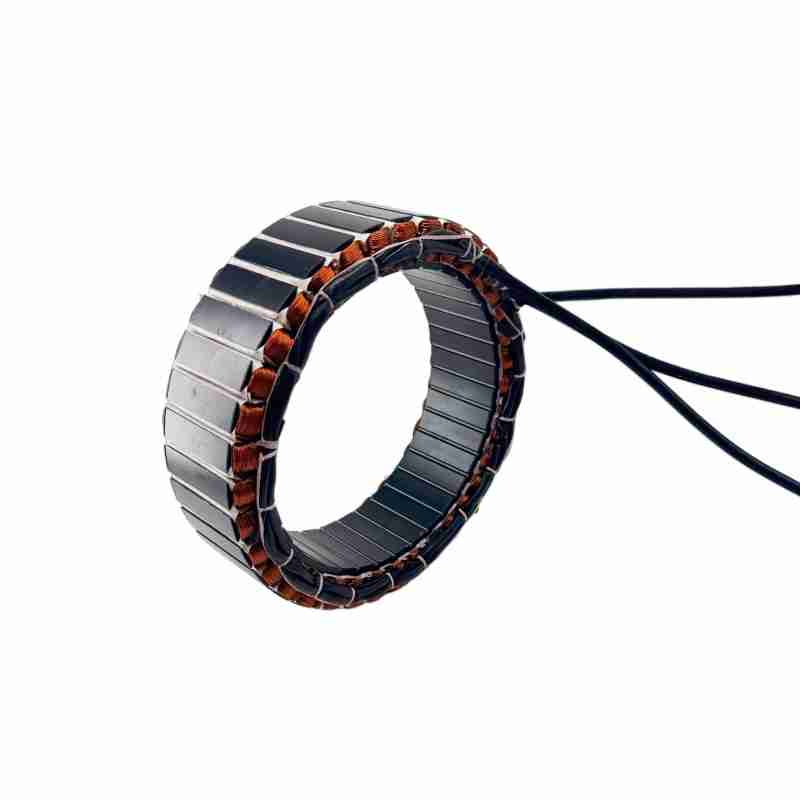

Laminated stator core high slot filling design
4. Stable and Reliable Operation
Because the magnetic field is more uniform, the motor runs smoother. This reduces vibration and improves long-term stability.
Design & Manufacturing Advantages
Precision Lamination
We use high-grade silicon steel laminations to reduce core loss and improve magnetic performance.
Advanced Stamping Technology
With high-speed stamping, we ensure accurate dimensions and consistent quality in every stator core.
Optimized Winding Process
Through manual or semi-automated winding, we achieve a higher slot fill rate compared to standard methods.
Custom Engineering Support
We provide OEM/ODM solutions, including:
- Slot design optimization
- Material selection
- Prototype development
Applications
The High Slot Fill Stator Core is ideal for:

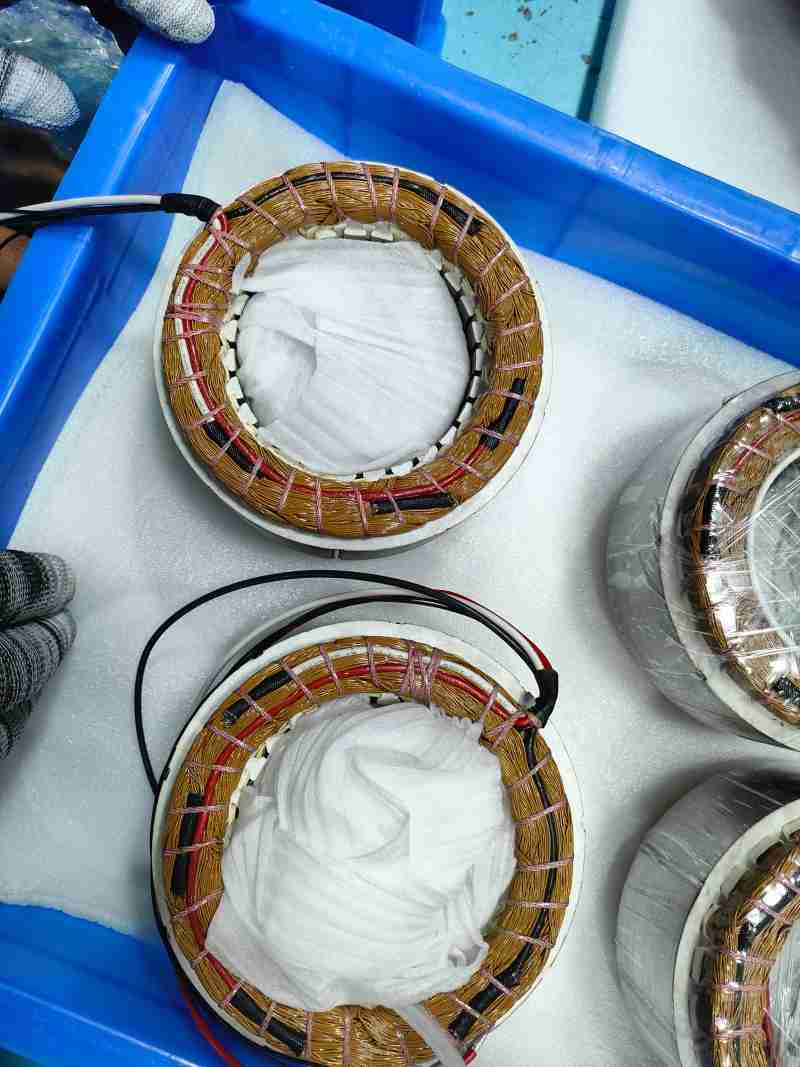

high slot fill stator core for industrial automation motors
- Electric Vehicles (EVs) 🚗
Improve driving range and motor efficiency - Industrial Automation ⚙️
Deliver precise control and high torque - Robotics 🤖
Enable compact, high-performance motion systems - Wind Power & Energy Systems 🌱
Increase energy conversion efficiency - Home Appliances 🏠
Achieve quieter and more efficient operation
Why Choose Us?
- Strong expertise in motor core manufacturing
- Advanced stamping and lamination technology
- Stable quality with low loss and high consistency
- Fast response for custom projects
- Reliable supply for global B2B customers 🌍
Conclusion
In summary, the High Slot Fill Stator Core is a powerful solution for improving motor performance. It increases efficiency, reduces loss, and supports compact design.
As motor technology continues to evolve, this solution will play an even more important role in high-performance and energy-efficient systems.
