Insulation Coating & Irregular Stator Core — Precision and Protection for High-Performance Motors

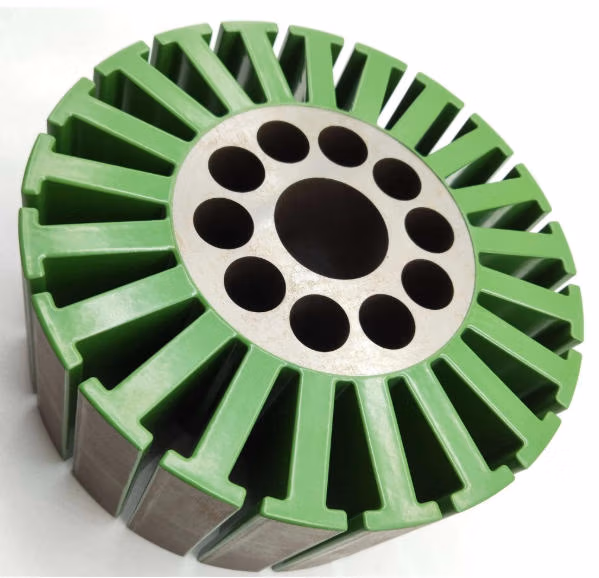

Motor Lamination Insulation Coating
In modern electric motors, performance depends not only on magnetic materials but also on insulation quality. Whether it’s an irregular stator core or a standard design, an insulation coating plays a critical role in ensuring efficiency, safety, and long service life.
As electric vehicles, robotics, and automation systems evolve, motor components face higher voltage, frequency, and thermal demands. Therefore, combining advanced insulation coatings with precision stator cores has become essential. Together, they improve reliability, reduce energy loss, and extend motor lifespan.
Why Insulation Coating Matters in Stator Cores
The insulation coating forms a protective layer on each lamination of the stator core. It prevents electrical short circuits between silicon steel sheets, thereby minimizing eddy current loss and enhancing efficiency.
Moreover, insulation coatings protect the lamination from corrosion and oxidation. This ensures the stator core maintains consistent magnetic performance, even in harsh operating environments.
Common coating types include C5, C6, and epoxy-based coatings, each offering unique properties such as heat resistance, durability, and environmental compliance. By applying the right coating, manufacturers can optimize both mechanical stability and magnetic performance.
Understanding the Irregular Stator Core
An irregular stator core is a non-standard lamination structure designed for custom motor shapes. These cores are commonly used in robotics, aerospace, electric vehicles, and compact machinery where standard round or rectangular stators cannot fit.
Each irregular stator core consists of thin, precisely cut silicon steel laminations stacked to form a customized profile. This allows engineers to achieve high torque density, compact size, and efficient heat management.
However, due to their complex geometry, irregular stator cores require advanced manufacturing and precise insulation coating application to maintain accuracy and magnetic integrity.
Key Advantages of Insulation Coating on Irregular Stator Cores
1. Improved Electrical Isolation
Insulation coatings create a reliable barrier between laminations. This drastically reduces eddy current loss, ensuring consistent energy conversion efficiency.
2. Enhanced Durability
Because the coating protects against moisture, rust, and oxidation, the stator core can operate longer even in demanding environments such as EVs and industrial robots.
3. Better Heat Resistance
High-performance coatings like epoxy or C6 insulation withstand elevated temperatures, allowing motors to run at higher speeds without degradation.
4. Noise and Vibration Reduction
A properly coated stator core minimizes magnetic vibration and mechanical friction, making the motor quieter and smoother during operation.
5. Environmental Compliance
Modern insulation coatings are RoHS and REACH certified, ensuring safety for both operators and the environment.
Advanced Manufacturing and Coating Process
The manufacturing process of insulated irregular stator cores combines advanced laser cutting, wire-EDM, and automatic stacking with precise coating application.

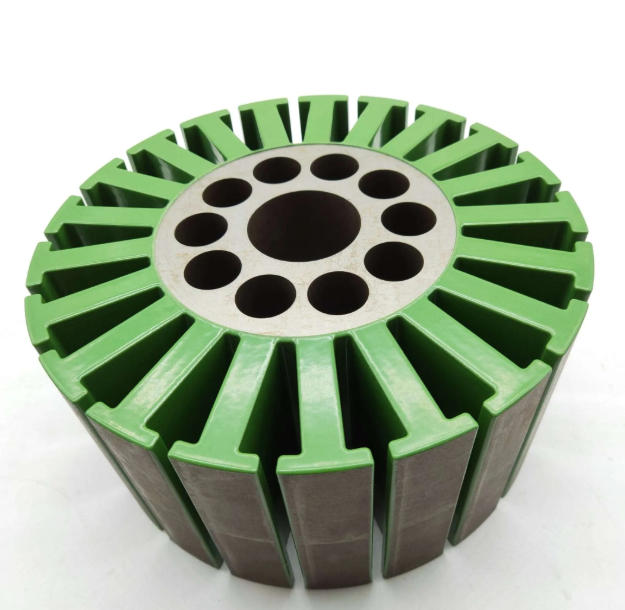

Insulating Varnish Coating
First, each silicon steel lamination is cleaned, pre-treated, and coated with the selected insulation layer. The coating thickness is carefully controlled to maintain tight tolerances while achieving complete surface coverage.
Next, laminations are stacked and bonded using interlocking, welding, or adhesive techniques. Finally, the assembled stator core undergoes dimensional, insulation, and magnetic flux testing to ensure every unit meets design standards.
Because of these rigorous processes, each insulation-coated irregular stator core delivers consistent magnetic efficiency, mechanical strength, and long-term stability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Low-loss Silicon Steel (35W300 / 50W470 / equivalent) |
| Coating Type | C5, C6, Epoxy, or Custom Insulation |
| Lamination Thickness | 0.2–0.5 mm |
| Outer Diameter | Custom as per drawing |
| Inner Diameter | Application-specific |
| Cutting Process | Laser / Wire-EDM / Progressive Stamping |
| Assembly | Riveted / Bonded / Welded |
| Application | EVs, Robotics, Aerospace, Industrial Motors |
Each specification can be customized based on the client’s torque, efficiency, and size requirements. Our engineering team collaborates closely with customers to provide tailor-made stator core solutions with high-quality insulation coatings.
Applications in Emerging Industries
Our insulated irregular stator cores are widely used in:
-
Electric Vehicles (EVs) – high-efficiency drive motors and auxiliary systems
-
Industrial Robots and Cobots – compact actuators requiring precision torque control
-
Aerospace Systems – lightweight, heat-resistant custom motors
-
Medical Devices – low-noise, reliable motor assemblies
-
Renewable Energy Equipment – compact generators and energy storage systems
These applications demonstrate how insulation-coated stator cores contribute to the global shift toward clean energy and intelligent manufacturing.
Why Choose Us as Your OEM Partner
Choosing the right partner for insulated irregular stator cores means ensuring performance and reliability from the ground up. We combine precision engineering, advanced coating technology, and international quality standards to support your success.

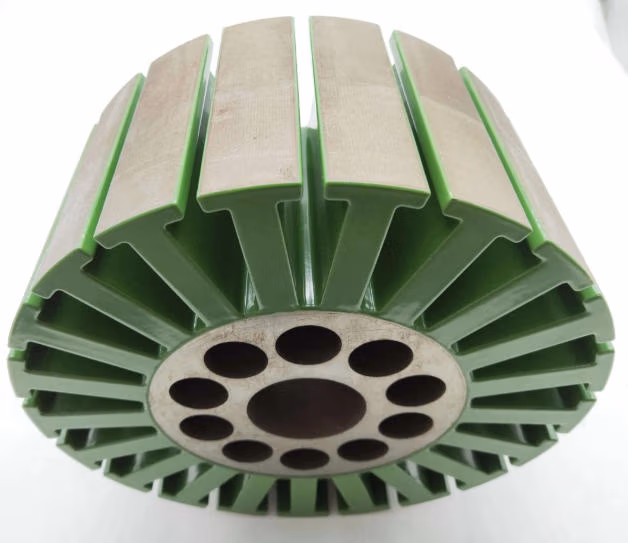

Electrical Insulation Coating
Our advantages include:
-
OEM/ODM customization for unique stator shapes
-
Consistent insulation coating thickness and quality
-
Fast prototyping with low MOQ
-
Competitive pricing with direct factory control
-
Global technical support and on-time delivery
Furthermore, our production follows ISO 9001 and IATF 16949 certification standards, guaranteeing high-quality and traceable manufacturing processes.
Sustainability and Green Production
As industries adopt greener technologies, we focus on sustainable materials and eco-friendly coatings. Our insulation coatings are solvent-free, lead-free, and recyclable, reducing environmental impact while maintaining high insulation performance.
In addition, we continuously improve production efficiency to lower energy consumption and carbon emissions across the supply chain. As a result, our products meet the growing global demand for sustainable electric motor solutions.
Empowering the Future of Electric Motion
The combination of advanced insulation coating and irregular stator core design represents a new era in electric motor innovation. Together, they bring greater reliability, higher efficiency, and longer life to every motor system.
By focusing on material science, manufacturing precision, and customer collaboration, we help shape the next generation of intelligent and sustainable power systems—one stator core at a time.
