Irregular Stator Core — Precision Engineering for Custom Motor Designs

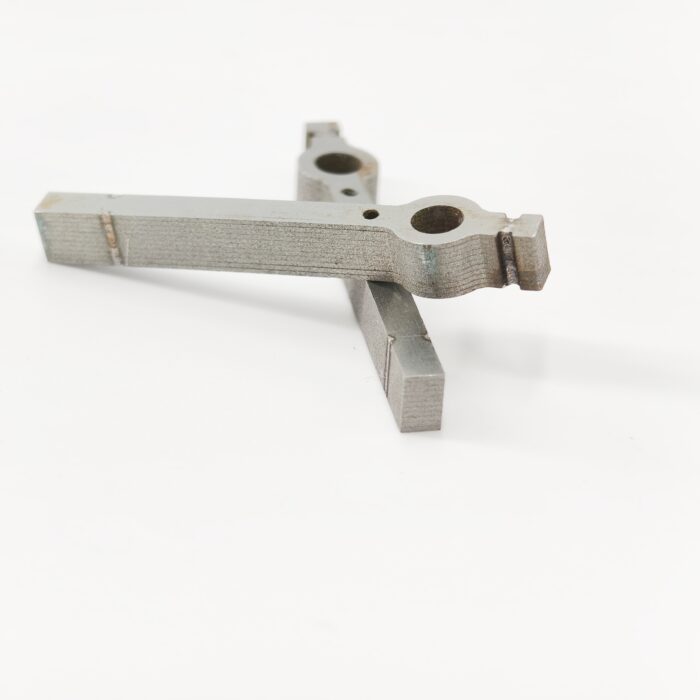

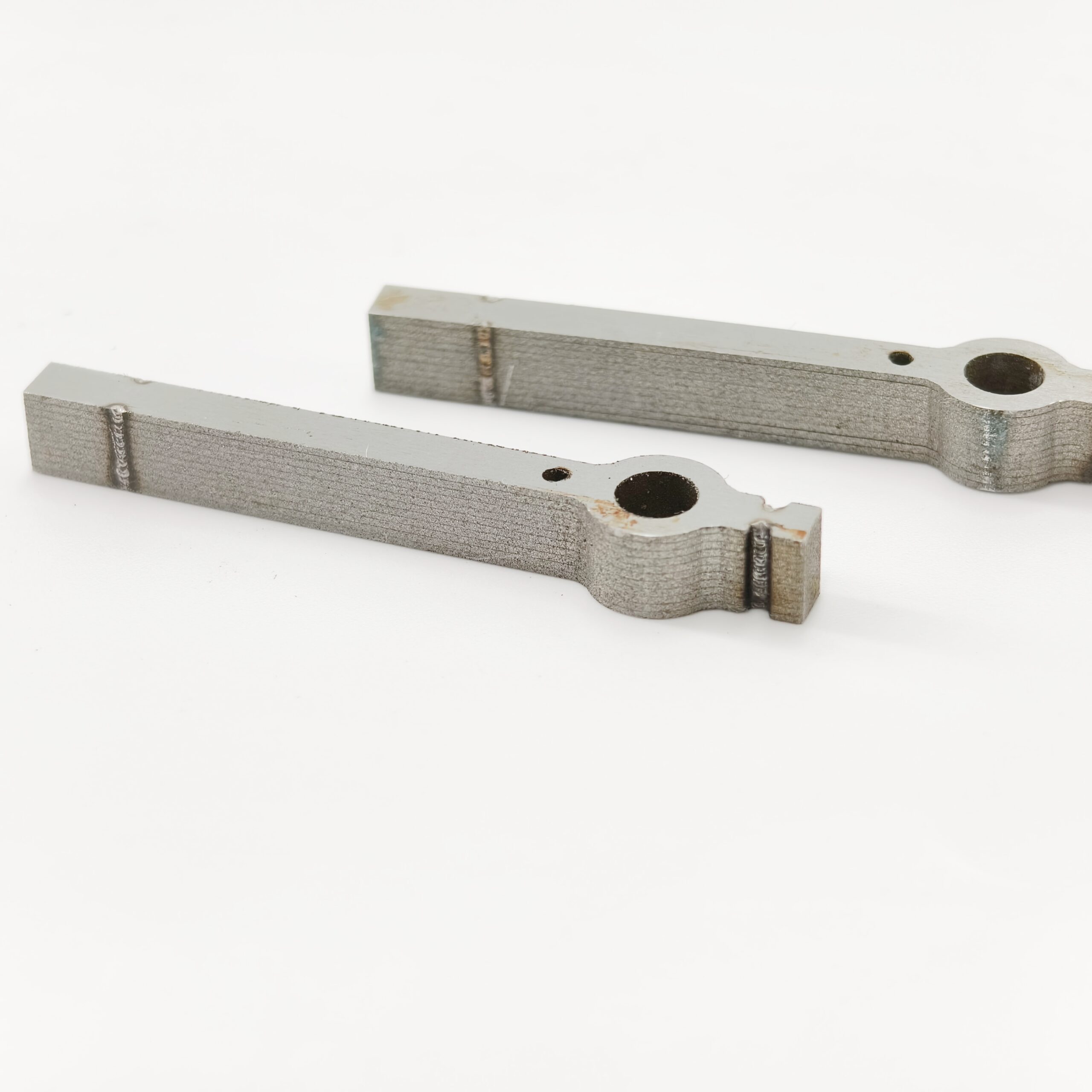

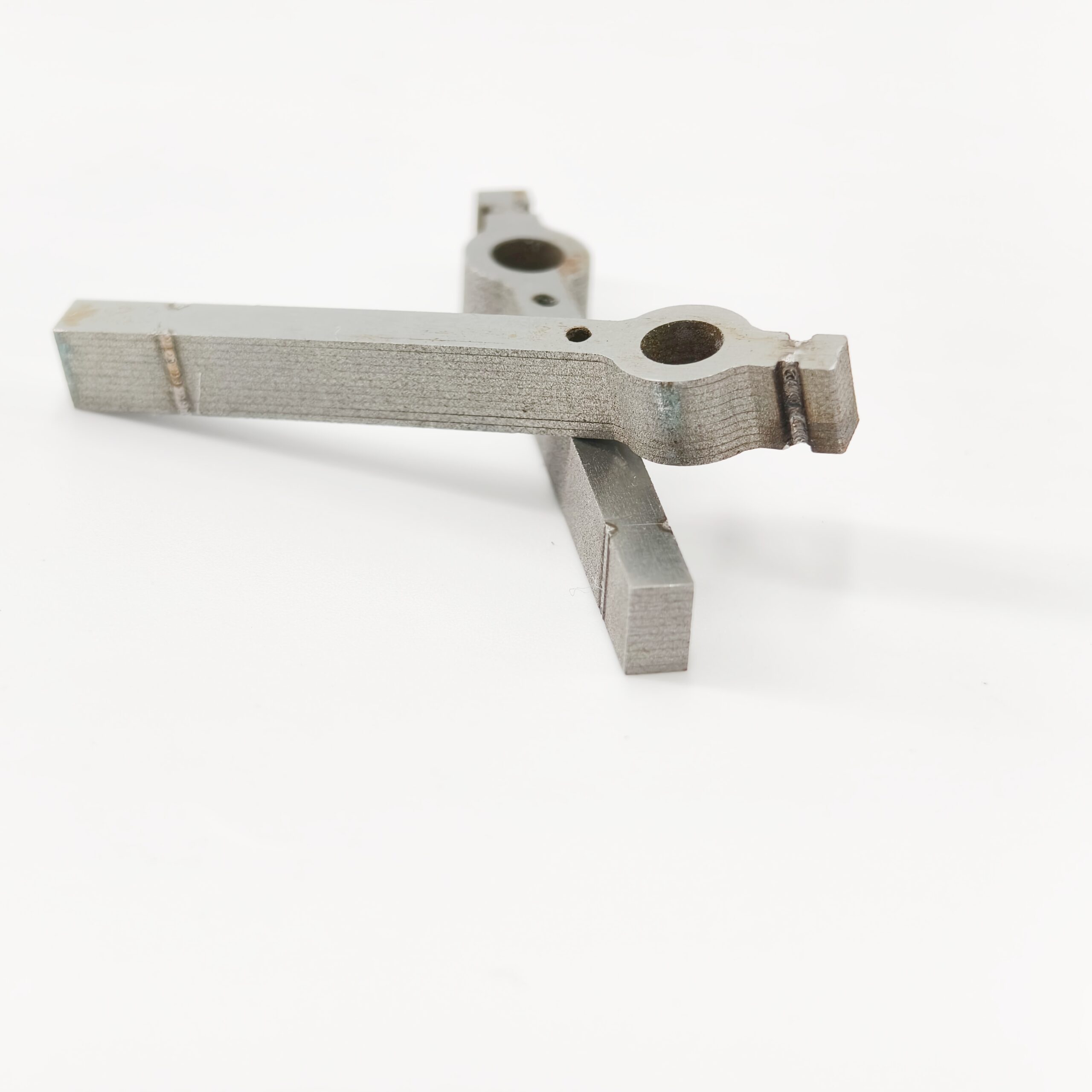

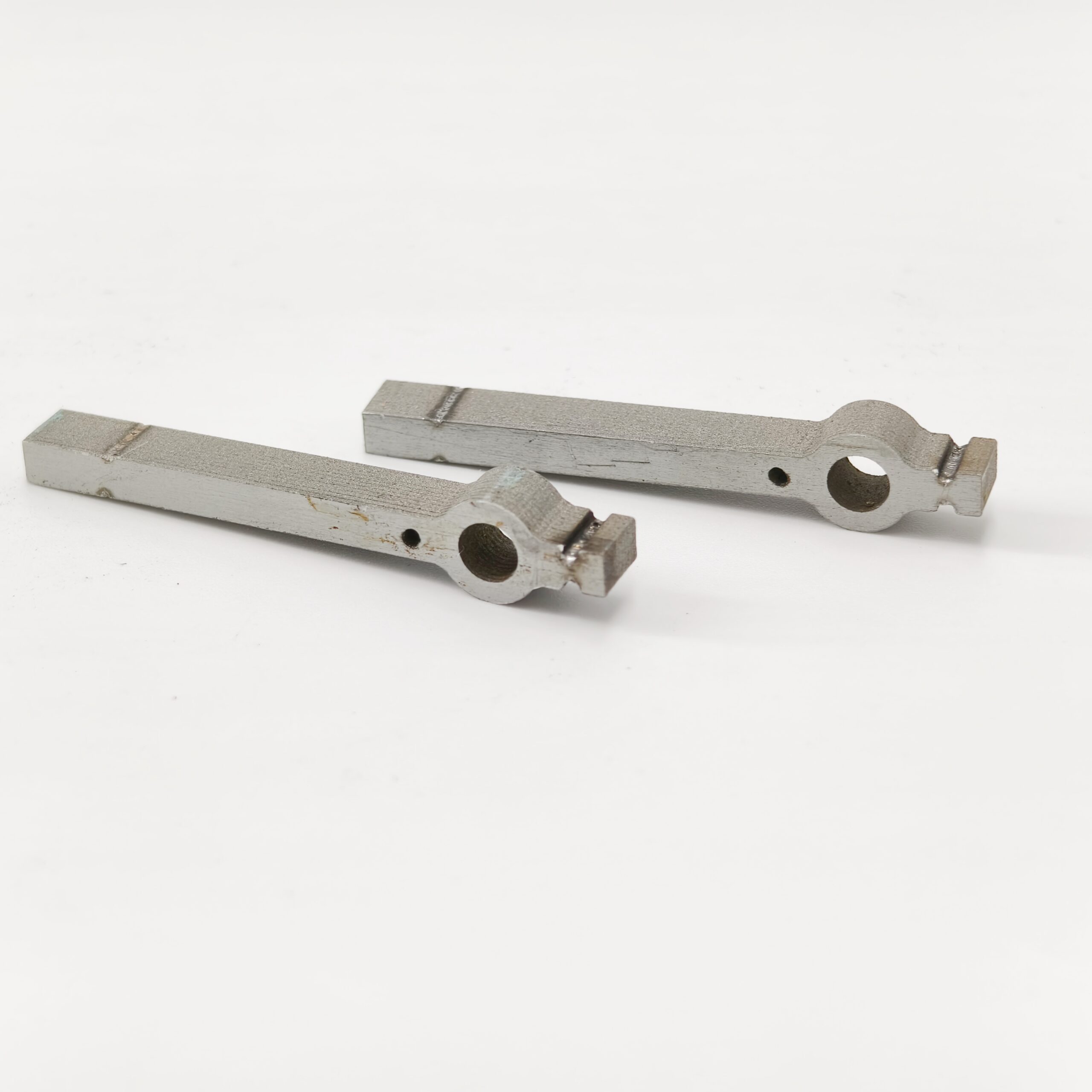

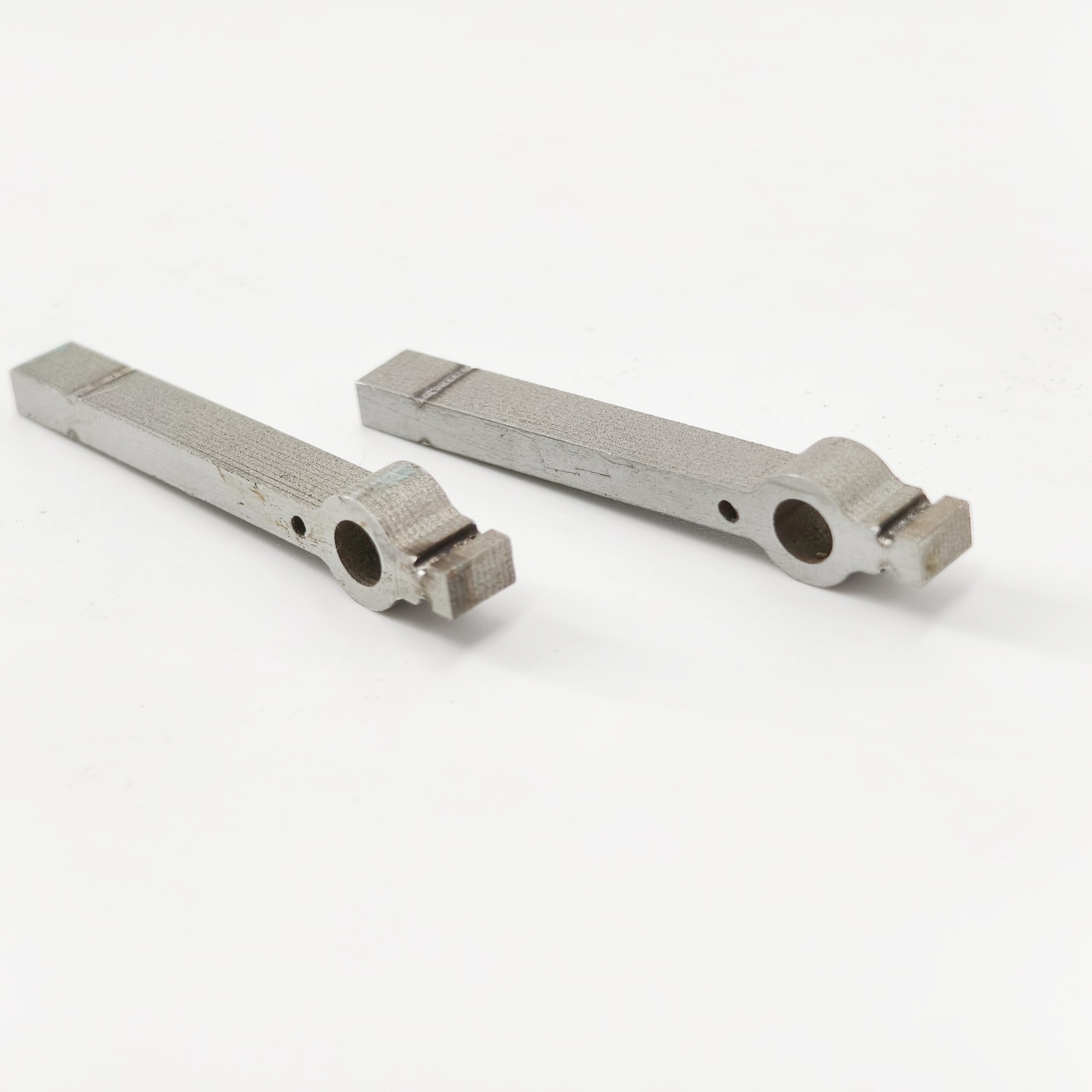

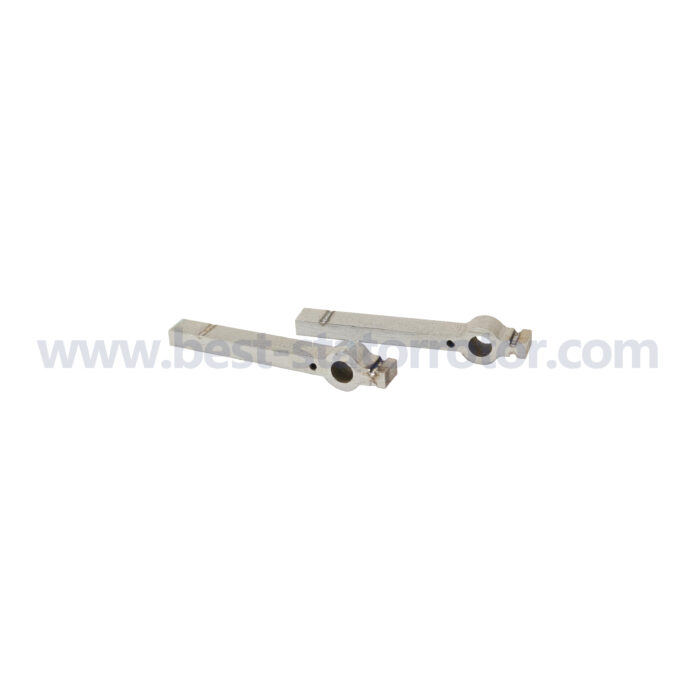

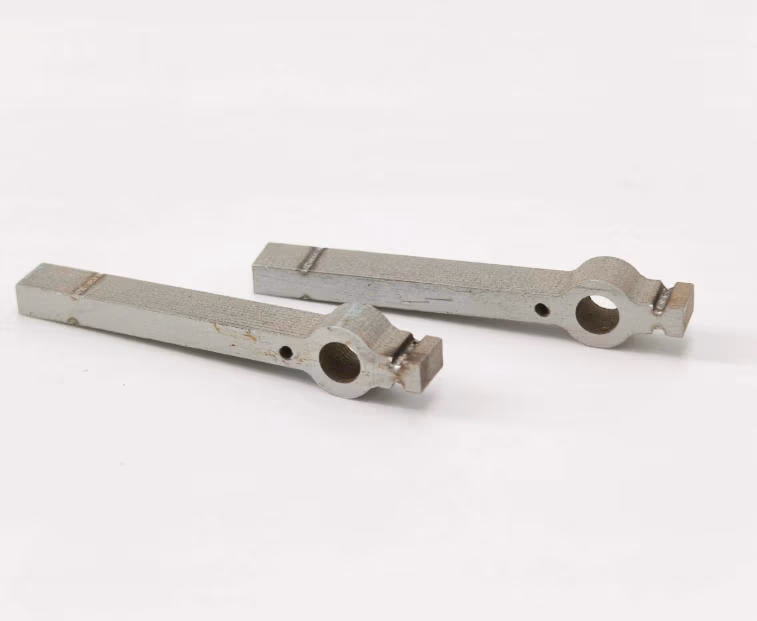

Special Profile Motor Stator
In the world of Irregular stator core not every design fits a standard shape. As industries demand more compact, specialized, and high-performance systems, the need for irregular stator cores continues to grow. These unique components power customized motors used in robotics, aerospace, automotive, medical equipment, and smart manufacturing.
Unlike traditional round or rectangular stators, an irregular stator core is designed for applications where space, weight, and performance must be perfectly balanced. Its shape is tailored to specific engineering goals—whether it’s higher torque density, reduced noise, or optimized heat dissipation.
Therefore, choosing the right irregular stator core manufacturer can significantly improve the performance, efficiency, and reliability of your product.
What Is an Irregular Stator Core?
An irregular stator core is a customized laminated core designed for motors that cannot use standard geometries. Each lamination is made from low-loss silicon steel and carefully stacked to form complex contours. These shapes help engineers fit motors into tight spaces while maintaining high efficiency.
Because of their complex geometry, these stator cores require advanced manufacturing technologies, such as laser cutting, wire-EDM, or precision stamping. Moreover, every lamination must be aligned accurately to preserve magnetic performance and structural stability.
As a result, irregular stator cores deliver strong magnetic flux, low vibration, and high reliability, even under demanding operating conditions.
Key Features and Advantages
1. Custom Shape and Design Flexibility
One of the greatest advantages of irregular stator cores is design freedom. Engineers can optimize the stator’s shape for torque, speed, or installation space. This flexibility makes it possible to integrate the motor into non-standard housings or compact equipment.
2. High Efficiency with Low Core Loss
By using premium silicon steel and precise lamination stacking, the core minimizes eddy current and hysteresis losses. Consequently, it improves motor efficiency and reduces energy consumption.

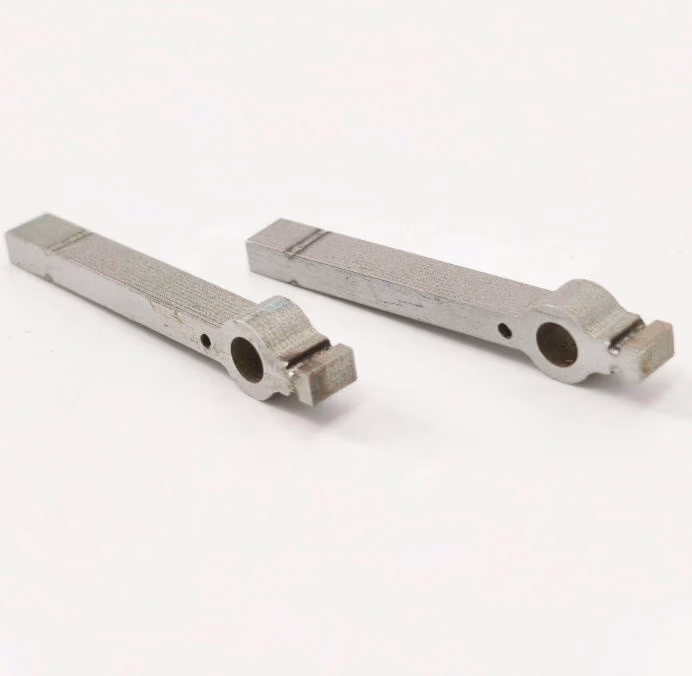

Non-Round Stator Stack
3. Superior Precision and Balance
Advanced cutting technologies ensure excellent dimensional accuracy and magnetic uniformity. Therefore, motors run smoothly, with minimal noise or vibration.
4. Compact and Lightweight
Designers tailor irregular stator cores to specific application needs, which reduces overall motor size and weight while maintaining strong torque output.
5. Compatibility with Various Motor Types
Manufacturers use these stator cores in servo motors, BLDC motors, stepper motors, and special-purpose machines across robotics, aerospace, and electric vehicle industries.
If you want it more technical, more marketing-oriented, or simpler for general readers, I can adjust the tone further.
Advanced Manufacturing Technology
Producing an irregular stator core requires precision beyond traditional manufacturing. We employ multiple processes to achieve tight tolerances and smooth surfaces:
-
Laser Cutting: Ensures clean edges and accurate profiles for complex geometries.
-
Wire-EDM Processing: Enables ultra-fine cutting for intricate shapes.
-
Progressive Die Stamping: Ideal for high-volume production with consistent accuracy.
-
Automatic Stacking and Bonding: Guarantees tight alignment and high mechanical strength.
Each stator core is coated with C5, C6, or epoxy insulation layers to prevent short circuits and reduce eddy current loss. Moreover, our ISO 9001 and IATF 16949-certified facilities ensure consistent quality control throughout production.
Before delivery, all products undergo dimensional, concentricity, and magnetic flux testing, ensuring every core meets the exact specifications required by customers.
Applications Across Industries
The irregular stator core supports a wide range of industries where compact, high-precision motors are essential:
-
Robotics: For arms, joints, and actuators requiring high torque in limited spaces.
-
Aerospace: Lightweight, custom-shaped stators for drones and control systems.
-
Medical Equipment: Low-noise and smooth-running cores for diagnostic devices.
-
Automotive: Customized electric motors for power steering, pumps, and sensors.
-
Automation and Machinery: Non-standard motors for compact automation tools.
Because every project is unique, our engineering team collaborates closely with clients to develop custom stator core designs that meet performance goals and dimensional constraints.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Low-loss Silicon Steel (35W300 / 50W470 / equivalent) |
| Lamination Thickness | 0.2–0.5 mm |
| Outer Diameter | Custom as per drawing |
| Inner Diameter | Custom as per design |
| Assembly Method | Riveted / Bonded / Welded |
| Cutting Process | Laser / Wire-EDM / Stamping |
| Insulation Coating | C5, C6, or Epoxy |
| Application | Robotics, EVs, Aerospace, Medical, Automation |
We offer full customization support, from material selection to 3D modeling, ensuring each irregular stator core matches your motor’s magnetic and mechanical design.
Why Choose Us as Your Stator Core Partner
Selecting the right manufacturer for irregular stator cores is crucial. We combine advanced technology, engineering expertise, and global experience to deliver superior results.

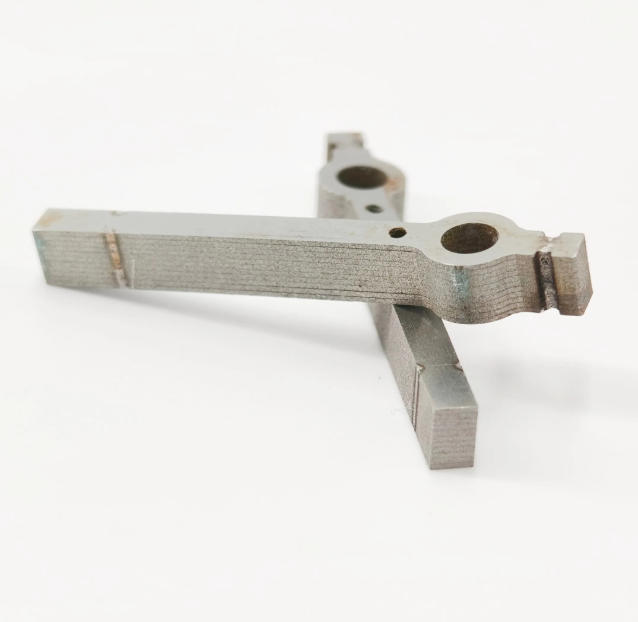

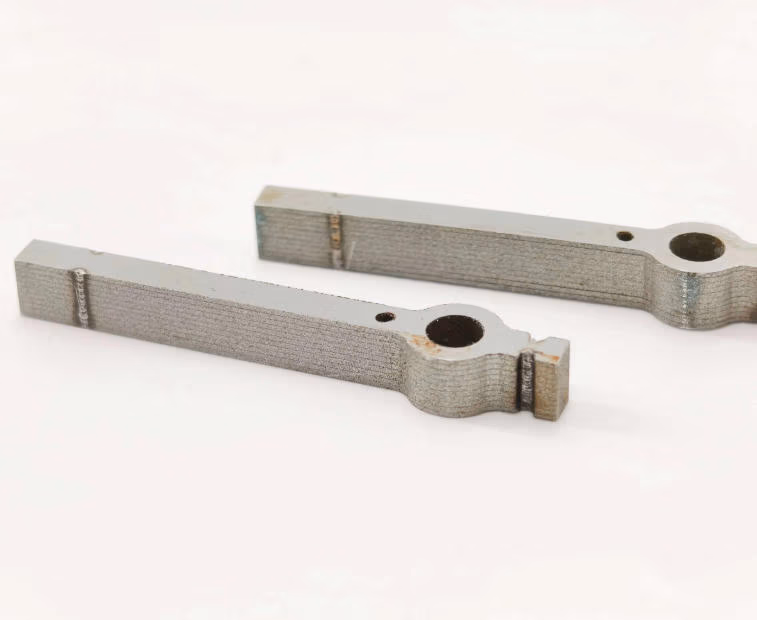

Non-Standard Stator Core
Our advantages include:
-
OEM/ODM customization for non-standard stator designs
-
Fast prototyping with flexible MOQ
-
Precision manufacturing with micron-level accuracy
-
Competitive factory-direct pricing
-
Global logistics and technical support
Additionally, our R&D team constantly explores new materials and production techniques to further improve magnetic performance and sustainability.
Sustainability and Green Manufacturing
Beyond performance, we focus on environmental responsibility. Our production uses energy-efficient processes and recyclable materials to reduce carbon footprint. Furthermore, all coatings and insulation materials comply with RoHS and REACH standards.
As industries move toward sustainable electrification, our irregular stator cores help customers meet both performance and environmental goals.
Empowering Custom Innovation
Every innovative product starts with a strong foundation. The irregular stator core may seem small, but it plays a central role in enabling smarter, lighter, and more efficient motion systems.
By combining precision manufacturing, engineering creativity, and global quality standards, we deliver solutions that empower your next-generation electric motors. Let’s redefine what’s possible in motion design—together.
