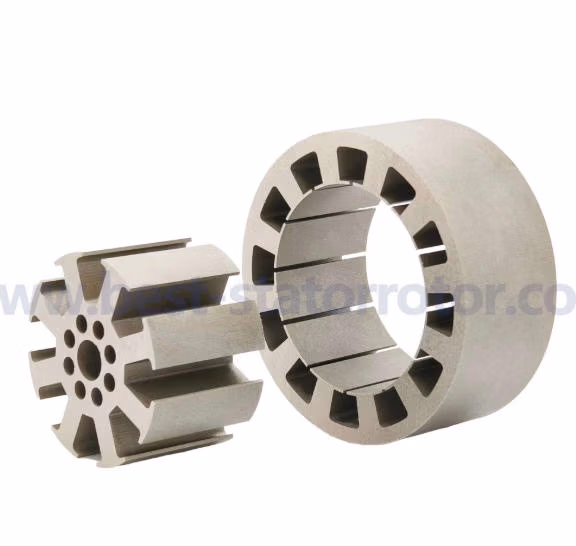

Wire-EDM and laser cutting stator core

Wire-EDM and Laser Cutting Stator Core – Precision That Drives Performance

The world of electric motors is evolving faster than ever. Efficiency, accuracy, and reliability are no longer optional—they are essential. As a result, the way we manufacture motor cores must keep pace. Two cutting-edge methods now lead this transformation: Wire-EDM and laser cutting stator core. Both technologies offer unmatched precision for producing stator cores that perform consistently and last longer.

While traditional punching methods still have value for mass production, modern industries increasingly prefer wire-EDM and laser cutting due to their ability to achieve higher dimensional accuracy, smoother edges, and minimal material stress. Therefore, understanding how these techniques enhance stator core quality is crucial for engineers and manufacturers alike.

Understanding Stator Core Manufacturing

The stator core is the stationary magnetic component of an electric motor. It channels magnetic flux generated by the stator windings, creating the rotating magnetic field that drives motion. Since every micron of dimensional accuracy affects efficiency, the core’s manufacturing method determines the motor’s final performance.

In the past, manufacturers primarily used mechanical punching. However, this method can cause burrs, deformation, and micro-stress that reduce magnetic efficiency. To overcome these limitations, precision cutting technologies such as Wire Electrical Discharge Machining (Wire-EDM) and Laser Cutting have become the preferred choices.

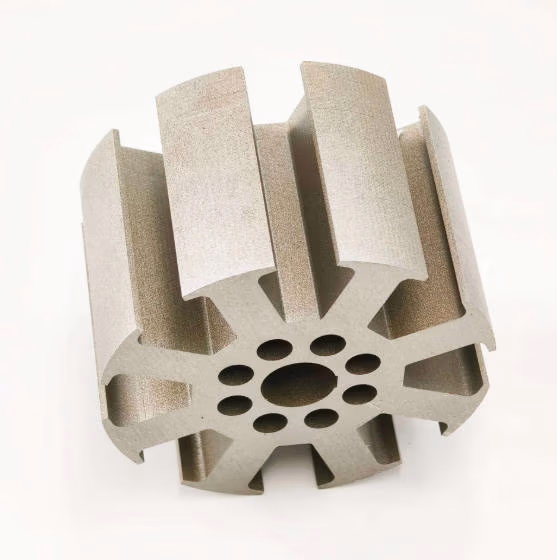

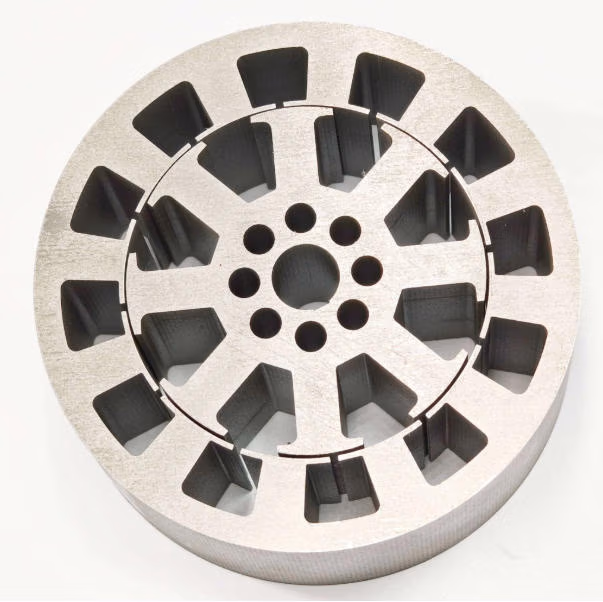

Wire-EDM Stator Core – Accuracy Through Controlled Erosion

Wire-EDM uses a thin, electrically charged wire to cut through metal with extreme precision. Unlike punching, it removes material through electrical erosion instead of physical force. Consequently, the process eliminates mechanical stress and prevents edge damage.

Because it generates no cutting pressure, Wire-EDM stator cores maintain exact geometry even for complex shapes or small slots. Moreover, this method achieves a tolerance of ±0.002 mm, ensuring that each lamination layer aligns perfectly during stacking.

Advantages of Wire-EDM stator core production include:

• Excellent dimensional precision

• Smooth edges with no burrs or cracks

• Zero mechanical deformation

• Suitable for prototypes and low-volume production

• Compatible with high-silicon electrical steel and rare materials

In addition, Wire-EDM is ideal for research motors, aerospace systems, and high-frequency applications, where magnetic performance must remain stable over time.

Laser Cutting Stator Core – Speed Meets Efficiency

Laser cutting, on the other hand, uses a focused beam of light to melt or vaporize material along a defined path. This process offers both speed and flexibility, making it suitable for medium to high-volume production.

With fiber laser systems, manufacturers can cut intricate designs quickly without mechanical contact. As a result, the material retains its magnetic properties, and the lamination stack remains uniform. Moreover, the precision of laser cutting allows for tight slot-to-slot consistency, which improves torque balance and reduces vibration in electric motors.

Benefits of laser cutting stator cores:

• High productivity with minimal setup time

• Excellent edge quality and repeatability

• Non-contact cutting prevents stress deformation

• Easy adaptation for complex shapes or new models

• Reduced tooling cost and faster prototyping

In short, laser cutting provides a balance between efficiency and precision, making it the go-to solution for modern EV motors, servo motors, and industrial drives.

Comparing Wire-EDM vs. Laser Cutting

Both technologies deliver precision, but their strengths differ. Wire-EDM focuses on ultra-high accuracy, while laser cutting emphasizes speed and scalability.

Therefore, the right choice depends on your application. For ultra-precise or custom designs, Wire-EDM is preferred. For volume production requiring both quality and efficiency, laser cutting is ideal. In many cases, manufacturers combine both techniques to achieve the best balance between accuracy and cost.

Precision Materials and Lamination Quality

Regardless of cutting method, material quality remains vital. We use Wire-EDM and laser cutting stator core such as 35W300, 50W470, or equivalent grades to ensure magnetic stability. Each lamination receives a C5, C6, or epoxy insulation coating to reduce eddy current loss and prevent corrosion.

Moreover, every stator core undergoes strict dimensional checks, insulation tests, and concentricity measurements according to ISO 9001 and IATF 16949 standards. Consequently, each product meets global industry requirements and performs reliably under tough operating conditions.

Customization and OEM Support

We provide full OEM/ODM customization for clients worldwide. From prototype development to mass production, our engineering team ensures your stator core matches your design exactly.

In addition, we offer flexible MOQ, fast delivery, and a dedicated after-sales service team. Therefore, whether you need a single sample or a thousand units, we guarantee consistent quality and on-time delivery.

Custom options include:

• Outer diameter: 50–800 mm

• Lamination thickness: 0.2–0.5 mm

• Cutting method: Wire-EDM or Laser

• Material: Low-loss silicon steel

• Insulation: C5, C6, Epoxy

• Assembly: Bonded, Riveted, or Welded

As a result, you gain total control over your product’s magnetic and mechanical performance.

Sustainability and Energy Efficiency

Today’s motor industry values sustainability as much as precision. Both Wire-EDM and Laser Cutting technologies help reduce waste and extend tool life. Moreover, since these methods eliminate mechanical stress, the resulting stator cores enhance motor efficiency, leading to lower energy consumption during operation.

Consequently, every core we produce contributes to greener, longer-lasting electric motors that align with global sustainability goals.

Partner with a Precision Manufacturer

Choosing the right stator core manufacturer means choosing consistency, precision, and long-term value. We combine advanced Wire-EDM and laser cutting technologies with over a decade of engineering experience to deliver magnetic cores that meet the most demanding requirements.

In addition, our export expertise ensures smooth delivery to global markets such as Europe, North America, Japan, and Southeast Asia. Let’s build a smarter, more efficient future—one stator core at a time.
