Linear Motor Stator Core for High Precision Automation Systems
In modern automation and high-speed production environments, precision motion control plays a key role in productivity and efficiency. As technology advances, the linear motor stator core has become one of the most essential components driving innovation in semiconductor equipment, robotics, CNC machines, and factory automation systems.
Unlike traditional rotary motors, a linear motor produces motion directly in a straight line without mechanical transmission. This direct-drive structure eliminates backlash, improves accuracy, and achieves smooth linear motion. Therefore, the linear motor stator core serves as the foundation for achieving high precision, high response, and long service life in modern industrial applications.
What Is a Linear Motor Stator Core?
The linear motor stator core forms the stationary magnetic base of a linear drive system. It contains laminated silicon steel or soft magnetic composite materials that generate a powerful magnetic field when energized. The moving part—called the forcer or mover—interacts with this magnetic field to produce linear motion.
In high-performance systems, engineers use ultra-thin lamination steel to minimize eddy current losses and magnetic hysteresis, improving energy efficiency and motion smoothness. A high-quality linear stator core directly affects force output, thermal stability, and motion precision.
Key Advantages of Our Linear Motor Stator Cores
-
High Magnetic Efficiency
We use premium-grade silicon steel laminations to achieve minimal iron loss and maximum magnetic flux density. As a result, our stator cores ensure superior power efficiency and low heat generation. -
Precision Manufacturing
Each core is processed using wire EDM cutting, laser machining, and precision stacking to maintain dimensional accuracy within microns. This ensures stable performance even under high-speed, high-frequency operation. -
Compact and Lightweight Design
The optimized lamination structure reduces overall mass while maintaining high mechanical strength—ideal for compact automation and motion control systems. -
Custom Engineering Solutions
We offer OEM/ODM linear stator core design for different stroke lengths, coil configurations, and load requirements. Clients can customize slot geometry, lamination material, and insulation coating based on application needs. -
Enhanced Thermal Management
Our linear motor stator cores feature efficient heat dissipation paths that prevent overheating during continuous operation, ensuring long-term reliability.

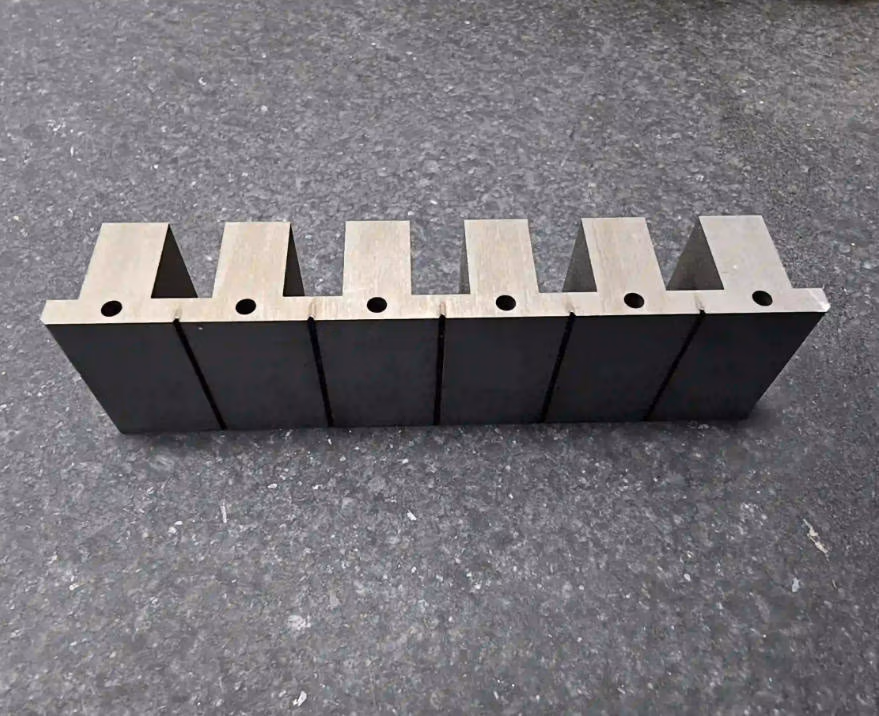

High-Performance Linear Motor Stator Core Manufacturer
Applications of Linear Motor Stator Cores
The linear motor stator core is used in a variety of precision and high-speed applications, such as:
Semiconductor Manufacturing Equipment – For wafer handling, inspection, and lithography systems.
Meanwhile, Robotics and Automation enable smooth, high-accuracy motion in robot arms and pick-and-place systems.
In addition, CNC Machine Tools provide high-speed, direct linear drive for cutting, engraving, and milling.
Similarly, Logistics and Conveying Systems ensure fast, reliable linear movement for modern smart factories.
At the same time, Medical and Laboratory Equipment benefit from quiet, vibration-free operation for precision instruments.
By integrating a linear stator core, equipment manufacturers can therefore achieve faster acceleration, higher accuracy, and lower maintenance costs.
Manufacturing Excellence and Quality Assurance
To ensure consistent performance, At best, we specialize in linear motor stator core manufacturing with a strong focus on precision, consistency, and innovation. Throughout the production process, we implement advanced manufacturing technologies, including:
-
First, laser or EDM cutting for ultra-thin silicon steel laminations
-
Next, automated stacking and riveting to ensure uniform magnetic alignment
-
Then, vacuum annealing to restore magnetic permeability
-
After that, insulation coating for electrical isolation and eddy current suppression
-
Finally, 100% quality inspection covering dimensional accuracy, resistance, and magnetic property testing
As a result, these advanced processes allow us to deliver high-performance linear stator cores that meet the demanding standards of global automation industries.
Material Options and Technical Capabilities
We provide multiple material and structural options to support different linear motor types:
-
Silicon Steel Laminations (0.2–0.5 mm) for standard linear servo motors
-
Amorphous Alloy Cores for high-frequency, low-loss performance
-
Segmented Stator Cores for modular installation and better cooling
-
Soft Magnetic Composites (SMC) for reduced eddy current and 3D magnetic design flexibility
Our engineering team collaborates with clients to optimize magnetic flux paths, slot design, and coil winding patterns, ensuring the best balance between force
Why Choose Our Linear Motor Stator Cores
Choosing the right linear stator core manufacturer directly affects your product performance and market competitiveness.
Here’s why customers worldwide trust us:
-
Over 15 years of experience in stator and rotor core manufacturing
-
Flexible customization for R&D prototypes and mass production
-
Advanced EDM and stamping equipment for precise fabrication
-
In-house winding and assembly services available upon request
-
Global supply network for reliable delivery and technical support
We not only manufacture components — we provide complete motion system solutions that drive your innovation.
Sustainability and Industry Trends
The linear motor stator core aligns perfectly with the global demand for energy-efficient, low-maintenance, and intelligent motion systems. As automation expands into every industry, linear motors are replacing traditional mechanical transmissions, enabling quieter, faster, and more sustainable production.
By continuously improving material science and precision processing, we help our customers design next-generation linear motors that deliver higher performance with lower energy consumption — supporting the world’s transition toward smarter manufacturing.
Conclusion
The linear motor stator core represents the foundation of every high-precision linear drive system. Its magnetic design, material quality, and manufacturing accuracy directly determine how smoothly and efficiently a linear motor performs.
If you are searching for a reliable linear motor stator core manufacturer, we provide custom-engineered, high-efficiency solutions for your specific application.
Contact our team today to learn how our precision stator cores can enhance your motion system performance and sustainability goals.
