Motor Lamination

High-Efficiency Motor Laminations for Electric Motor Performance

Modern electric motors must run faster and use less energy. Therefore, motor lamination quality becomes very important.

Because energy loss often starts inside the magnetic core, good laminations help motors work better. As a result, efficiency increases and heat drops.

Our motor laminations are designed for OEM customers in Europe and North America. Moreover, they support both prototype and mass production projects.

What Is Motor Lamination?

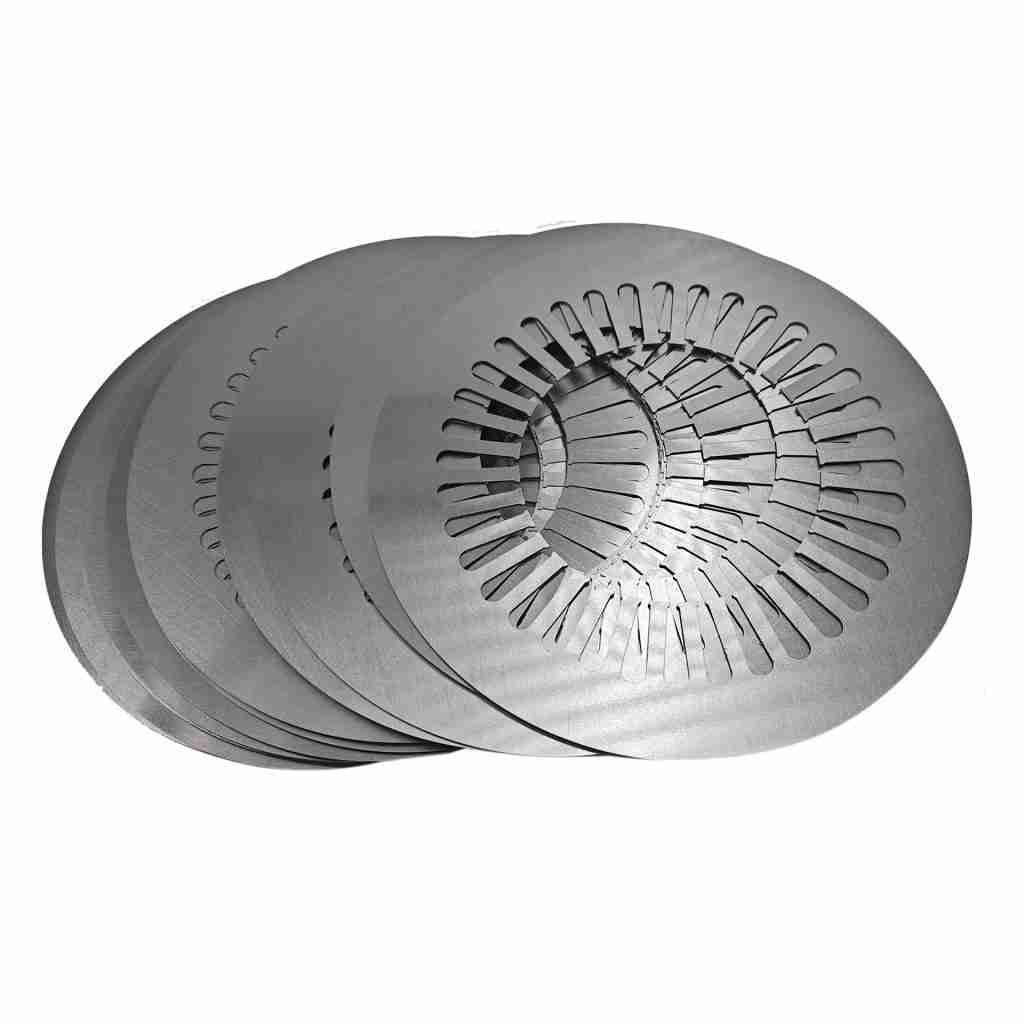

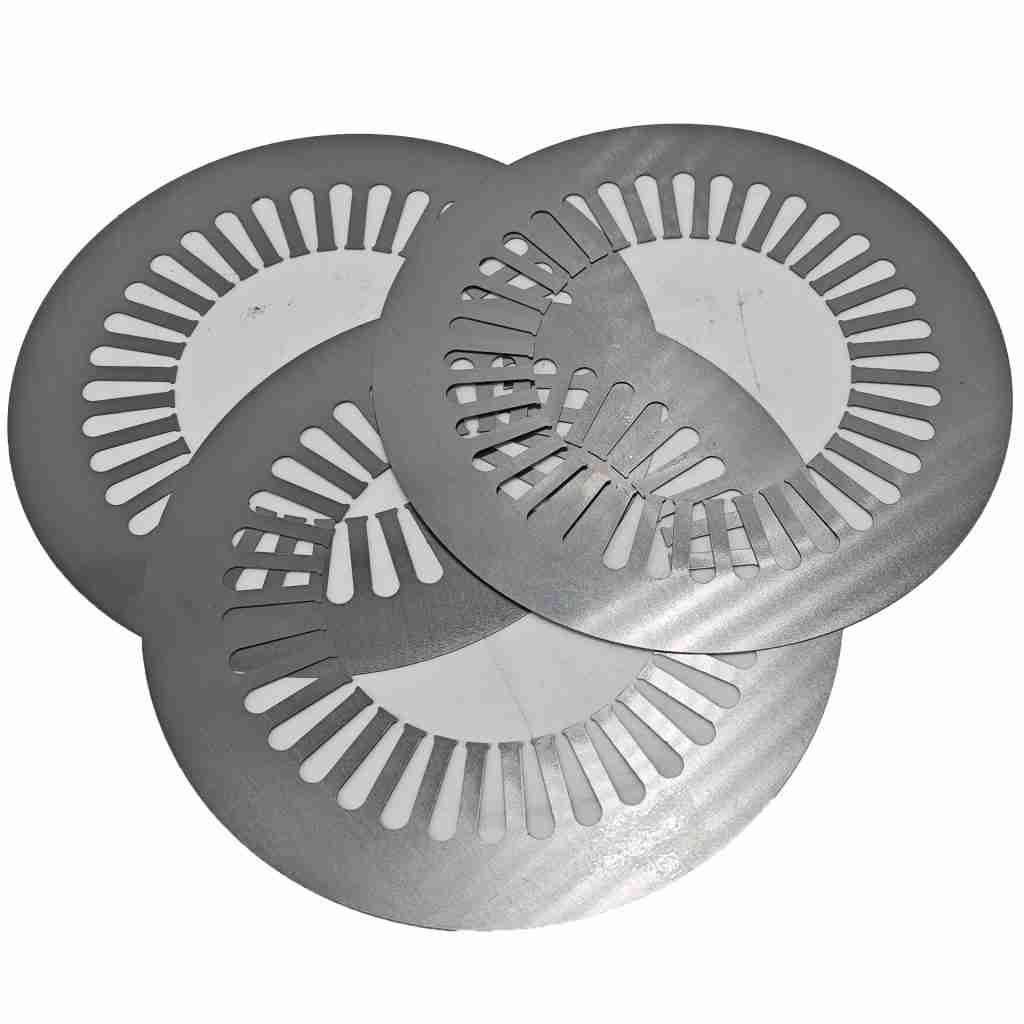

Motor lamination is a thin steel sheet used inside motor stators and rotors.

In the past, solid steel cores were common. However, solid metal created strong current loss. Therefore, laminated sheets are now used instead.

Each sheet has an insulation layer. Because of this layer, electric current cannot flow easily between sheets. As a result, energy loss becomes much lower.

In simple terms, laminations help magnetic flow while stopping wasted energy.

Why Motor Laminations Matter

First, laminations guide magnetic flux.
Next, they reduce heat.
Finally, they keep the motor stable during operation.

Because these effects work together, overall motor efficiency improves.

Moreover, better laminations help reduce vibration. At the same time, motor noise becomes lower.

For this reason, motor makers focus strongly on lamination quality.

Key Benefits of Our Motor Laminations

1. Low Core Loss Design

We use high-grade electrical steel. Therefore, magnetic loss stays low.

Because thinner sheets limit circulating currents, heat generation drops. As a result, motors run cooler.

In addition, cooler motors last longer. Consequently, maintenance cost decreases.

This advantage is especially useful for:

• Electric vehicle motors

• Servo motors

• Industrial drives

• High-speed systems

2. High Precision Production

Accuracy affects performance. Therefore, tight control is required.

We control:

• Sheet thickness

• Slot size

• Flatness

• Burr height

Meanwhile, automated inspection checks every batch.

As a result, magnetic balance improves. Furthermore, torque output becomes smoother.

3. Stable Magnetic Performance

Motor output depends on magnetic stability. Therefore, lamination shape must be optimized.

We adjust:

• Tooth width

• Slot opening

• Back iron size

Because geometry affects flux flow, even small changes matter.

Thus, efficiency improves while loss decreases.

4. Strong Mechanical Stability

Motors often run at high speed. However, weak cores may deform.

For this reason, our laminations use strong interlock structures.

In addition, stacking pressure stays uniform. As a result, the core remains stable over time.

Especially in EV motors, this stability is critical.

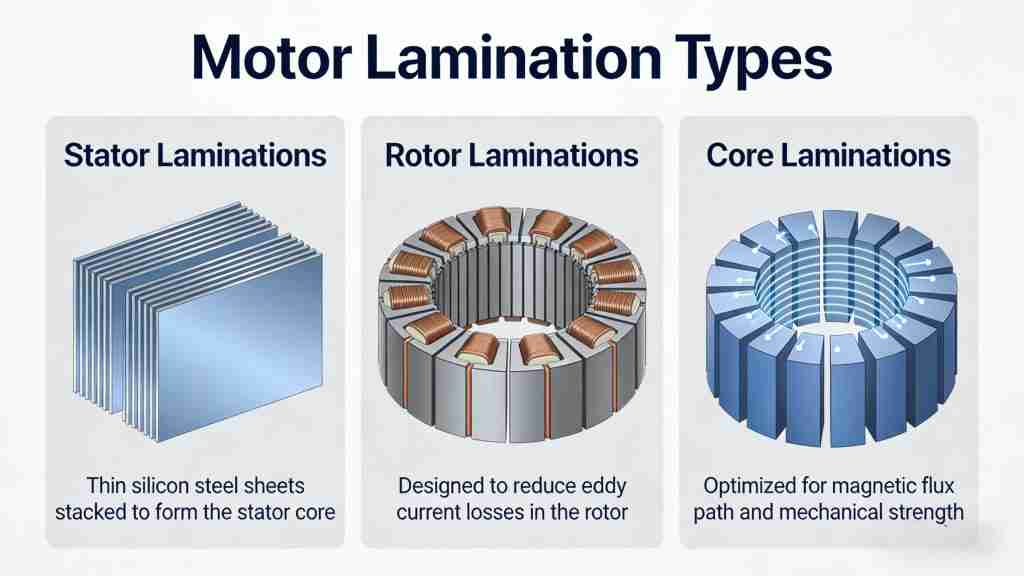

Motor Lamination Types

Because motor designs vary, different lamination types are required.

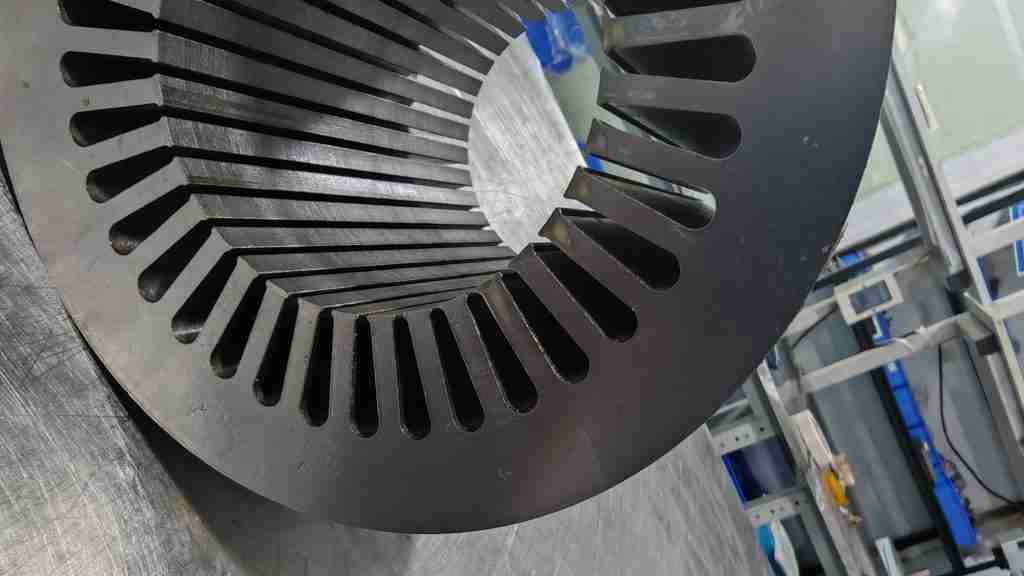

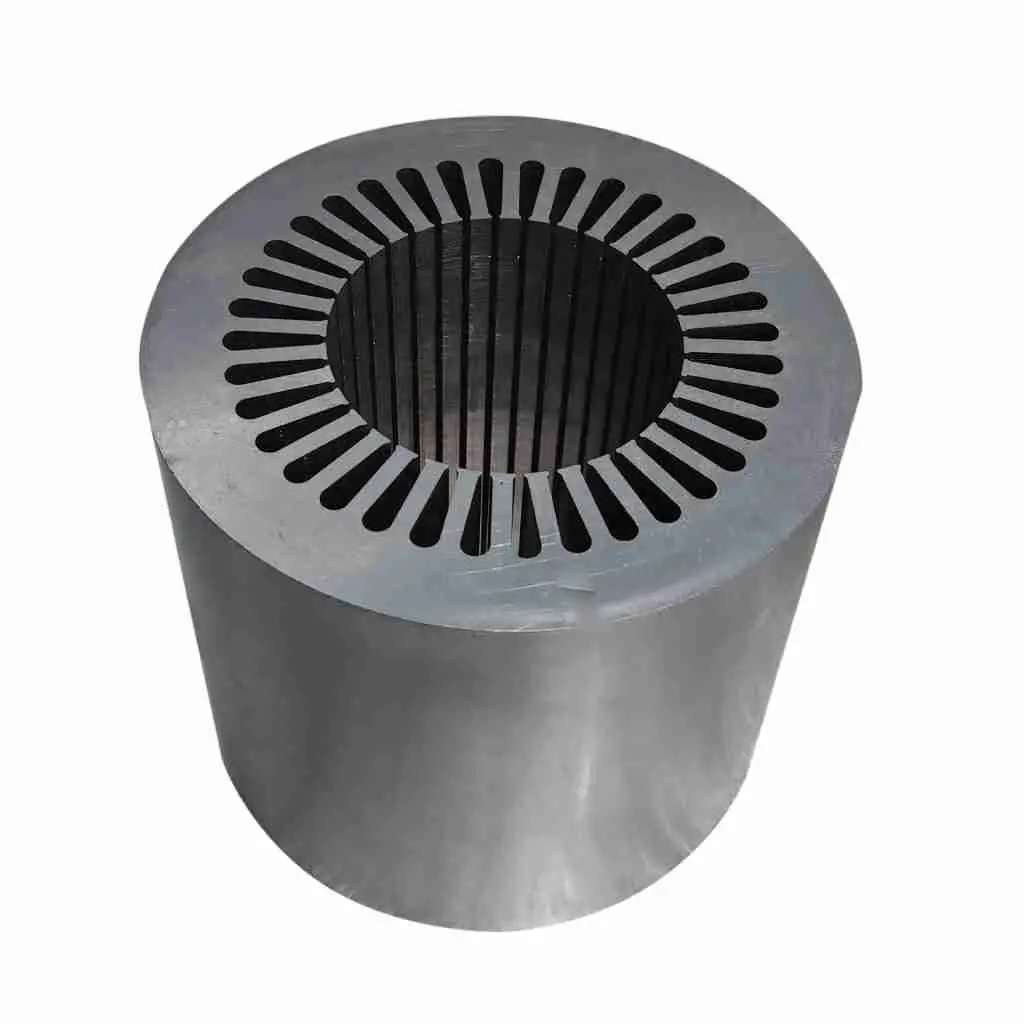

Stator Laminations

Stator laminations hold motor windings.

Therefore, slot accuracy is very important.

Better slot design allows more copper fill. As a result, torque increases.

Rotor Laminations

Rotor laminations rotate at high speed.

Thus, balance accuracy must remain high. Consequently, vibration stays low.

Segmented Laminations

Segmented designs simplify winding work.

Because segments are easier to handle, automation improves.

As a result:

• Production speed increases

• Cost decreases

• Quality stays stable

Technical Specifications

Moreover, custom sizes are available when required.

Designed for EU & North America Markets Motor Lamination

OEM buyers require stable quality. Therefore, we follow global standards.

We support:

• REACH compliance

• RoHS compliance

• Material traceability

• Inspection reports

In addition, batch consistency remains stable. As a result, supply risk becomes lower.

Application Areas

Our motor laminations are used in many industries.

Electric Vehicles

Efficiency affects driving range. Therefore, low loss laminations help save energy.

Industrial Automation

Stable motors reduce downtime. Consequently, factory output improves.

Robotics

Smooth torque enables precise motion control.

Renewable Energy

Efficient generators produce more power.

Because each industry differs, customization support is available.

Engineering Support

We work closely with customer teams.

First, we review motor targets.
Next, we optimize lamination design.
Then, prototypes are produced.
Finally, mass production begins.

As a result, development becomes faster and safer.

Support includes:

• Magnetic simulation

• Material selection

• Tooling design

• Prototype validation

Manufacturing Capability

To ensure stable supply, we use modern equipment.

This includes:

• High-speed stamping lines

• Precision tooling

• Automatic stacking systems

• Laser cutting machines

Therefore, both small and large orders are supported.

Why Choose Our Motor Laminations?

Not only do we supply parts, but we also support engineering success.

✔ Low loss materials
✔ High precision control
✔ Custom design support
✔ Fast sample delivery
✔ Stable global supply

Above all, we focus on long-term cooperation.

Request a Motor Lamination Solution

If you are developing:

• EV drive motors

• Industrial motors

• Automation systems

• Custom electric motors

Then lamination design should start early.

Therefore, contact our team today.

Together, we improve efficiency, stability, and production readiness.
