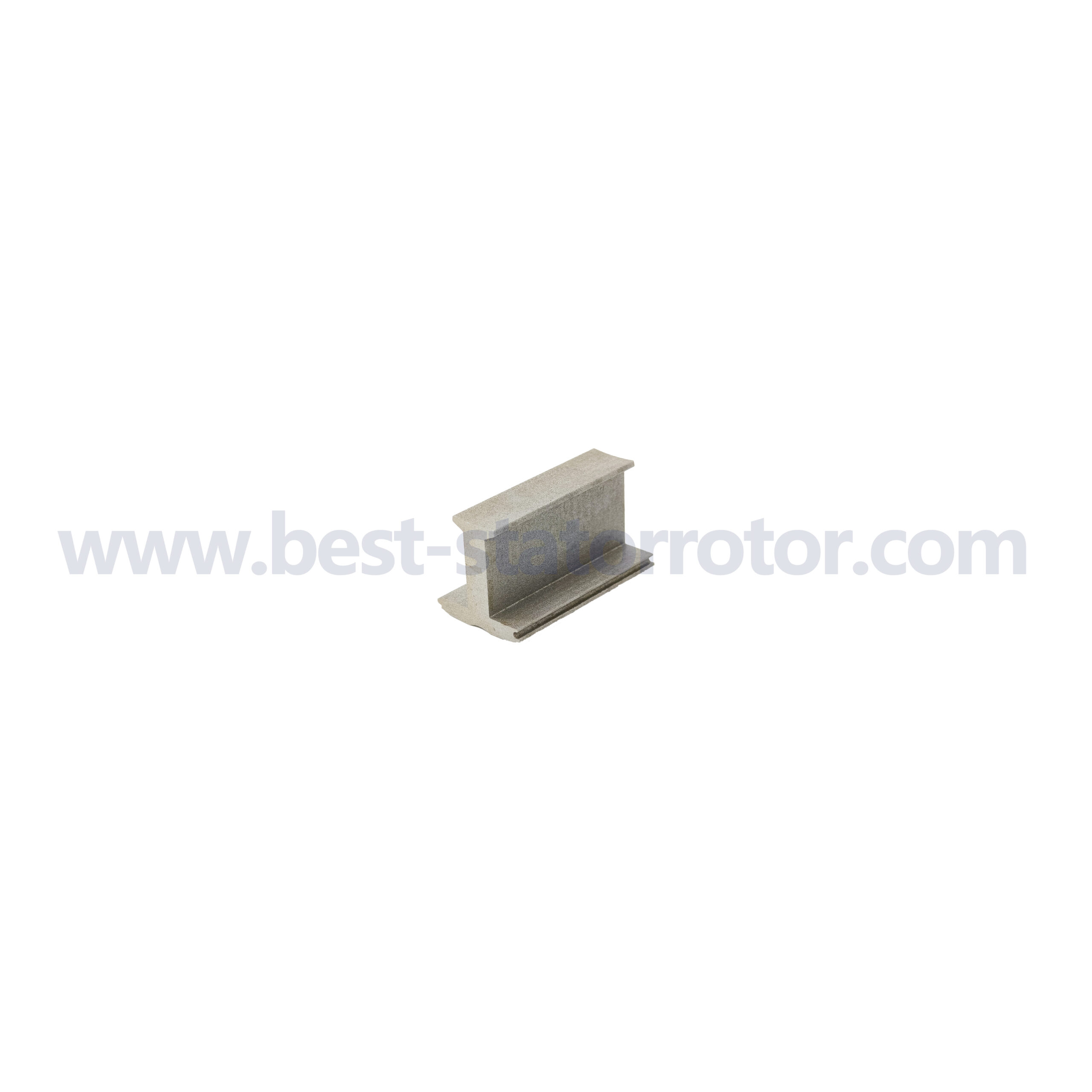

Robot Motor Stator Core – Precision Power for the Future of Automation

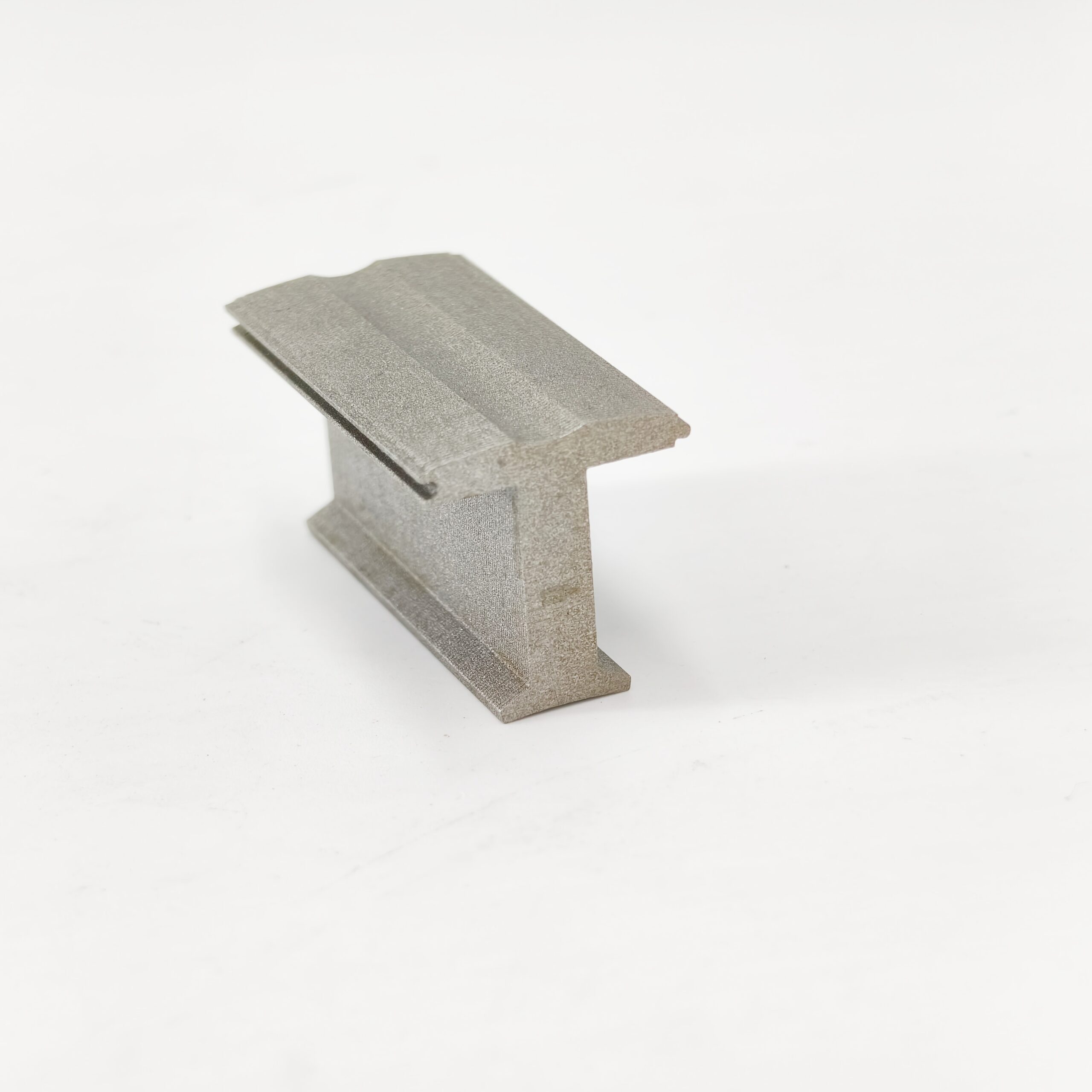

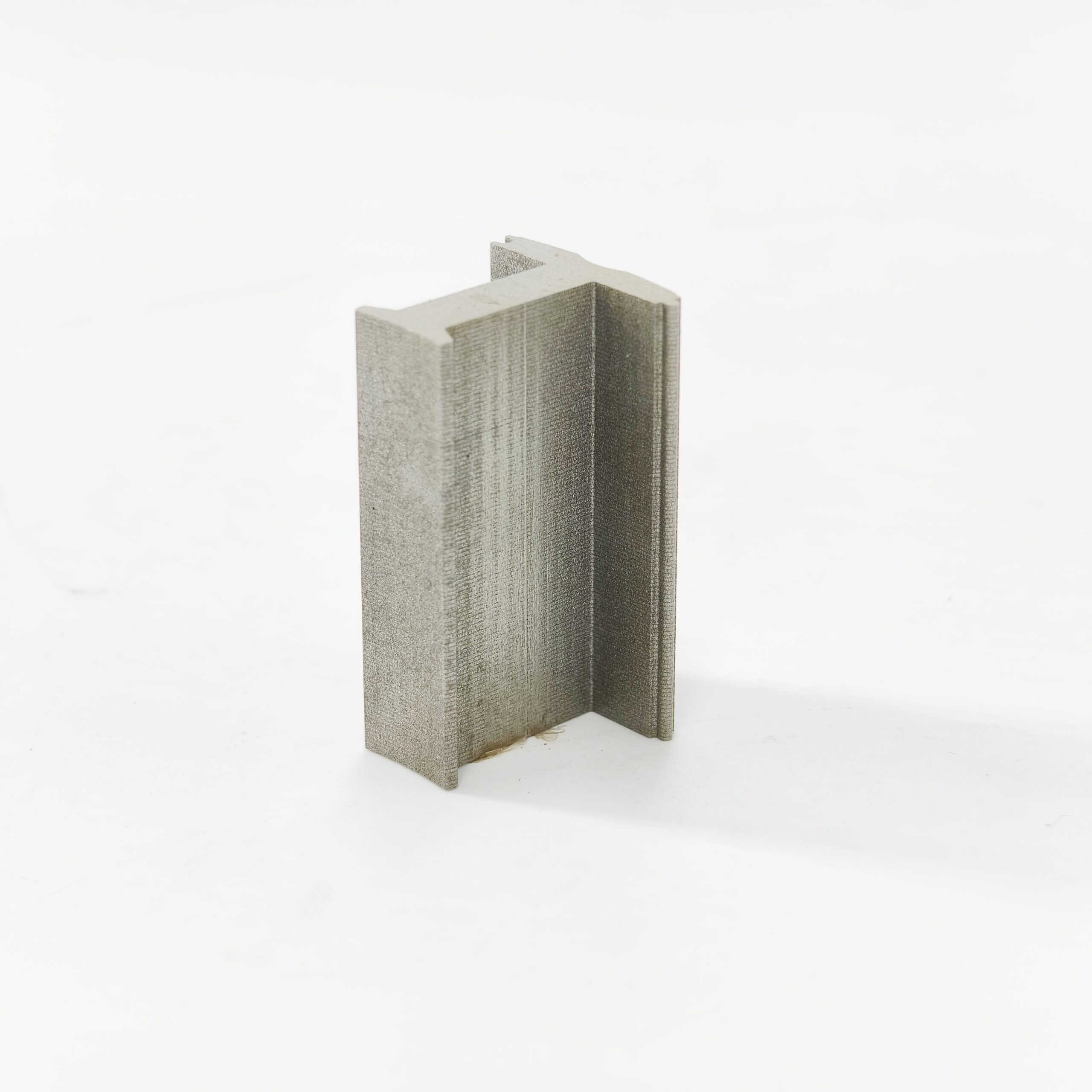

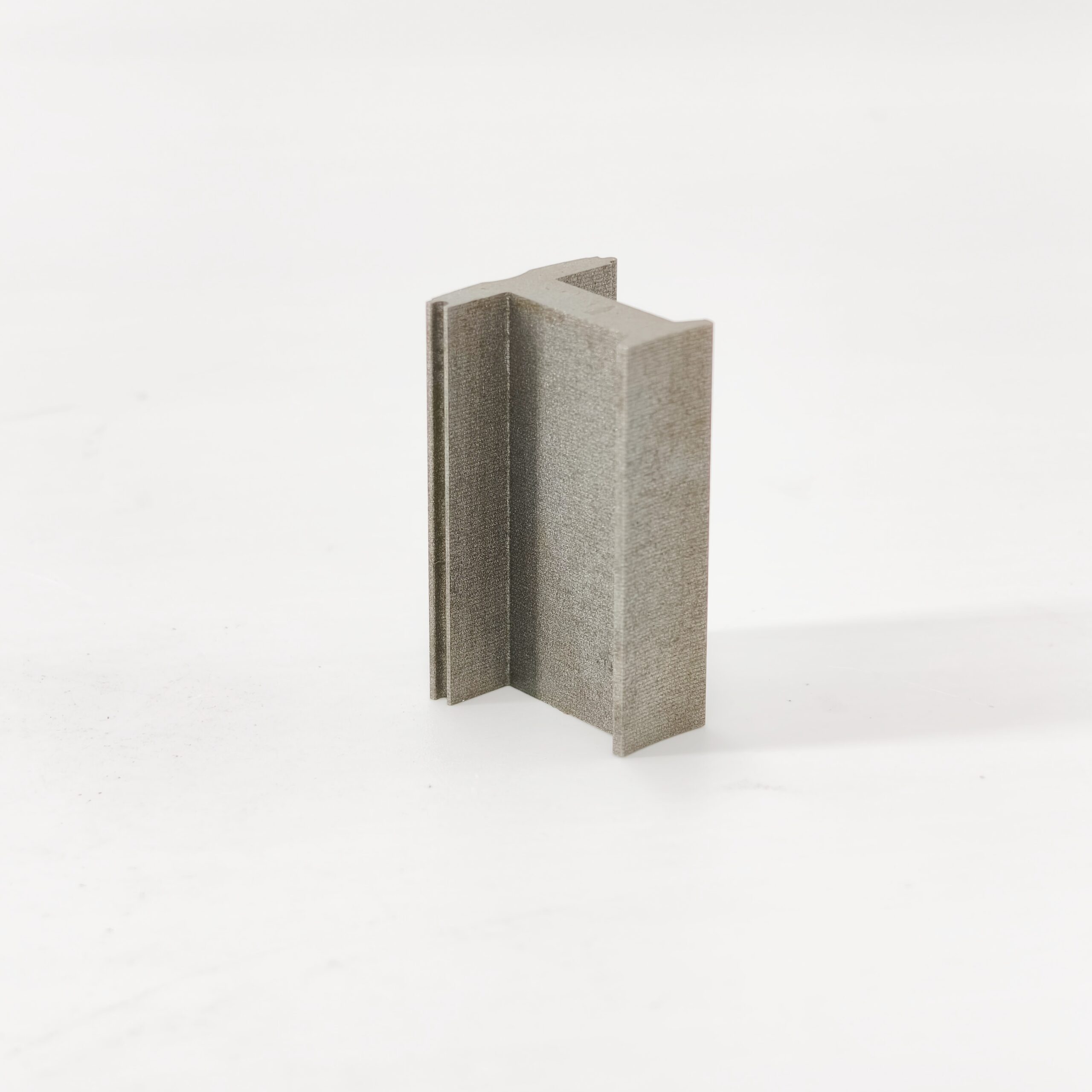

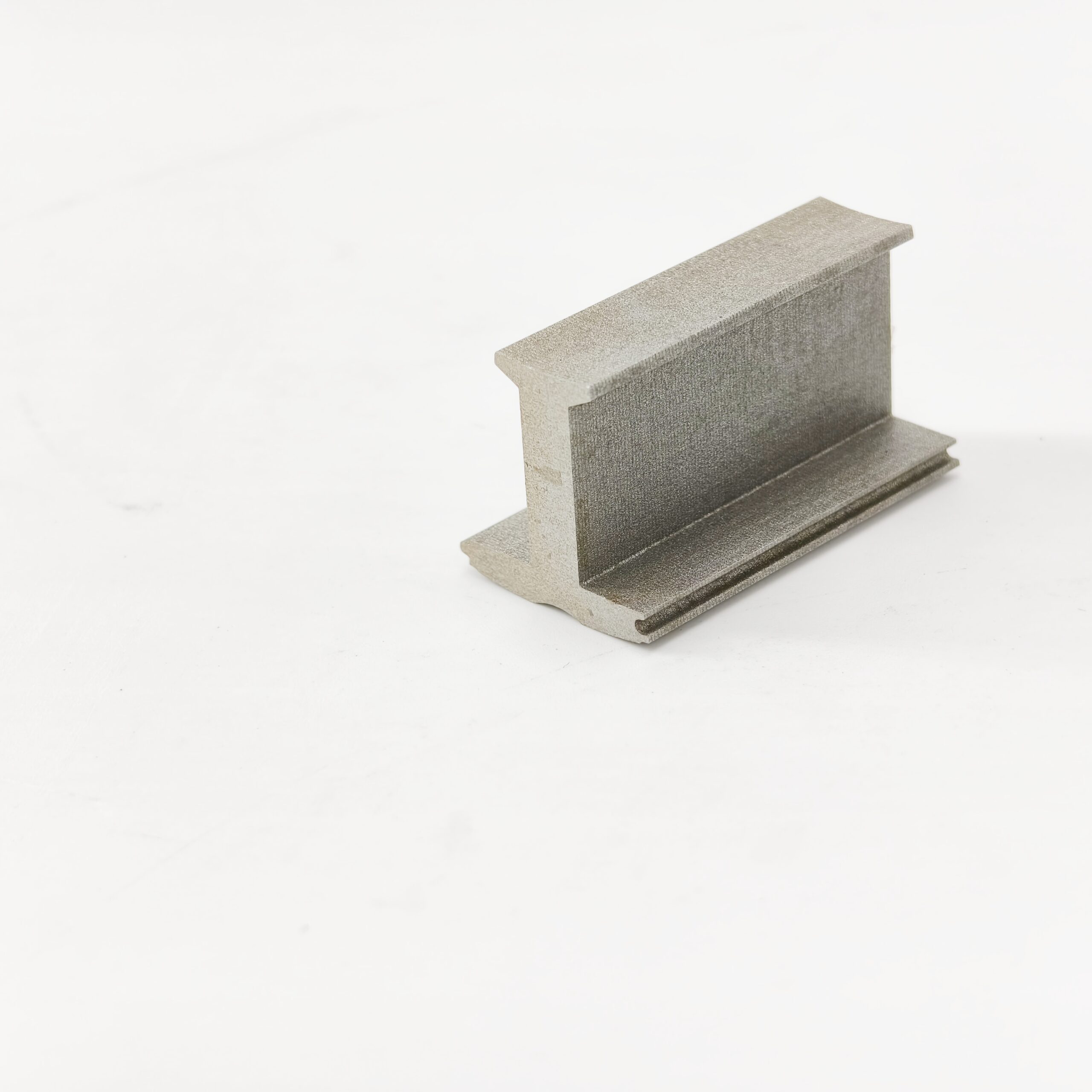

Segmented Stator Petal Lamination
As robotics continues to reshape manufacturing, logistics, and daily life, the demand for compact, efficient, and reliable electric motors is stronger than ever. Every movement of a robot arm, every rotation of a servo motor, depends on one critical component—the stator core. This component determines how smoothly and efficiently the motor transforms electrical energy into motion.
In modern automation, the robot motor stator core has become the foundation of performance. Because precision and stability are vital, manufacturers now seek advanced stator designs that minimize loss, reduce noise, and increase torque density. Therefore, a high-quality stator core is not just a part of the motor—it is the heart of robotic precision.
What Is a Robot Motor Stator Core?
The stator core is the stationary magnetic component that works with the rotor to create rotational movement. In robotic motors, it must deliver high torque in small spaces and maintain performance under continuous operation.
Unlike general-purpose stators, the robot motor stator core is designed for high-frequency response, compact dimensions, and low energy loss. It consists of laminated layers of silicon steel sheets, insulated and stacked precisely to reduce eddy current loss.
Moreover, the quality of each lamination directly affects the robot’s motion accuracy and efficiency. For this reason, manufacturers use laser cutting or wire-EDM processing to achieve the required precision and balance.
Key Advantages of Robot Motor Stator Cores
1. High Efficiency and Energy Saving
Because robots often run continuously, reducing core loss is crucial. The use of low-loss silicon steel ensures better magnetic flux performance and less heat generation. Consequently, the motor operates cooler and more efficiently.
2. Compact and Lightweight Design
Automation systems require lightweight components. The optimized structure of the robot stator core allows for compact motor designs without sacrificing output power.
3. Excellent Dynamic Response
Thanks to the precise lamination stacking and uniform magnetic field, the motor responds instantly to control signals. As a result, robots move with smoother acceleration, stability, and accuracy.
4. Low Noise and Vibration
Because the stator core is manufactured with fine tolerances, it minimizes mechanical vibration and magnetic noise—key features for collaborative robots and automation lines operating near humans.

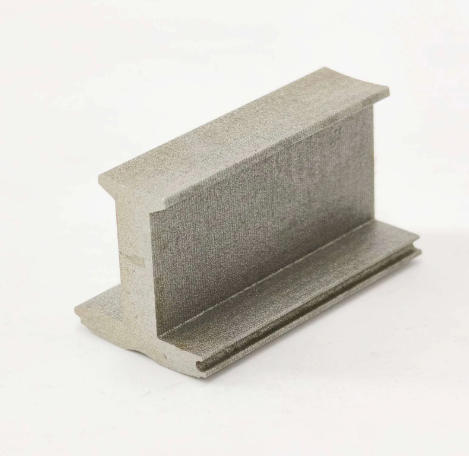

Radial Petal Stator Core
5. Extended Service Life
With advanced coating and insulation, the stator core resists corrosion and mechanical wear. Therefore, robots can operate longer with minimal maintenance.
Applications Across Robotics and Automation
The versatility of the robot motor stator core makes it suitable for a wide range of applications:
-
Industrial robots for assembly, welding, and packaging
-
Collaborative robots (Cobots) for precise motion control
-
AGV and AMR drive motors for logistics automation
-
Medical and laboratory robots requiring ultra-smooth operation
-
Humanoid and service robots demanding compact and lightweight motor systems
In each of these cases, the stator core defines the robot’s energy efficiency, stability, and accuracy. Moreover, its customization potential allows engineers to optimize every detail for specific tasks.
Precision Manufacturing Technology
To achieve outstanding performance, every robot motor stator core is produced using advanced technologies such as laser cutting, wire-EDM machining, and automatic stacking. These processes guarantee micron-level accuracy while reducing material stress and magnetic distortion.
In addition, each lamination is coated with C5, C6, or epoxy insulation to prevent eddy currents. The laminations are then stacked and bonded using interlocking, welding, or adhesive bonding depending on customer requirements.
Moreover, our production process follows ISO 9001 and IATF 16949 quality management systems, ensuring consistent reliability across all batches. Every stator core undergoes dimensional inspection, concentricity testing, and insulation verification before shipment.
Consequently, each robot motor core performs precisely as designed—consistently, efficiently, and durably.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Low-loss Silicon Steel (35W300 / 50W470 / equivalent) |
| Lamination Thickness | 0.2–0.5 mm |
| Outer Diameter | 30–300 mm |
| Inner Diameter | Customizable |
| Assembly Method | Riveted / Bonded / Welded |
| Insulation Coating | C5, C6, or Epoxy |
| Cutting Process | Laser / Wire-EDM |
| Applications | Industrial Robots, Cobots, AGV, AMR, Servo Motors |
Each parameter can be adjusted based on the robot’s speed, torque, and size requirements. Therefore, our engineering team works closely with clients to develop a custom robot motor stator core tailored to their unique design.
Why Choose Us as Your Stator Core Partner

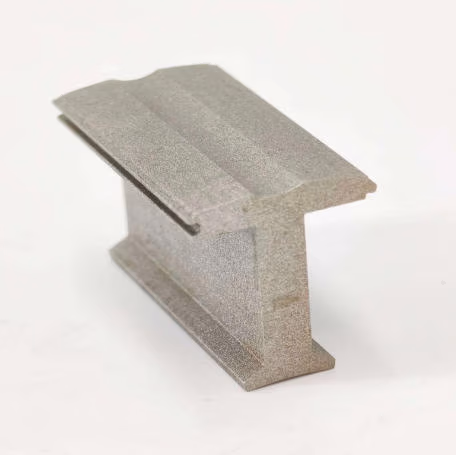

Flower Stack Stator Core
Choosing the right supplier means more than getting a product—it means gaining a long-term partner in innovation. We combine high-precision manufacturing with global supply experience to deliver dependable results.
Our advantages include:
-
OEM/ODM customization for robot and servo motor cores
-
Fast sampling and prototyping with flexible MOQ
-
Competitive pricing with direct factory control
-
Advanced testing and global quality certification
-
On-time delivery and professional technical support
Moreover, we continually improve our production methods to ensure our stator cores meet the growing demands of AI-powered and autonomous robotic systems worldwide.
Sustainability and Green Manufacturing
In addition to performance, sustainability is one of our top priorities. By using energy-efficient cutting methods and recyclable silicon steel materials, we help our clients reduce carbon emissions. Furthermore, our insulation coatings are environmentally friendly, meeting RoHS and REACH standards.
As a result, every robot motor stator core we produce not only supports innovation but also contributes to a greener and more sustainable future for automation.
Empowering the Future of Robotics
As robots become more intelligent and autonomous, the demand for precision components will continue to rise. The robot motor stator core—though small—plays a huge role in enabling high-speed, accurate, and efficient movement.
By combining advanced materials, innovative manufacturing, and global expertise, we deliver stator cores that power the next generation of robotic systems. Let’s shape the future of automation together—one magnetic core at a time.
