Stator Core Manufacturing Process: Complete Guide for High-Efficiency Electric Motor Production
Introduction to the Stator Core Manufacturing Process
The stator core manufacturing process is one of the most important parts of electric motor production. It directly affects motor efficiency, power density, thermal performance, noise control, and service life. Therefore, manufacturers across Europe and North America continue to improve every stage of stator core production.
Today, industries such as electric vehicles, industrial automation, robotics, aerospace systems, and renewable energy all require high-efficiency motor solutions. As a result, the demand for advanced stator core manufacturing technology keeps growing. In addition, manufacturers now focus more on low core loss, precision lamination stamping, bonded stator technology, and automated production systems.
Moreover, modern motor manufacturers must reduce energy loss while also improving reliability and production efficiency. Because of this, the stator core manufacturing process has become a key factor in smart manufacturing and next-generation motor development.
This guide explains the complete stator core manufacturing process step by step. Furthermore, it covers electrical steel selection, lamination production, stator core bonding, insulation coating, quality control, thermal management, and future production trends. At the same time, the article is fully optimized for Google SEO, AI Search, Google SGE, and B2B industrial markets.
motor stator core manufacturing
What Is a Stator Core in Electric Motor Manufacturing?
A stator core is the stationary magnetic structure inside an electric motor. It works together with the rotor to generate electromagnetic force. Therefore, the quality of the stator core directly affects motor performance.
In most cases, manufacturers build the stator core from thin electrical steel laminations. These laminations help reduce eddy current loss. As a result, motor efficiency improves significantly.
In addition, the stator core supports several important functions:
- Conducting magnetic flux
- Supporting motor windings
- Reducing energy loss
- Improving thermal stability
- Controlling vibration and noise
Because modern industries demand higher efficiency, stator core quality has become more important than ever.
Why the Stator Core Manufacturing Process Is Important
The stator core manufacturing process influences almost every aspect of motor performance. Therefore, precision manufacturing is essential for advanced motor systems.
If the manufacturing quality is poor, motors may suffer from:
- Higher iron loss
- Increased heat generation
- Lower efficiency
- Excessive vibration
- Shorter service life
- Unstable torque output
However, a high-quality stator core can improve:
- Energy efficiency
- Power density
- Thermal management
- Noise reduction
- Long-term reliability
Consequently, many manufacturers now invest heavily in intelligent stator core production technology.
Main Types of Stator Core Manufacturing Technology
Segmented Stator Core Manufacturing Process
The segmented stator core manufacturing process uses separate stator teeth instead of a fully integrated circular structure.
high efficiency motor core
As a result, manufacturers can achieve:
- Easier winding insertion
- Better automation
- Higher slot fill rates
- Lower copper loss
- Faster production
Therefore, segmented stator cores are widely used in:
- EV motors
- Axial flux motors
- High-speed motors
- Industrial robotics
Moreover, segmented stator production supports flexible OEM customization.
Bonded Stator Core Manufacturing Process
The bonded stator core manufacturing process uses adhesive bonding instead of traditional welding.
Because bonding reduces mechanical stress, it provides several advantages:
- Lower vibration
- Reduced noise
- Better magnetic performance
- Lower core loss
- Improved thermal stability
For this reason, bonded stator cores are becoming increasingly popular in premium motor systems.
Welded Stator Core Production
Some manufacturers still use welded stator core structures. In this process, laminations are joined through laser welding or TIG welding.
Although welding offers strong structural stability, excessive heat may increase magnetic loss. Therefore, manufacturers must carefully control the welding process.
Raw Materials Used in the Stator Core Manufacturing Process
Electrical Steel Selection for Stator Core Production
Electrical steel is the foundation of the stator core manufacturing process. Therefore, material quality strongly affects motor efficiency.
Manufacturers commonly use:
- Non-oriented silicon steel
- Grain-oriented electrical steel
- Amorphous alloy materials
- Soft magnetic composite materials
Among these materials, non-oriented silicon steel remains the most common option.
Because silicon steel provides low iron loss and high magnetic permeability, it supports high-efficiency motor operation.
Why Thin Laminations Improve Motor Efficiency
Thin laminations reduce eddy current loss inside the stator core. Consequently, motors generate less heat during operation.
Common lamination thicknesses include:
- 0.35 mm
- 0.30 mm
- 0.20 mm
- 0.10 mm ultra-thin laminations
Generally, high-speed motors require thinner laminations. Therefore, EV motors and aerospace motors often use advanced ultra-thin electrical steel.
Step-by-Step Stator Core Manufacturing Process
Electrical Steel Coil Preparation in the Stator Core Manufacturing Process
The stator core manufacturing process begins with electrical steel coil preparation.
First, manufacturers inspect the raw material carefully. They check:
- Surface condition
- Thickness consistency
- Magnetic properties
- Insulation coating quality
After inspection, the steel coil enters the automated production line.
Because raw material quality directly affects motor performance, this step is extremely important.
EV motor stator core
Lamination Stamping in the Stator Core Manufacturing Process
Lamination stamping is one of the most critical stages in the stator core manufacturing process.
During this stage, high-speed stamping machines cut stator laminations from electrical steel sheets.
As a result, manufacturers can achieve:
- High dimensional accuracy
- Smooth cutting edges
- Low burr height
- Better magnetic efficiency
In addition, progressive stamping systems improve production speed and consistency.
Therefore, most large OEM manufacturers use automated progressive die stamping systems.
Laser Cutting for Precision Stator Core Manufacturing
In some cases, manufacturers use laser cutting instead of stamping.
Laser cutting provides several benefits:
- Higher precision
- Faster prototyping
- Flexible design adjustment
- Lower tooling cost
Because of these advantages, laser cutting works well for:
- Small-volume production
- Motor research and development
- Prototype testing
However, stamping remains more cost-effective for mass production.
Deburring Process in Stator Core Production
After stamping, burrs may appear on lamination edges. Therefore, manufacturers must remove them carefully.
If burrs remain, they may cause:
- Electrical short circuits
- Insulation damage
- Higher core loss
- Reduced efficiency
As a result, deburring becomes an essential step in the stator core manufacturing process.
Manufacturers commonly use:
- Mechanical deburring
- Brush polishing
- Electrochemical deburring
Consequently, lamination quality improves significantly.
Insulation Coating in the Stator Core Manufacturing Process
Each lamination requires insulation coating before stacking.
This coating prevents electrical contact between steel sheets. Therefore, eddy current loss decreases.
In addition, insulation coatings improve thermal stability and corrosion resistance.
Common coating systems include:
- Organic coatings
- Inorganic coatings
- Hybrid insulation coatings
Because high-efficiency motors require lower core loss, advanced insulation technology is increasingly important.
Lamination Stacking in Stator Core Manufacturing
After coating, manufacturers stack laminations into the final stator core structure.

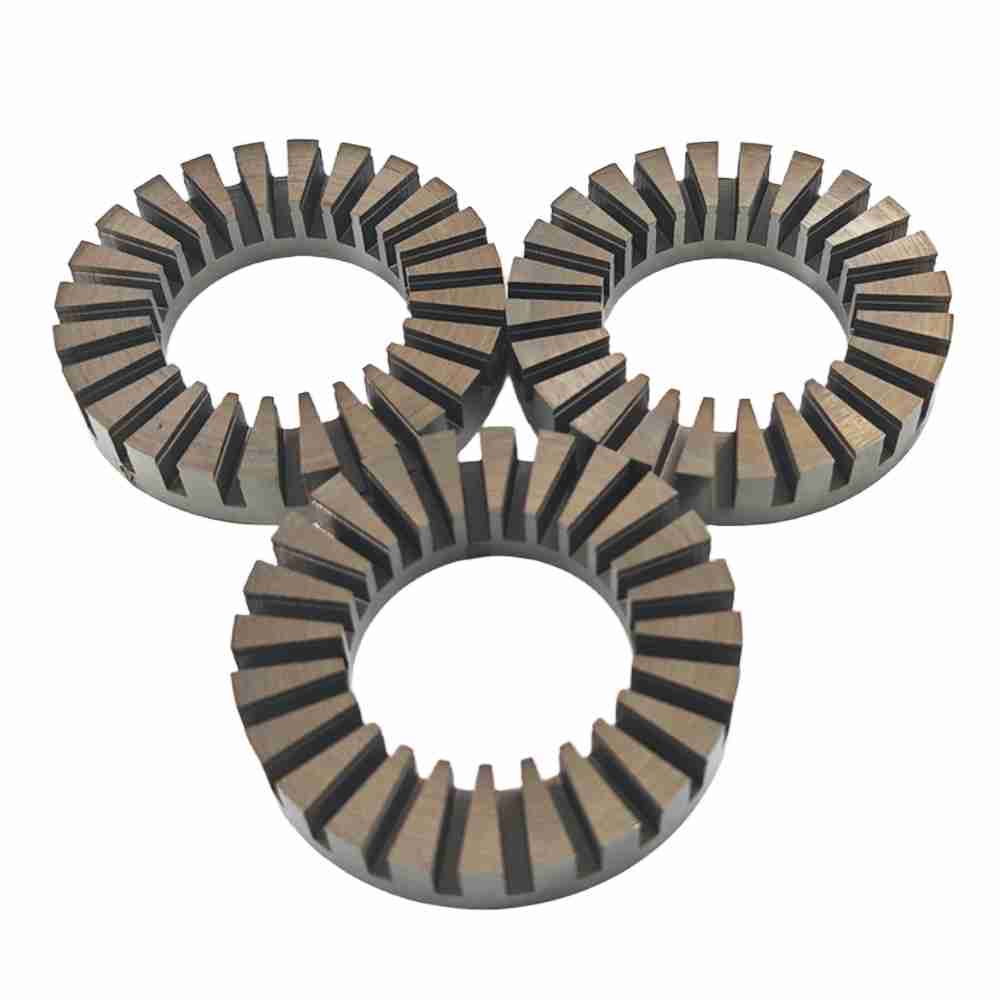

electric motor lamination stamping
During this stage, precise alignment is essential. Otherwise, magnetic imbalance may occur.
Modern factories often use:
- Robotic stacking systems
- Automatic alignment equipment
- AI positioning technology
As a result, stacking precision improves while production efficiency also increases.
Bonding Technology in the Stator Core Manufacturing Process
Bonding technology is now widely used in premium stator core manufacturing.
Compared with welding, bonding reduces internal stress significantly. Therefore, magnetic performance improves.
Common bonding methods include:
- Backlack bonding
- Adhesive bonding
- Interlocking bonding
Among these options, Backlack bonding is especially popular in EV motor production.
Furthermore, bonded stator cores provide quieter operation and lower vibration.
Welding and Interlocking in Stator Core Production
Some manufacturers continue using welding and interlocking methods.
Common techniques include:
- Laser welding
- TIG welding
- Mechanical interlocking
Although these methods provide strong structural support, they may also increase stress concentration.
Therefore, many high-efficiency motor manufacturers now prefer bonded stator technologies.
Core Compression and Forming in the Stator Core Manufacturing Process
After stacking, manufacturers compress the stator core structure.
This process improves:
- Mechanical rigidity
- Structural stability
- Dimensional consistency
Consequently, motor vibration decreases during operation.
In addition, compression improves rotor alignment accuracy.
Heat Treatment and Annealing Process

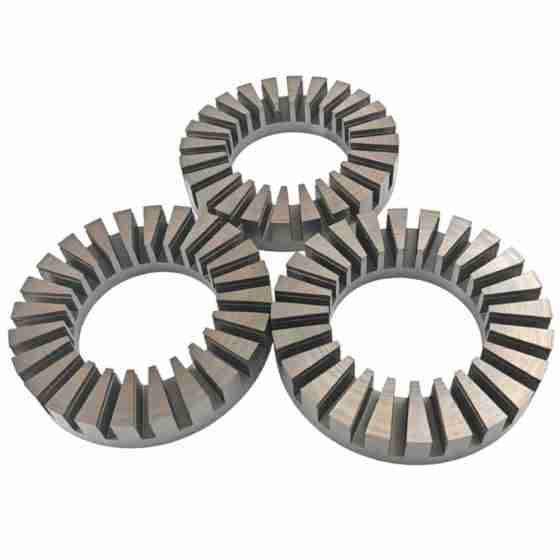

bonded stator core technology
Stamping creates internal stress inside electrical steel. Therefore, manufacturers often use annealing treatment.
Annealing provides several benefits:
- Reduced magnetic loss
- Improved permeability
- Better efficiency
- Lower internal stress
As a result, high-speed motor performance improves significantly.
Precision Machining in Stator Core Manufacturing
Next, the stator core enters the machining stage.
Manufacturers perform:
- Inner diameter machining
- Outer diameter grinding
- Slot finishing
- Surface correction
Because precision machining improves air gap consistency, it helps reduce motor noise and vibration.
Vacuum Pressure Impregnation in Stator Core Production
Many high-end motors use Vacuum Pressure Impregnation technology.
VPI improves:
- Electrical insulation
- Heat dissipation
- Structural stability
- Moisture resistance
Therefore, motor lifespan increases considerably.
Moreover, VPI technology supports long-term industrial reliability.
Quality Control in the Stator Core Manufacturing Process
Why Quality Inspection Is Critical
Quality control is essential throughout the stator core manufacturing process.
Modern factories use:
- AI visual inspection
- Laser measurement systems
- Magnetic testing equipment
- Automated defect detection
Because precision directly affects efficiency, manufacturers must control every production stage carefully.

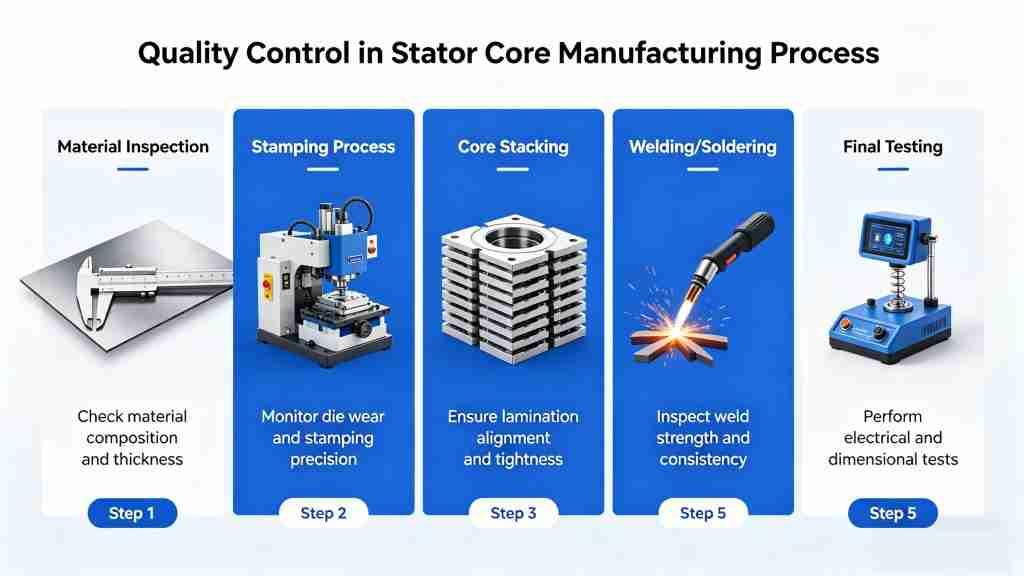

industrial motor stator manufacturing
Core Loss Testing in Stator Core Manufacturing
Core loss testing measures magnetic efficiency.
Manufacturers analyze:
- Hysteresis loss
- Eddy current loss
- Magnetic permeability
Lower core loss means better motor efficiency. Therefore, advanced testing systems are extremely important.
Dimensional Accuracy Inspection
Precision dimensions improve:
- Rotor alignment
- Air gap stability
- Torque consistency
- Noise reduction
As a result, manufacturers inspect:
- Slot width
- Stack height
- Inner diameter
- Outer diameter
Tight tolerances are especially important for EV motors and aerospace motors.
Automated Stator Core Manufacturing Technology

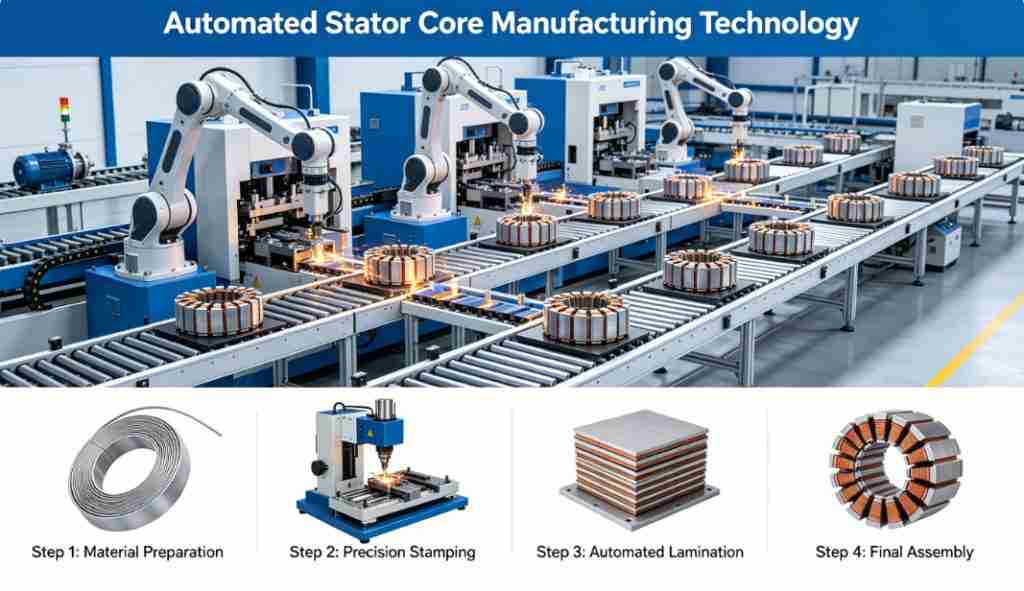

automation motor stator core
Industry 4.0 Smart Manufacturing Systems
Modern stator core manufacturing increasingly relies on Industry 4.0 technology.
Factories now use:
- Robotic automation
- Smart monitoring systems
- AI inspection systems
- Digital production management
Consequently, manufacturers can improve:
- Production speed
- Product consistency
- Quality stability
- Manufacturing efficiency
Moreover, automation reduces labor costs and human error.
Stator Core Manufacturing Process for EV Motors

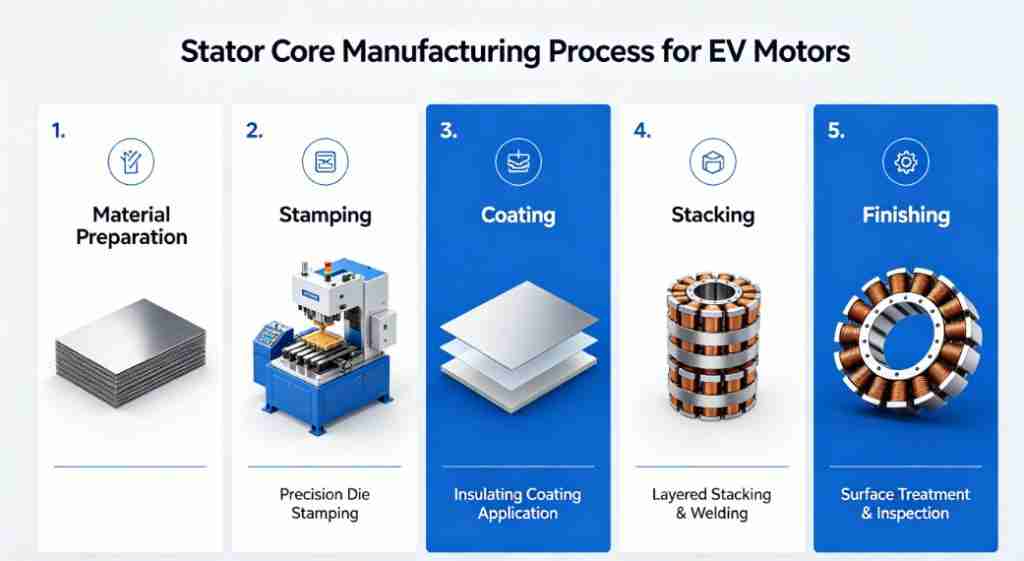

smart manufacturing motor core
Why EV Motors Need Advanced Stator Core Production
Electric vehicle motors require:
- Low iron loss
- High torque density
- Lightweight structures
- Better thermal performance
Therefore, EV manufacturers use advanced stator core manufacturing technology.
In addition, EV systems demand extremely high efficiency to improve driving range.
Axial Flux Stator Core Manufacturing Process
Specialized Production for Axial Flux Motors
Axial flux motors use unique stator structures. Therefore, their manufacturing process differs from traditional radial motors.
These motors require:
- Precision disc laminations
- Thin electrical steel
- High slot fill rates
- Compact structures
Because axial flux motors focus on high power density, manufacturing precision becomes even more critical.
Aerospace Stator Core Manufacturing Technology

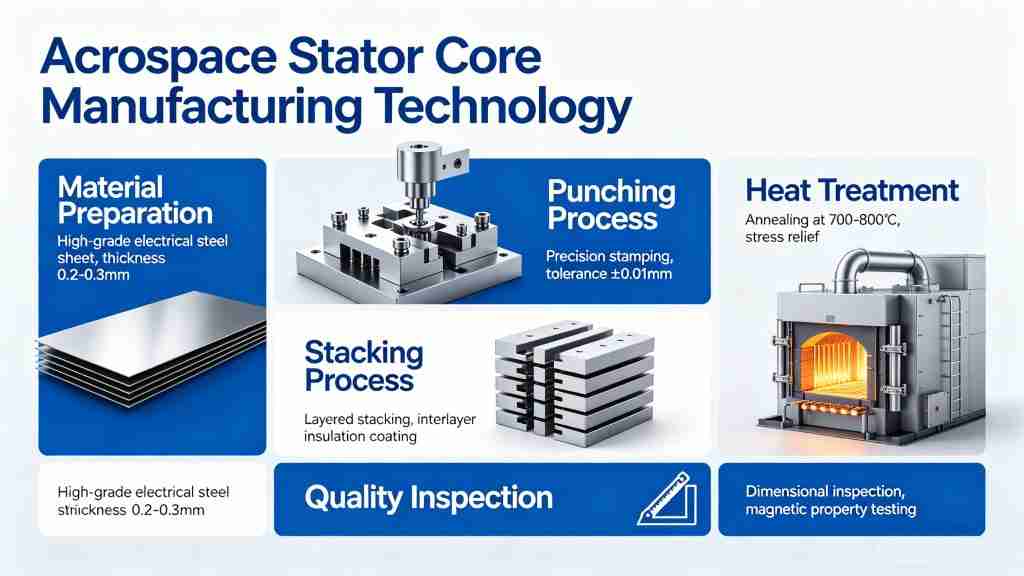

Aerospace Stator Core Manufacturing Technology
Lightweight and High-Efficiency Requirements
Aerospace motors require:
- Ultra-light structures
- Maximum efficiency
- Excellent thermal resistance
As a result, aerospace manufacturers use:
- Advanced bonding technology
- High-grade electrical steel
- Precision laser cutting
- Ultra-thin laminations
Furthermore, aerospace systems require extremely reliable production quality.
Industrial Automation Stator Core Manufacturing
Supporting Smart Factory Systems
Industrial automation systems demand:
- Stable motor performance
- Long service life
- Low maintenance
- High efficiency
Therefore, stator core quality directly affects smart manufacturing productivity.
In addition, high-efficiency stator cores help reduce factory energy consumption.
Thermal Management in the Stator Core Manufacturing Process
Why Heat Control Matters
Heat is one of the biggest challenges in electric motor systems.
Excessive heat may reduce:
- Insulation lifespan
- Magnet stability
- Motor efficiency
- Bearing durability
Therefore, modern stator core designs include:
- Cooling channels
- Low-loss materials
- Improved airflow structures
- Better insulation systems
Consequently, motors operate more reliably under heavy loads.
Noise and Vibration Reduction in Stator Core Production
Quiet Motor Design Is Increasingly Important
Many industries now demand quieter motor systems.
This is especially important for:
- Medical equipment
- Electric vehicles
- Robotics
- Home automation systems
Therefore, manufacturers reduce vibration through:
- Precision stacking
- Bonded stator technology
- Better balancing
- Accurate machining
As a result, motors operate more smoothly and quietly.
Sustainable Stator Core Manufacturing Technology
Green Manufacturing Trends
Today, Europe and North America focus strongly on sustainable production.
Therefore, manufacturers increasingly use:
- Energy-saving equipment
- Recyclable materials
- Low-carbon production systems
- Waste reduction technology
In addition, sustainable manufacturing helps companies meet ESG goals and environmental regulations.
Common Challenges in the Stator Core Manufacturing Process
Burr Control Problems
Excessive burrs may damage insulation systems. Therefore, tooling maintenance is essential.
Increased Core Loss
Poor material handling may increase iron loss. Consequently, motor efficiency decreases.
Lamination Misalignment
Improper stacking may cause vibration and magnetic imbalance. Therefore, automated alignment systems are increasingly important.
How to Choose a Reliable Stator Core Manufacturer
Key Supplier Evaluation Factors
B2B buyers should evaluate:
- Manufacturing experience
- Automation capability
- Material quality
- Testing systems
- Engineering support
- OEM production capacity
In addition, reliable suppliers should provide:
- Technical drawings
- Material certifications
- Quality reports
- Prototype support
Therefore, supplier capability strongly affects long-term project success.
Certifications in the Stator Core Manufacturing Process
Global Standards for Motor Manufacturing
Leading stator core manufacturers often hold:
- ISO 9001 certification
- IATF 16949 certification
- CE compliance
- RoHS compliance
These certifications improve:
- Market competitiveness
- Product reliability
- International trust
Therefore, certifications are very important for EU and North American markets.
Final Thoughts on the Stator Core Manufacturing Process
The stator core manufacturing process directly affects electric motor efficiency, reliability, and long-term performance. Therefore, precision manufacturing is essential for modern industries.
From material selection to lamination stamping, bonding, insulation, and testing, every step matters. In addition, advanced automation and intelligent manufacturing systems continue improving product consistency and production efficiency.
As the EV, aerospace, robotics, and industrial automation markets continue growing, demand for high-quality stator core manufacturing will increase even further.
Companies that invest in advanced stator core production technology can achieve:
- Better motor efficiency
- Lower energy loss
- Higher power density
- Longer service life
- Stronger market competitiveness
Therefore, choosing the right manufacturing process and supplier is now more important than ever for B2B industrial success.
شكرا لكم عملكم نال اعجابنا
