Universal Stator Core Size – One Core Solution for Multiple Motor Designs

In today’s competitive electric motor industry, versatility and precision are key. The Universal stator core size offers both. Designed with standard dimensions yet flexible enough to fit various motor types, this innovation simplifies manufacturing, reduces cost, and maintains high performance.

By understanding the importance of universal stator core size, engineers and manufacturers can streamline production while achieving consistent magnetic efficiency and reliability across multiple motor models.

What Is a Universal Stator Core?

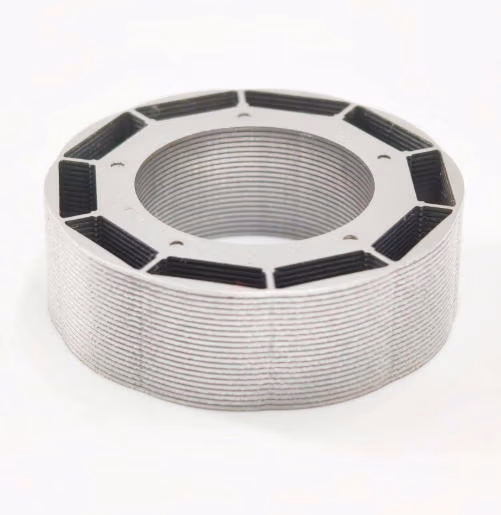

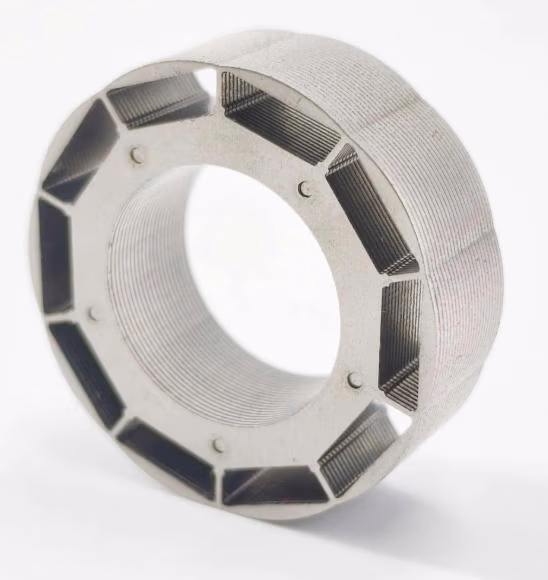

A universal stator core is a standardized laminated steel structure used as the stationary magnetic component in electric motors. Unlike custom cores made for one design, a universal core features interchangeable dimensions and mounting compatibility, allowing it to serve different frame sizes and applications.

This approach not only lowers tooling costs but also ensures faster production turnaround. Moreover, the universal size standard supports both induction motors and permanent magnet motors, making it ideal for OEMs seeking scalable solutions.

The core is built from high-grade, low-loss silicon steel laminations stacked precisely to reduce eddy current losses and enhance magnetic performance. Each layer is insulated and aligned to maintain consistent flux distribution.

Key Benefits of Universal Stator Core Sizes

1. Simplified Production and Inventory
Manufacturers can use one stator size for multiple motor models. As a result, inventory management becomes easier, and production time decreases significantly.

2. Cost Efficiency
Because the same mold and tooling can produce various models, you save on setup costs and reduce material waste.

3. Consistent Magnetic Performance
The universal stator core design maintains stable flux flow and torque output, ensuring smooth and efficient motor operation across all applications.

4. Custom Adaptability
Although it follows standard dimensions, the universal core allows customization in lamination thickness, slot number, tooth shape, and insulation coating. Therefore, you can optimize performance based on your motor’s voltage, frequency, and torque requirements.

5. Global Compatibility
The universal size standard fits most IEC and NEMA frame motors, making it suitable for global export and cross-market production.

Applications Across Multiple Industries

Because of its flexibility, the universal stator core works perfectly in a wide range of electric motors, including:

• Industrial induction motors

• Electric vehicle (EV) traction motors

• Pumps, fans, and compressors

• HVAC and automation equipment

• Renewable energy systems and generators

• Home appliances and power tools

In short, this universal sizing concept helps companies reduce development costs while maintaining the performance quality demanded by modern energy-efficient systems.

Precision Manufacturing and Quality Control

We manufacture universal stator cores using high-speed punching and precision laser cutting to ensure tight tolerances and smooth edges. Our automated stacking process guarantees perfect lamination alignment for maximum magnetic efficiency.

Each stator core uses electrical steel grades such as 35W300, 50W470, or equivalent international materials. After stacking, we apply insulation coatings (C5, C6, or epoxy) to prevent short circuits and magnetic losses.

In addition, our factory performs strict quality inspections, including:

• Dimensional and concentricity checks

• Insulation resistance testing

• Magnetic loss and core saturation analysis

All products meet ISO 9001, IATF 16949, and RoHS compliance, ensuring reliable performance for global customers.

Standard and Custom Stator Core Sizes

Our universal stator core size range covers most industrial and commercial needs. Typical specifications include:

Because of this wide range, one universal core can be adapted easily to fit different motor categories without changing your design framework.

Why Choose Us as Your Stator Core Partner

Partnering with an experienced laminated stator core manufacturer gives you a strong competitive advantage. Here’s why customers worldwide trust us:

• OEM/ODM Service: From concept design to mass production, we provide complete engineering support.

• Flexible MOQ: Suitable for startups, pilot projects, and full-scale manufacturing.

• Fast Delivery: Automated lines ensure rapid production and stable quality.

• Competitive Pricing: Direct factory supply reduces total cost per motor.

• Global Service: We export to Europe, the USA, Japan, and Southeast Asia with reliable logistics and after-sales support.

Our team continuously improves lamination design and manufacturing precision to help you achieve higher efficiency, lower losses, and better cost control.

Sustainability and Energy Efficiency

Energy efficiency is not only a market demand but a shared responsibility. Our universal stator core designs help reduce energy loss during motor operation, lowering overall power consumption.

We also follow green manufacturing principles, including material recycling, eco-friendly insulation coatings, and optimized power use during production. As a result, your motors perform efficiently while contributing to a more sustainable environment.

Driving the Future with Universal Stator Core Innovation

By adopting universal stator core sizes, manufacturers gain flexibility, reduce waste, and maintain consistent product quality across multiple motor series. This innovation enables faster time to market and supports the global shift toward energy-efficient, cost-effective motor solutions.

Whether you’re producing industrial drives, EV motors, or household appliances, our universal stator cores deliver precision, strength, and performance—every time.
