Technological Innovation in Stators and Rotors for New Energy Vehicle Motors

In new energy vehicles, the drive motor is the core of the “three electrics” system. It converts energy, and its performance directly affects efficiency, driving range, and the overall driving experience. As a result, the global shift to electrification has made innovation in the stator and rotor—the motor’s key components—a central focus of industry competition. Stator and rotor technology

I. Stator Technology: Higher Power Density and Better Heat Management

The stator, the stationary part of the motor, generates the rotating magnetic field. To improve performance, it is important to increase power density, reduce energy losses, and manage heat effectively.

1. Flat-Wire Winding Technology Stator and rotor technology

Flat-wire windings are gradually replacing traditional round-wire windings. This is because round wires have low slot fill and high thermal resistance. Flat wires, with rectangular cross-sections, pack tightly to increase slot fill by 20–30% and reduce energy losses. For example, Tesla Model 3/Y and BYD’s e-Platform 3.0 already use this technology, achieving power densities of up to 6 kW/kg.

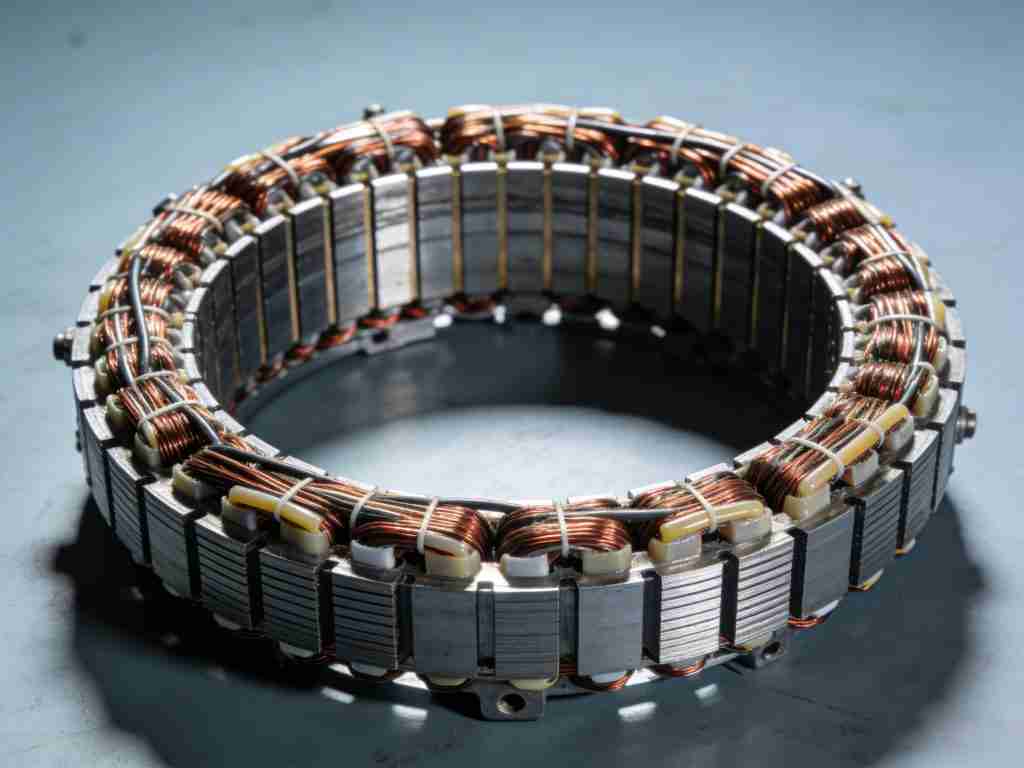

Automotive Motor Stator

2. Cooling and Topology Optimization

Some motors now use in-stator-slot liquid cooling. Here, the coolant touches the windings directly, improving heat removal by 50% over standard water cooling. In addition, topology optimization allows the stator to become lighter and more uniform in magnetic field distribution, which reduces iron losses by 12%.

Axial Flux Motor Exploded View

II. Rotor Technology: Smarter Magnet and Reluctance Designs

The rotor, the motor’s rotating part, affects torque, efficiency, and cost. Therefore, innovations focus on Permanent Magnet Synchronous Motors (PMSMs) and Reluctance Motors.

1. High-Energy Magnets and Less Rare-Earth Use Stator and rotor technology

Neodymium-iron-boron (NdFeB) magnets are still widely used. However, rising rare-earth prices drive new approaches. Jing-Jin Electric combines Samarium-Cobalt (SmCo) with ferrite for stable, cost-effective magnets.

2. Asynchronous Rotors and PM-Assisted Reluctance

For high-speed, heavy-duty motors, some designs use asynchronous copper-core rotors. By doing so, copper bars in an iron core improve strength, allowing speeds up to 20,000 rpm. In contrast, BMW’s iX3 uses Permanent Magnet-Assisted Synchronous Reluctance (PMASR) rotors. As a result, reluctance torque contributes 60%, boosting efficiency to 92% and reducing rare-earth dependence.

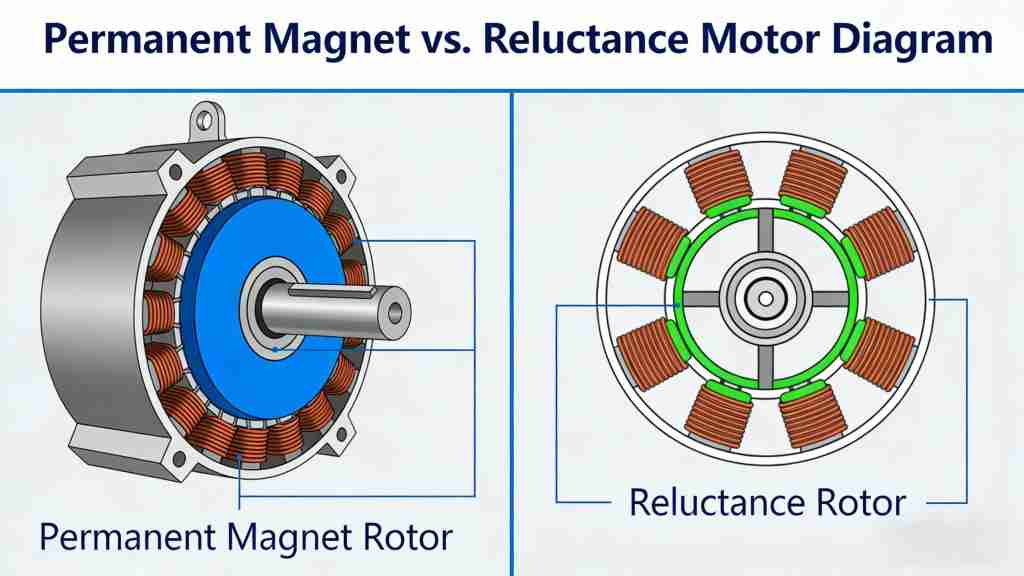

Illustrated Guide to Permanent Magnet and Reluctance Motors

3. Multi-Layer V-Shaped Magnets and Laser Welding

High-speed operation can generate eddy current losses. To address this, some motors use five-layer V-shaped magnets with segmented poles. Furthermore, laser welding strengthens the rotor-magnet bond by 30%, ensuring reliability for 200 kW-class motors under extreme conditions.

III. Future Trends Stator and rotor technology

Three key trends are emerging:

1. Axial-Flux Motors – e.g., YASA’s design halves motor size while also supporting 800V platforms.
2. Intelligent Manufacturing – Automated factories reduce production time and improve consistency.
3. Materials Revolution – Amorphous alloy stator cores, such as in Quark Electric Drive 2.0, further enhance efficiency.

IV. Conclusion Stator and rotor technology

Stator and rotor innovations are pushing the limits of EV performance. From flat-wire windings to reduced rare-earth magnets, and from advanced cooling to axial-flux designs, every development therefore leads to more efficient, reliable, and sustainable electric vehicles. Ultimately, these innovations point toward a cleaner and smarter electric future.
