Unveiling Motor Stator Core Material and Rotor Materials

A Complete Guide to Electric Motor Efficiency and Material Selection

Introduction: Why Stator Core Material Is Critical

Today, electric motors are used everywhere. For example, they power EVs, robots, and HVAC systems. Therefore, choosing the right stator core material is very important.

In fact, the motor stator core material affects efficiency, heat, and lifespan. At the same time, rotor materials also affect torque and speed. As a result, both parts must work together.

In this guide, we explain stator core materials, rotor materials, and performance trade-offs. In addition, we share B2B selection tips.

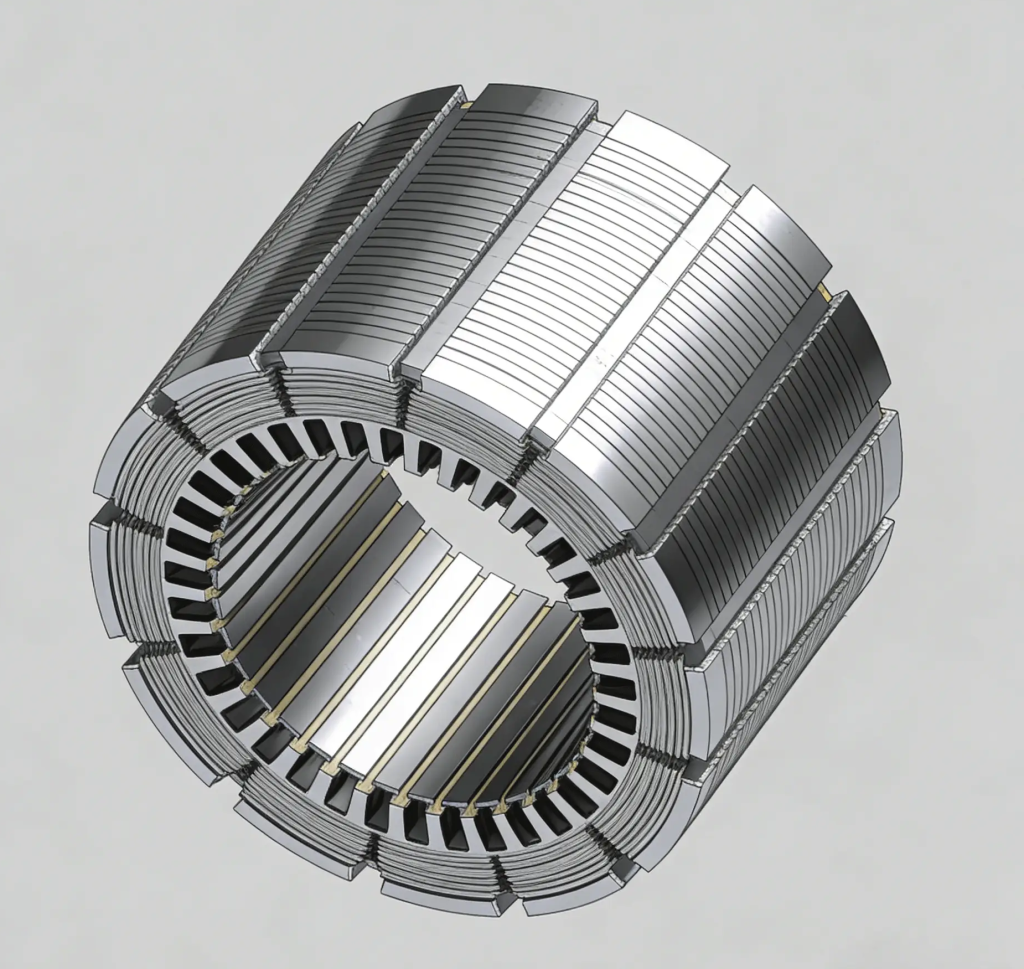

I. Stator Core Material Basics and Motor Efficiency

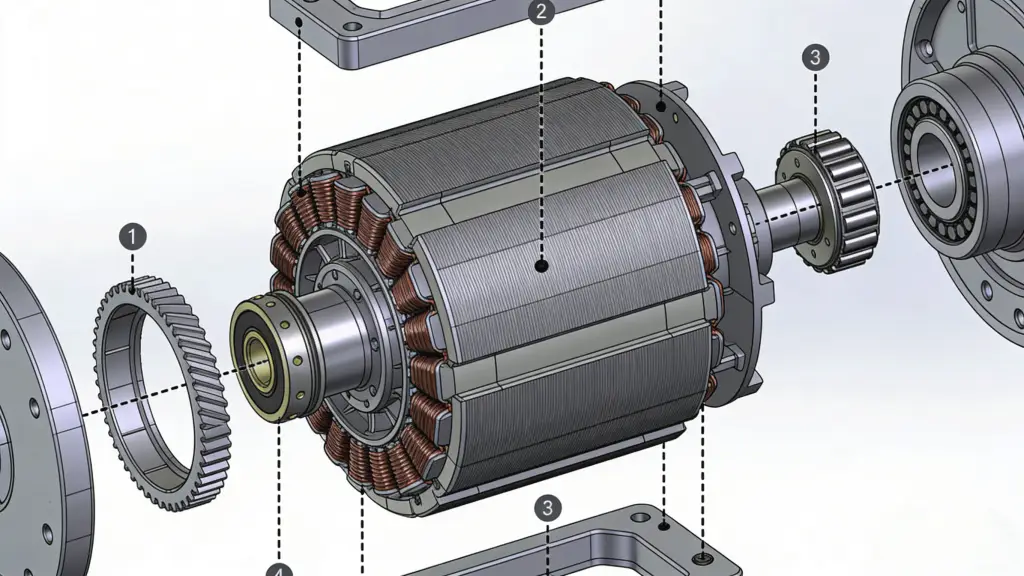

What Is a Stator and How Stator Core Material Works

First, the stator is the stationary part of a motor. It creates a magnetic field, and then the rotor moves. Therefore, the electric motor stator material must be efficient.

In most cases, the stator includes three parts. These are:

• stator lamination material

• Windings

• Insulation

Together, these parts define performance. As a result, better stator lamination material lead to better motors.

Silicon Steel Laminations as the Main Stator Core Material

Why Silicon Steel Is Used

First, silicon steel is the most common stator core material. Because it has good magnetic properties, it is widely used.

In addition, silicon steel sheets are very thin. Therefore, they reduce eddy current loss. As a result, efficiency improves.

Typical thickness:

• 0.35 mm to 0.50 mm

How Silicon Content Improves Stator Core Material

Next, silicon content plays a key role. When it reaches about 3%, performance improves.

For example:

• Iron loss is lower

• Magnetic flow is better

As a result, the motor core material works more efficiently. However, higher silicon content can increase cost. So, balance is needed.

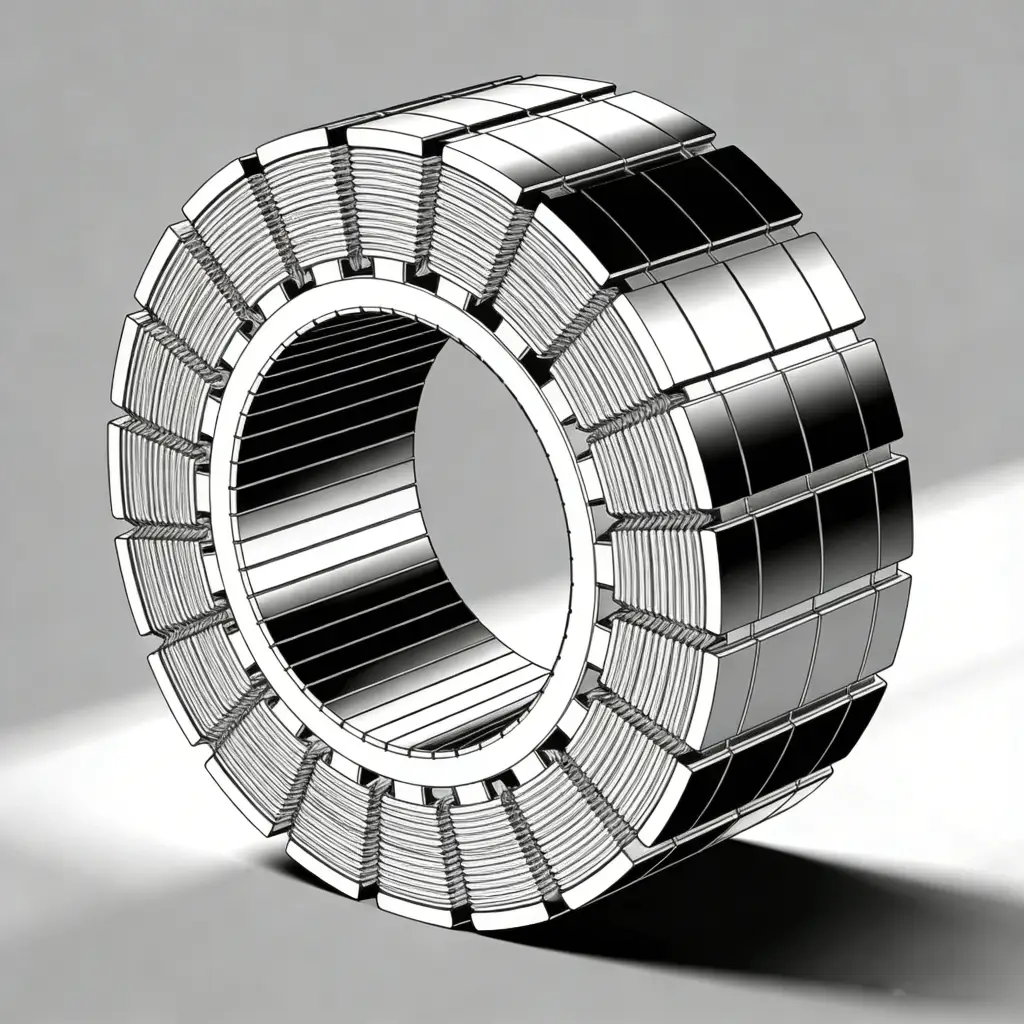

Copper Windings in Motor Stator Core Material Systems

Why Copper Is Preferred

Next, copper windings are used in most motor stator lamination material systems. Because copper has high conductivity, it allows easy current flow.

In addition, copper purity is usually above 99.9%. Therefore, resistance is very low.

Copper vs Aluminum Comparison

Compared with aluminum, copper performs better.

• Efficiency improves by 5–8%

• Heat loss is lower

As a result, many high-end electric motor stator materials use copper. However, copper costs more. So, some systems still use aluminum.

Insulation Materials Supporting Stator Core Materials

Why Insulation Is Important

Next, insulation protects the stator lamination material system. Without it, heat can damage the motor.

Polyimide Film Benefits

Most systems use polyimide film. Because it resists high temperature, it works well.

Key features:

• Temperature ≥180°C

• Long life

As a result, the motor stator lamination material structure becomes more reliable. In addition, maintenance cost is lower.

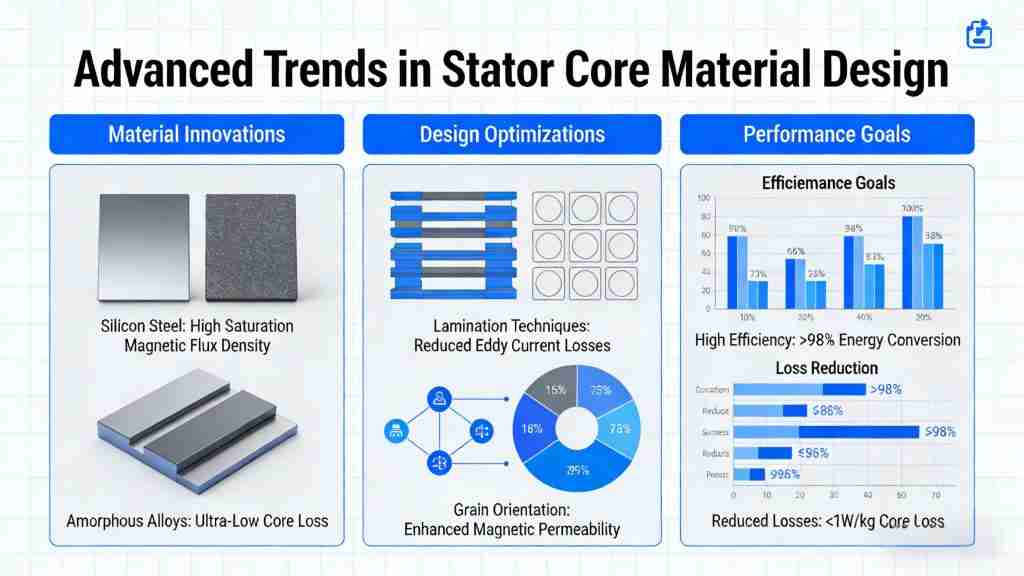

Advanced Trends in Stator Core Material Design

Today, new technology improves stator lamination material. For example, thinner laminations reduce loss.

Moreover, laser cutting improves precision. Therefore, performance increases.

In addition, AI tools help optimize motor core material design. As a result, efficiency keeps improving.

II. Rotor Materials and Their Link to Stator Core Material

Why Rotor and Stator Core Material Must Match

First, the rotor works with the stator lamination material. Therefore, both must be matched.

If not, efficiency drops. As a result, energy loss increases.

Squirrel-Cage Rotor and Standard Stator Core Materials

Structure and Materials

First, the squirrel-cage rotor is simple. It uses metal bars, usually aluminum.

Performance and Applications

Because it is simple, cost is low. As a result, it is widely used.

Typical uses:

• Industrial motors

• Fans and pumps

In addition, it works well with standard stator lamination material.

Wound Rotor for Speed Control

Design Features

Next, the wound rotor uses copper windings. Therefore, it allows speed control.

Advantages

• Smooth start

• Adjustable torque

As a result, it is used in heavy machines. In addition, it supports better control.

Permanent Magnet Rotor with High-Performance Stator Core Material

Key Materials

Next, permanent magnet rotors use NdFeB or ferrite.

Performance Benefits

Because NdFeB is strong, motors become smaller. As a result, size can drop by 30%.

In addition, efficiency increases.

Matching Stator Core Material

However, strong magnets need better electric motor stator materials. Therefore, high-grade silicon steel is used.

In this way, the stator lamination material system supports high performance.

III. Performance Trade-Offs in Motor Core Material

Efficiency vs Cost

First, copper improves efficiency. However, it costs more.

On the other hand, aluminum is cheaper. But, it is less efficient. Therefore, balance is needed.

Size vs Power Density

Permanent magnets reduce size. As a result, motors are compact.

However, cost increases. So, this is used in high-end systems.

Heat Resistance vs Lifespan

High-temperature insulation improves life. Therefore, motors last longer.

In fact, lifespan can double.

Lamination Thickness vs Cost

Thin laminations reduce loss. However, they are harder to make.

As a result, cost increases. So, advanced production is needed.

IV. Application-Based Stator Core Material Selection

Electric Vehicles

First, EV motors need high efficiency. Therefore, they use:

• High-grade stator lamination material

• Copper windings

As a result, driving range improves.

Industrial Automation

Next, factories need reliability. So, they use:

• Standard stator lamination material

• Squirrel-cage rotors

As a result, cost and performance are balanced.

HVAC Systems

In HVAC, cost matters. Therefore, simple motor stator lamination material systems are used.

As a result, systems remain affordable.

Robotics

Finally, robots need precision. Therefore, high-end electric motor stator materials are used.

As a result, performance is very high.

V. B2B Sourcing Strategy for Stator Core Material

Key Factors

When buying stator lamination material, check:

• Quality

• Supplier capability

In addition, check customization options.

Cost Optimization

To reduce cost, you can:

• Use mixed materials

• Optimize design

As a result, total cost drops.

Quality Control

Always verify:

• Certifications

• Test reports

Therefore, risk is reduced.

VI. Future Trends in Stator Core Material

AI Optimization

AI helps design better motor core materials. For example, it improves magnetic layout.

As a result, efficiency increases.

Sustainable Materials

More companies use green materials. Therefore, environmental impact is lower.

High-Speed Motors

Future motors need better stator lamination material. Therefore, stronger and lighter materials are used.

VII. Conclusion: Choosing the Right Stator Core Material

In summary, the stator lamination material defines motor performance.

• Silicon steel reduces loss

• Copper improves efficiency

However, no single solution fits all. Therefore, choose based on application.
