Stator Core Full Guide:

The stator core is one of the most important parts inside any electric motor. It shapes magnetic fields, supports the windings, and helps increase the overall motor efficiency. Because modern motors must deliver higher power and lower energy loss, the design and materials of the stator core now matter more than ever. In this article, we explain the basics of the stator core using simple language, clear structures, and smooth transitions.

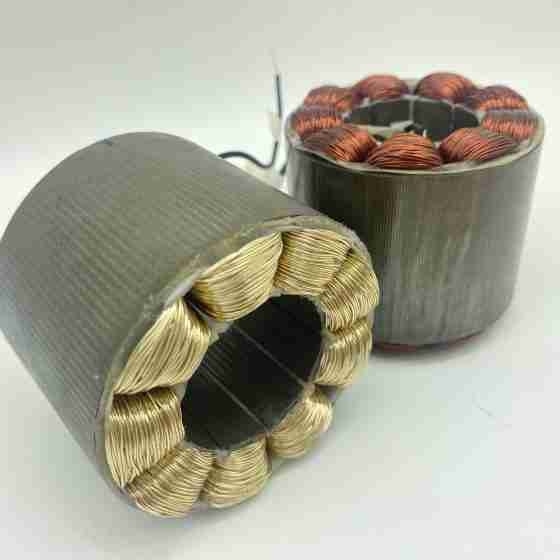

1. Introduction to the Stator Core

The stator core is the stationary part of a motor. It works together with the rotor to generate torque. Inside electric motors, energy conversion happens constantly. Because of this, the stator core must handle magnetic flux, heat, vibration, and long operating hours. It also needs to keep losses low while delivering stable performance.

Although the concept sounds simple, it plays a big role in motor efficiency. When engineers improve the stator core design, the motor becomes more powerful and more reliable. For this reason, the stator core is widely discussed in industries such as EV motors, industrial automation, home appliances, robotics, and wind power.

To better understand this part, we first need to look at basic principles and key functions.

2. Basic Structure and Key Concepts

A stator core usually has the following parts:

• Laminated electrical steel sheets

• Slots for stator windings

• Outer frame for mechanical support

The laminations reduce eddy current loss, which helps save energy. Meanwhile, the slots hold the windings in place, allowing the motor to generate electromagnetic torque.

To make the concept easier, here are several key terms:

Magnetic flux

The magnetic flow created by the stator and rotor.

Core loss

Energy loss caused by eddy currents and hysteresis.

Efficiency

The relationship between output power and input energy.

Because motors are used everywhere today, even small improvements in these areas can create big benefits. For example, lowering core loss helps reduce heat. And when heat goes down, motor lifetime increases. As a result, many companies now invest in high-performance stator core designs.

3. Materials Used in Stator Cores

Choosing the right material is one of the most important steps. Most stator cores use silicon steel laminations, also known as electrical steel. These materials come in different grades, and each grade has different magnetic performance.

Here are some common options:

1. Non-oriented electrical steel (NOES)

• Offers balanced magnetic properties

• Used in many industrial motors

• More cost-effective

2. Grain-oriented electrical steel (GOES)

• Designed for directional magnetization

• Offers lower core loss

• More common in transformers

3. High-silicon steel

• Provides lower iron loss

• Used in high-speed or high-efficiency motors

4. Soft magnetic composites (SMC)

• Used in new motor designs

• Provides 3D magnetic flow paths

• Suitable for compact structures

Because new energy vehicles and robotics demand higher power density, more manufacturers are switching to ultra-thin laminations. These laminations reduce iron loss and keep heat under control. As a result, high-grade electrical steel has become a key factor in motor performance.

4. How the Stator Core Is Manufactured

The manufacturing process decides the final quality of the stator core. Even if the material is good, poor processing can still increase losses.

Below is a simple but complete overview:

Step 1: Punching

Electrical steel sheets are punched into precise shapes using progressive stamping tools. Good precision reduces burrs and helps lower loss.

Step 2: Stacking and lamination

The punched sheets are stacked into a cylindrical shape. They can be bonded, welded, or riveted. The thinner the sheet, the smaller the eddy current loss.

Step 3: Insulation coating

A thin coating is applied to reduce magnetic short circuits between laminations.

Step 4: Slot insulation and treatment

The slots must stay smooth, insulated, and ready for winding insertion.

Step 5: Quality testing

Tests typically include:

• dimensional checks

• magnetic performance tests

• insulation durability tests

• vibration and noise analysis

Each step influences the final energy efficiency. Because of this, many factories now adopt laser cutting, automatic stacking, and even AI-driven quality control to improve accuracy and consistency.

5. Applications of Stator Cores Across Industries

Thanks to their essential function, stator cores are used in many applications:

• Electric vehicles

• Industrial drives

• Robotics and automation

• Home appliance motors

• Wind turbines

• Medical equipment

In EV motors, for instance, stator cores must handle high torque and quick acceleration. Meanwhile, in home appliances, manufacturers focus more on noise, vibration, and energy efficiency.

Because global demand is growing rapidly, stator core technology continues to develop to support new applications.

6. Why a High-Quality Stator Core Matters

A better stator core brings many advantages. Some of the most important ones include:

1. Higher efficiency

Thin laminations reduce iron loss and help motors run cooler.

2. Lower energy consumption

Lower heat generation means less wasted electricity.

3. More stable performance

Better materials reduce noise, vibration, and mechanical stress.

4. Longer motor lifetime

Low-loss cores help protect windings and bearings from heat damage.

5. Stronger competitiveness

High-efficiency motors meet global energy-saving standards and enhance product value.

Because many industries now care about sustainability, efficient stator core technology has become a key selling point.

7. Market Trends and Global Development

Today, several trends are reshaping the stator core market:

1. Ultra-thin laminations

0.20 mm or even 0.15 mm steel sheets are becoming popular to reduce loss.

2. High-speed motor development

High-speed compressors, EV motors, and robotics require better material and structure stability.

3. EV and new energy boom

Automakers demand high-grade electrical steel to support long-range EV motors.

4. Automation in manufacturing

More producers are upgrading to automated stacking and robotic handling to improve quality and consistency.

5. Sustainable manufacturing

Manufacturers now focus on lower waste and eco-friendly coating technology.

These trends show strong growth potential in the next decade. Companies that invest early in better stator core technology can win more opportunities in global markets.

8. Comparison: High-Quality vs. Standard Stator Cores

This comparison clearly shows why high-grade stator cores are becoming more common. As global buyers demand high performance, upgraded designs deliver more value.

9. Conclusion

The stator core is small in appearance but huge in impact. It influences motor efficiency, stability, noise, energy consumption, and lifetime. With increasing demand for high-performance motors, selecting the right stator core material and structure has become more important than ever.

Because of this, companies that offer optimized stator cores—especially in EV, industrial automation, and robotics—can stand out in today’s competitive market.
