Unveiling Motor Core Material and Rotor Design: A Practical Guide to High-Performance Motors

Electric motors power modern industry. They drive electric vehicles, automation systems, robotics, and generators. Because of this, performance requirements keep rising. In particular, motor core material plays a critical role. It directly affects efficiency, heat control, and lifespan. At the same time, rotor design must match the stator core. Only then can the system deliver stable output. Therefore, understanding both structure and materials becomes essential.

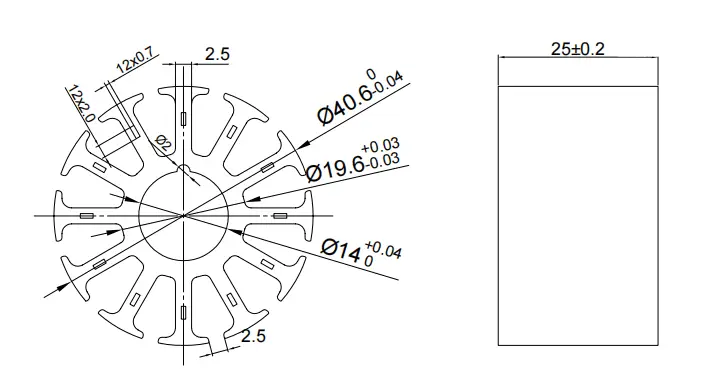

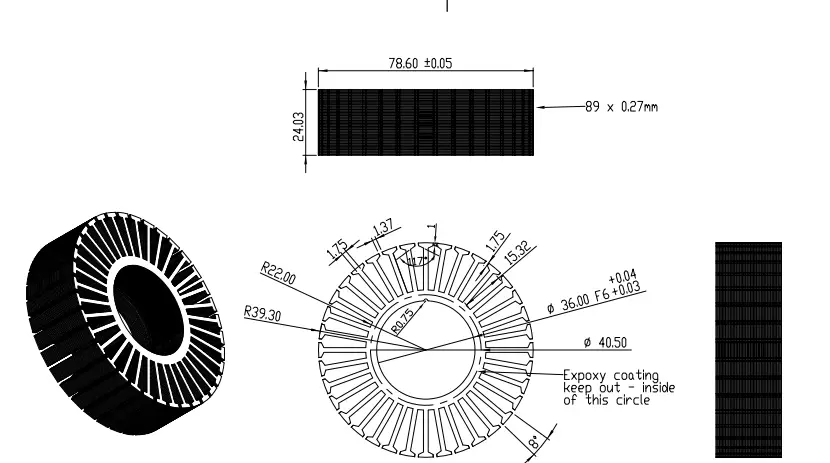

I. Motor Core Material Structure: Stator Design and Key Components

The stator core forms the magnetic foundation of the motor. In most cases, this motor core material structure includes several key parts:

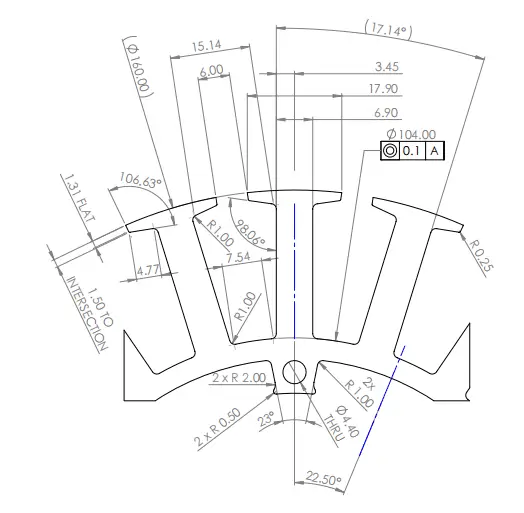

• Fan-shaped laminations
• Ventilation slot laminations
• Positioning ribs
• Upper and lower plates
• Tension bolts
• Support structures

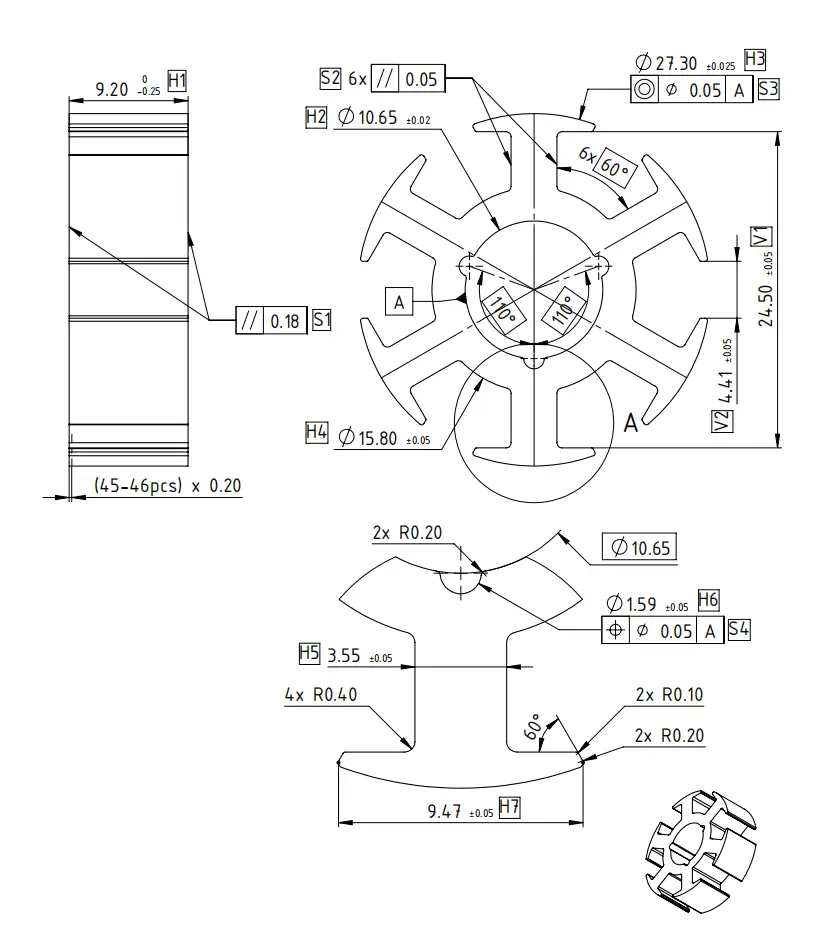

First, manufacturers stamp motor lamination material from silicon steel sheets.
Next, they stack the laminations along positioning ribs.
Then, they weld the ribs to the frame.
After that, they install support plates.
Finally, they tighten bolts to fix the full structure.

As a result, the stator core gains strength and stability. At the same time, it supports the windings under thermal and mechanical stress. For this reason, engineers must select the right motor core steel and structural design.

II. Silicon Steel Motor Core Material: Properties and Advantages

Why Engineers Choose Silicon Steel electric motor core steel

Engineers widely use silicon steel motor core material. This is because pure iron causes high energy loss.
However, silicon increases resistance. As a result, it reduces eddy current loss.

In addition, silicon steel offers high magnetic permeability. Therefore, it supports efficient energy conversion.
At the same time, it maintains stable magnetic performance under load.
Because of these benefits, it remains the preferred electric motor core material.

Types of Electrical Steel Core Material

Most electrical steel motor core materials fall into these categories:

• Cold-rolled non-oriented steel
• Cold-rolled oriented steel
• Hot-rolled steel

Among these, non-oriented steel works best in rotating machines. This is because it performs well in all directions.
Therefore, engineers often use it in EV motors and industrial equipment.

---

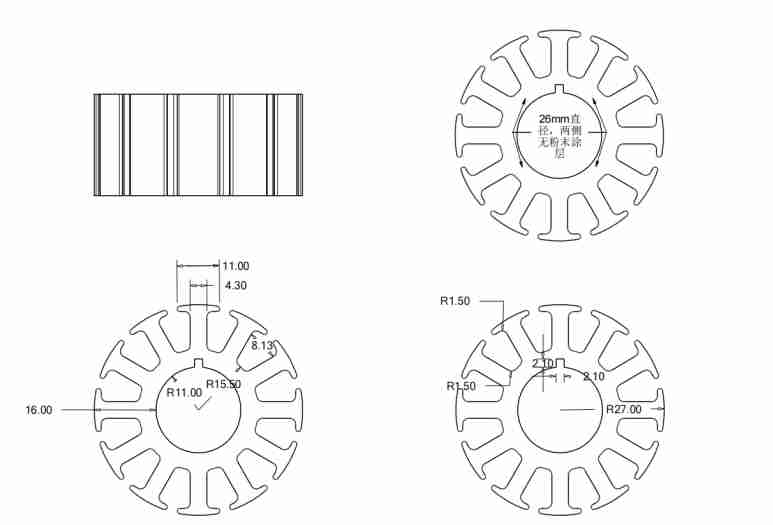

III. Motor Lamination Material Design and Stacking Techniques

Lamination design strongly affects motor core material performance. Instead of simple shapes, engineers use precise geometry.

For example, they design:

• Small gaps (0.2–0.25 mm)
• Chamfered slot edges
• Optimized slot layouts

At the same time, they apply staggered stacking methods such as 1/3 or 1/4 patterns.
Because of this, shaft currents decrease.
Meanwhile, magnetic flux becomes more stable.
As a result, the overall efficiency of the motor core steel system improves.

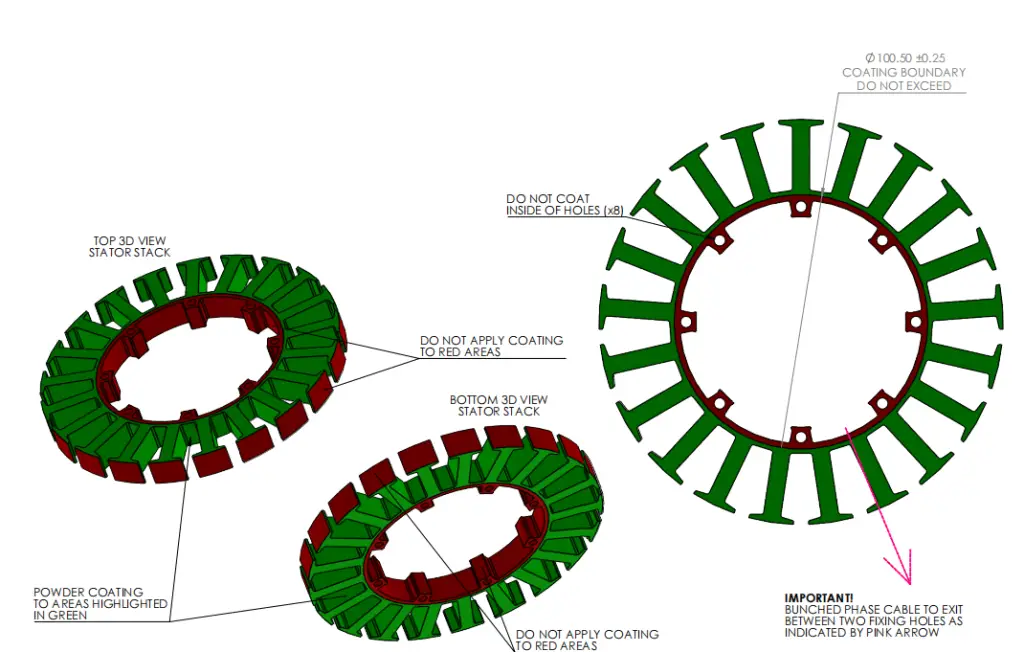

IV. Insulation Systems in magnetic core material

Insulation protects the motor core material from energy loss. Without it, performance drops quickly.

Therefore, manufacturers apply coatings after stamping.
Typically, they use:

• Class A insulation
• Class F insulation
• Thin coatings (0.015–0.02 mm)

With proper insulation, eddy current loss decreases.
In addition, the core resists heat and stress.
Over time, this improves durability.
For this reason, insulation quality remains a key factor in motor core material performance.

V. Cooling and Ventilation in motor core steel Systems

Cooling directly impacts motor reliability. Therefore, engineers design ventilation systems carefully.

Common solutions include:

• Fan-shaped laminations
• Radial ventilation channels
• Ventilation steel and liner rings

In addition, designers use non-magnetic materials where needed.
This helps reduce internal losses inside the motor core steel structure.
At the same time, airflow removes heat efficiently.
As a result, motors operate at stable temperatures and maintain high efficiency.

VI. Rotor Materials and electrical steel core Matching

Rotor materials must align with the motor core material. Otherwise, efficiency drops.

Squirrel-Cage Rotor

• Aluminum or copper
• Simple structure and low cost
• Works well with standard silicon steel cores

Wound Rotor

• Copper windings
• Allows speed and torque control
• Suitable for heavy-duty systems

Permanent Magnet Rotor

• NdFeB or ferrite magnets
• High efficiency and compact size
• Ideal for EVs and robotics

In summary, each rotor type serves a specific need. Therefore, engineers must match it carefully with the stator core material.

VII. Performance Trade-Offs in Motor Material Selection

Every motor core material choice involves trade-offs. For example:

• Efficiency vs Cost: Copper improves efficiency, but increases cost
• Size vs Power Density: Magnets reduce motor size
• Heat vs Lifespan: Better insulation extends life
• Thickness vs Manufacturing: Thin laminations reduce loss but increase complexity

Because of these trade-offs, engineers must balance performance and cost.
At the same time, they must consider manufacturability.

VIII. Application-Specific Motor Material Solutions

Different industries require different motor core material solutions. Therefore, engineers adjust designs.

• Electric Vehicles: Require high efficiency and compact design
• Industrial Automation: Focus on durability and stability
• HVAC Systems: Emphasize cost control
• Robotics: Demand precision and performance

In each case, the right motor core material improves results.
As a result, systems achieve better efficiency and reliability.

IX. Manufacturing Control for motor core steel

Production quality directly affects motor core material performance. So, manufacturers must control key factors:

• Core alignment
• Slot accuracy
• Burr levels
• Insulation quality
• Frame strength
• Vibration levels

When manufacturers control these factors, motors run smoothly.
In addition, they reduce failure risk.
Therefore, high-quality manufacturing ensures long-term performance.

X. B2B Sourcing Strategy for Motor Core Material

Buyers must choose suppliers carefully. Therefore, they should evaluate:

• Production capability
• Material certification
• Customization options
• Cost efficiency

By doing this, companies secure reliable motor core material supply.
At the same time, they reduce long-term costs and risks.

XI. FAQ

Q1: What is motor core steel?
It refers to magnetic materials, usually silicon steel, used in motor cores.

Q2: Why is silicon steel widely used?
Because it reduces energy loss and improves efficiency.

Q3: What affects motor core material performance?
Lamination thickness, insulation, and stacking quality.

Q4: Which rotor works best with advanced motor lamination factory?
Permanent magnet and copper rotors offer high efficiency.

Q5: How can cooling be improved?
By using ventilation channels and optimized airflow.

XII. Conclusion: Improving Performance with the Right motor lamination factory

Choosing the right motor core material is essential. In fact, it defines efficiency and lifespan.
At the same time, rotor design must match the stator core.
When both elements align, motors deliver optimal performance.

Ultimately, advanced materials, proper insulation, and effective cooling lead to reliable and efficient motors.
