What Does “Motor Winding” Mean? A Complete, Easy-to-Understand Guide

Motor winding is one of the most important parts inside any electric motor. If you work in manufacturing, engineering, automation, or industrial equipment, you have seen this term many times. But many people still ask a simple question: What does “motor winding” mean?

What Is Motor Winding?

Motor winding refers to the coils of copper wire placed inside an electric motor. These coils create the magnetic field needed to make the motor rotate. When electricity flows through the winding, it produces a force that drives motion.

Every electric motor, from a tiny fan motor to a large industrial generator, uses some type of winding.

Motor winding matters because it helps control:

Why Is Motor Winding Important?

Efficiency

High-quality motor windings reduce electrical losses. This means the motor wastes less energy and runs cooler.

Durability

Good winding reduces the chance of overheating, short circuits, or insulation breakdown.

Power Output

Stronger magnetic fields allow more torque and better power density.

Noise and Vibration

Precise winding minimizes motor noise and improves smooth rotation.

Where Are Motor Windings Used?

Here are some common areas:

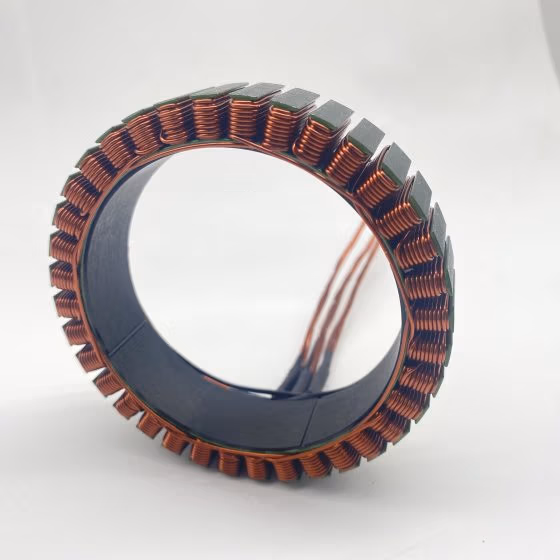

Copper wire motor winding on stator core

Copper wire motor winding on stator core

How Does Motor Winding Work?

Motor winding works based on electromagnetism. When current flows through a coil of wire, it produces a magnetic field. By placing these coils inside specific positions in the stator or rotor, the motor can generate rotating force.

Simplified steps:

  1. Electricity enters the motor.

  2. The winding receives the electrical current.

  3. The current creates a magnetic field.

  4. The magnetic field interacts with the rotor.

  5. The rotor starts spinning.

  6. The spinning produces mechanical energy.

The entire process is clean, smooth, and repeatable.

Types

Motor windings come in several types. Each type works differently depending on the motor’s design and performance needs.

Stator Winding

Stator winding is the most common type. It is placed around the motor housing. The stator does not rotate. Instead, it creates a rotating magnetic field that drives the rotor.

Common areas of use:

Field Winding

Field winding produces the magnetic field in some DC motors and synchronous motors.

Used in:

  • Generators

  • Large industrial motors

Armature Winding

Armature winding carries current and interacts with the magnetic field to produce torque.

Found in:

  • DC motors

  • Universal motors

  • Alternators

Concentrated Winding

A compact winding placed around a single tooth.

Benefits:

  • High torque density

  • Compact size

  • Used in BLDC and axial flux motors

Distributed Winding

Coils spread over several stator slots.

Benefits:

  • Smooth rotation

  • Lower noise

  • Used in AC induction motors

Key Materials

Winding quality depends on the materials used. The main materials include:

Copper Wire

Copper is the most common winding material. It offers:

  • High electrical conductivity

  • Low resistance

  • High efficiency

Generator motor winding copper wire

Generator motor winding copper wire

Aluminum Wire

Used in cost-sensitive or lightweight applications.

Insulation Materials

These protect the wire from short circuits.

Common insulation:

  • Polyimide film

  • Enamel coating

  • Polyester

  • Fiber sleeves

Silicon Steel Laminations

The stator core often uses silicon steel sheets.

Benefits:

  • Reduces eddy current losses

  • Improves efficiency

  • Works well for high-speed motors

This is common in EV motors, generators, and robotics.

Manufacturing Methods

The manufacturing processes for motor windings are diverse, and the specific selection requires comprehensive consideration of motor size, production cost, and performance requirements.

Manual Winding

Manual winding requires specialized tools and manual operation. It offers high flexibility and is suitable for prototype development, customized motor manufacturing, and small-batch production, enabling rapid response to personalized needs.

Pin Winding

Pin winding offers high precision and stable repeatability, with precise process control. It is a common method in brushless DC motor stator manufacturing, ensuring product consistency.

Flying Plate Winding

Flying plate winding is a traditional circular coil winding process. It is technically mature and widely used, suitable for various motor production processes with basic requirements for coil shape.

Insertion-Type Coil Winding

Insertion-type coil winding uses a prefabricated coil approach. The coil is manufactured separately and then embedded into the stator slot for assembly. The process is clear and suitable for mass production needs.

Hairpin Winding

Hairpin winding is a modern, advanced process using rectangular copper wire, commonly known as flat wire winding. Its high slot fill factor (copper filling rate) and low resistance significantly improve motor operating efficiency and offer superior heat dissipation, making it widely used in demanding applications such as electric vehicle traction motors.

Winding Services and Outsourcing Many companies offer professional winding outsourcing services, covering core aspects such as custom stator windings, rotor winding fabrication, coil insertion, and layered insulation treatment. These high-precision professional services not only ensure winding manufacturing quality but also effectively improve overall motor performance, while shortening production cycles and lowering the barriers to in-house production.

Motor winding structure with copper coils

Motor winding structure with copper coils

How Motor Winding Affects Performance

Efficiency

Better winding reduces losses.

Torque and Speed

The number of turns and wire thickness affect motor torque.

Heat Management

Good winding produces less heat.

Noise

Balanced winding reduces vibration.

Motor Longevity

Quality insulation and precise winding prevent breakdown.

Small differences in winding quality can lead to large performance changes.

Common Problems

Motor windings can fail for several reasons.

Overheating

Too much heat breaks insulation and causes short circuits.

Moisture

Humidity can reduce insulation strength.

Vibration

Loose windings may wear down insulation.

Electrical Stress

Over-voltage conditions damage winding layers.

Mechanical Wear

Rotors and stators may rub when bearings fail.

Regular inspection reduces failure risk.

Applications

Motor winding technology continues to grow. Today’s advanced motors use optimized winding to boost efficiency.

Electric Vehicles

High-density windings improve range.

Robotics

Precise winding ensures smooth motion.

Aerospace and eVTOL

High power, lightweight windings are essential.

Generators

Field and armature windings help produce electricity.

Axial Flux Motors

Concentrated windings improve efficiency and torque density.

Summary

Motor winding refers to coils of insulated wire that create magnetic fields inside electric motors. They affect efficiency, torque, speed, and durability.

A high-quality motor winding uses:

  • High-grade copper

  • Good insulation

  • Proper coil shaping

  • Accurate manufacturing

  • Precision stator and rotor cores

Motor winding appears in EVs, robotics, aerospace, automation, generators, pumps, fans, and many other fields.
